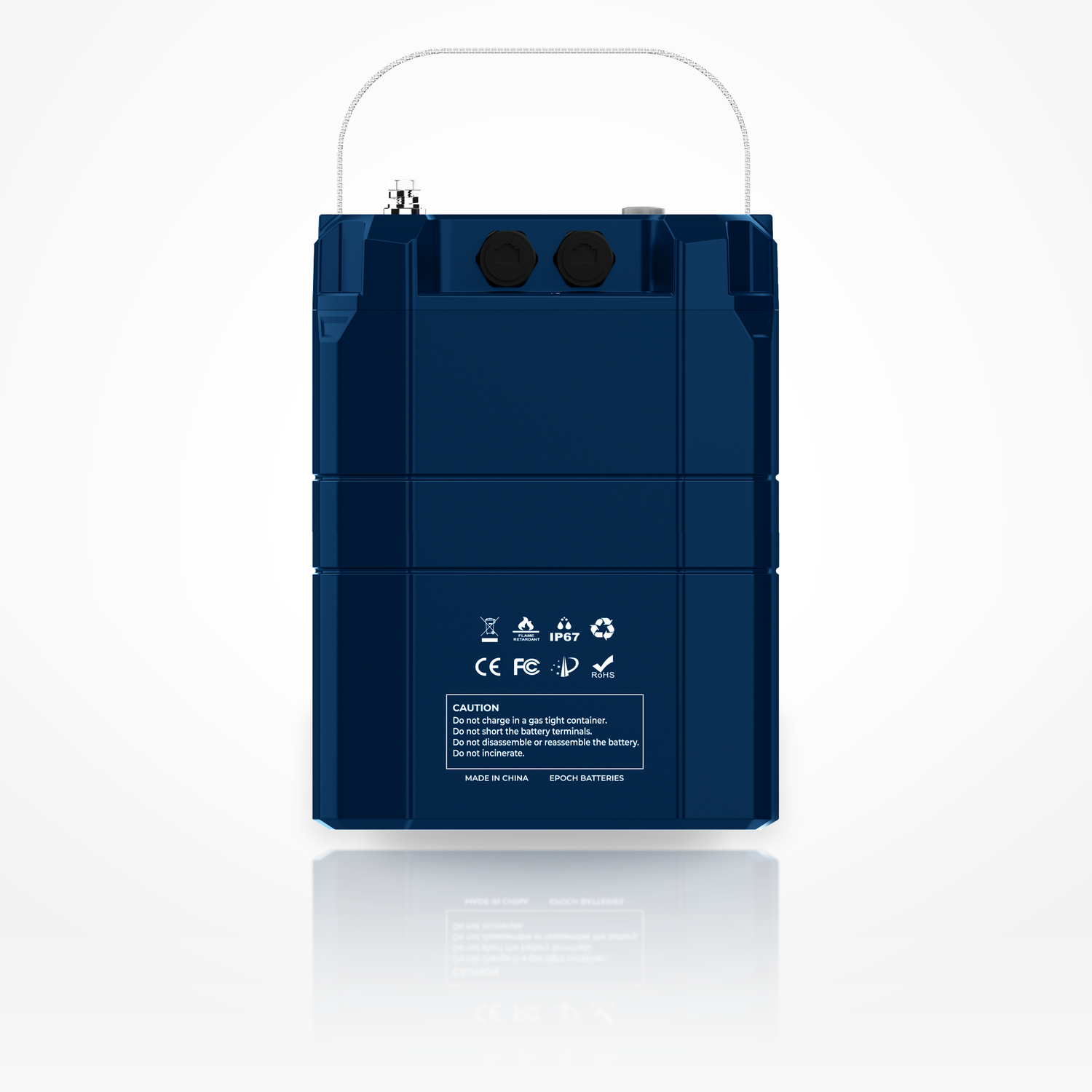

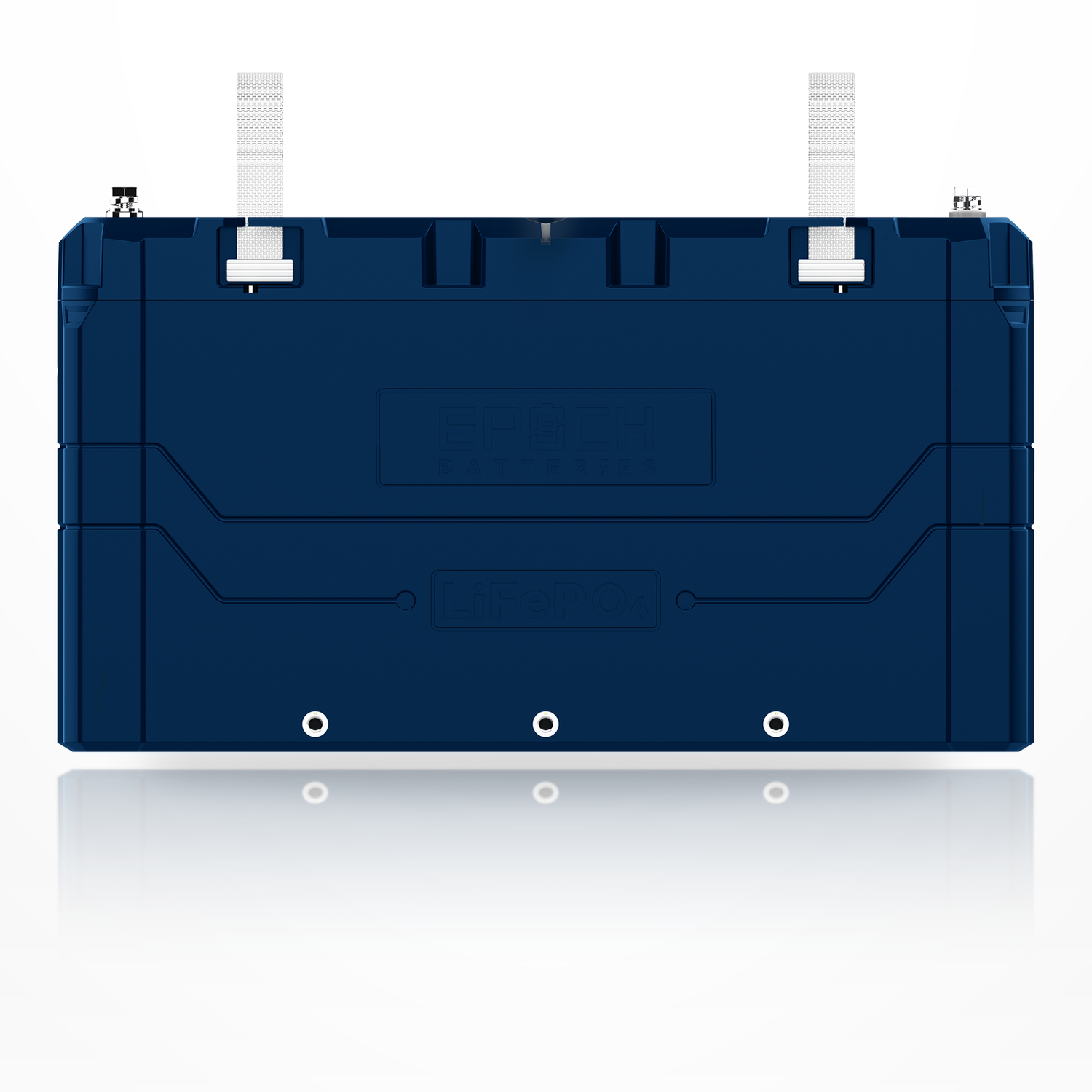

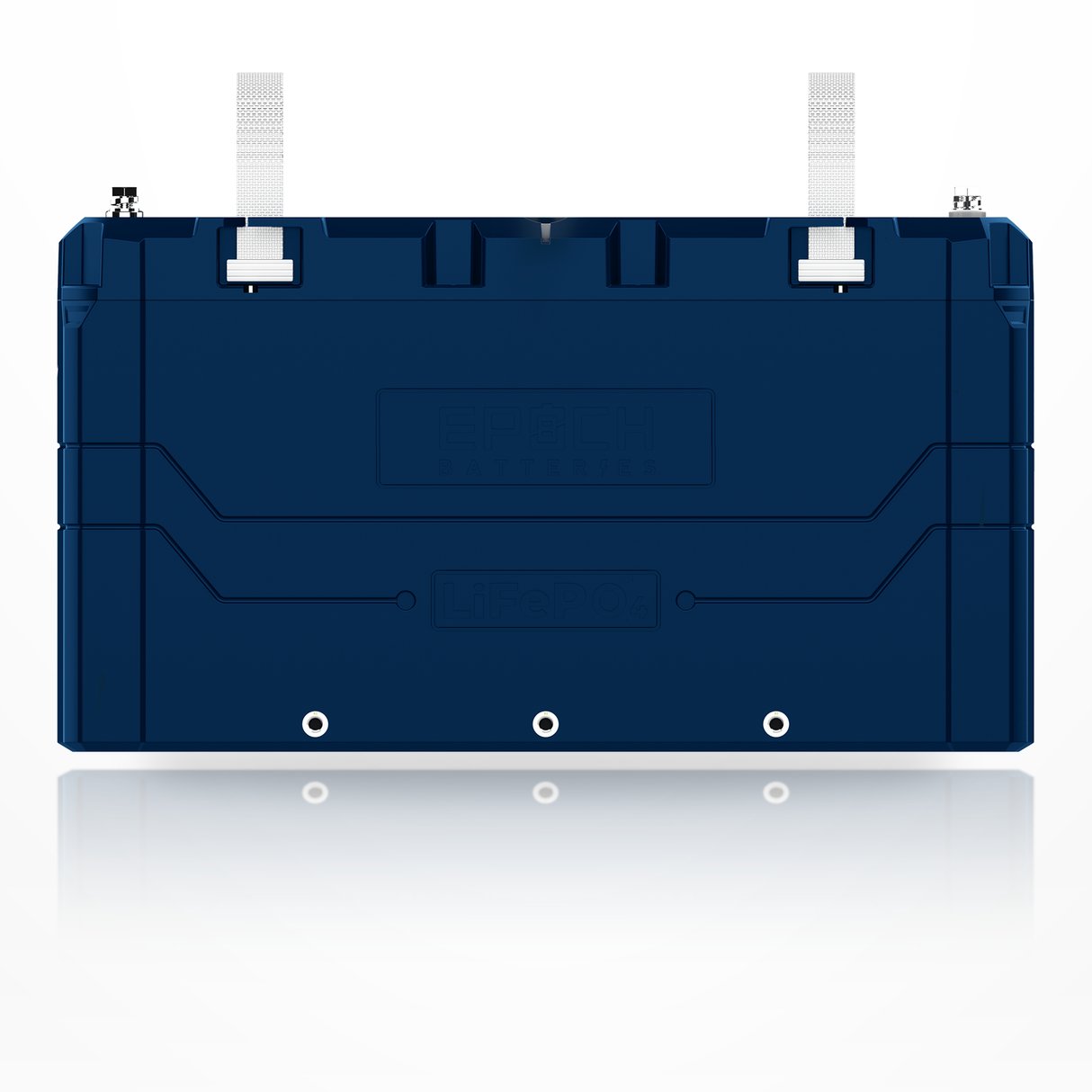

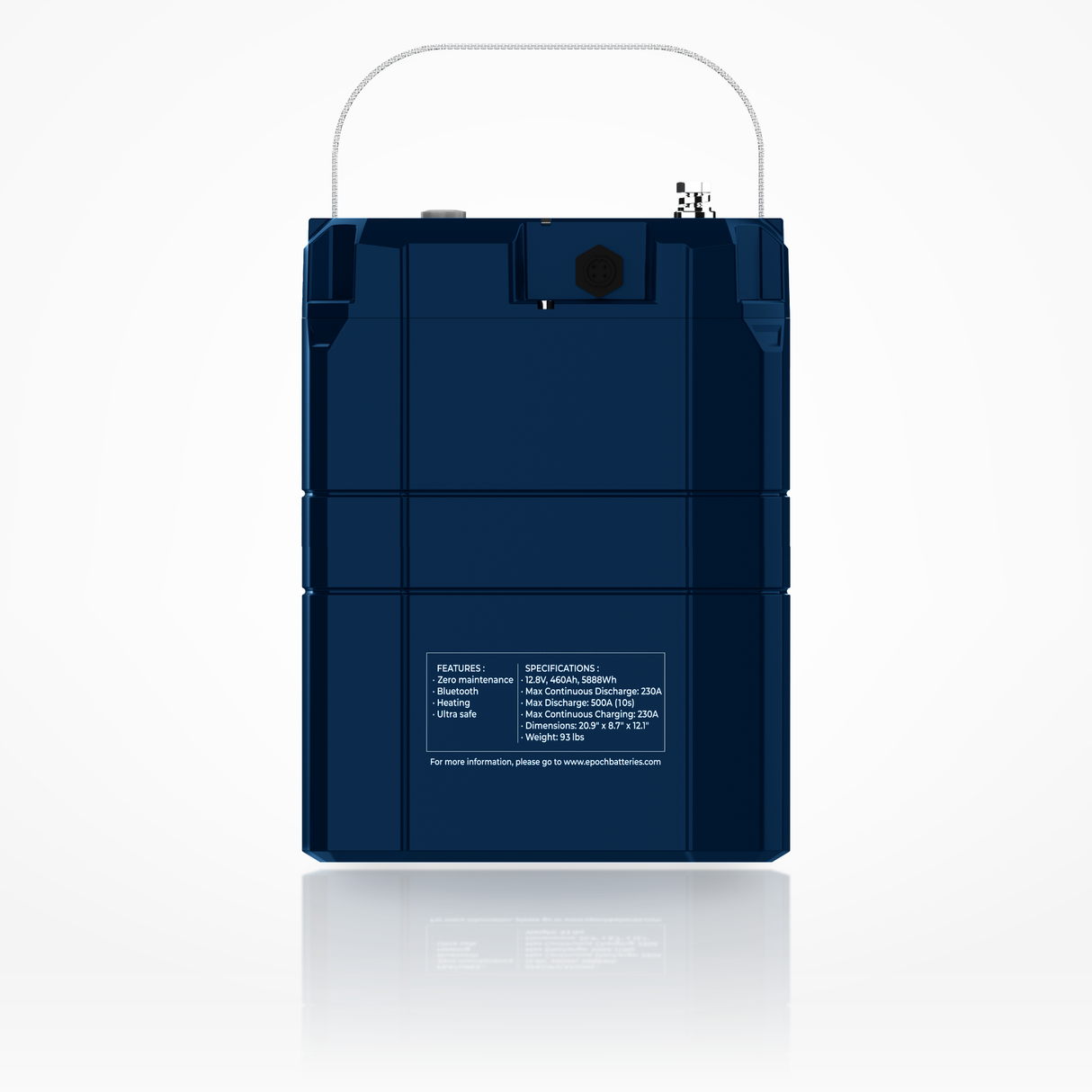

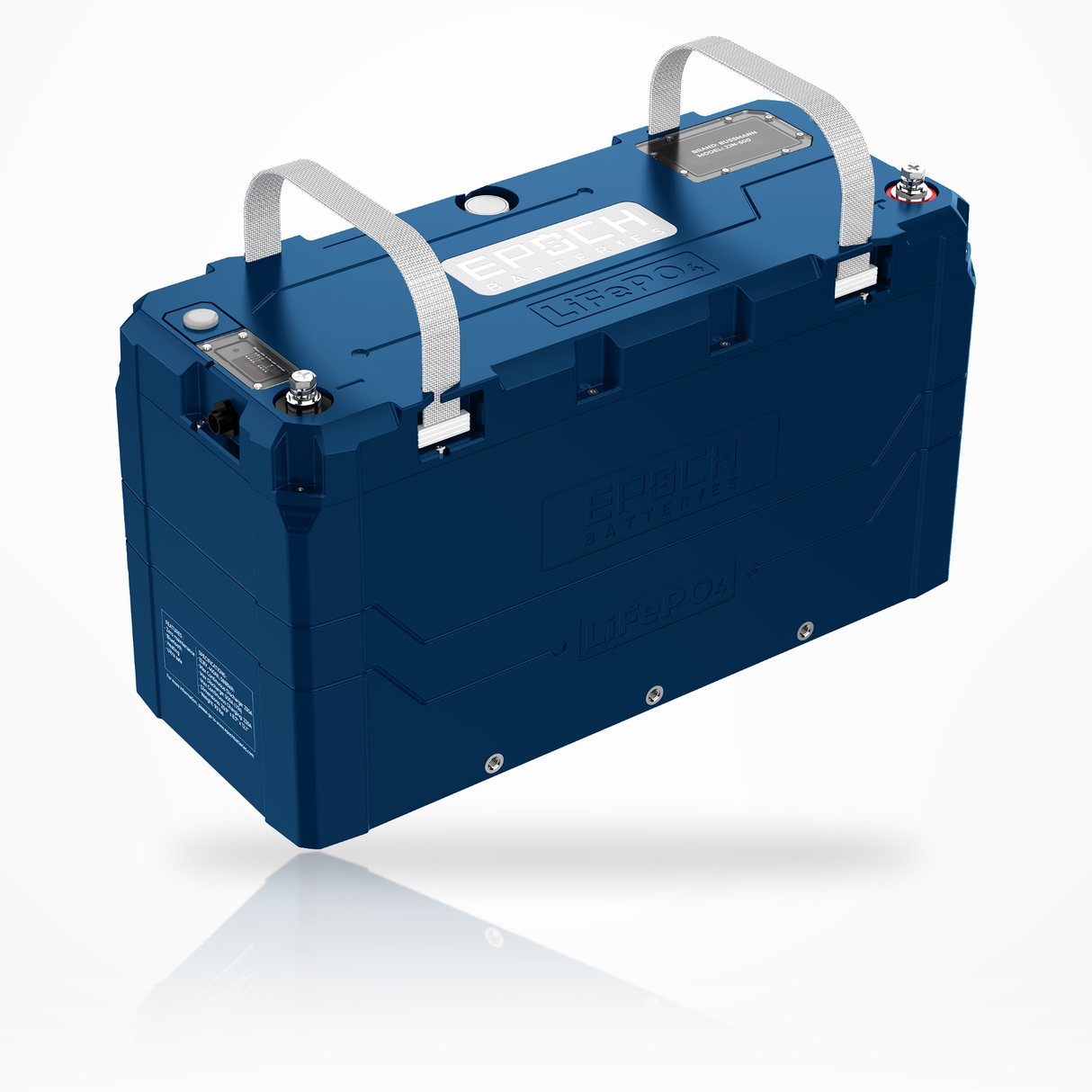

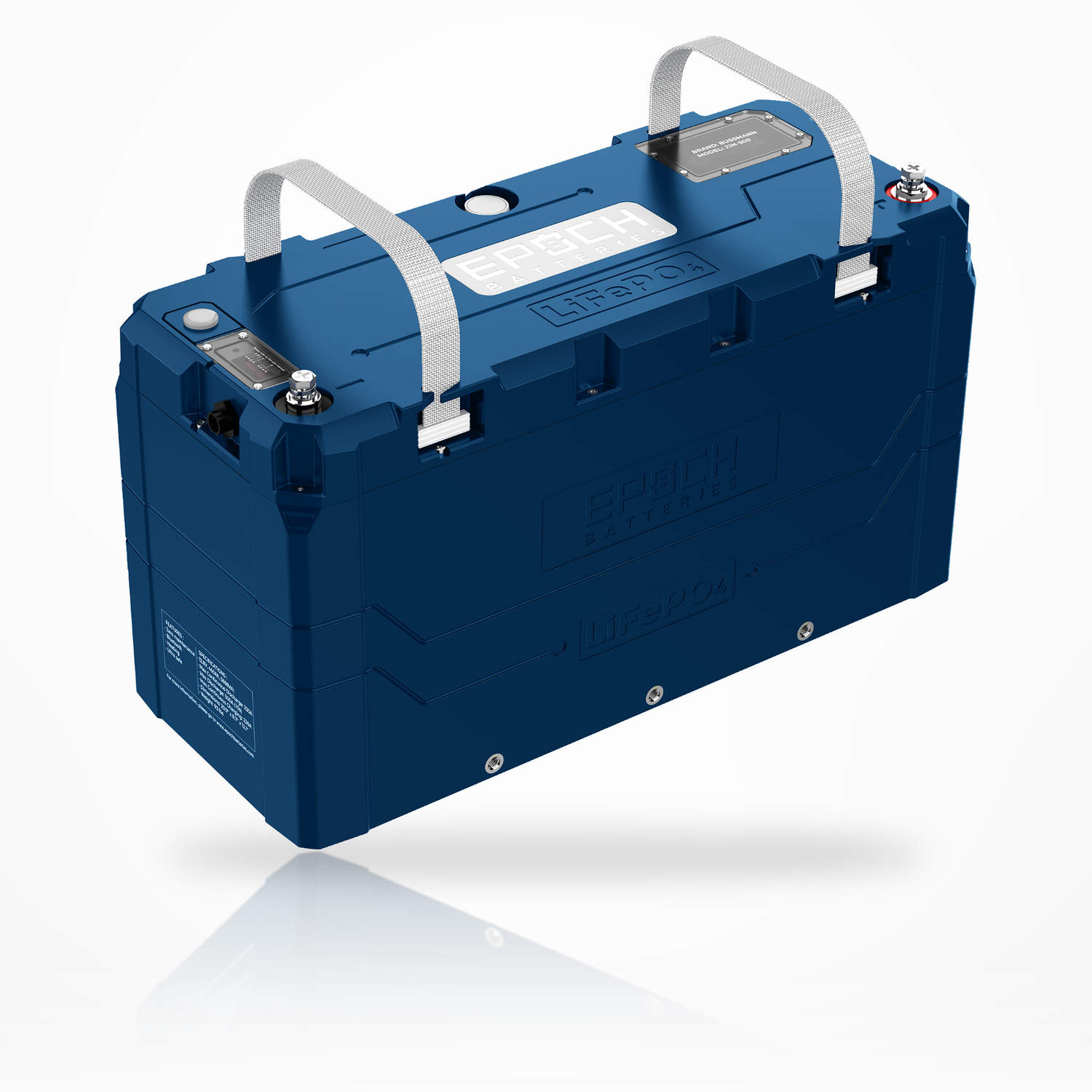

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Pickup available at our Marathon storefront
Available for pickup or shipping
12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh) is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup available at Marathon Storefront
Usually ready in 24 hours
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.

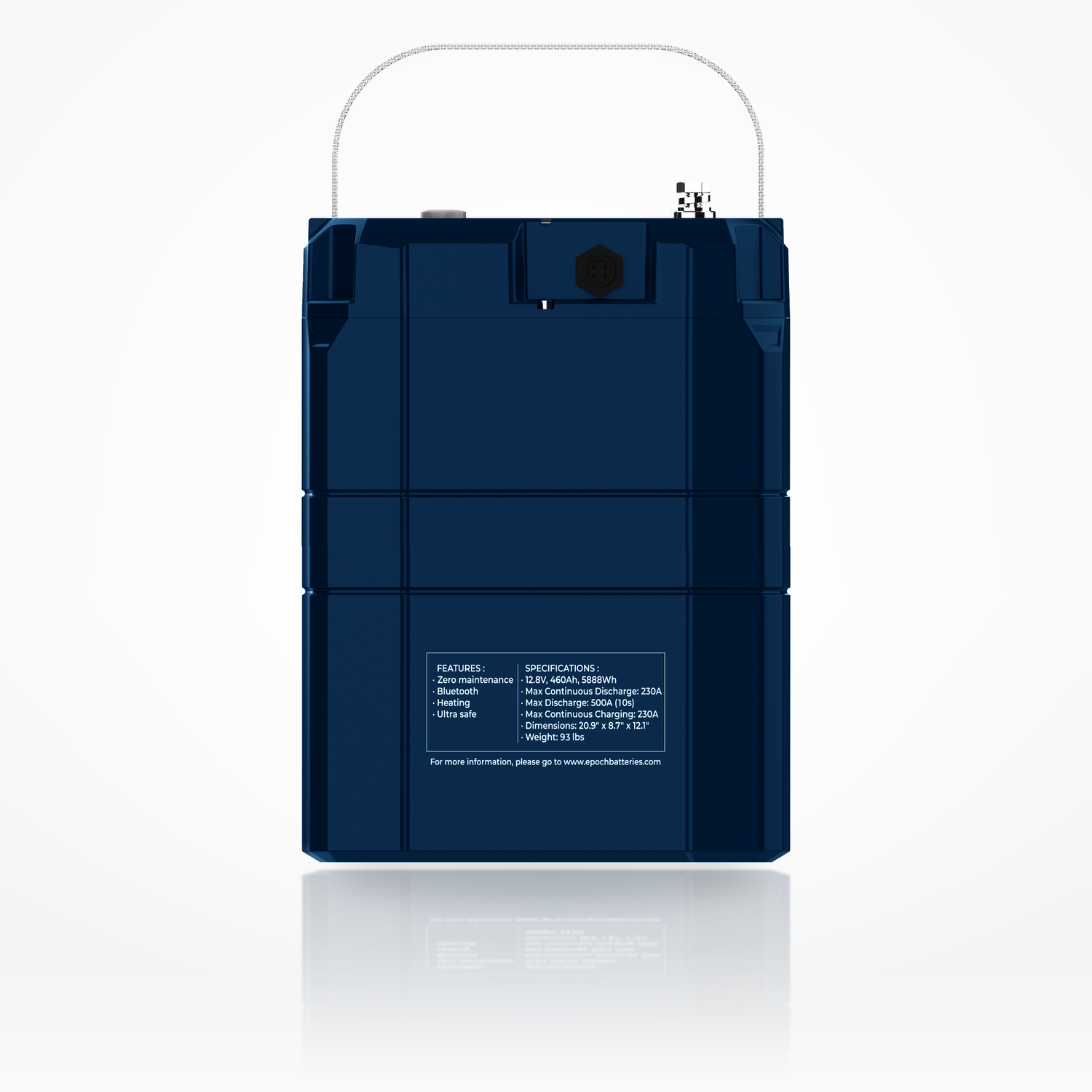

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh) is backordered and will ship as soon as it is back in stock.
Description
Description
Why we carry Epoch: an American company that stands behind its batteries, answers the phone, and offers real tech support for boat and RV owners. Read why we buy Epoch
Shop the Epoch 12V 460Ah V2-T Elite LiFePO4 battery. Features 5.89kWh capacity, Victron CANbus, internal heating, and a built-in 400A Class T fuse.
Features
- 5.89kWh stored energy in one case

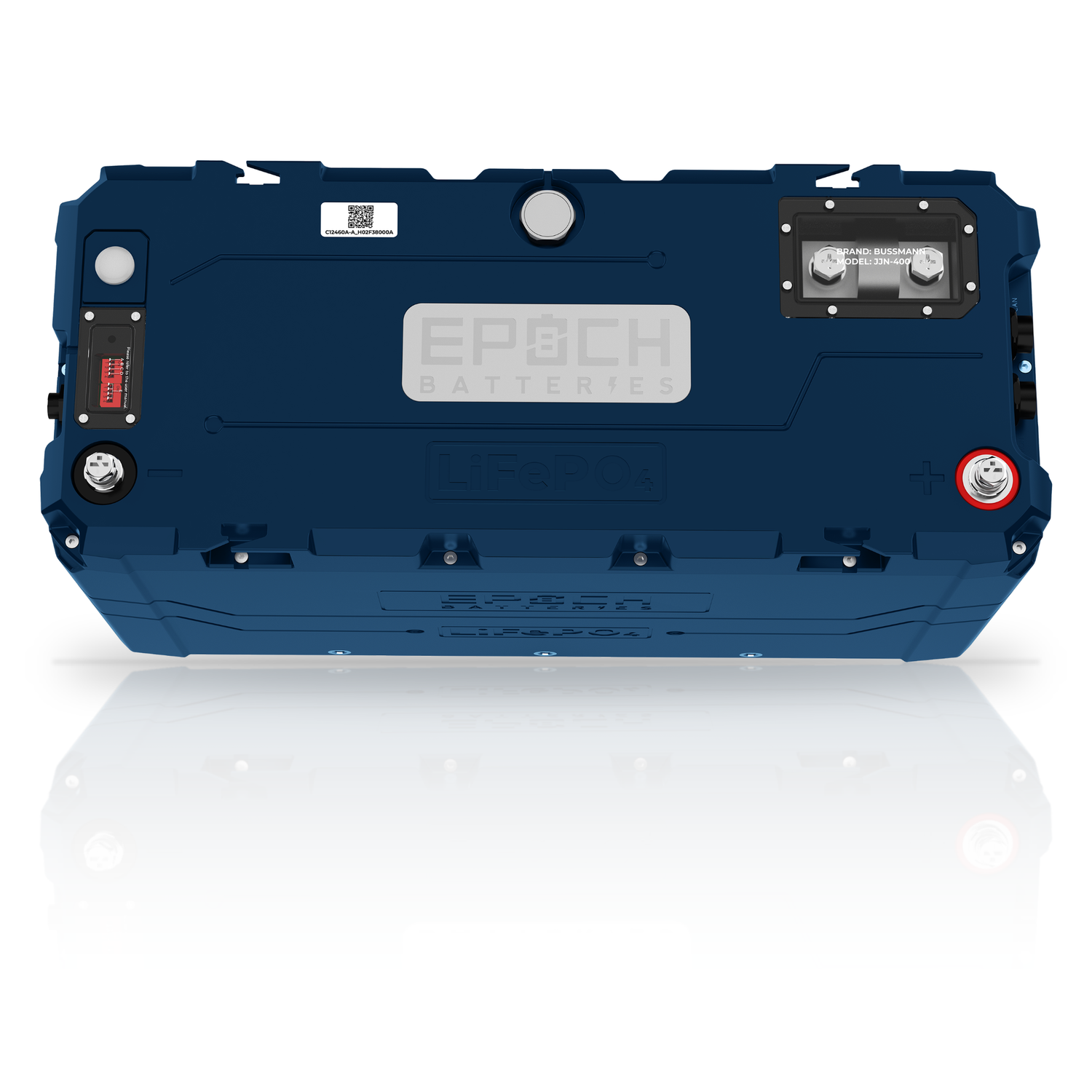

- Integrated user-serviceable 400A Class T fuse (Eaton Bussmann JJN-400)
- Native Victron CAN at 500 kbit/s with DVCC charge-limit and state-of-charge reporting
- 180.67W internal heater warms the cells for cold-weather charging
- IP67 enclosure: dust-tight, immersion to 1 m for 30 minutes with all seals installed

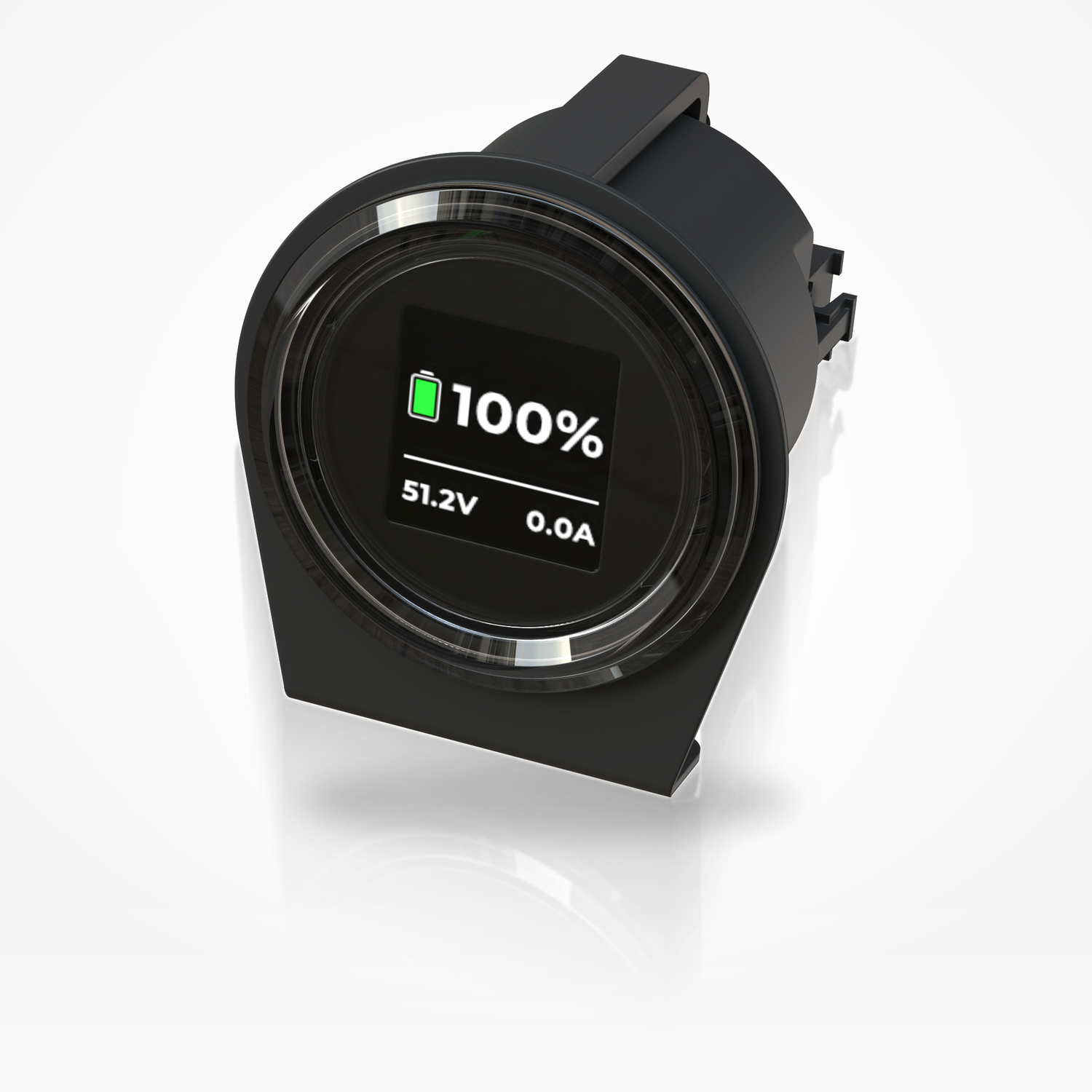

- Bluetooth State of Charge meter included, for the Epoch Cloud app
- 230A continuous, 500A for 30 seconds, 1,300A for 1 second
- Up to 16 in parallel or 4 in series (not both)
Specifications
| Epoch part number | C12460A-A |
| Electrical | |
|---|---|
| Capacity | 460Ah (5,888Wh) |
| Nominal voltage | 12.8V |
| Max charge voltage | 14.52V |
| Operating voltage range | 10.4V to 14.52V |
| Max continuous discharge | 230A (0.5C) |
| Peak discharge | 500A for up to 30 seconds; 1,300A for up to 1 second |
| Max continuous charge | 210A (0.45C) |
| Recommended charge current | 210A (0.45C) |
| Series / parallel | Up to 4 in series or up to 16 in parallel; series-parallel not supported |
| Cells | LiFePO4, 4S2P (230Ah cells) |
| Cycle life | More than 3,500 cycles to 70% capacity (25°C, 0.5C charge, 1C discharge, 70% DoD) |
| Cold cranking amps | Not cranking-rated |
| Charger settings | |
| Bulk / absorption | 14.2V, 15 min per battery in the bank |
| Float | 13.5V |
| Equalization | Disabled |
| Temperature compensation | Disabled (0 mV/°C) |
| Temperature | |
| Charging | 32°F to 122°F (0°C to 50°C) |
| Discharging | -4°F to 122°F (-20°C to 50°C) |
| Storage | 32°F to 95°F (0°C to 35°C) up to 1 year; -4°F to 113°F (-20°C to 45°C) up to 1 month |
| Self-heating | Yes (180.67W; on below 41°F (5°C) while charging, off at 50°F (10°C)) |
| Physical | |
| Weight | 97.55 lb (44.25 kg) |
| Dimensions (L × W × H) | 20.86 × 8.65 × 12.06 in (529.8 × 219.8 × 306.3 mm) |
| Terminals | M8 bolts, 12 N·m (8.85 lb·ft) |
| Water resistance | IP67 (dust-tight, immersion to 1 m for 30 minutes with all seals installed) |
| Bluetooth | Yes, Bluetooth 4.0 in the included State of Charge meter (Epoch Cloud app) |
| Communications | CAN bus 500 kbit/s, Victron GX / DVCC |
| Warranty | 11 years |
| Included | |
| In the box | State of Charge meter with Bluetooth, external power switch, communication harness with RJ45 Victron cable |
Dimensions
From Epoch: Epoch datasheet (PDF) · Epoch product page
Specs are from Epoch's published datasheet. Confirm system voltage, charger settings, wiring and installation requirements before use.
Ships directly from Epoch Batteries.
