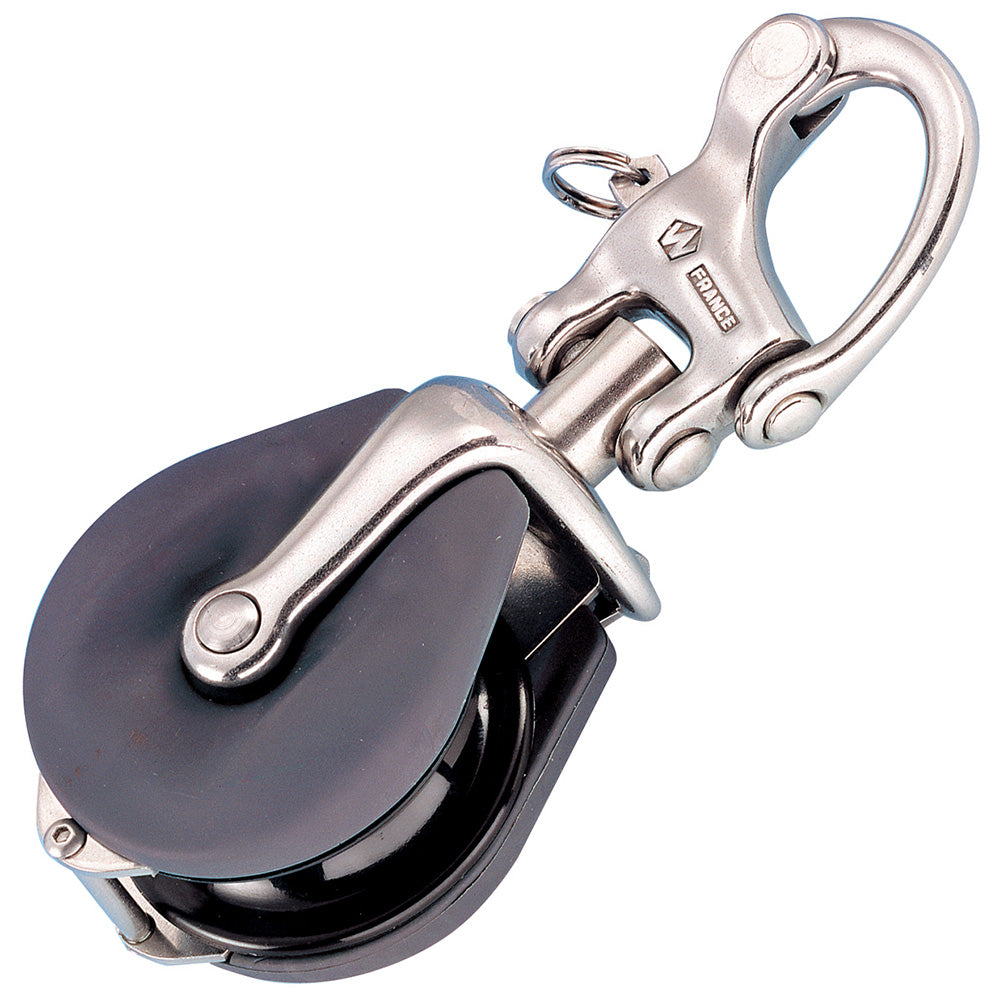

Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") [35500W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") [35500W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32&quo...
Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32") [35500W] is backordered and will ship as soon as it is back in stock.
Description
Description
Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")
Features:
- Free rotation thanks to snap shackle
- Very strong closing system
- Easy opening by simply pulling on the plunger pin
- Shock and scratch-resistant thanks to the elastomer molded cheeks
Applications:
- Changing sheets
- Spinnaker sheet deflector blocks
Materials:
- HR 17.4 PH forged stainless steel arm
- Elastomer molded cheeks
- Composite sheave
Specifications:
- Rope size: (inch) 23/32" / (mm) 18
- Length: (inch) 6 7/64" / (mm) 155
- Width: (inch) 2 21/64" / (mm) 59
- Thickness: (inch) 1 59/64" / (mm) 49
- Working Load: (lb) 2640 / (kg) 1200
- Breaking Load: (lb) 5510 / (kg) 2500
- Weight: (lb) 0.913 / (g) 414
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
