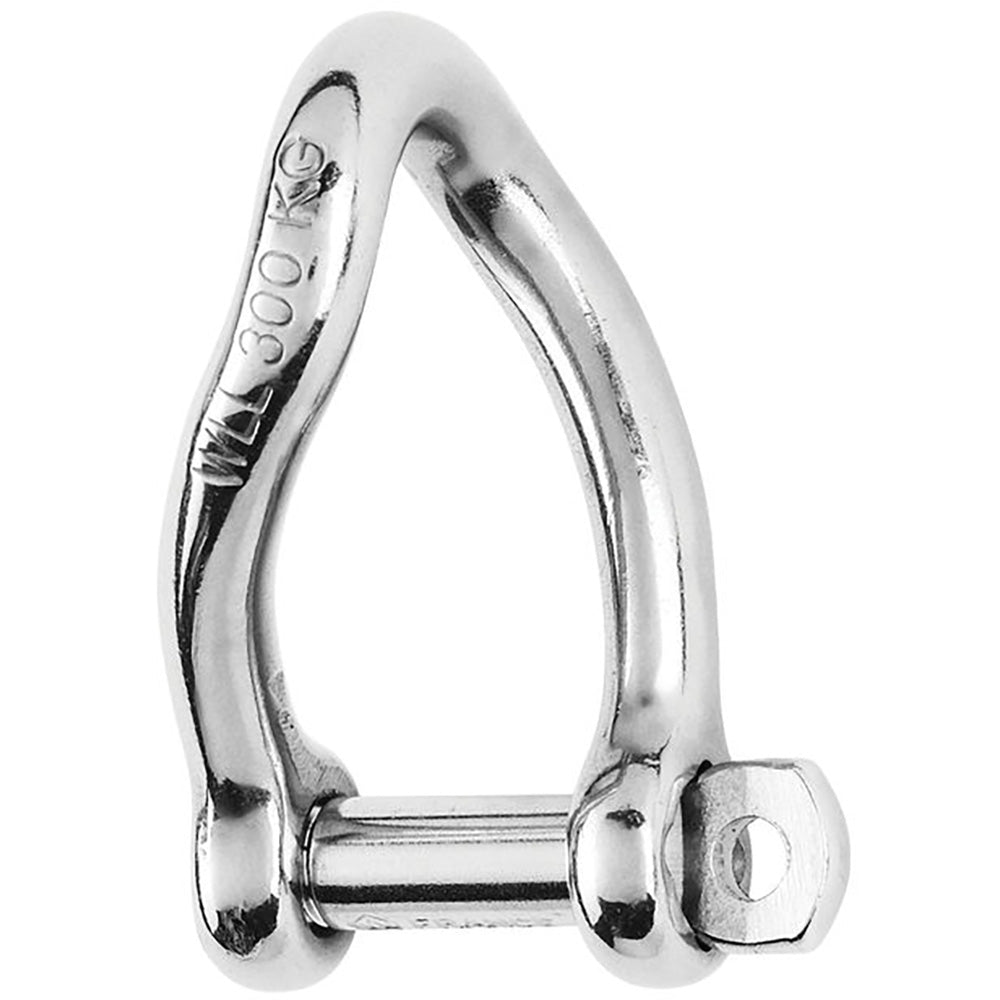

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" ...
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W] is backordered and will ship as soon as it is back in stock.
Description
Description
Self-Locking Twisted Shackle - Diameter 10mm - 13/32"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for applications where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- Breaking load: (lb) 9920 / (kg) 4500
- Weight: (lb) 0.28 / (g) 127

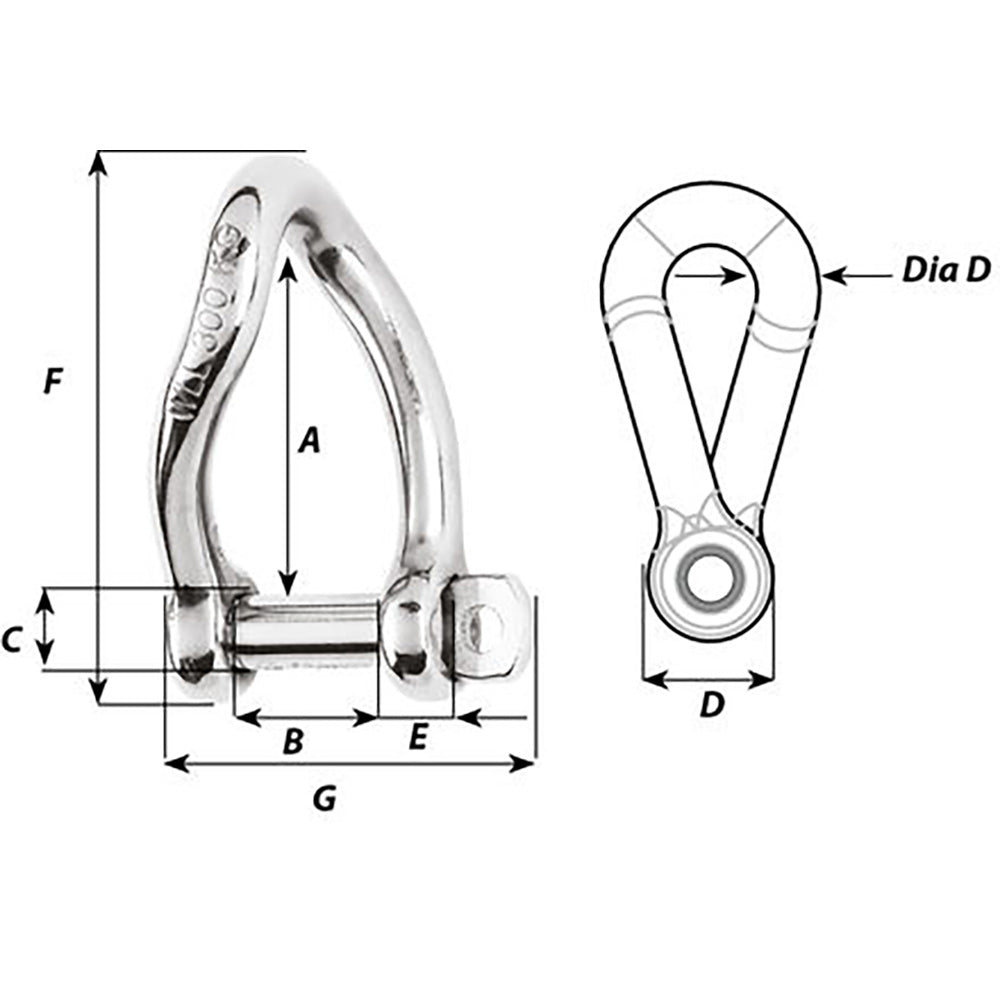

Dimensions:
- A: (inch) 1 31/32" / (mm) 50
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- F: (inch) 2 29/32" / (mm) 74
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
