Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [2376W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [2376W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16&quo...
Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [2376W] is backordered and will ship as soon as it is back in stock.
Description
Description
HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
- Its flat design allows attaching a webbing
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 8480 / (kg) 3850

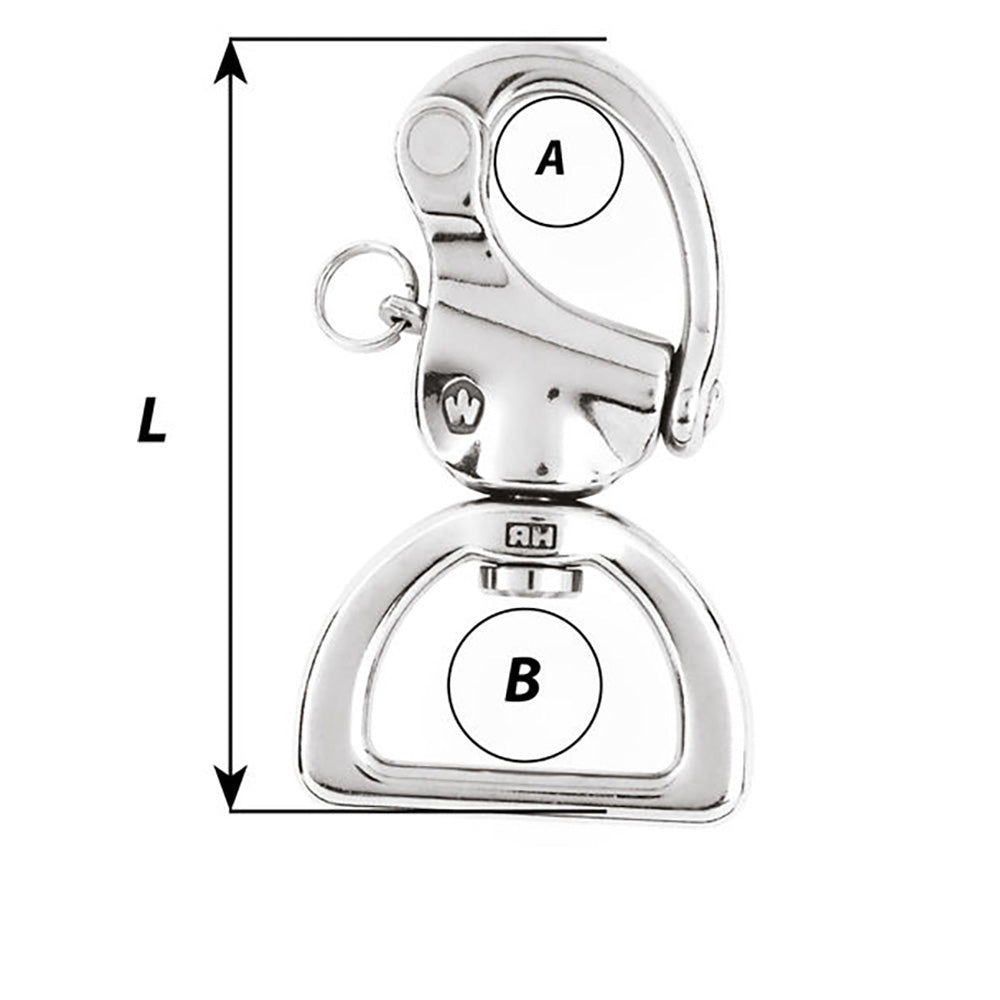

Dimensions:
- A: (inch) 53/64" / (mm) 21
- B: (inch) 1 37/64" / (mm) 40
- Length: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
