Wichard HR D Shackle - 20mm Diameter - 25/32" [11209W]
Wichard HR D Shackle - 20mm Diameter - 25/32" [11209W] is backordered and will ship as soon as it is back in stock.
Description
Description

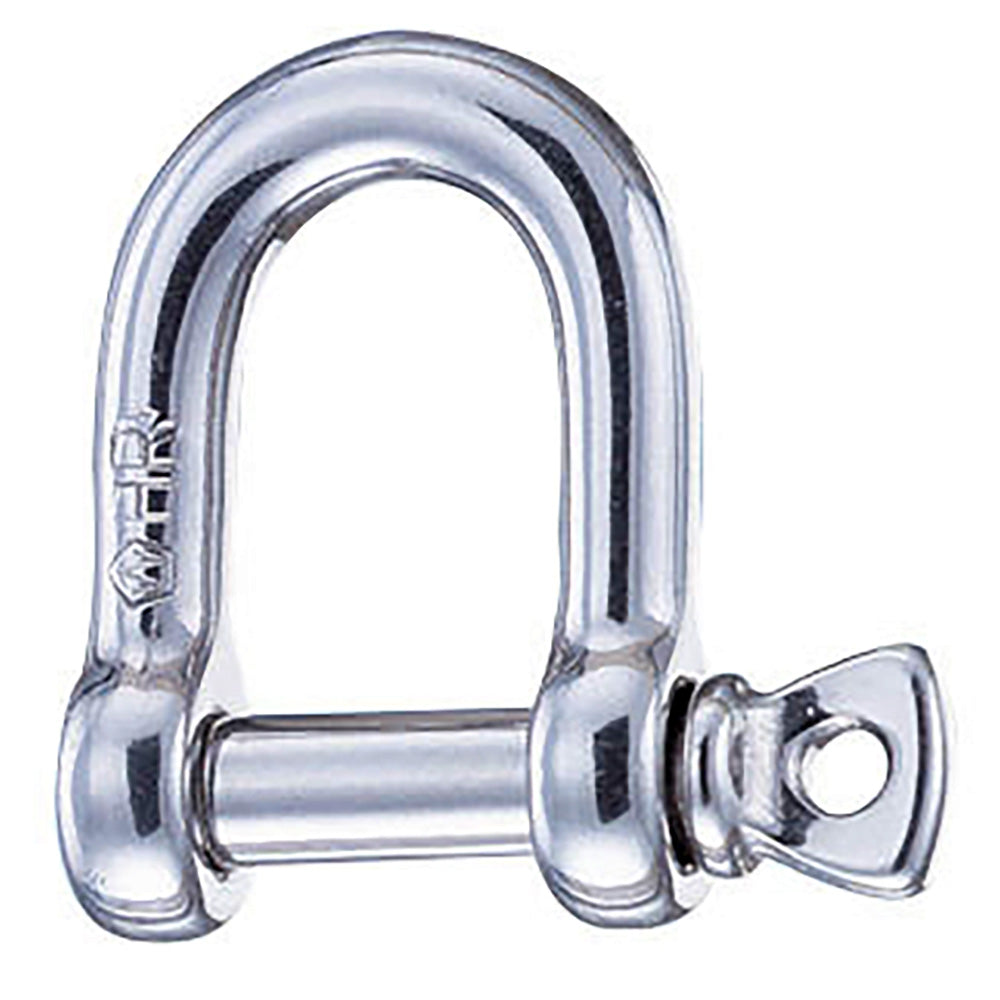

HR D Shackle - 20mm Diameter - 25/32"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 19400 / (kg) 8800
- WLL: (lb) 12340 / (kg) 5600
- Breaking load: (lb) 61720 / (kg) 28000
- Weight: (lb) 1.896 / (g) 860

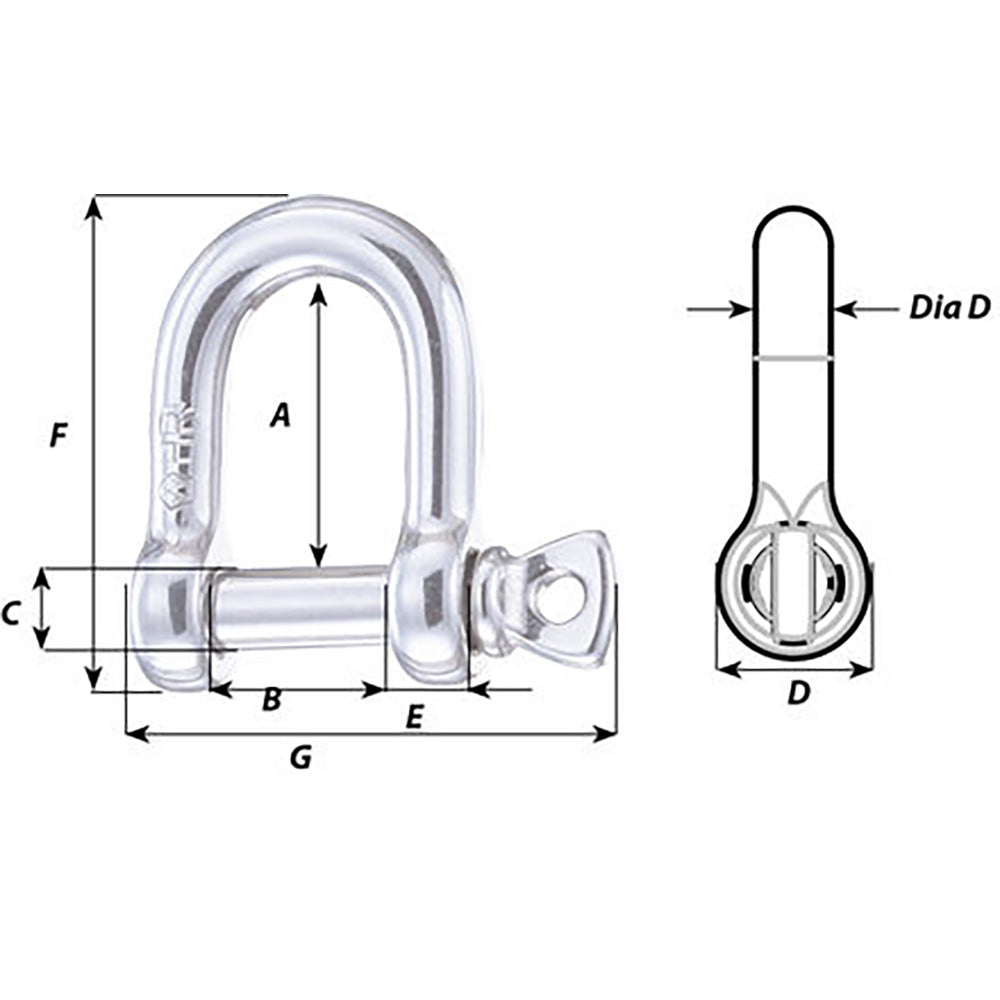

Dimensions:
- A: (inch) 2 3/4" / (mm) 70
- B: (inch) 1 37/64" / (mm) 40
- D diameter: (inch) 25/32" / (mm) 20
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
