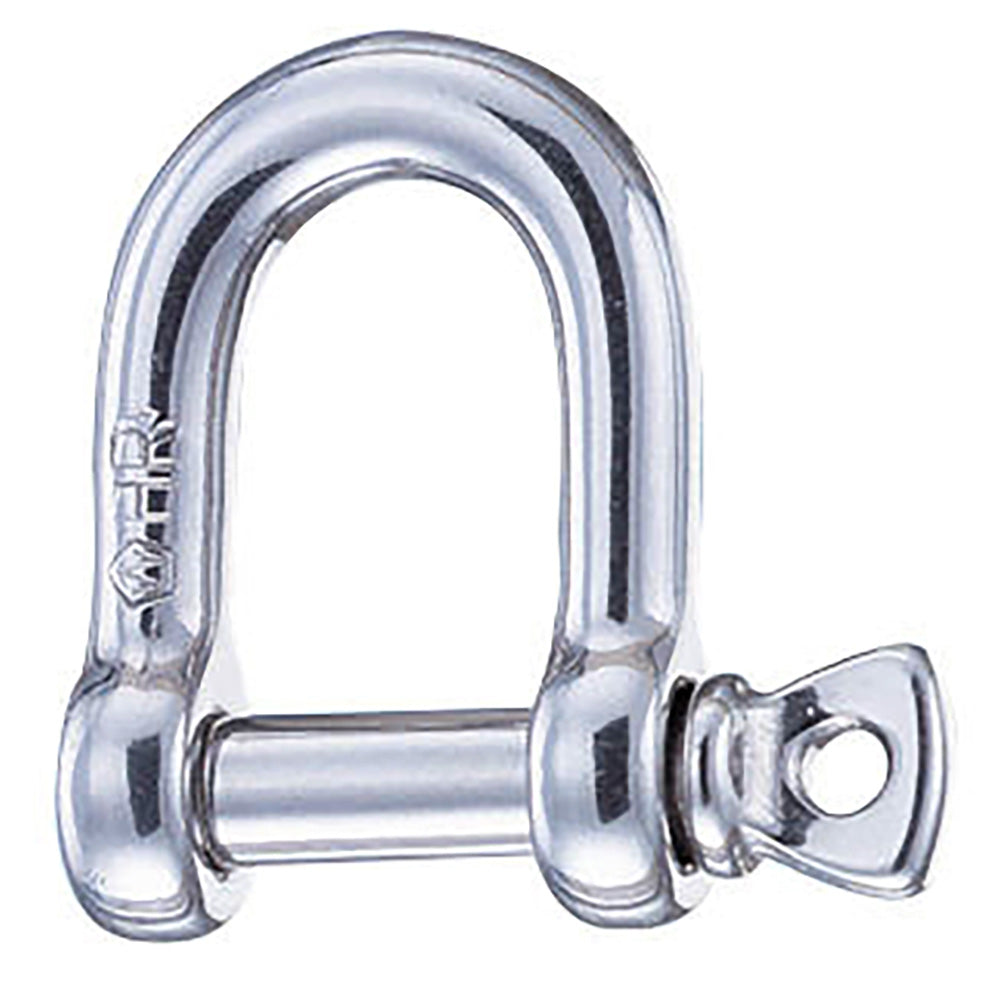

Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W]
Wichard HR D Shackle - 14mm Diameter - 35/64" [11207W] is backordered and will ship as soon as it is back in stock.
Description
Description
HR D Shackle - 14mm Diameter - 35/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11280 / (kg) 5120
- WLL: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 26450 / (kg) 12000
- Weight: (lb) 0.67 / (g) 304

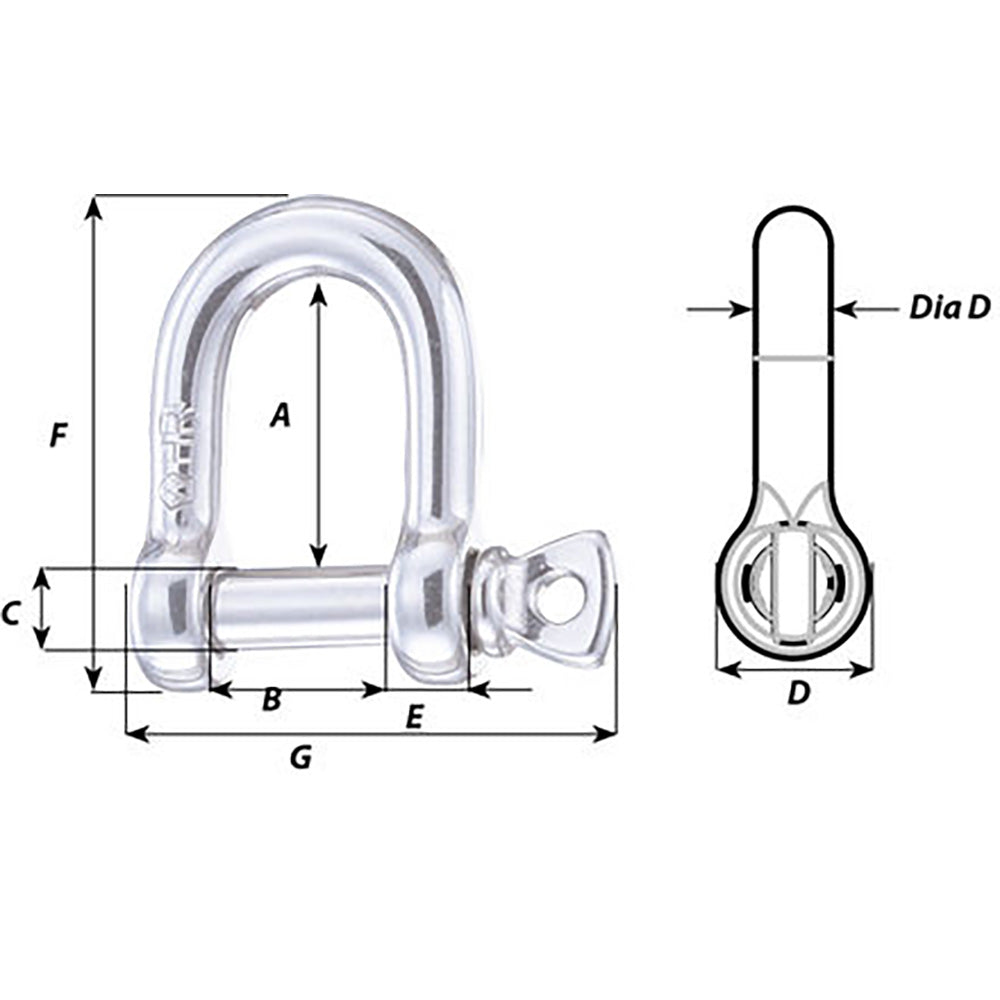

Dimensions:
- A: (inch) 1 59/64" / (mm) 49
- B: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
