Description
Description

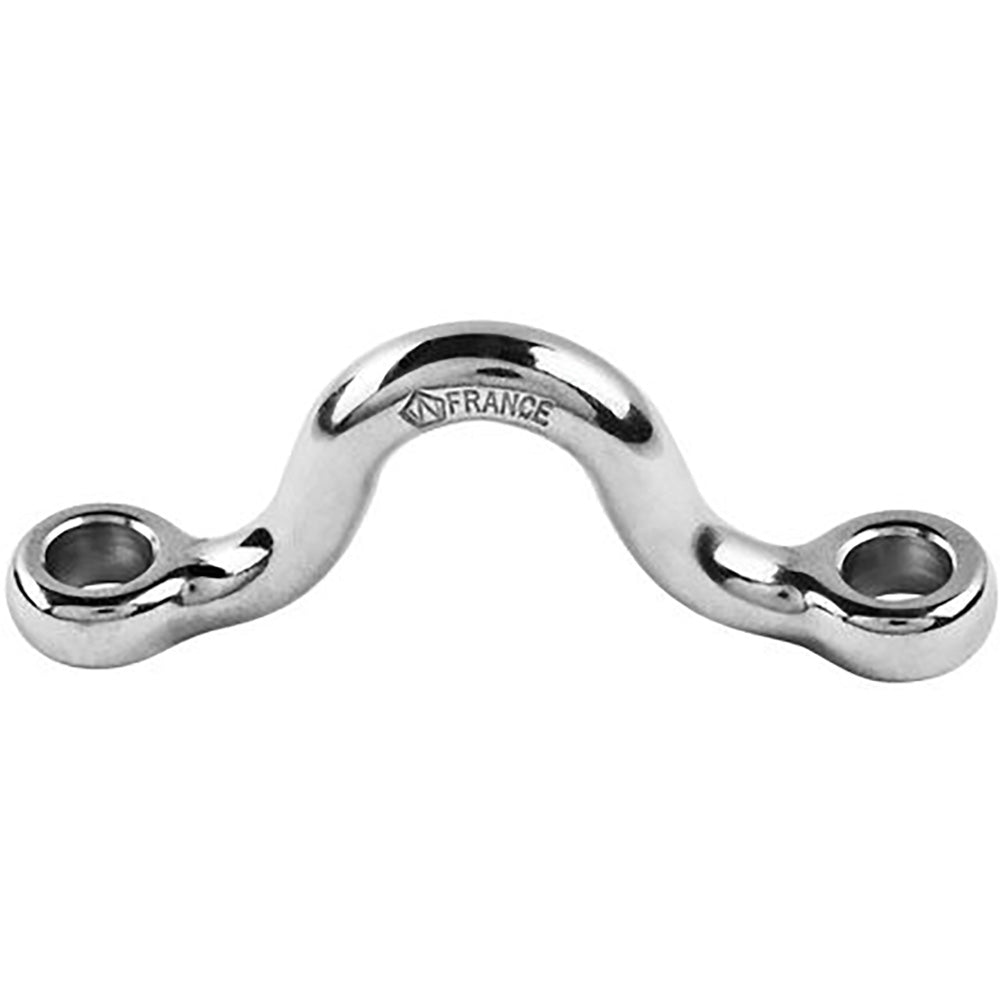

Eye Strap - 4mm Diameter - 5/32" - 30mm Spacing - 1-17/64"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps & cordage
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 1430 / (kg) 650
- Weight: (lb) 0.009 / (g) 4

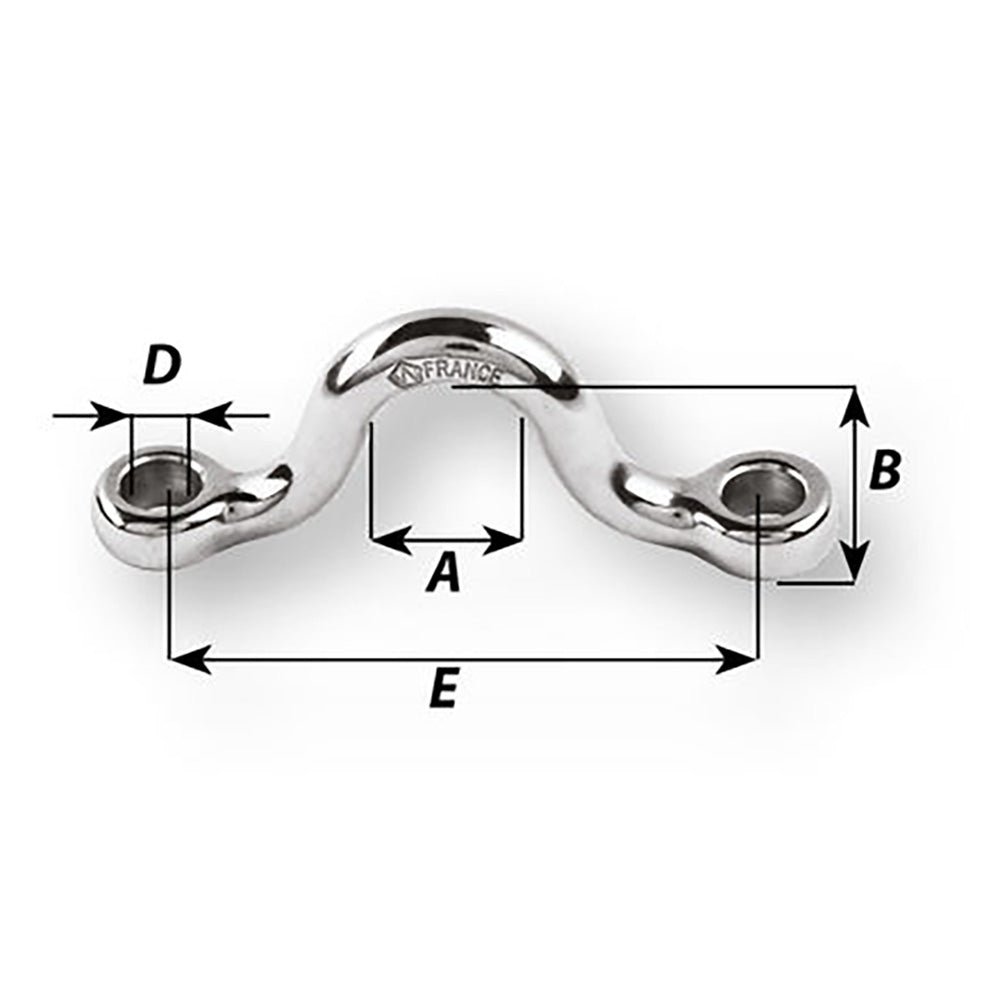

Dimensions:
- A: (inch) 5/16" / (mm) 8
- B: (inch) 7/16" / (mm) 11
- D diameter: (inch) 5/32" / (mm) 4
- E: (inch) 1 17/64" / (mm) 32
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
