Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]
Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W] is backordered and will ship as soon as it is back in stock.
Description
Description
Eye Bolt - M10 x 150mm - Length 100mm
Features:
- A complete range of single piece forged products for fastenings applications
- Outstanding working and breaking loads
- Available in different sizes
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 3520 / (kg) 1600
- Breaking load: (lb) 5950 / (kg) 2700
- Weight: (lb) 0.216 / (g) 98

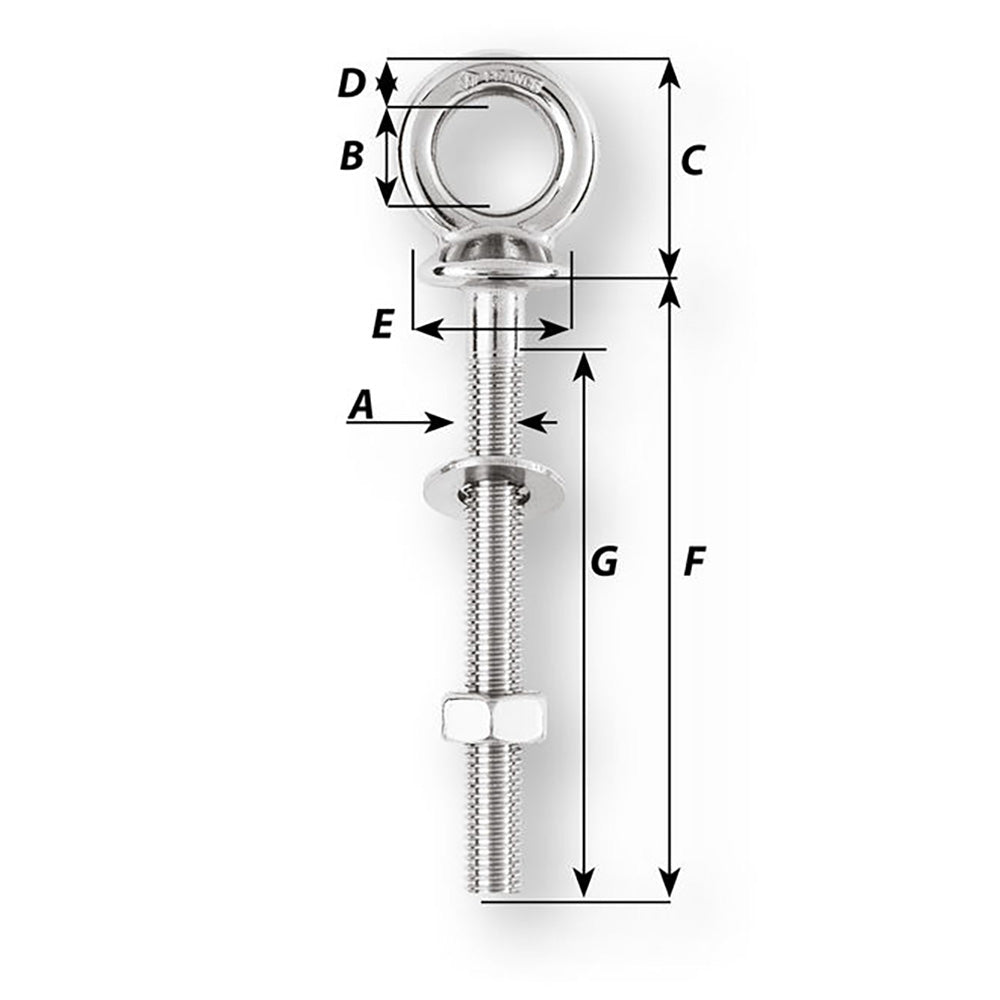

Dimensions:
- A: (mm) M10 x 150
- B: (inch) 5/8" / (mm) 16
- C: (inch) 1 27/64" / (mm) 36
- D: (inch) 9/32" / (mm) 7
- E: (inch) 63/64" / (mm) 25
- F: (inch) 3 15/16" / (mm) 100
- G: (inch) 3 15/32" / (mm) 88
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
