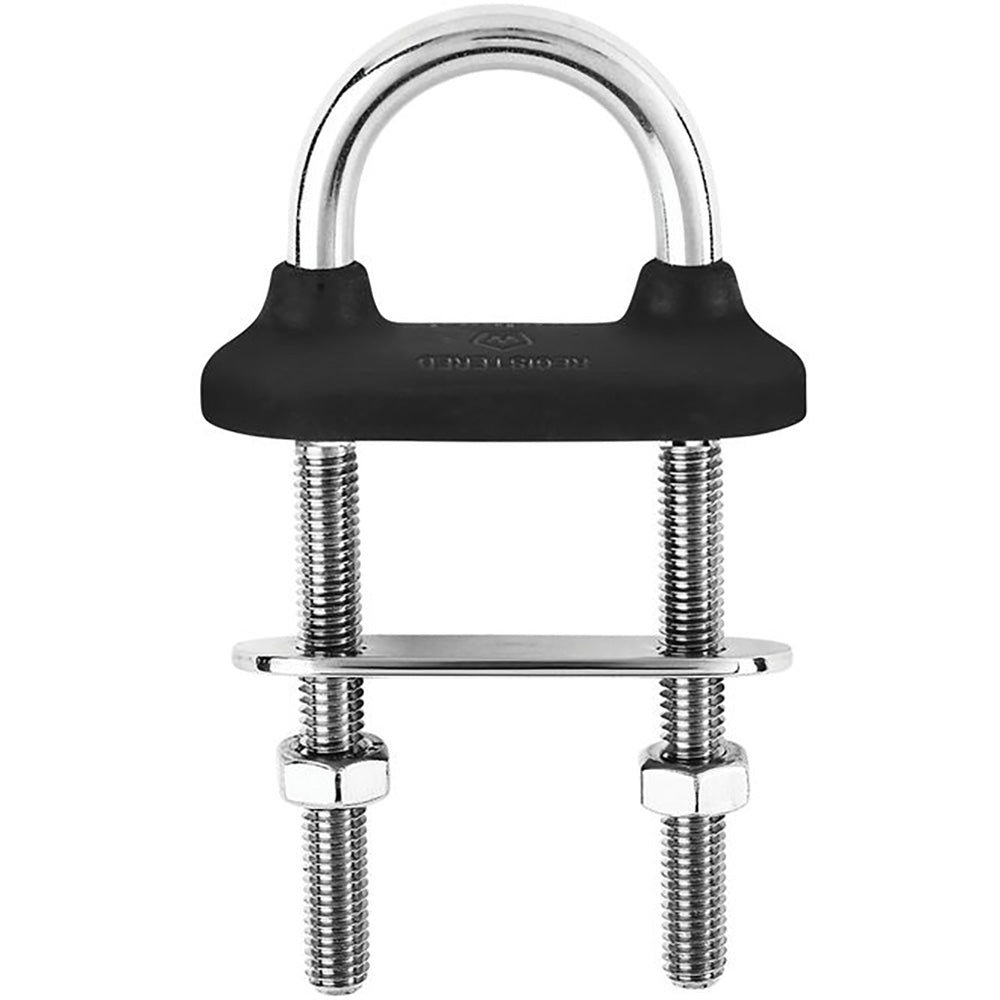

Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8" [65461W]
FULFILLMENT OPTIONS
Ships from warehouse
Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8" [65461W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130...
Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8" [65461W] is backordered and will ship as soon as it is back in stock.
Description
Description
Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.827 / (g) 375

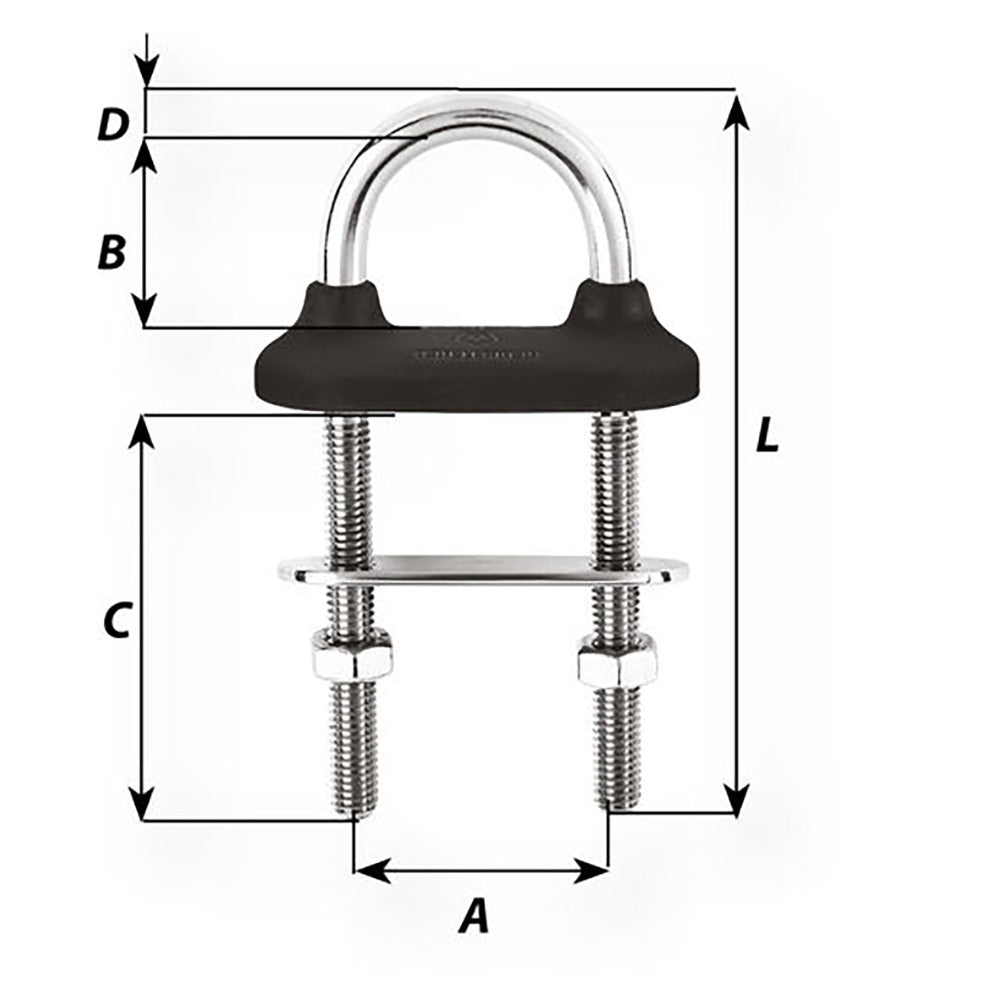

Dimensions:
- Length: (inch) 5 1/8" / (mm) 130
- A: (inch) 1 47/64" / (mm) 44
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 2 3/4" / (mm) 70
- D diameter: (inch) 15/32" / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
