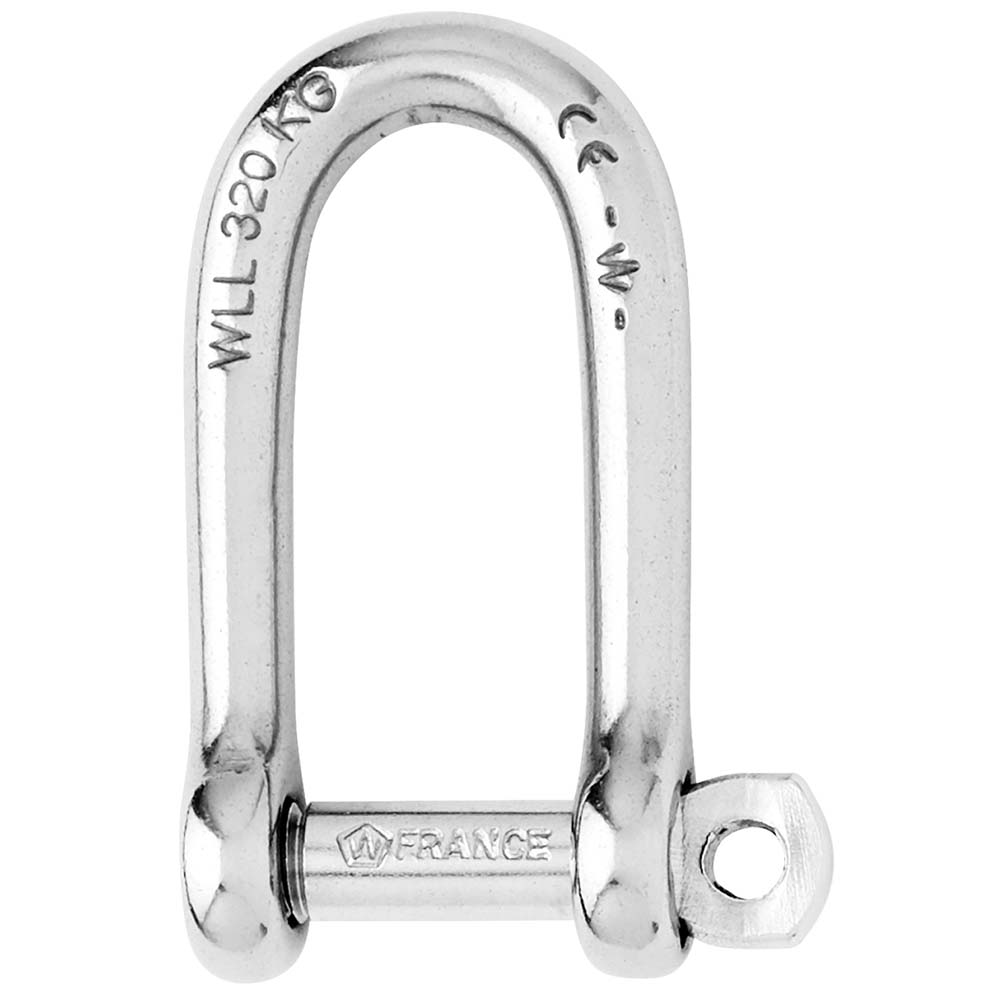

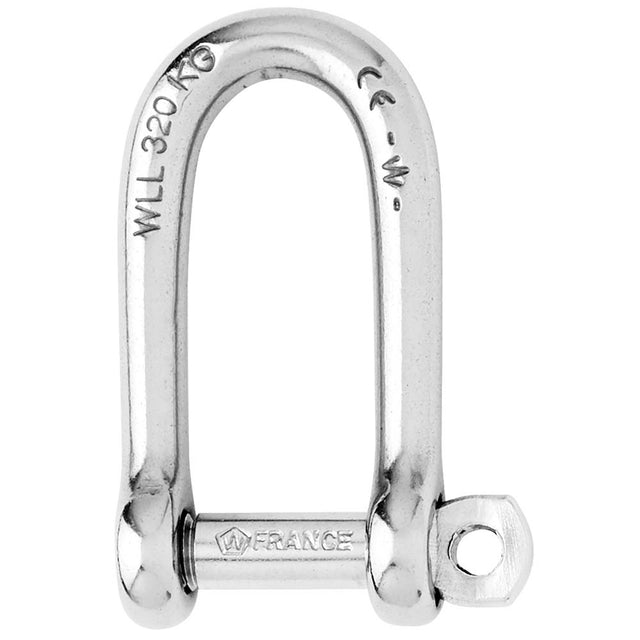

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16" [1212W]
FULFILLMENT OPTIONS
Ships from warehouse
Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16" [1212W] is backordered and will ship as soon as it is back in stock.
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16" [12...
Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3/16" [1212W] is backordered and will ship as soon as it is back in stock.
Description
Description
Self-Locking Long D Shackle - Diameter 5mm - 3/16"
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 880
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.037

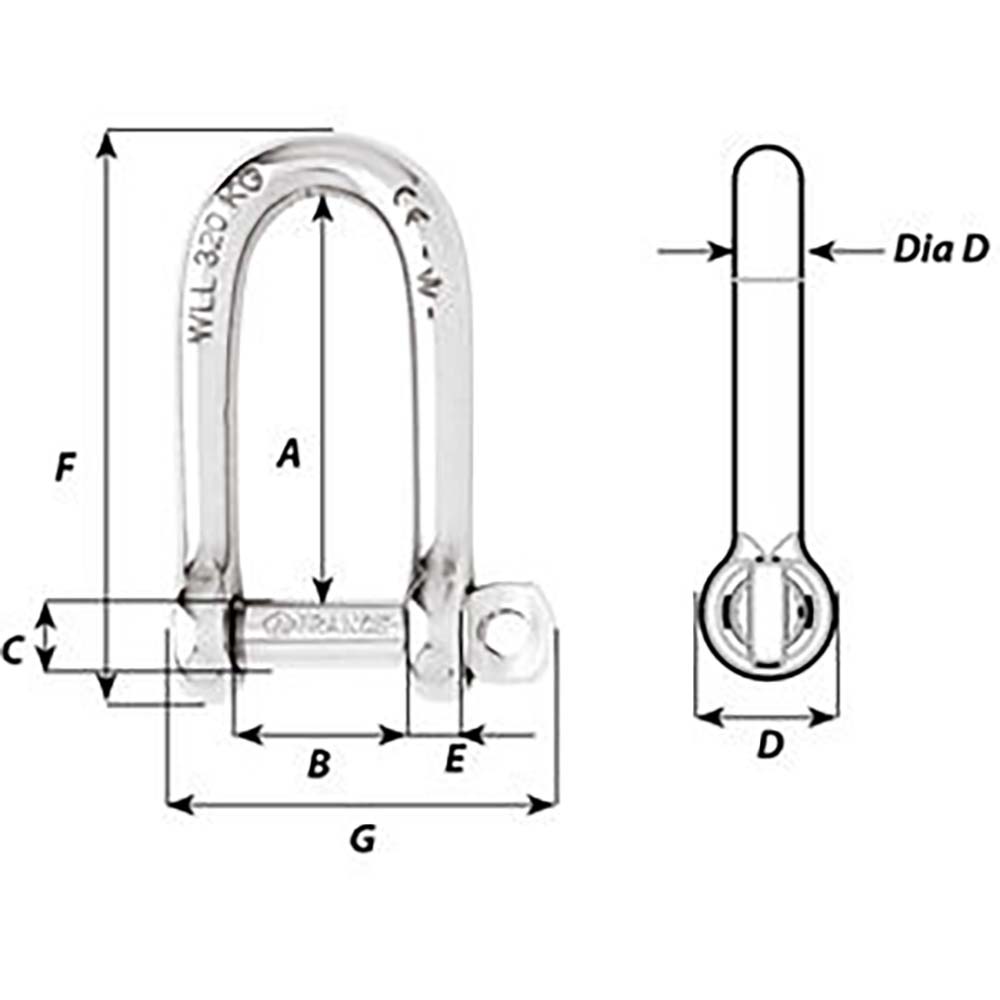

Dimensions (see 2nd image):
- A (inch) 1-9/64"
- B (inch) 25/64"
- C (inch) 13/64"
- D (inch) 25/64"
- D diameter (inch) 13/64"
- E (inch) 5/32"
- F (inch) 1-39/64"
- G (inch) 1-1/32"
