Description
Description

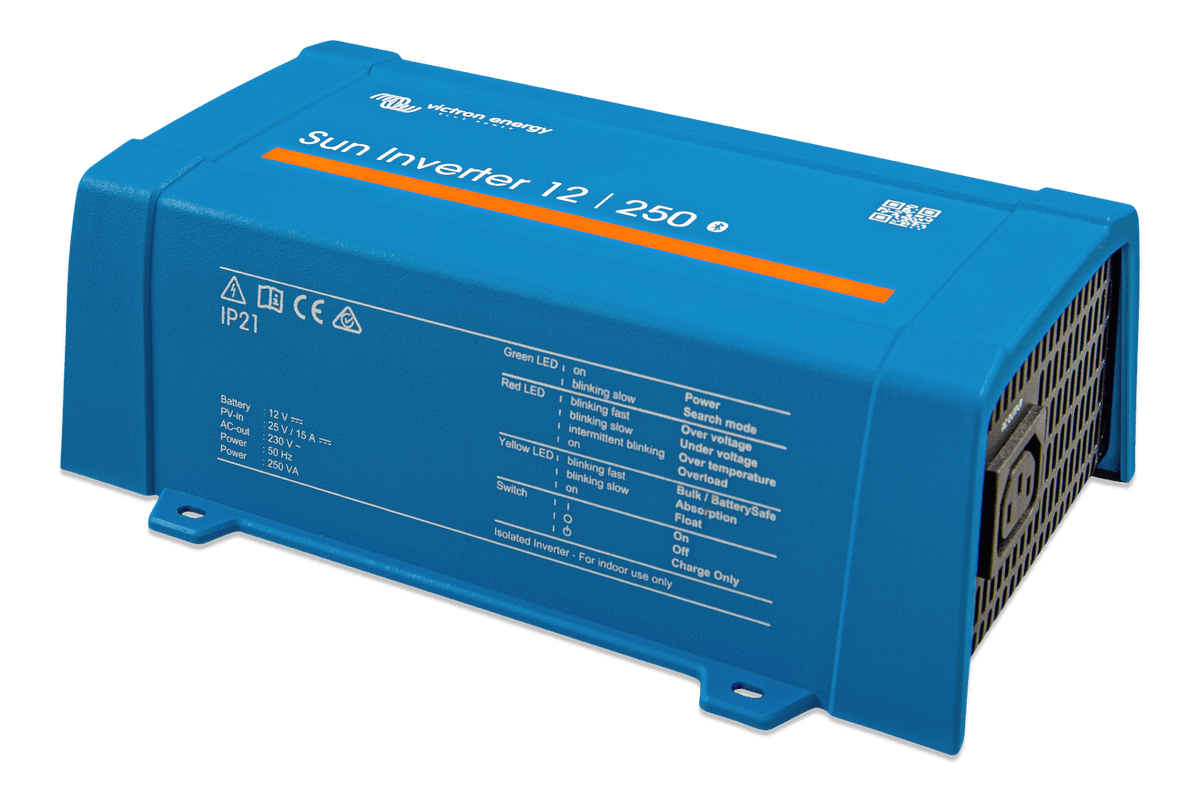

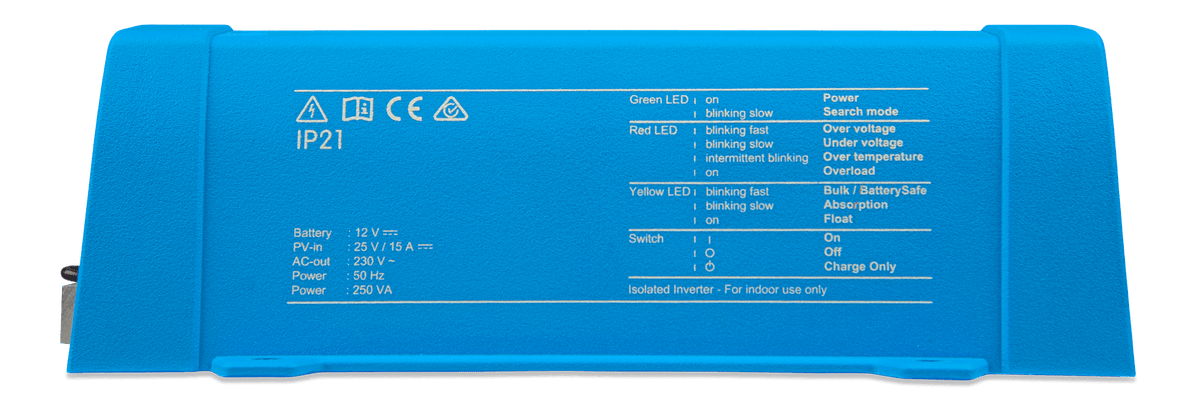

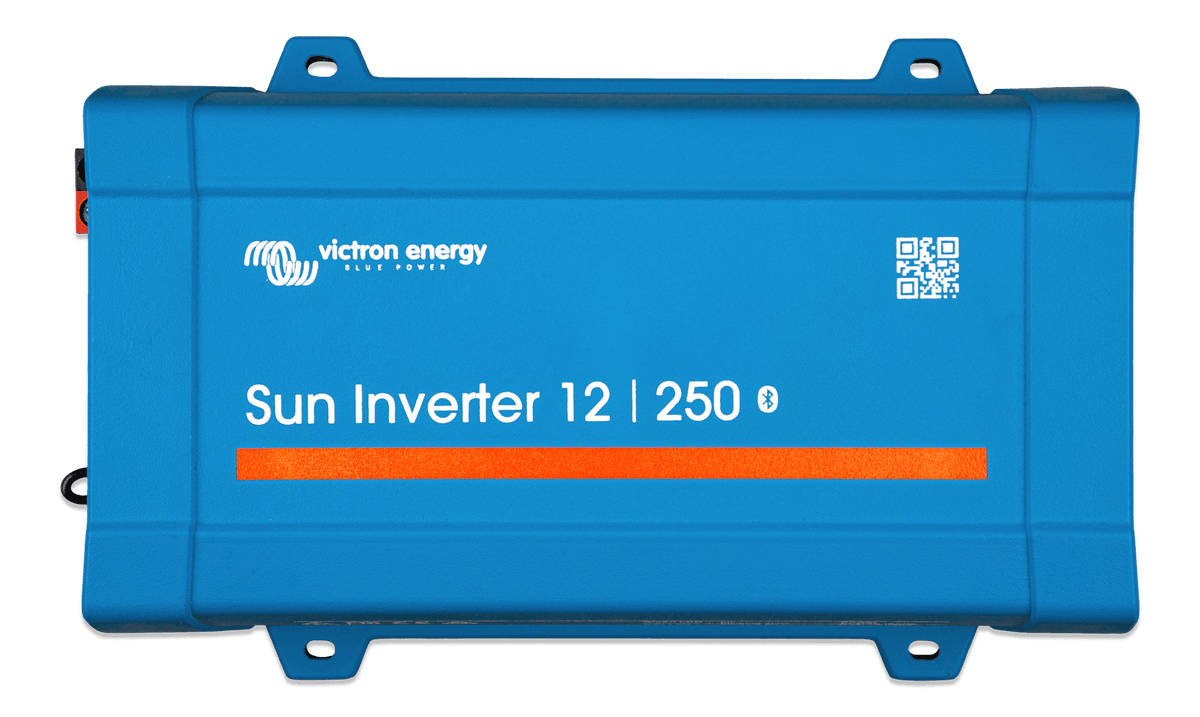

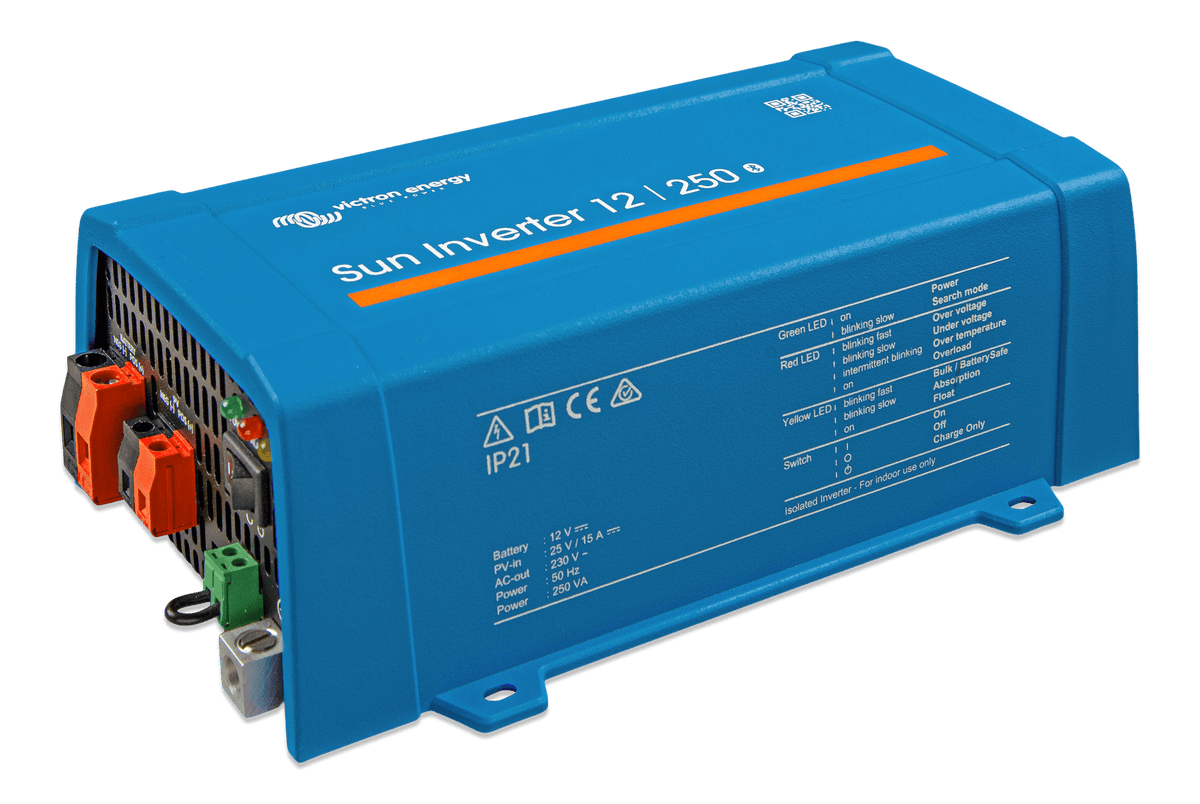

Victron Sun Inverter 12/250-15 IEC
A Victron sine wave inverter with a built-in PWM solar charge controller, combining solar charging and 230 VAC power (IEC outlet) in one unit.
Specifications (from Victron)
| Solar charger technology | Pulse With Modulation (PWM) |
| Continuous power at 40°C | 175 W |
| Peak power rating | 400 W |
| DC input voltage range | 9.2–17 V |
| AC output voltage ±3% (adjustable) | 230 V |
| Maximum efficiency | 87 % |
| Communication Port | Bluetooth,VE.Direct |
| Bluetooth | Yes |
| Battery charged detection voltage (adjustable) | 14 V |
| Batery voltage nominal | 12 V |
| Charge voltages | Adjustable and able to be temperature compensated |
| Continuous inverter AC output power at 25°C | 200 W |
| DC low restart and alarm (adjustable) | 10.9 V |
| DC low shut down (adjustable) | 9.3 V |
| Dynamic (load dependent) low DC shutdown (configurable) | Yes |
| Frequency ±0.1% (selectable) | 50Hz or 60Hz |
| Fully programable | Yes |
| Includes PWM? | Yes |
| Maximum humidity (non-condensing) | 95 % |
| Operating temperature range (fan assisted cooling) | -40°F to 140°F (-40 to 60°C) |
| Power deration above 40°C | 1.25 %/°C |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,Excessive DC ripple |
| Remote on/off terminal | Yes |
| Solar panel type | Solar panel with 36 cells |
| Temperature Sensor | Optional (Smart Battery Sense) |
| Zero-load power | 4.2 W |
| Zero Load Power in ECO Mode (adjustable) | 0.8 W |

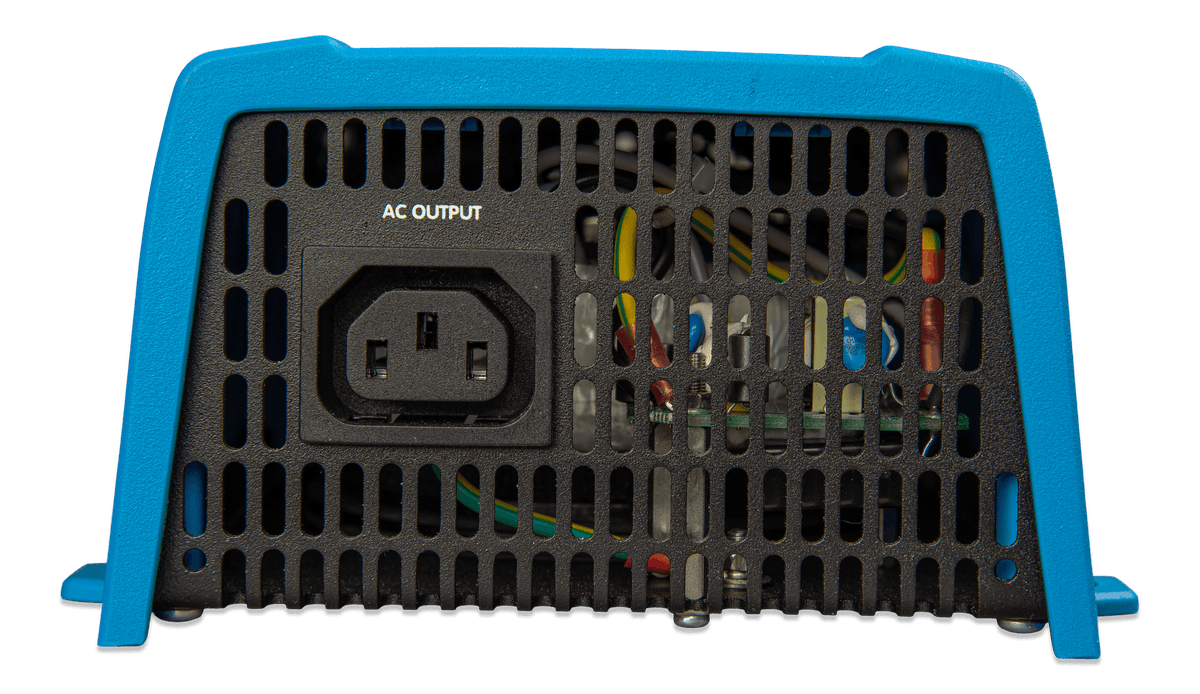

| AC outlet socket | IEC-320 (male plug included) |
| PV connection terminal type | Screw terminals 4 mm² (12 AWG) |
| Remote Terminal | Screw terminal two pole |
| Warranty | 5 years (Victron) |
| Victron part number | SIN121251100 |
| UPC / EAN | 8719076053699 |
| Country of origin | India |
Documents
From Victron

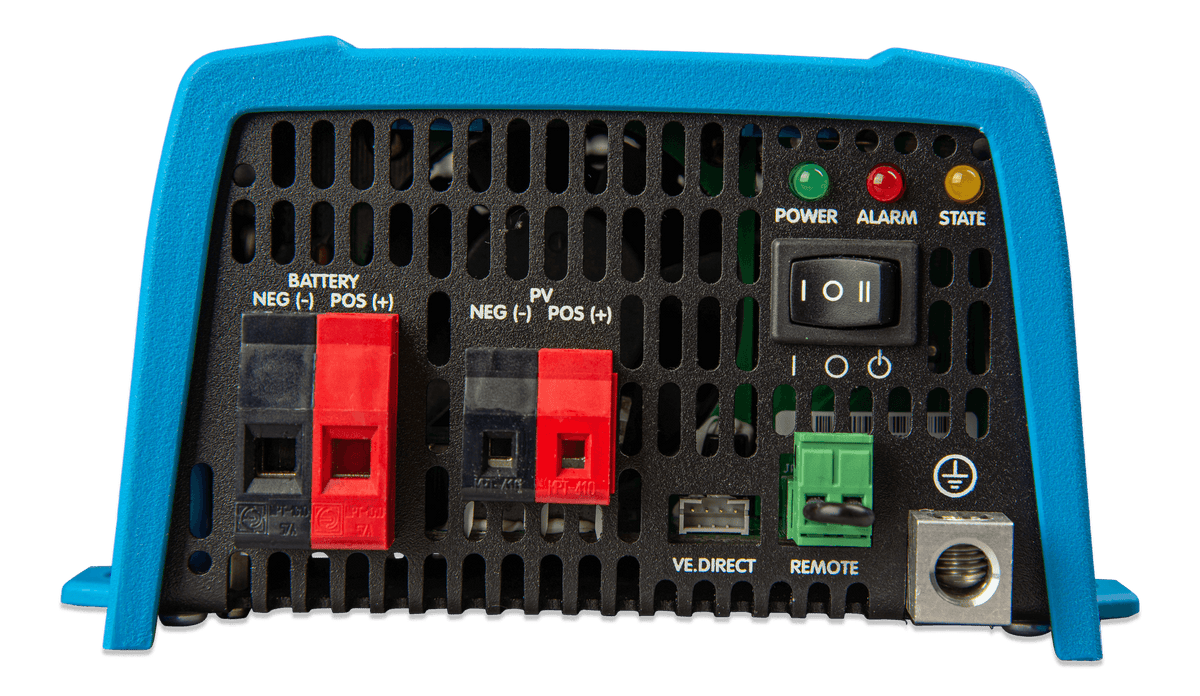

The Sun Inverter combines a sinewave inverter and a PWM solar charger in one enclosure and is easy to install, with a minimum of wiring.
The inverter allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V or 24V.
The solar charger ensures that the batteries are being charged by energy harvested from your solar panels. The charge algorithm is programmable.
The inverter and solar charger parameters can be read out via Bluetooth using the VictronConnect app. In addition to this, the inverter has a VE.Direct Port for connection to a GX device or GlobalLink 520 for system monitoring.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
