Victron SmartSolar MPPT RS 450/100-MC4 [SCC145110512]
Victron SmartSolar MPPT RS 450/100-MC4 [SCC145110512] is backordered and will ship as soon as it is back in stock.
Description
Description

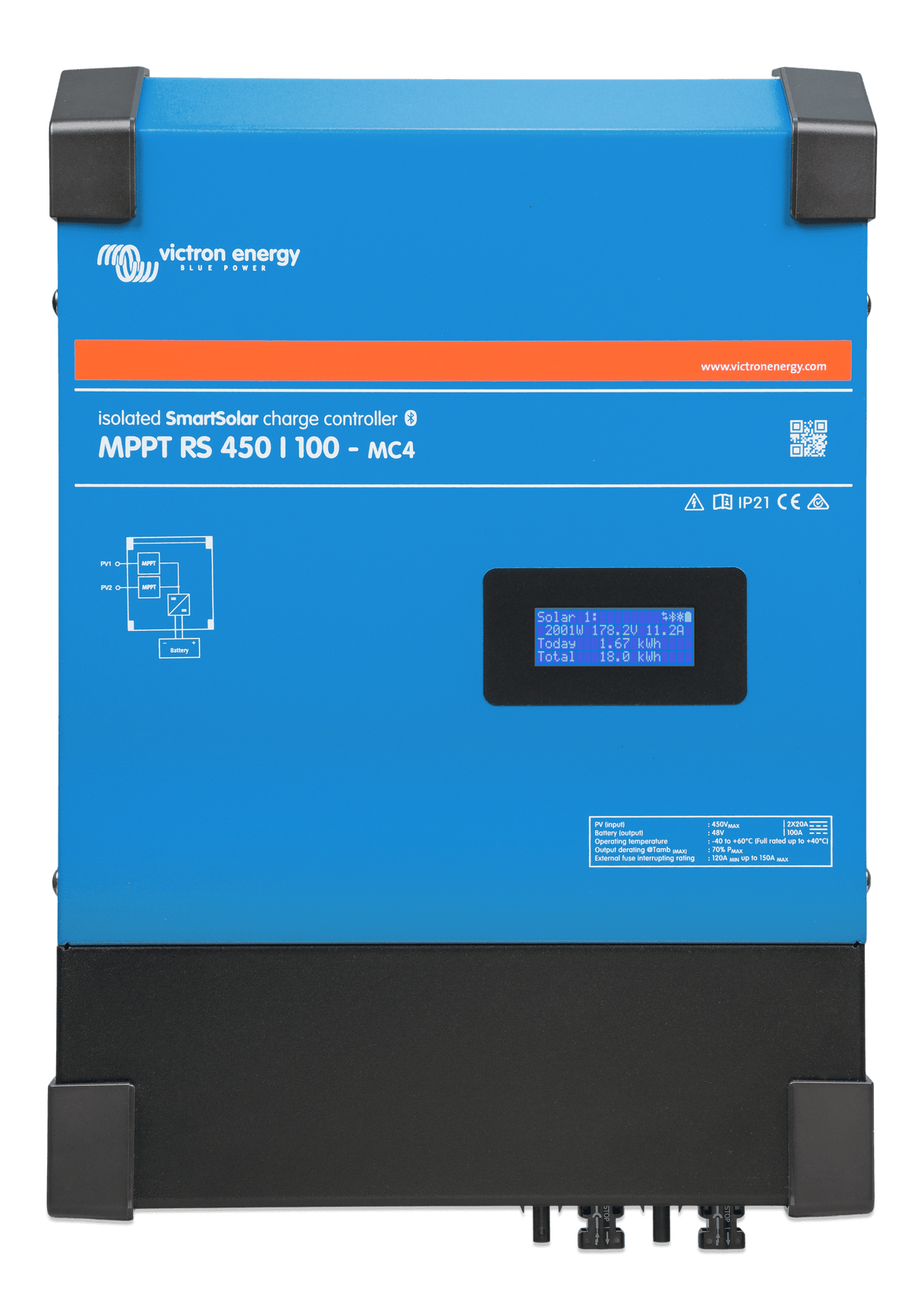

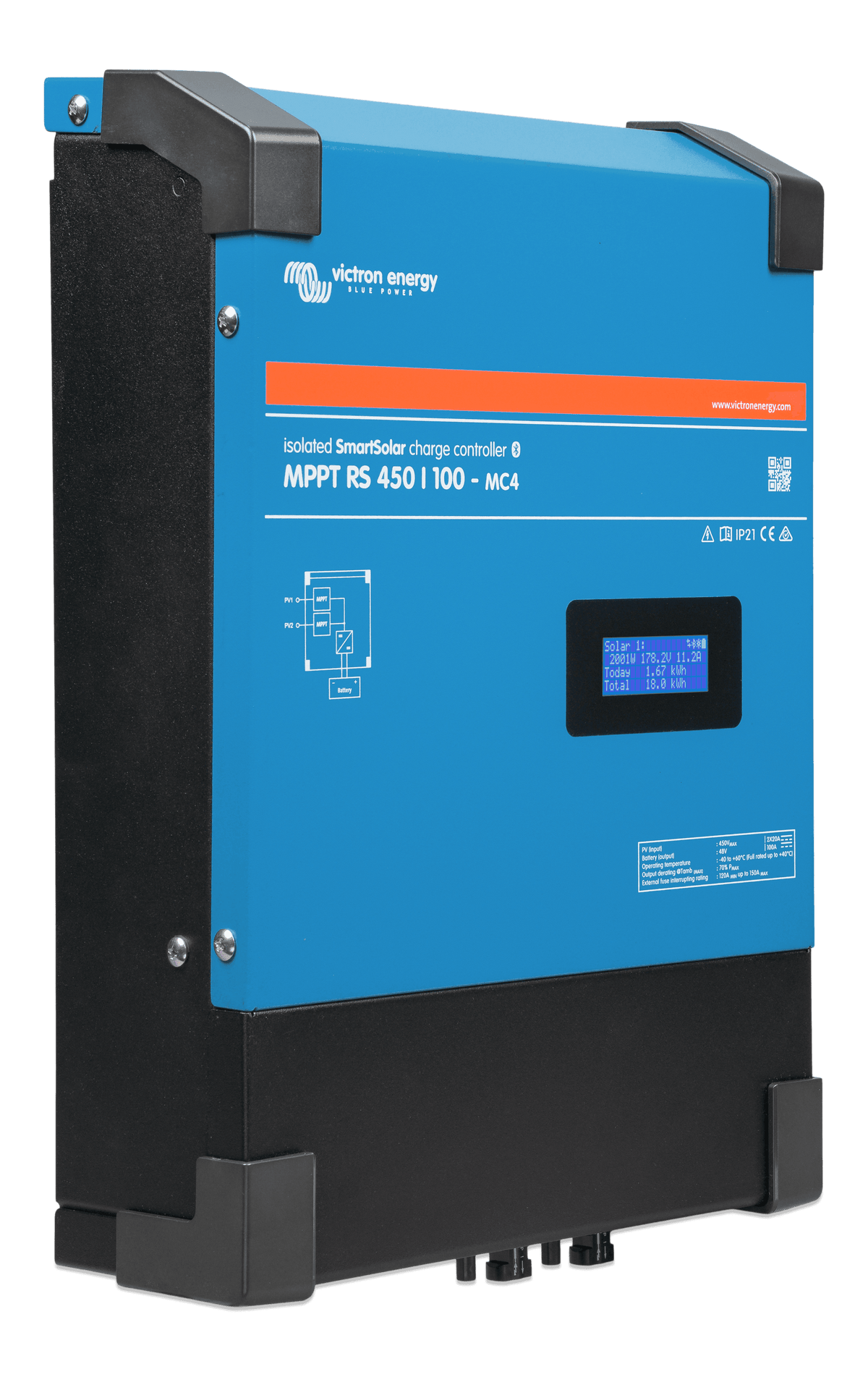

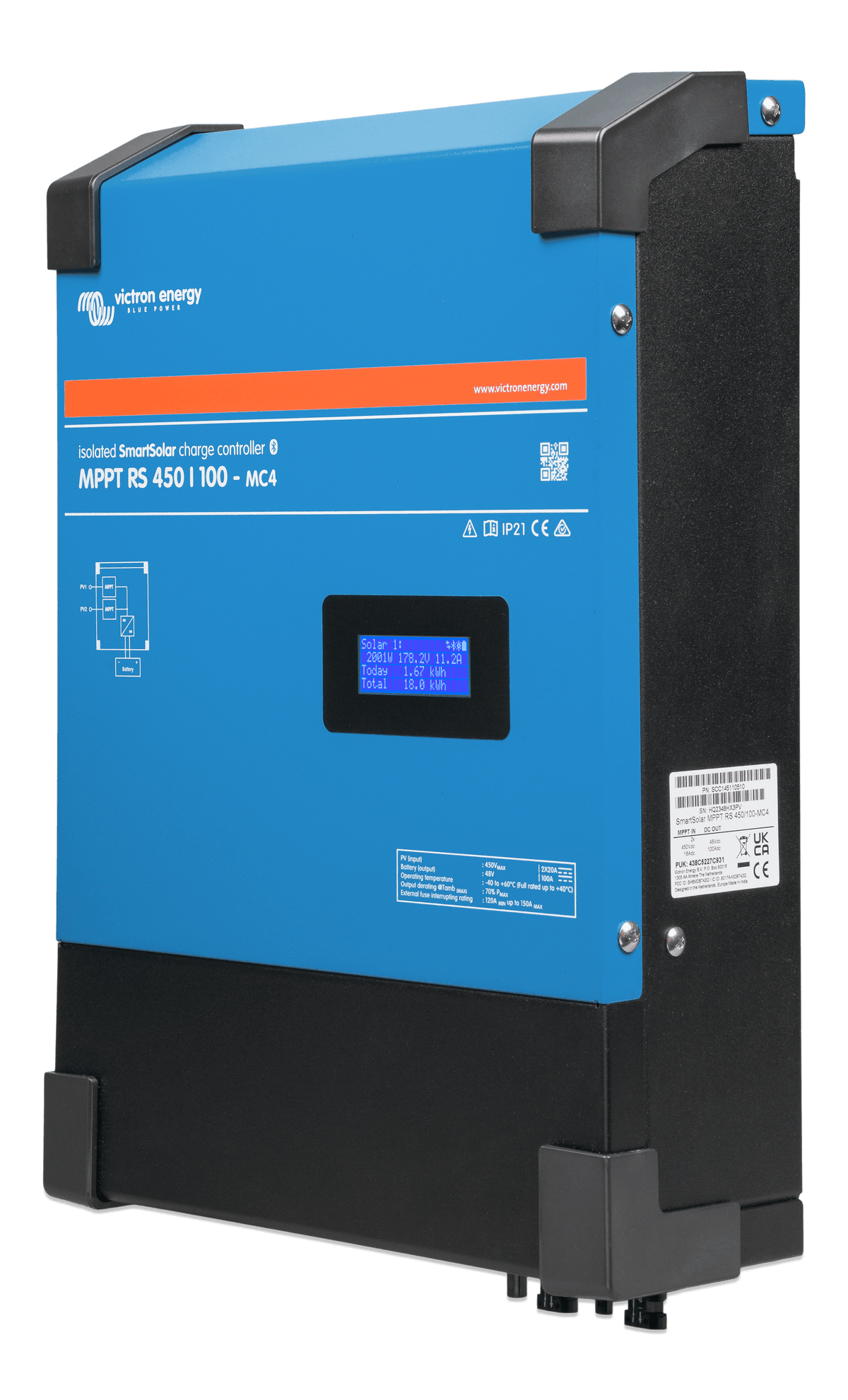

Victron SmartSolar MPPT RS 450/100-MC4
The Victron SmartSolar MPPT RS is a high-voltage solar charge controller for larger arrays, with Bluetooth and VE.Can connectivity for full system integration.
Specifications (from Victron)
| Rated Charge Current | 100 A |
| Battery voltage | 48V |
| Maximum PV array size per tracker | 7,200 Wp |
| Maximum PV Open Circuit Voltage | 450 V |
| Maximum PV operational input current per tracker | 16 A |
| Maximum PV short circuit current per tracker | 20 A |
| Maximum efficiency | 96 % |
| Data Communication | VE.Direct,VE.Can,Bluetooth |
| Bluetooth power | 4 dBmW |
| Bluetooth frequency range | 2,402–2,480 MHz |
| Bluetooth | Yes |
| MPPT operating voltage range | 65–450 V |
| Maximum DC output charging power all trackers combined | 5,760 W |
| Maximum humidity (non-condensing) | 95 % |
| Maximum charge power at 57.6V | 5.8 kW |
| Maximum DC output charging power per tracker | 4,000 W |
| Number of general purpose analogue/digital in ports | 2 |
| Number of synchronised parallel operating units with VE.Can | 25 |
| Number of trackers | 2 |
| Operating temperature range | -40°F to 140°F (-40 to 60°C) |
| Programmable relay | DC rating: 4A up to 35VDC and 1A up to 70VDC |
| Protections | Output short-circuit,PV reverse polarity |
| PV Isolation fail level | 100 kΩ |
| Charge voltage float | 55.2V (adjustable) |
| Charge voltage absorption | 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Adjustable Charge Voltage Range | 36–60 V |
| Temperature Sensor | Included |
| Start-up PV DC voltage | 120V |
| Self-consumption | 15mA |
| Warranty | 5 years (Victron) |
| Victron part number | SCC145110512 |
| UPC / EAN | 8719076062738 |
| Country of origin | India |
Documents
From Victron
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
