Victron SmartSolar MPPT 250/85-Tr VE.Can [SCC125085411]
Victron SmartSolar MPPT 250/85-Tr VE.Can [SCC125085411] is backordered and will ship as soon as it is back in stock.
Description
Description

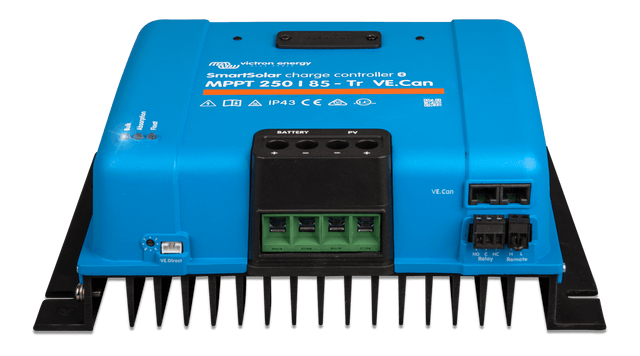

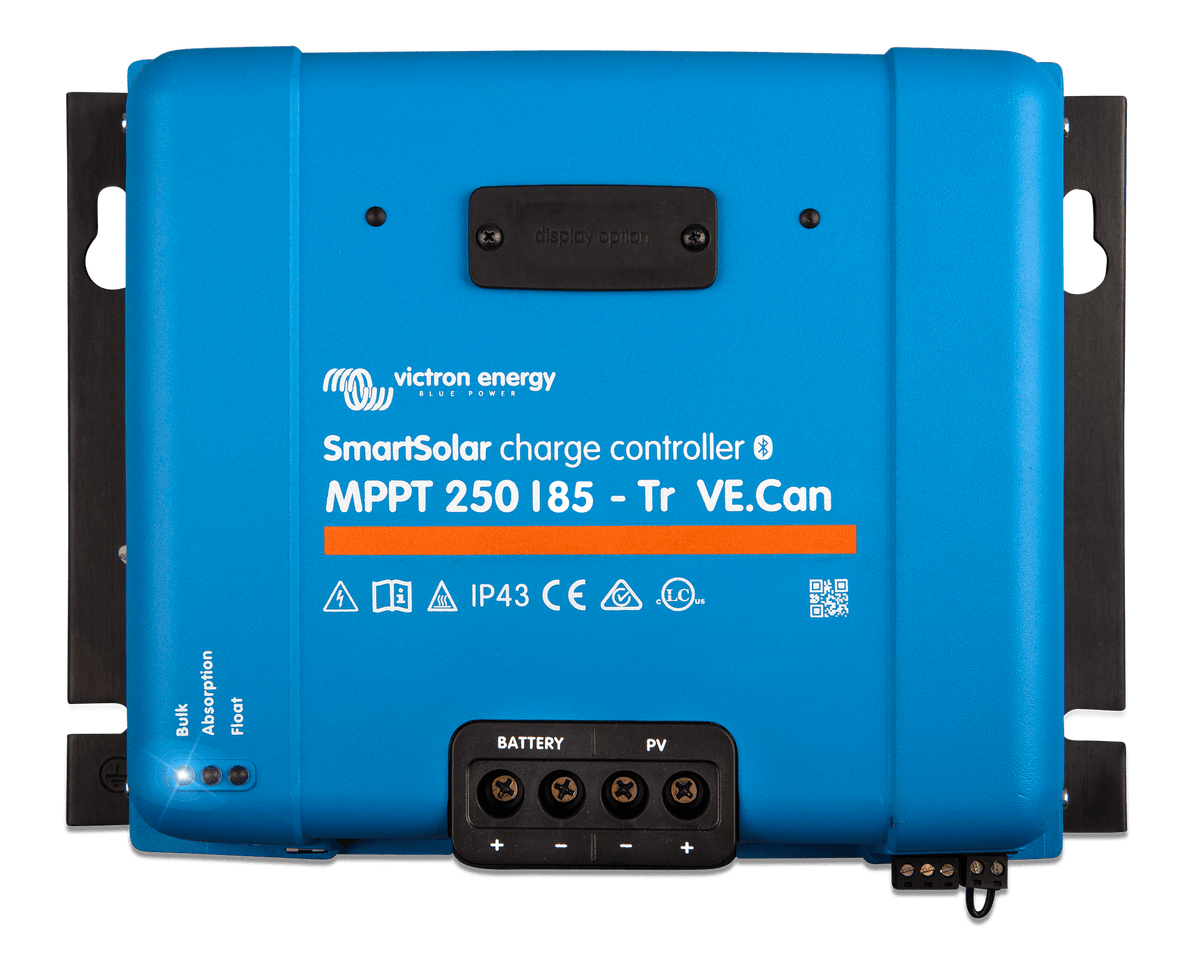

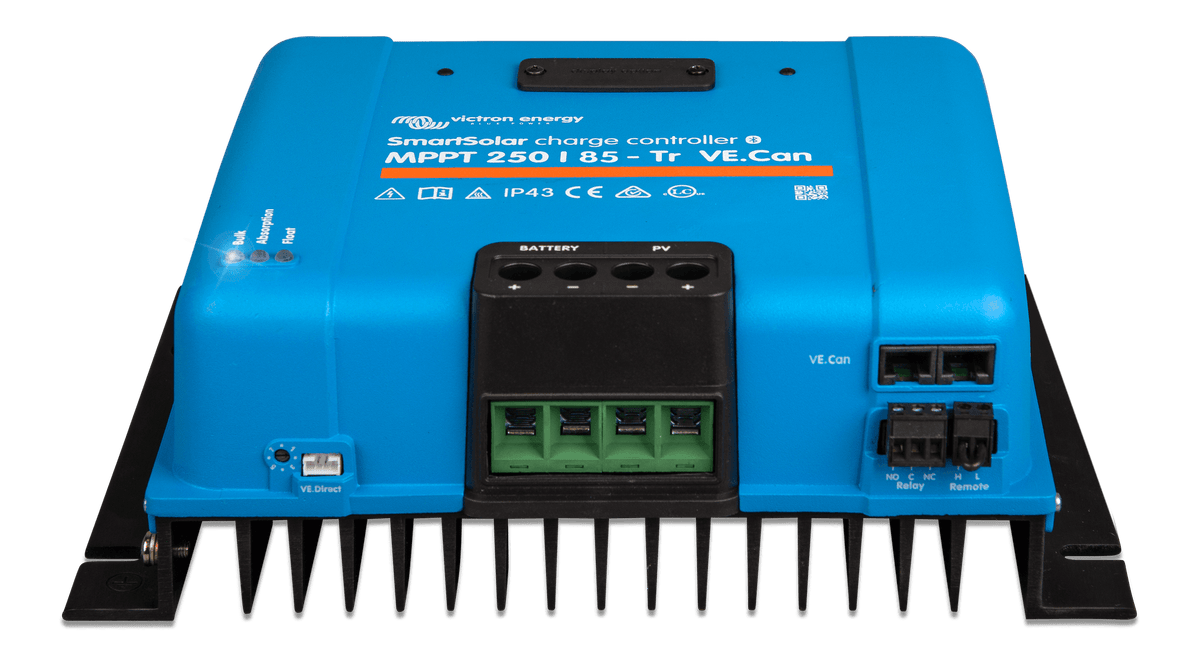

Victron SmartSolar MPPT 250/85-Tr VE.Can
Victron SmartSolar MPPT charge controllers track the maximum power point of your panels and add built-in Bluetooth, so you can set up and watch your solar from the free VictronConnect app.
Specifications (from Victron)
| Rated Charge Current | 85 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum PV short circuit current per tracker | 70 A |
| Maximum efficiency | 99 % |
| Data Communication | Bluetooth,VE.Direct,VE.Can |
| Bluetooth | Yes |
| Number of synchronised parallel operating units with Bluetooth | 10 |
| Environmental Condition | Indoor, unconditioned |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Temperature Sensor | Internal |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Pollution Degree | PD3 |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Number of trackers | 1 |
| Number of synchronised parallel operating units with VE.Can | 25 |
| Programmable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Nominal PV power at 48 V | 4,900 W |
| Nominal PV power at 36V | 3,600 W |
| Nominal PV power at 24 V | 2,400 W |
| Nominal PV power at 12 V | 1,200 W |
| Maximum humidity (non-condensing) | 95 % |
| Temperature Compensation at 12V | -16 mV/°C |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Remote on/off terminal | Yes |
| Warranty | 5 years (Victron) |
| Victron part number | SCC125085411 |
| UPC / EAN | 8719076050896 |
| Country of origin | India |
Documents
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
