Victron SmartSolar MPPT 250/70-MC4 VE.Can [SCC125070521]
Pickup available at our Marathon storefront
Available for pickup or shipping
Victron SmartSolar MPPT 250/70-MC4 VE.Can [SCC125070521] is backordered and will ship as soon as it is back in stock.
(Ship Note)Speical Order: Ships in 2-5 Days, feel free to call to get a more exact date.
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron SmartSolar MPPT 250/70-MC4 VE.Can [SCC125070521]
Victron SmartSolar MPPT 250/70-MC4 VE.Can [SCC125070521] is backordered and will ship as soon as it is back in stock.
Description
Description

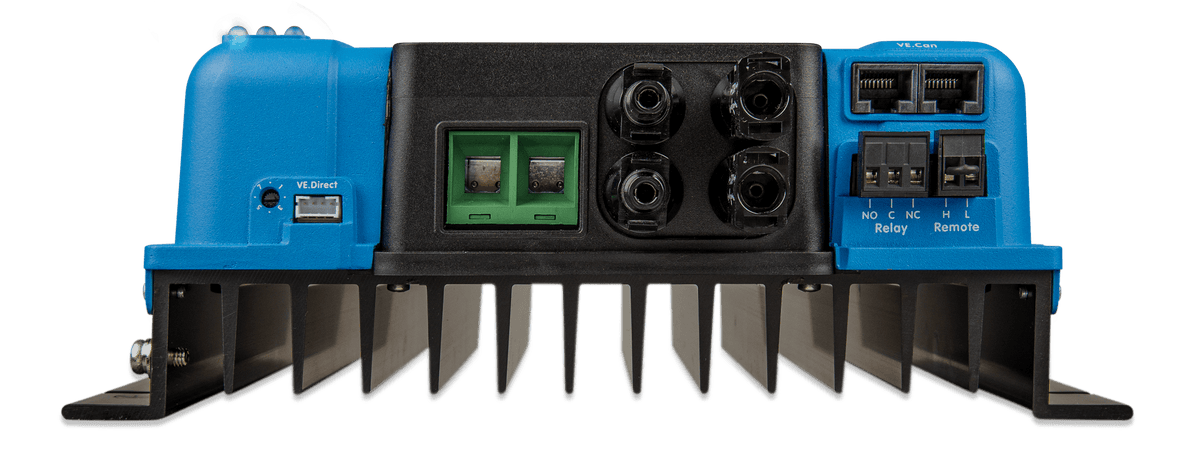

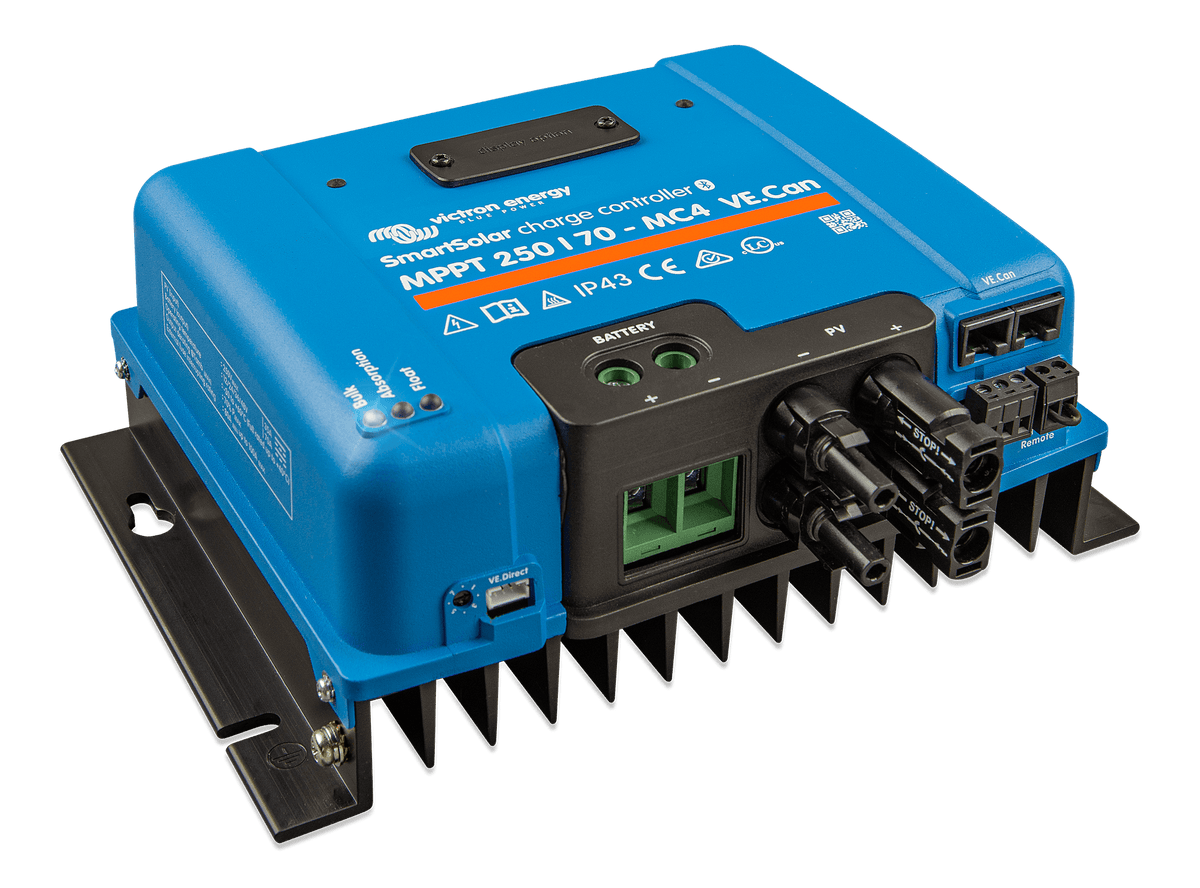

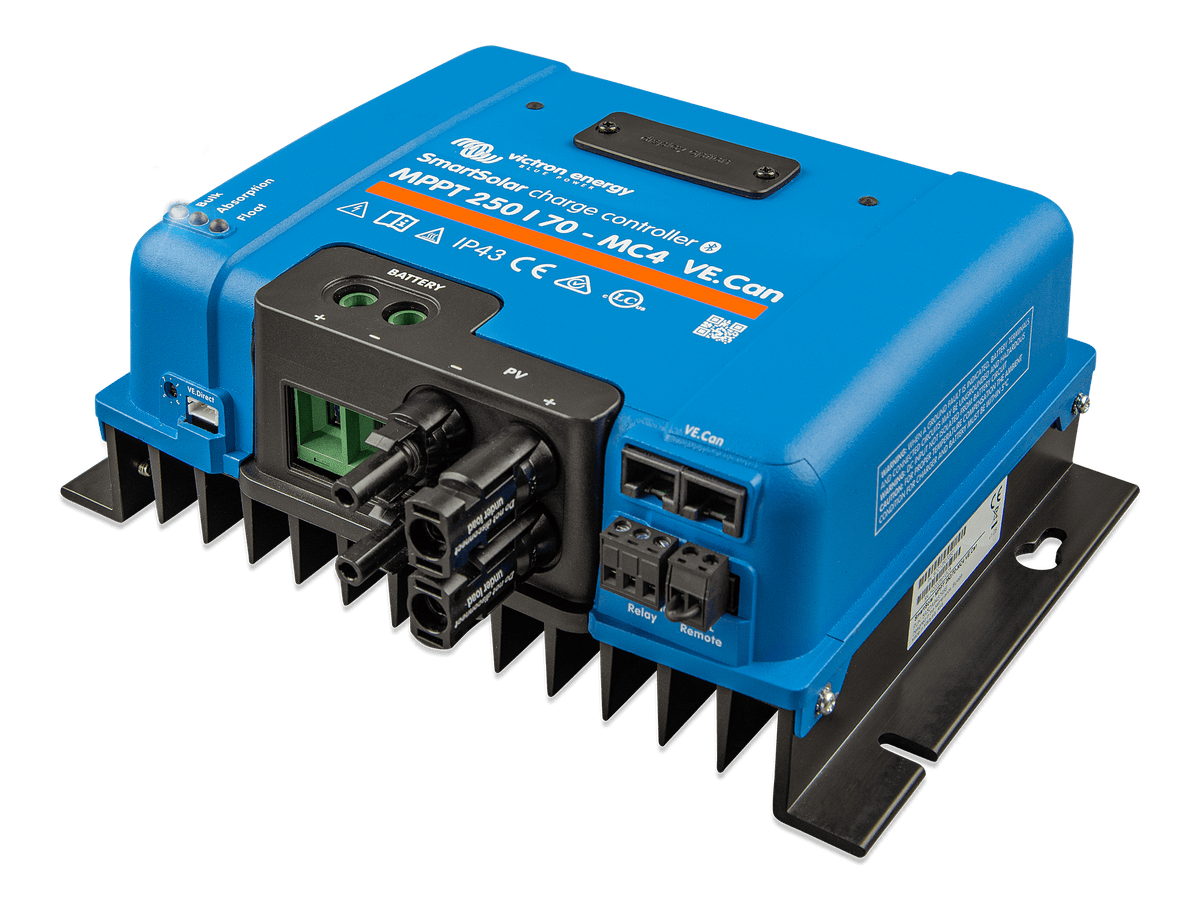

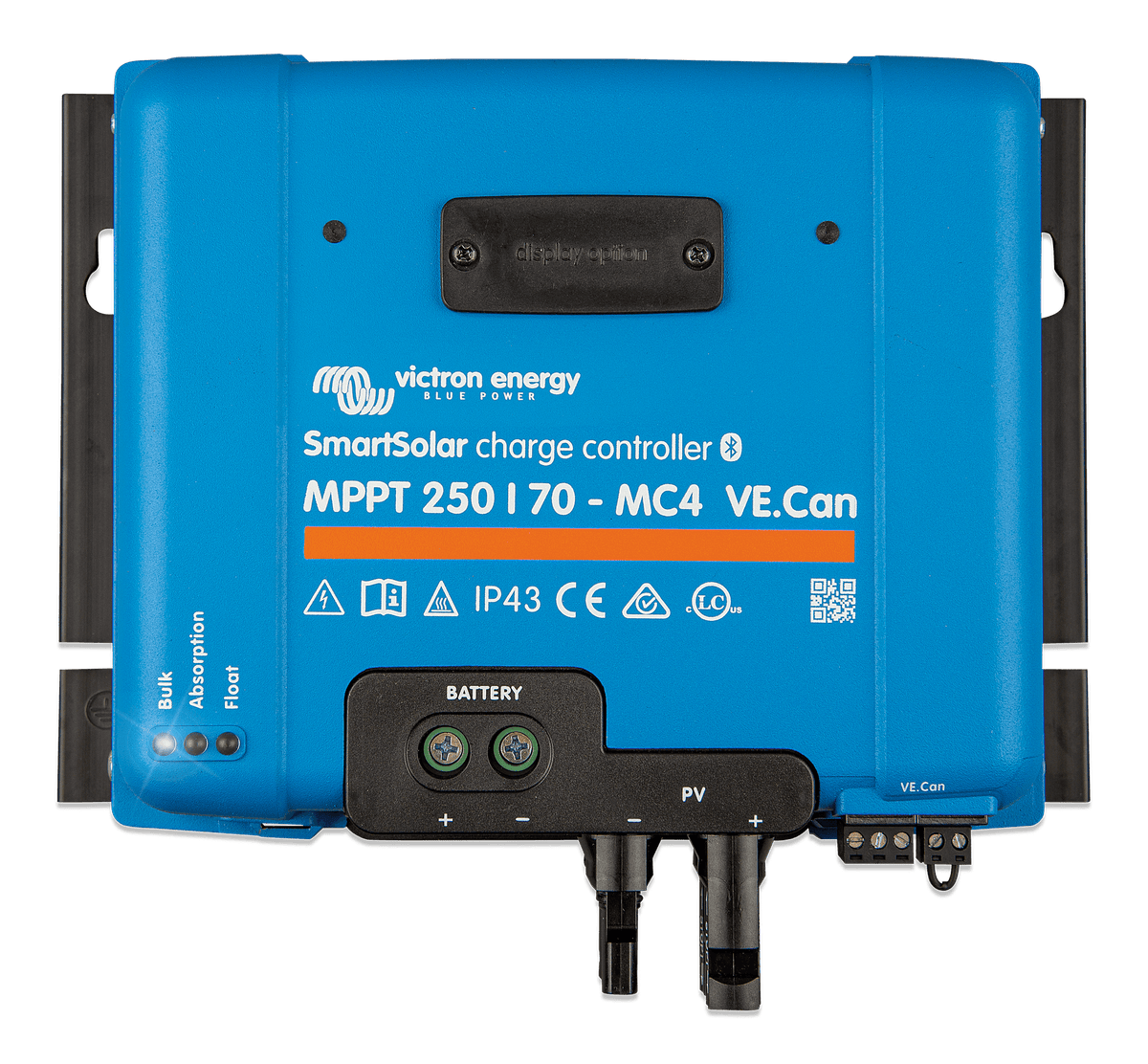

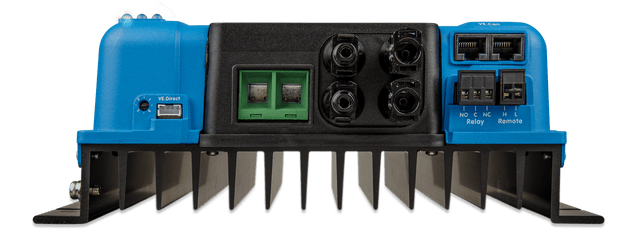

Victron SmartSolar MPPT 250/70-MC4 VE.Can
Victron SmartSolar MPPT charge controllers track the maximum power point of your panels and add built-in Bluetooth, so you can set up and watch your solar from the free VictronConnect app.
Specifications (from Victron)
| Rated Charge Current | 70 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV short circuit current per tracker | 35 A |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum PV current per MC4 connection | 30 A |
| Maximum efficiency | 99 % |
| Data Communication | Bluetooth,VE.Direct,VE.Can |
| Number of synchronised parallel operating units with Bluetooth | 10 |
| Bluetooth | Yes |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Sensor | Internal |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Compensation at 12V | -16 mV/°C |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Nominal PV power at 24 V | 2,000 W |
| Nominal PV power at 12 V | 1,000 W |
| Maximum humidity (non-condensing) | 95 % |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Environmental Condition | Indoor, unconditioned |
| Programmable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Remote on/off terminal | Yes |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Pollution Degree | PD3 |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Number of trackers | 1 |
| Number of synchronised parallel operating units with VE.Can | 25 |
| Nominal PV power at 48 V | 4,000 W |
| Nominal PV power at 36V | 3,000 W |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Warranty | 5 years (Victron) |
| Victron part number | SCC125070521 |
| UPC / EAN | 8719076051909 |
| Country of origin | Malaysia |
Documents
- SmartSolar charge controller MPPT 250/70 up to 250/100 VE.Can (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
