Victron SmartSolar MPPT 250/60-MC4 [SCC125060321]
Victron SmartSolar MPPT 250/60-MC4 [SCC125060321] is backordered and will ship as soon as it is back in stock.
Description
Description

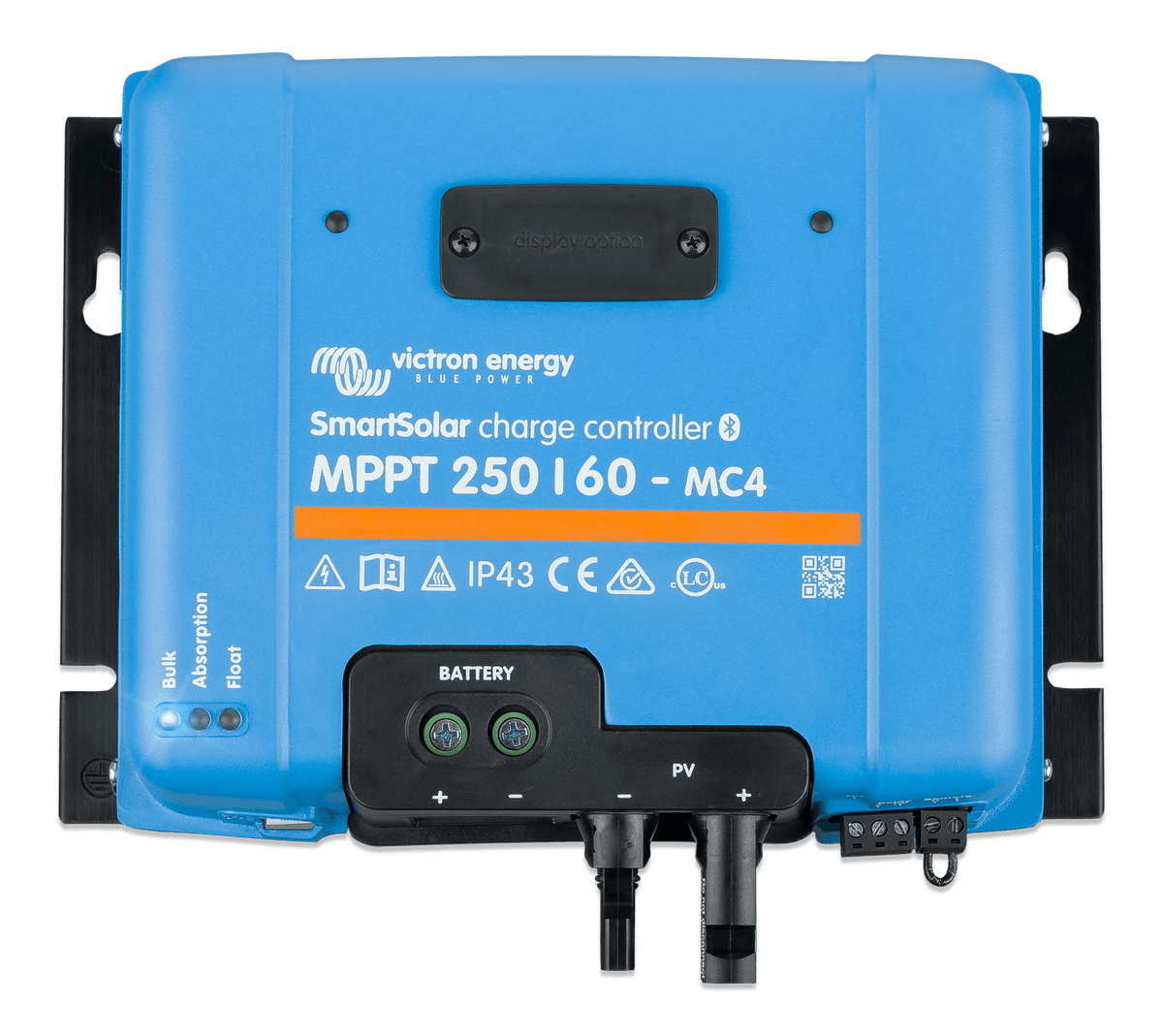

Victron SmartSolar MPPT 250/60-MC4
Victron SmartSolar MPPT charge controllers track the maximum power point of your panels and add built-in Bluetooth, so you can set up and watch your solar from the free VictronConnect app.
Specifications (from Victron)
| Rated Charge Current | 60 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV short circuit current per tracker | 35 A |
| Maximum PV current per MC4 connection | 30 A |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum efficiency | 99 % |
| Data Communication | Bluetooth,VE.Direct |
| Number of synchronised parallel operating units with Bluetooth | 10 |
| Bluetooth | Yes |
| Nominal PV power at 36V | 2,580 W |
| Nominal PV power at 48 V | 3,440 W |
| Nominal PV power at 24 V | 1,720 W |
| Nominal PV power at 12 V | 860 W |
| Number of trackers | 1 |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Pollution Degree | PD3 |
| Programmable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Protections | PV reverse polarity,Excessive temperature,Output short-circuit |
| Temperature Sensor | Internal |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Environmental Condition | Indoor, unconditioned |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Maximum humidity (non-condensing) | 95 % |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Warranty | 5 years (Victron) |
| Victron part number | SCC125060321 |
| UPC / EAN | 8719076050858 |
| Country of origin | Malaysia |
Documents
- SmartSolar MPPT 250/60 and 250/70 (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
