Victron SmartSolar MPPT 250/100-MC4 VE.Can [SCC125110512]
Victron SmartSolar MPPT 250/100-MC4 VE.Can [SCC125110512] is backordered and will ship as soon as it is back in stock.
Description
Description

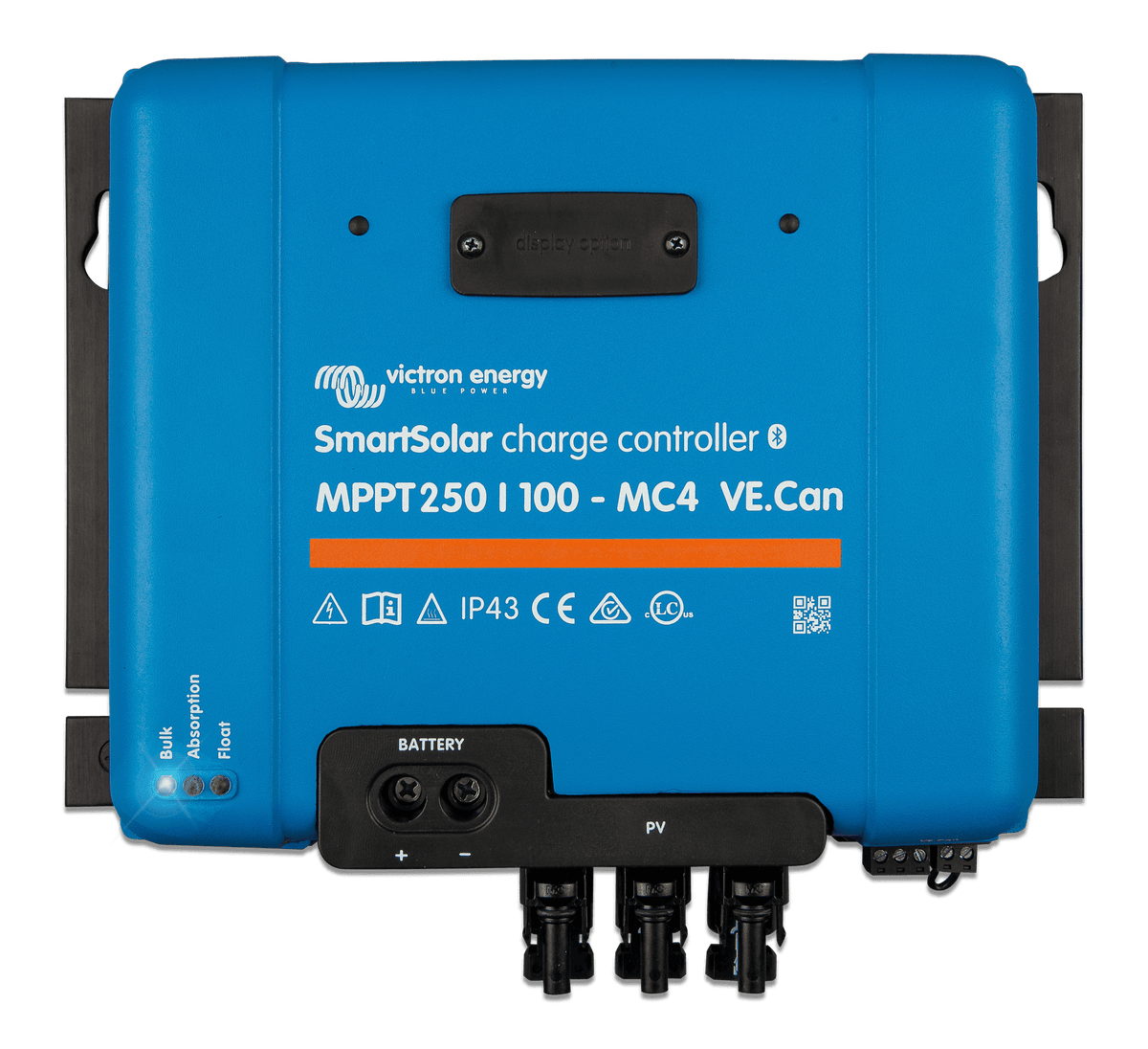

Victron SmartSolar MPPT 250/100-MC4 VE.Can
Victron SmartSolar MPPT charge controllers track the maximum power point of your panels and add built-in Bluetooth, so you can set up and watch your solar from the free VictronConnect app.
Specifications (from Victron)
| Rated Charge Current | 100 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV current per MC4 connection | 30 A |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum PV short circuit current per tracker | 70 A |
| Maximum efficiency | 99 % |
| Data Communication | Bluetooth,VE.Direct,VE.Can |
| Bluetooth | Yes |
| Number of synchronised parallel operating units with Bluetooth | 10 |
| Environmental Condition | Indoor, unconditioned |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Nominal PV power at 12 V | 1,450 W |
| Maximum humidity (non-condensing) | 95 % |
| Nominal PV power at 48 V | 5,800 W |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Remote on/off terminal | Yes |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Programmable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Sensor | Internal |
| Nominal PV power at 36V | 4,350 W |
| Number of synchronised parallel operating units with VE.Can | 25 |
| Number of trackers | 1 |
| Nominal PV power at 24 V | 2,900 W |
| Warranty | 5 years (Victron) |
| Victron part number | SCC125110512 |
| UPC / EAN | 8719076055679 |
| Country of origin | India |
Documents
- SmartSolar charge controller MPPT 250/70 up to 250/100 VE.Can (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
