Victron SmartSolar MPPT 150/60-MC4 [SCC115060311]
Victron SmartSolar MPPT 150/60-MC4 [SCC115060311] is backordered and will ship as soon as it is back in stock.
Description
Description

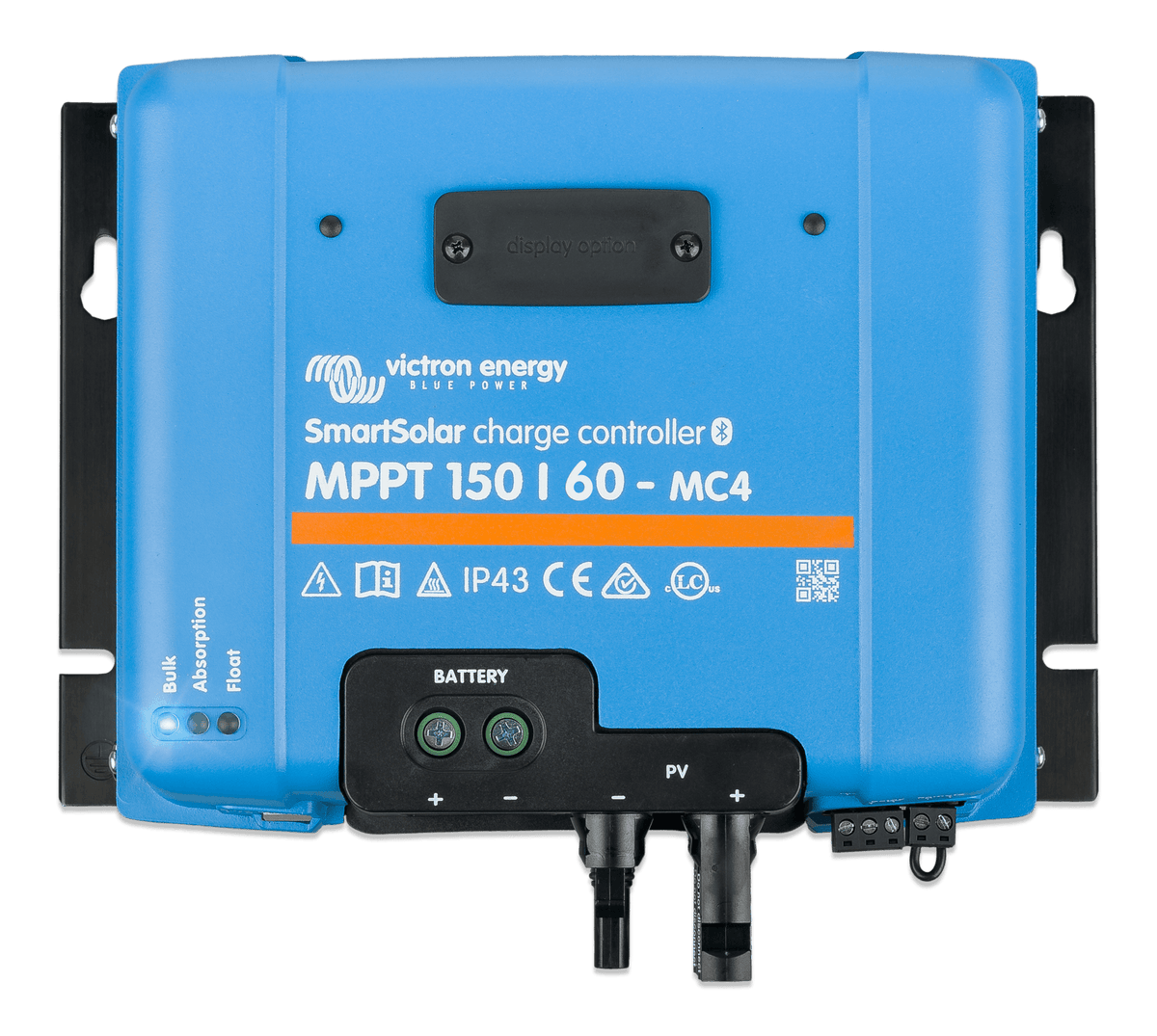

Victron SmartSolar MPPT 150/60-MC4
Victron SmartSolar MPPT charge controllers track the maximum power point of your panels and add built-in Bluetooth, so you can set up and watch your solar from the free VictronConnect app.
Specifications (from Victron)
| Rated Charge Current | 60 A |
| Battery voltage | 12V / 24V / 48V Auto Select (software tool needed to select 36V) |
| Maximum PV current per MC4 connection | 30 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Maximum PV short circuit current per tracker | 50 A |
| Maximum efficiency | 98 % |
| Data Communication | Bluetooth,VE.Direct |
| Number of synchronised parallel operating units with Bluetooth | 10 |
| Bluetooth | Yes |
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Temperature Sensor | Internal |
| Pollution Degree | PD3 |
| Maximum humidity (non-condensing) | 95 % |
| Nominal PV power at 12 V | 860 W |
| Nominal PV power at 24 V | 1,720 W |
| Nominal PV power at 36V | 2,580 W |
| Nominal PV power at 48 V | 3,440 W |
| Number of trackers | 1 |
| Operating temperature range | -22°F to 140°F (-30 to 60°C) |
| Programmable relay | DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Protections | PV reverse polarity,Output short-circuit,Excessive temperature |
| Remote on/off terminal | Yes |
| Environmental Condition | Indoor, unconditioned |
| Self-consumption | Less than 35mA @ 12V / 20mA @ 48V |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 12V | -16 mV/°C |
| Temperature Compensation at 24V | -32 mV/°C |
| Warranty | 5 years (Victron) |
| Victron part number | SCC115060311 |
| UPC / EAN | 8719076051398 |
| Country of origin | India |
Documents
- SmartSolar MPPT 150/60 & 150/70 (datasheet)
- BlueSolar and SmartSolar Charge Controller MPPT - Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
