Victron Quattro 48/15000/200-100/100 277V VE.Bus [QUA483150100]
Victron Quattro 48/15000/200-100/100 277V VE.Bus [QUA483150100] is backordered and will ship as soon as it is back in stock.
Description
Description

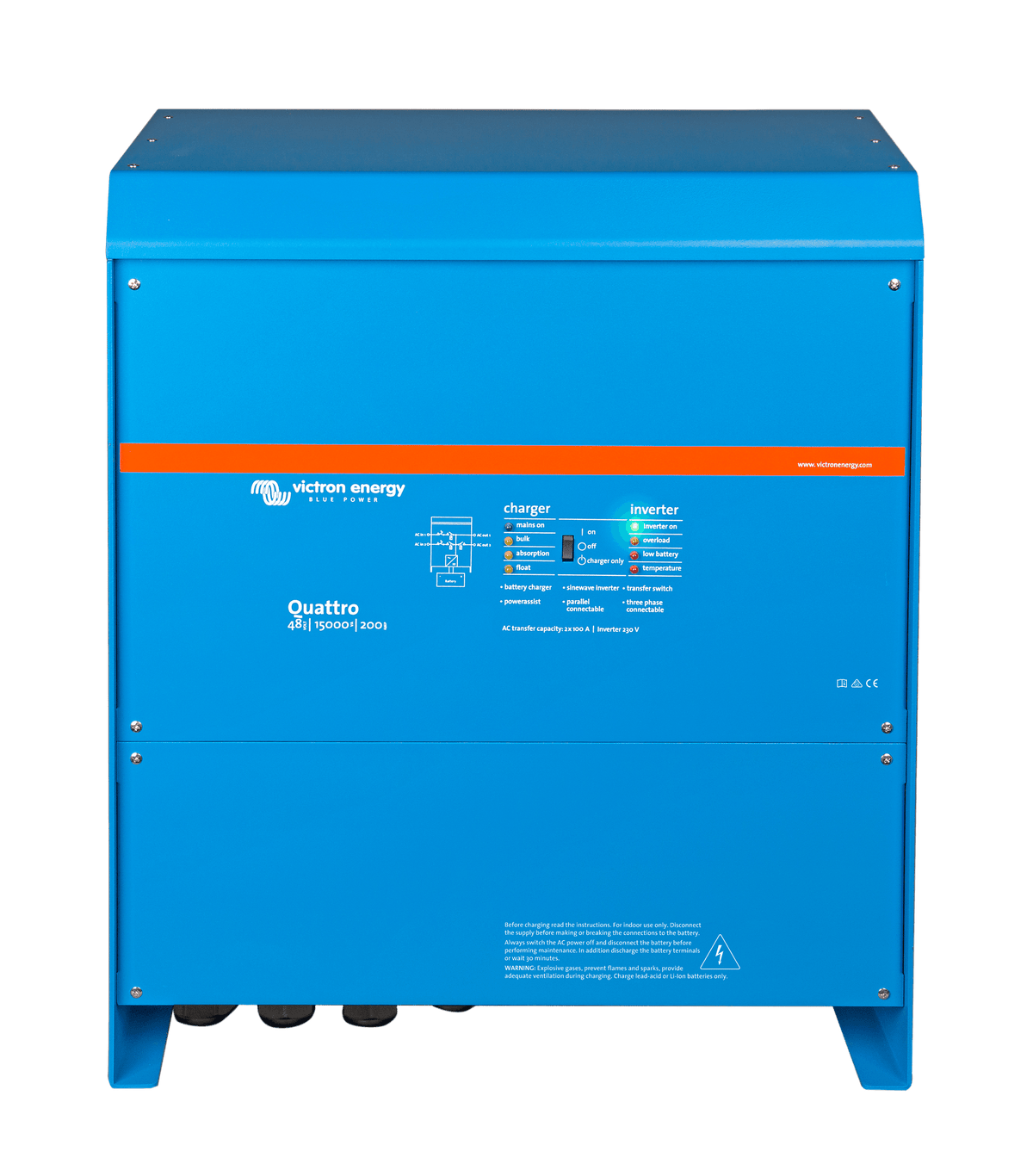

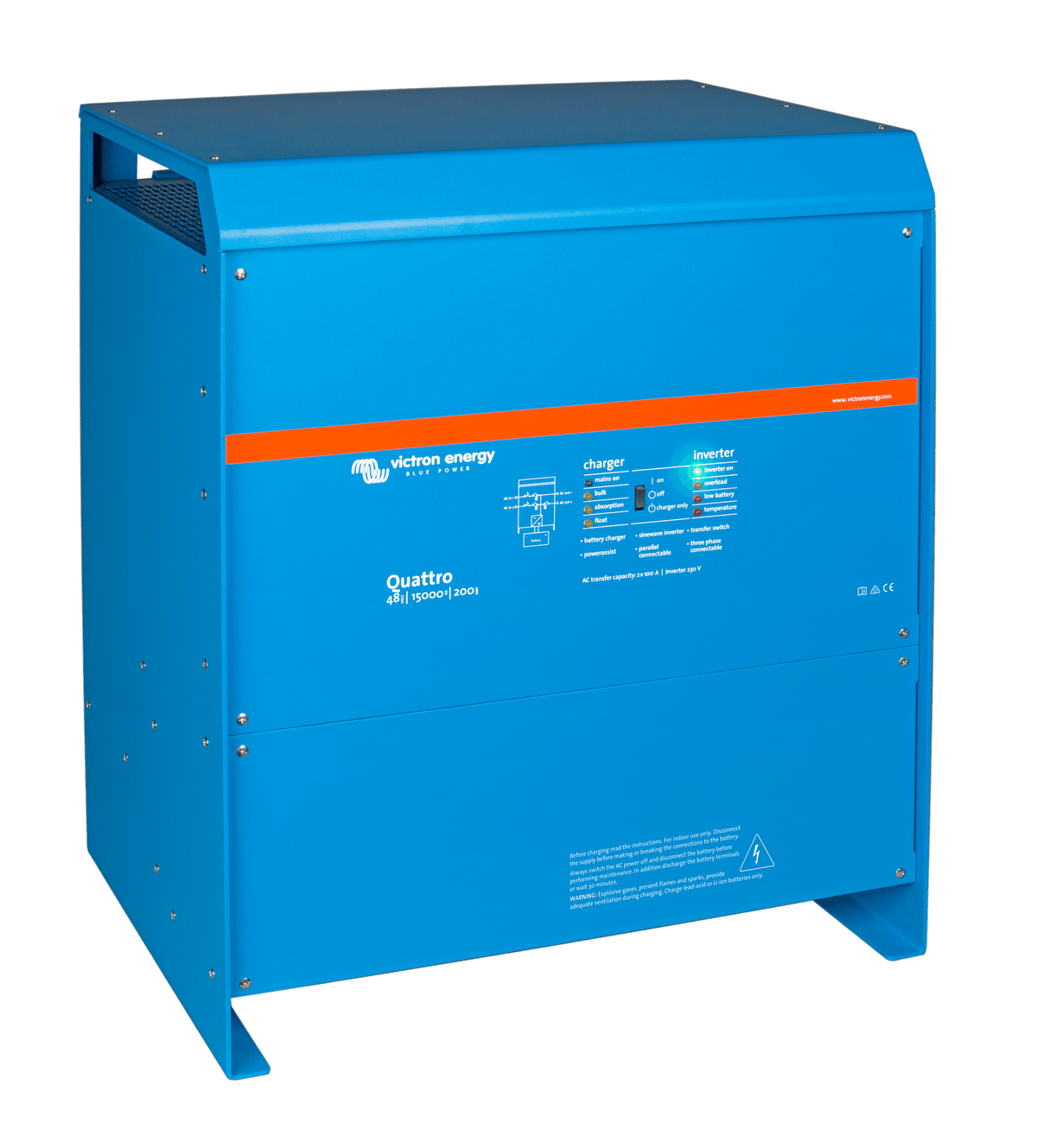

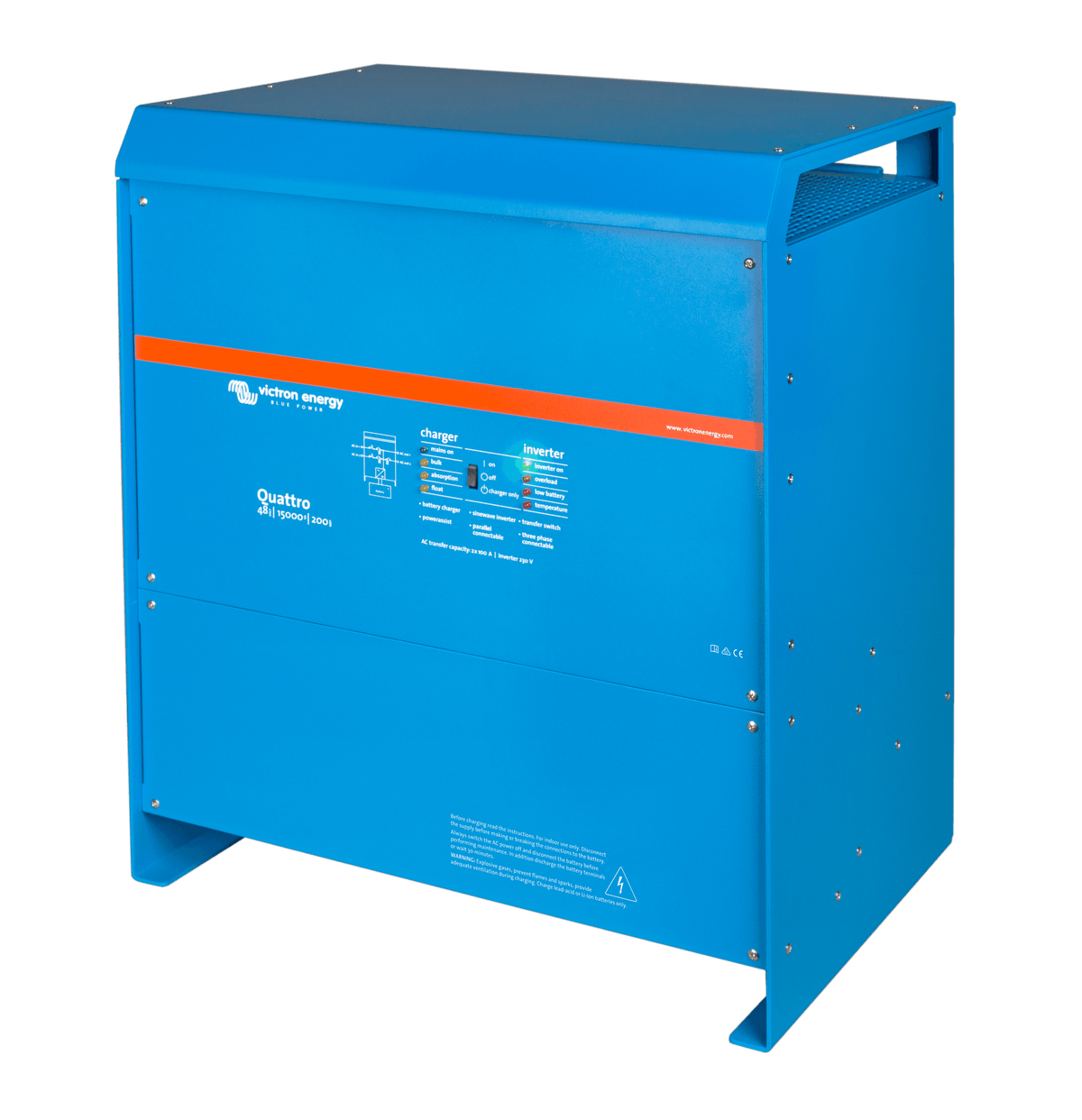

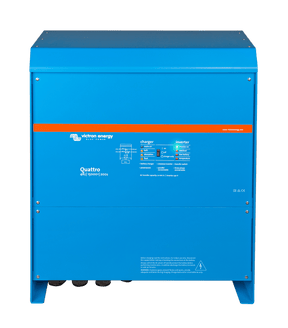

Victron Quattro 48/15000/200-100/100 277V VE.Bus
The Victron Quattro is an inverter/charger with two AC inputs and a built-in transfer switch, so it can connect to shore power and a generator and switch between them automatically.
Specifications (from Victron)
| Continuous power at 25°C (Nonlinear load, crest factor 3 | 15,000 VA |
| Peak power rating | 25,000 W |
| Nominal battery voltage | 48 V |
| AC Input voltage range (power factor 1) | 240–295 V |
| DC Input voltage range | 38–66 VDC |
| AC output voltage ±2% (adjustable) | 277 VAC |
| Maximum efficiency | 96 % |
| Communication Port | VE.Bus |
| General purpose communication ports (2x) | Yes |
| VE.bus communication port | Two RJ45 terminals |
| AC output frequency ±0.1% (adjustable) | 60 Hz |
| Auxiliary AC output | Yes |
| Charge algorithm | Adaptive, 4-stage |
| Charge voltage absorption (adjustable) | 57.6 VDC |
| Charge voltage float (adjustable) | 55.2 VDC |
| Charge voltage storage (adjustable) | 52.8 VDC |
| Continuous inverter AC output power at 25°C | 12,000 W |
| Continuous inverter AC output power at 40°C | 10,000 W |
| Continuous inverter AC output power at 65°C | 7,000 W |
| Fan assisted cooling | Yes |
| Frequency ±0.1% (selectable) | 50Hz or 60Hz |
| Integrated transfer switch | Yes |
| AC input frequency range | 45–65 Hz |
| Zero Load Power | 110 W |
| Zero load power in AES mode | 75 W |
| Zero load power in search mode | 20 W |
| PowerControl | Yes |
| Maximum AC feed trough current | 2x 100A |
| Maximum humidity (non-condensing) | 95 % |
| Maximum charge current (up to 25°C ambient) | 200 A |
| Warranty | 5 years (Victron) |
| Victron part number | QUA483150100 |
| UPC / EAN | 8719076062189 |
| Country of origin | India |
Documents
From Victron
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
