Victron Quattro 48/10000/140-100/100 120V [QUA483100100]
Victron Quattro 48/10000/140-100/100 120V [QUA483100100] is backordered and will ship as soon as it is back in stock.
Description
Description
Special Order: Estimated working time 5 business days. We order this unit from Victron Energy for you. Questions about fit or lead time? Contact us.
Newer model available: Victron has replaced this unit with the Victron Quattro 48/10000/140-100/100 120V (UL 1741) [QUA483100102]. We recommend it for new installs.

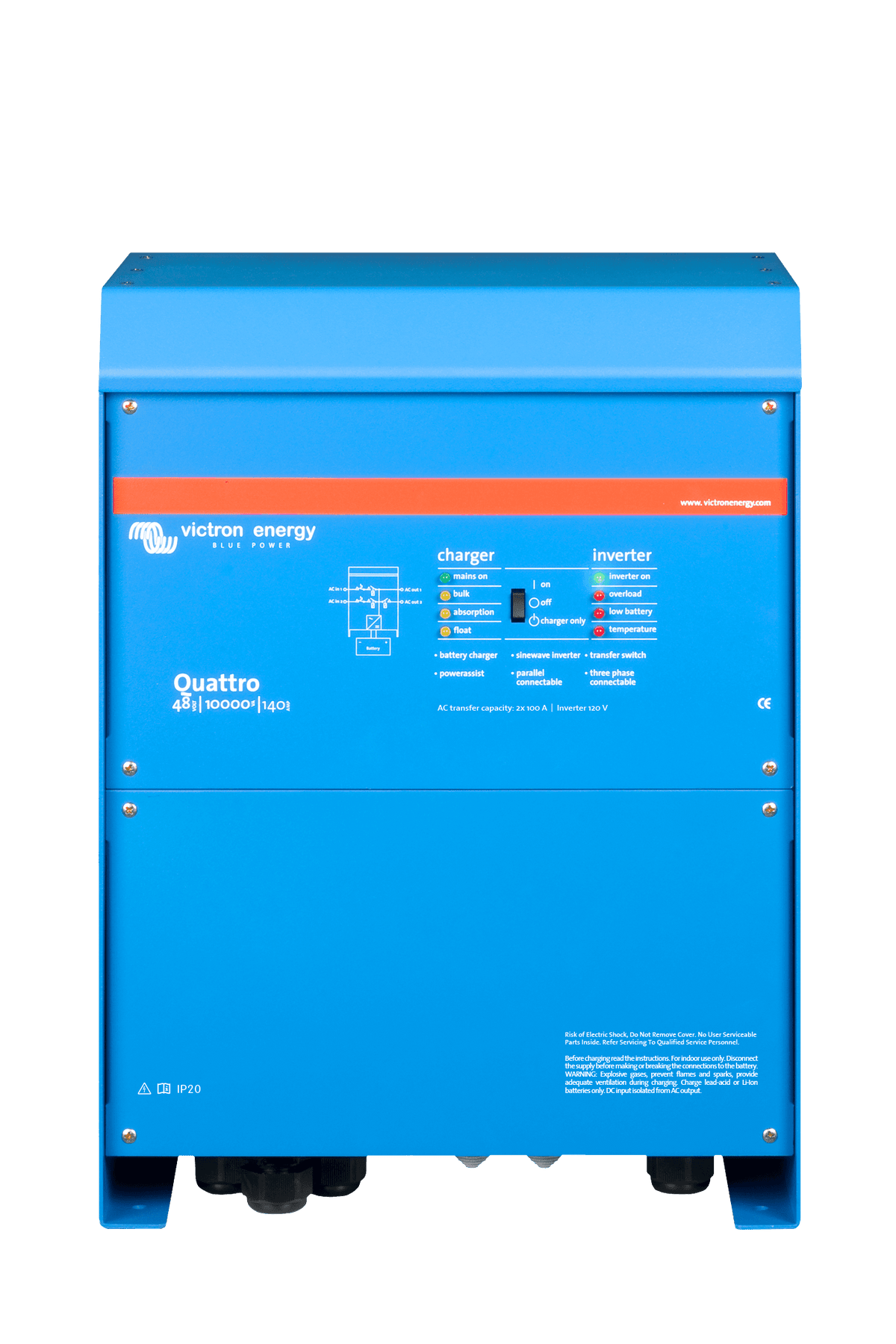

Victron Quattro 48/10000/140-100/100 120V
An inverter/charger with two AC inputs and a built-in transfer switch, so shore power and a generator can both be wired in and it picks the one that's live. Two AC outputs, PowerControl and PowerAssist, and switch-over in milliseconds when shore power drops. Parallel and three-phase capable.
Specifications
- Continuous output at 77°F (25°C): 10,000 VA / 8,000 W
- Continuous output at 104°F (40°C): 6,500 W
- Continuous output at 149°F (65°C): 4,500 W
- Peak power: 20,000 W
- Battery voltage: 48 V DC (input range 38–66 VDC)
- AC output: 120 V, 60 Hz pure sine wave
- Max battery charge current: 140 A
- Transfer switch: 100A each
- AC inputs: 2
- Max efficiency: 96%
- Zero-load power: 60 W
- Communication: VE.Bus
- Protection: IP21
- Warranty: 5 years (Victron)

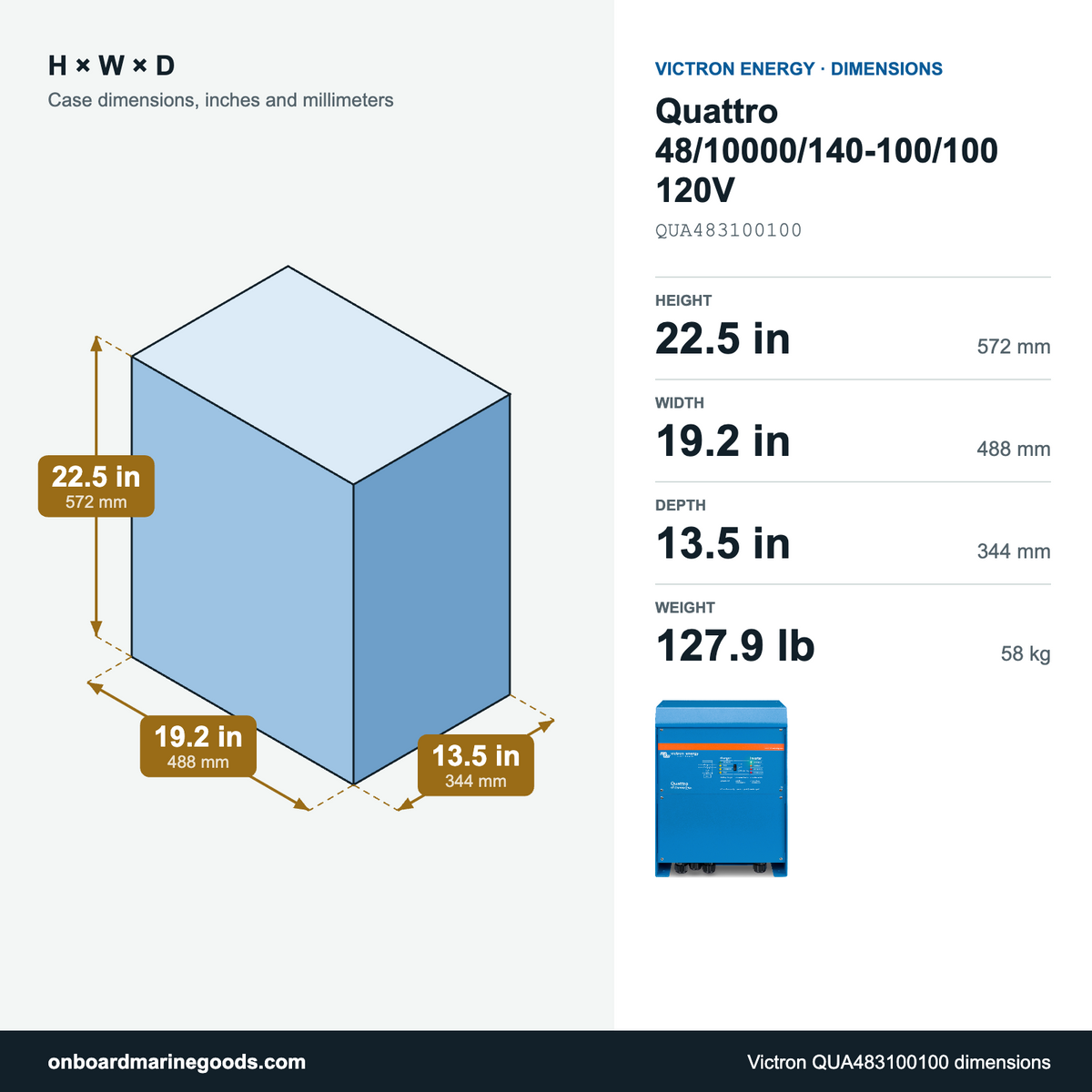

Dimensions & weight
- Size (H × W × D): 22.5 × 19.2 × 13.5 in (572 × 488 × 344 mm)
- Weight: 127.9 lb (58 kg)
