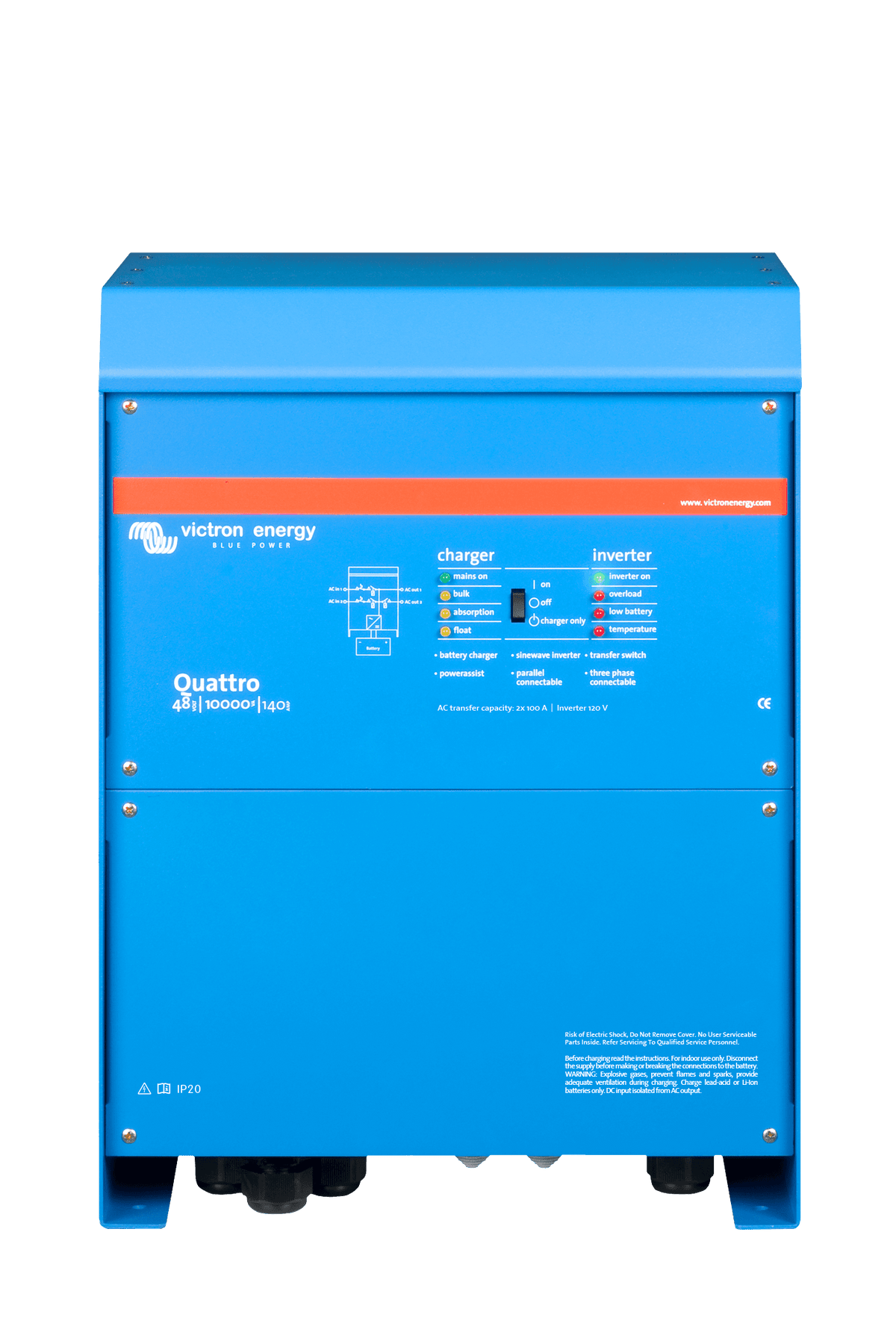

Victron Quattro 48/10000/140-100/100 120V 50/60Hz VE.Bus
The Victron Quattro is an inverter/charger with two AC inputs and a built-in transfer switch, so it can connect to shore power and a generator and switch between them automatically.
Specifications (from Victron)
| Continuous power at 25°C (Nonlinear load, crest factor 3 | 10,000 VA |
| Peak power rating | 20,000 W |
| Nominal battery voltage | 48 V |
| AC Input voltage range (power factor 1) | 90–140 V |
| DC Input voltage range | 38–66 VDC |
| AC output voltage ±2% (adjustable) | 120 VAC |
| Maximum efficiency | 96 % |
| Communication Port | VE.Bus |
| General purpose communication ports (2x) | Yes |
| VE.bus communication port | Two RJ45 terminals |
| AC input frequency range | 55–65 Hz |
| Frequency ±0.1% (selectable) | 50Hz or 60Hz |
| Integrated transfer switch | Yes |
| Maximum AC feed trough current | 2x 100A |
| Maximum humidity (non-condensing) | 95 % |
| Maximum charge current (up to 25°C ambient) | 140 A |
| Number of AC Inputs | 2 |
| Number of AC Outputs | 2 |
| Operating temperature range (fan assisted cooling) | -40°F to 149°F (-40 to 65°C) |
| Fan assisted cooling | Yes |
| Parallel operation | Yes |
| PowerAssist | Yes |
| PowerControl | Yes |
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Remote terminal | On / Off / Charger only |
| Battery temperature sensor | Included |
| Auxiliary AC output | Yes |
| Charge algorithm | Adaptive, 4-stage |
| Charge voltage absorption (adjustable) | 57.6 VDC |
| Warranty | 5 years (Victron) |
| Victron part number | QUA483100300 |
| UPC / EAN | 8719076075301 |
| Country of origin | India |
Documents
From Victron
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
