Victron Phoenix Inverter 24 VDC - 3000VA (2400W) - 120 VAC - 60Hz -VE.Bus [PIN243020100]
Available for shipping
Victron Phoenix Inverter 24 VDC - 3000VA (2400W) - 120 VAC - 60Hz -VE.Bus [PIN243020100] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Phoenix Inverter 24 VDC - 3000VA (2400W) - 120 VAC - 60Hz -...
Victron Phoenix Inverter 24 VDC - 3000VA (2400W) - 120 VAC - 60Hz -VE.Bus [PIN243020100] is backordered and will ship as soon as it is back in stock.
Description
Description
Victron Phoenix 24/3000: 3,000VA = 2,400 watts continuous
Victron rates its inverters in VA (volt-amps), not watts. The Phoenix 24/3000 delivers 2,400W continuous at 77°F (25°C), with a 6,000W peak for starting motors and compressors. When you add up the loads on your boat, plan around 2,400W, not 3,000W. Compare all Victron inverters →
Mounting it in a hot engine room?
Continuous output drops as the temperature rises: 2,200W at 104°F (40°C), 1,700W at 149°F (65°C). Size your loads for the hottest spot you will mount it, and give it ventilation.
Specifications (from Victron)
| Battery voltage | 24 V |
| DC input range | 19–33 V |
| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 3,000 VA / 2,400 W |
| Continuous power @ 104°F (40°C) | 2,200 W |
| Continuous power @ 149°F (65°C) | 1,700 W |
| Peak power | 6,000 W |
| Max efficiency | 94 % |
| Idle draw (zero load) | 20 W (15 W AES, 10 W search mode) |
| Communication port | VE.Bus |
| Protection rating | IP21 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN243020100 |
| UPC / EAN | 8719076023739 |

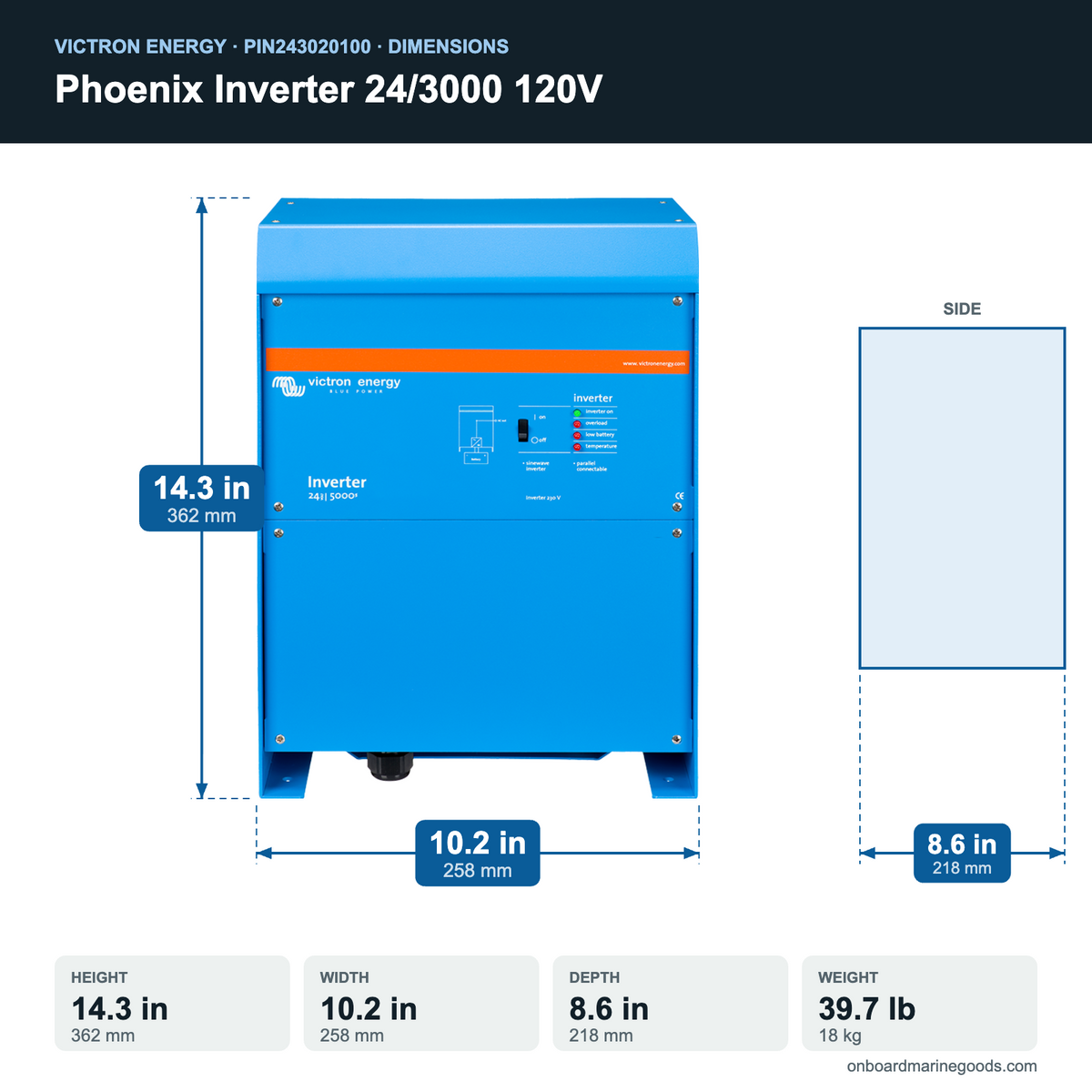

| Shipping box | 12.4 x 17.9 x 13.4 in, 43.7 lb (31.5 x 45.5 x 34 cm, 19.8 kg) |
Documents
From Victron
Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.
SinusMax - Superior Engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.
Parallel & 3-phase Operation Capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.
