Description
Description

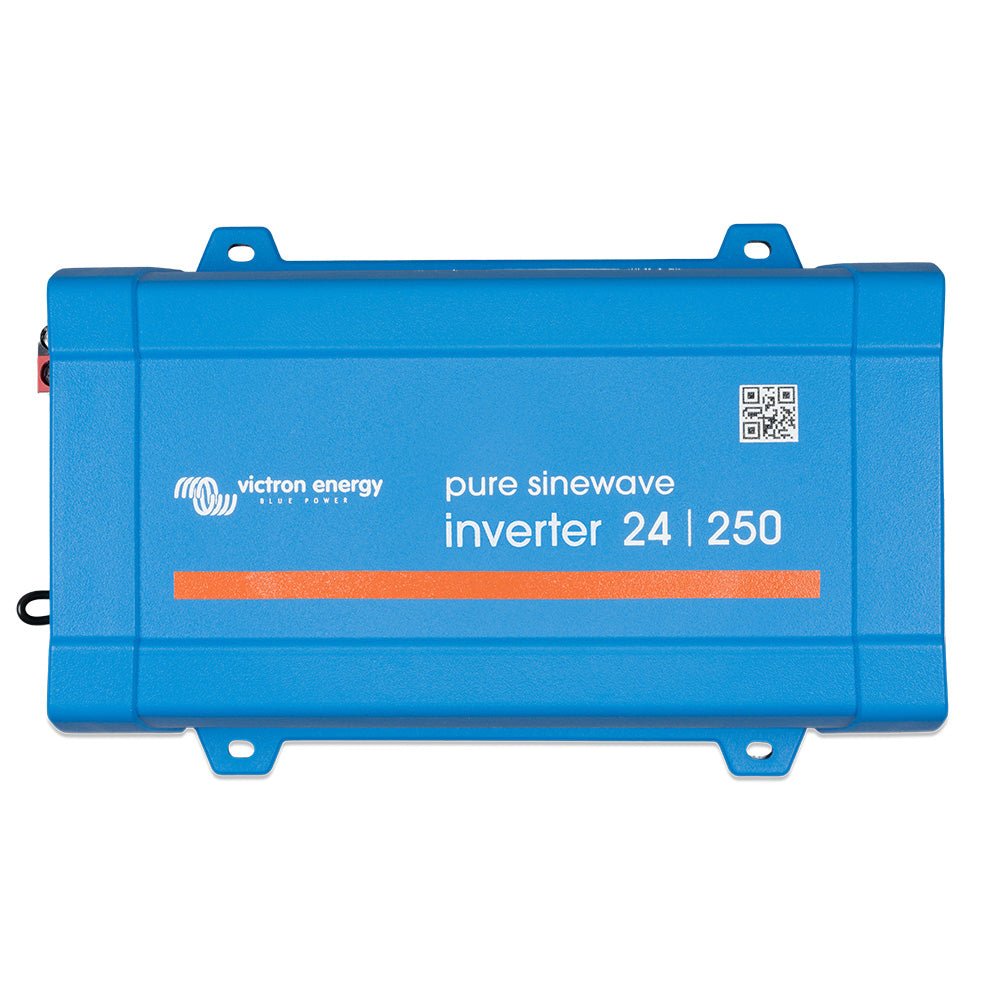

Victron Phoenix Inverter 24/250 GFCI: 250VA = 200 watts continuous
A 24V pure sine wave inverter from Victron Energy with 120V AC output.
Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 200W continuous at 77°F (25°C) and 400W peak for motor and compressor start-up. Size your loads around 200W, not 250W. Compare all Victron inverters →
What it will run on a boat
At 200W it handles phone and laptop chargers, a small LED TV, satellite internet gear and other electronics. Add up everything you'll run at the same time and leave 20–25% headroom.
Battery draw and wiring
At full continuous output it pulls roughly 9 amps from a 24V battery bank (200W ÷ 24V ÷ 88% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.
Mounting it in a hot engine room?
Continuous output drops as the temperature rises: 175W at 104°F (40°C). In the Keys an engine room or lazarette can easily run hotter than 104°F, so size for the hottest spot you'll mount it and give it airflow.
Idle draw at anchor
Switched on with nothing plugged in, it uses about 5.2W, roughly 5Ah per day from a 24V bank. ECO mode cuts that to 1.3 W when you don't need full power.
Specifications (from Victron)
| Battery voltage | 24 V |
| DC input range | 18.4–34 V |

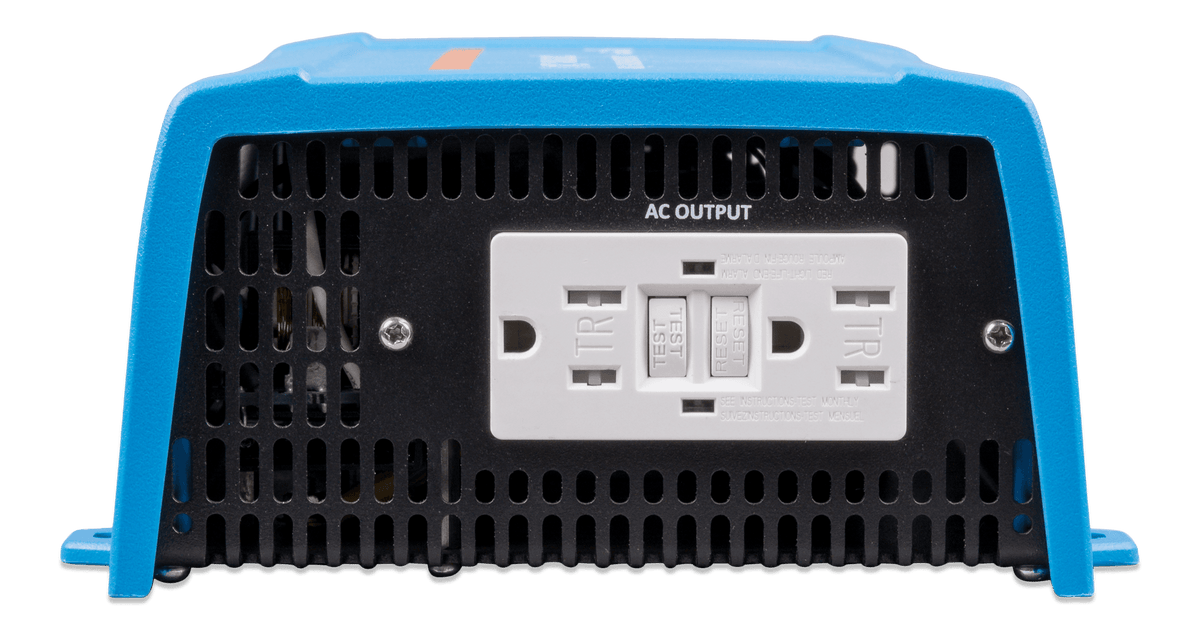

| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 250 VA / 200 W |
| Continuous power @ 104°F (40°C) | 175 W |
| Peak power | 400 W |
| Max efficiency | 88 % |
| Idle draw | 5.2 W |

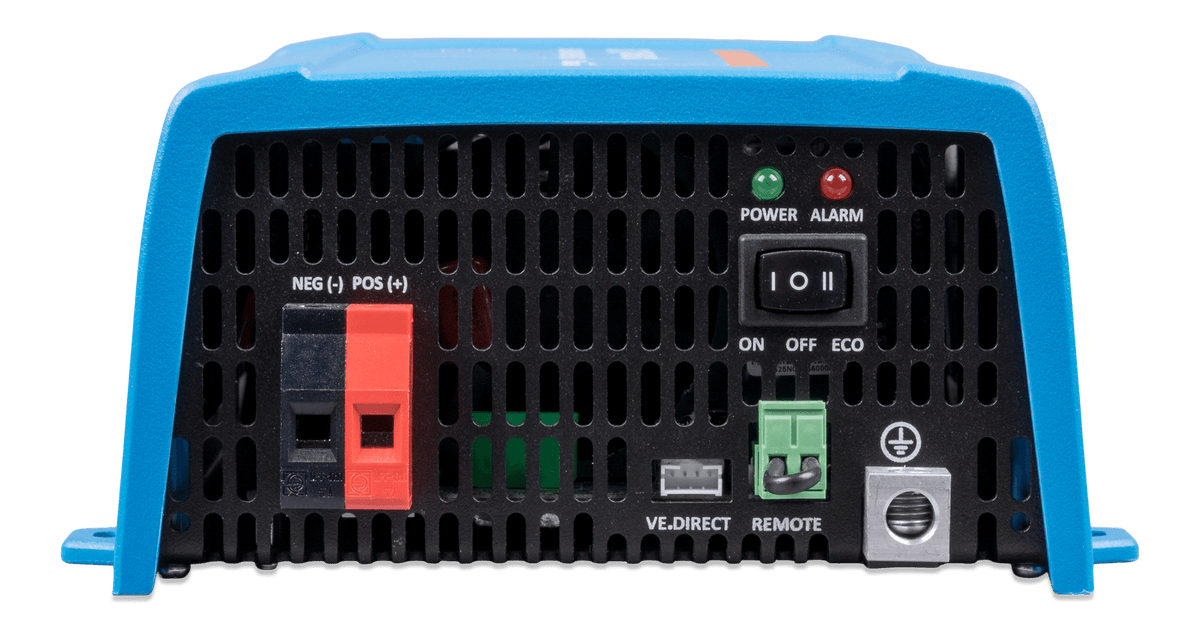

| Communication port | VE.Direct |
| Protection rating | IP21 |
| Operating temperature | -40°F to 149°F (-40 to 65°C) |
| Weight | 5.3 lb (2.4 kg) |

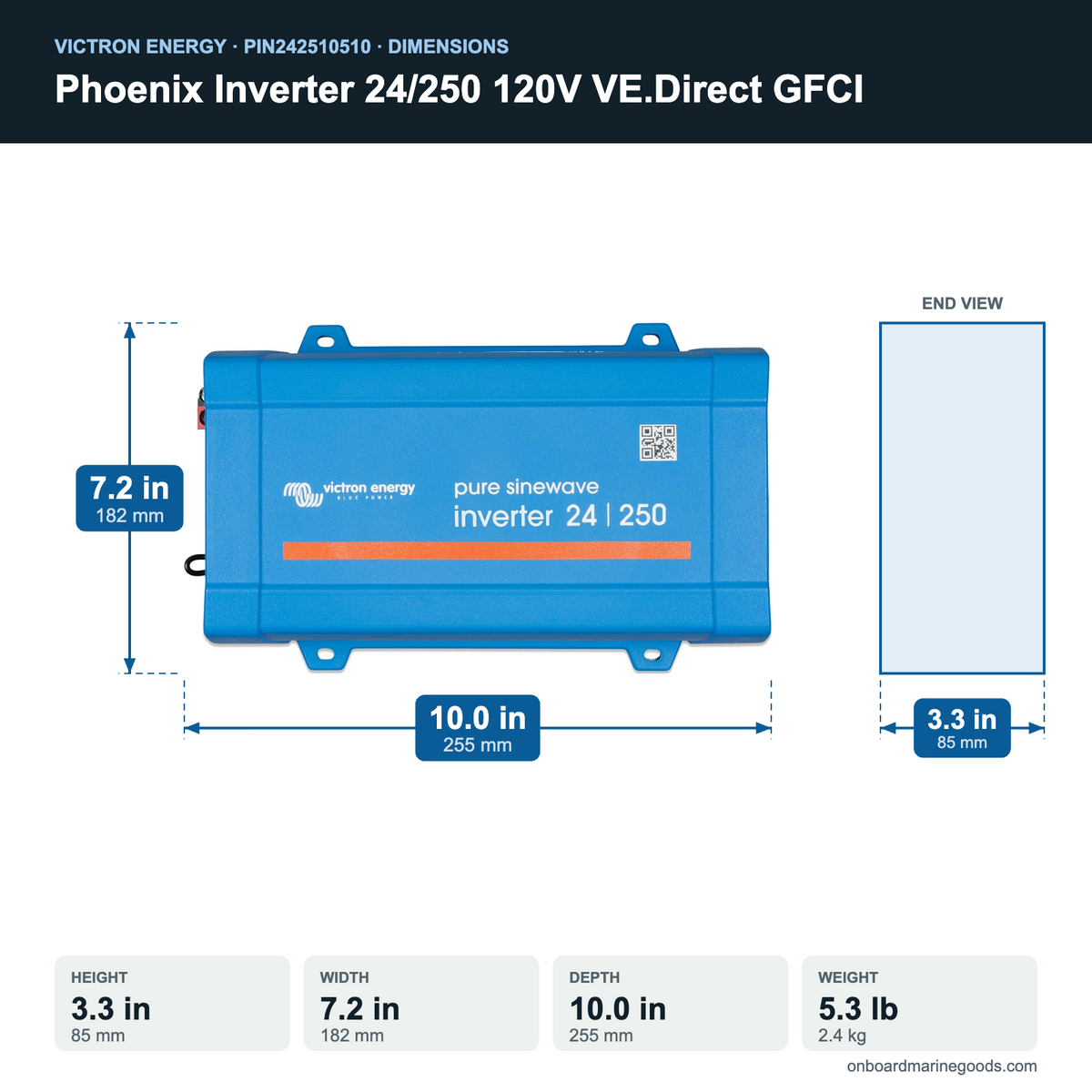

| Dimensions (H x W x D) | 3.3 x 7.2 x 10.0 in (85 x 182 x 255 mm) |
| Safety standards | EN-IEC 60335-1,EN-IEC 62109-1,UL 458 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN242510510 |
| UPC / EAN | 8719076050247 |
Documents
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
