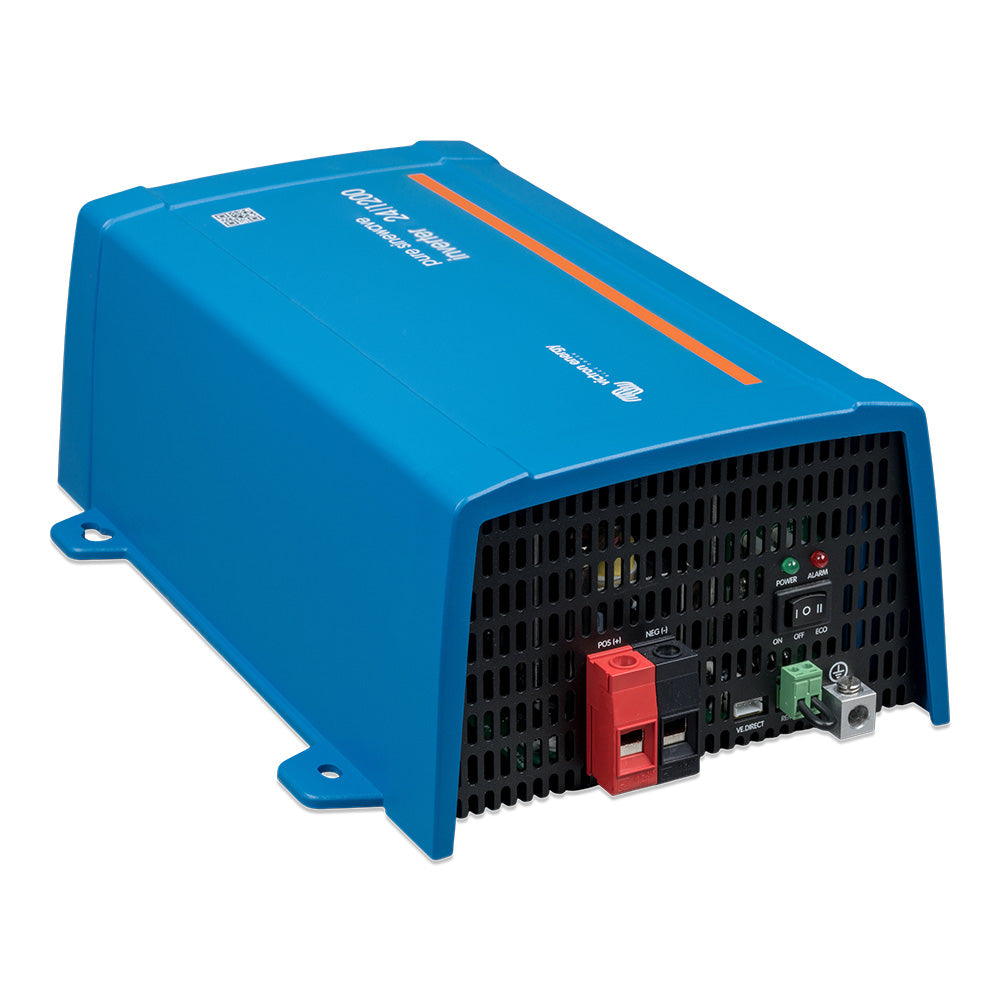

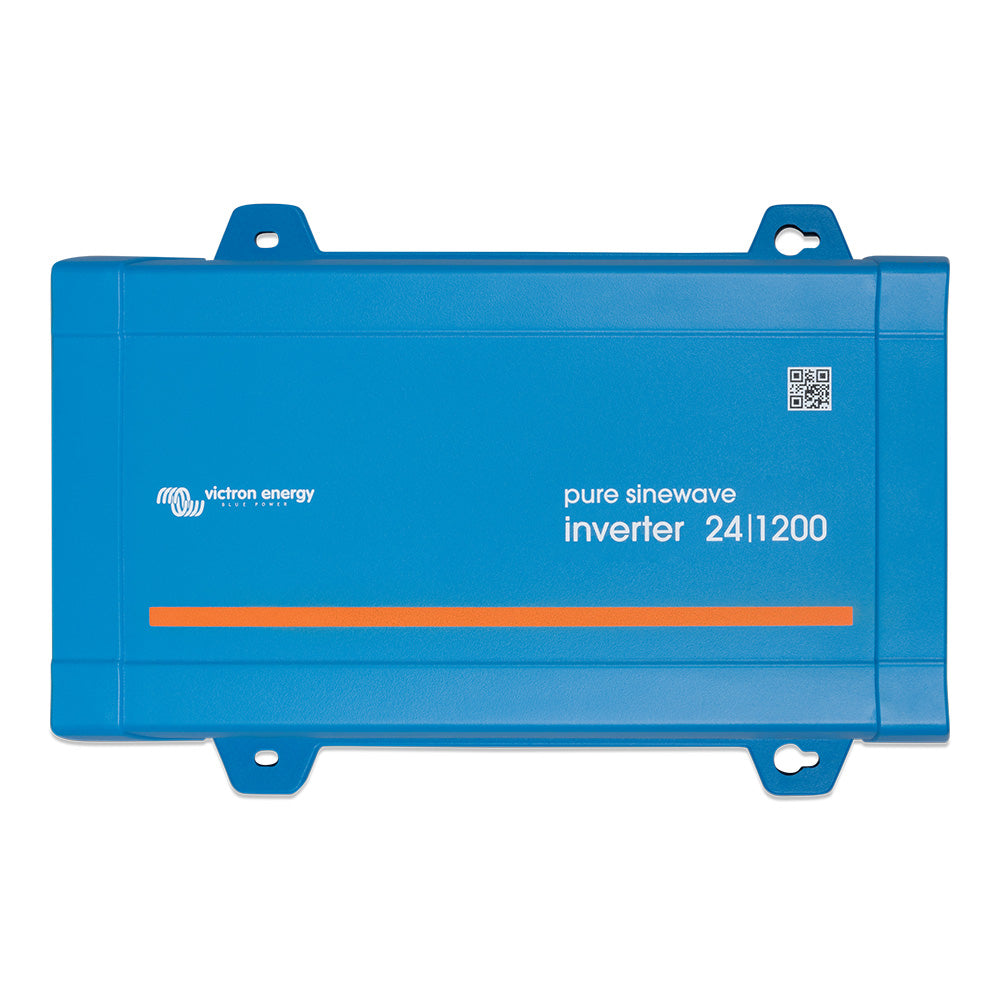

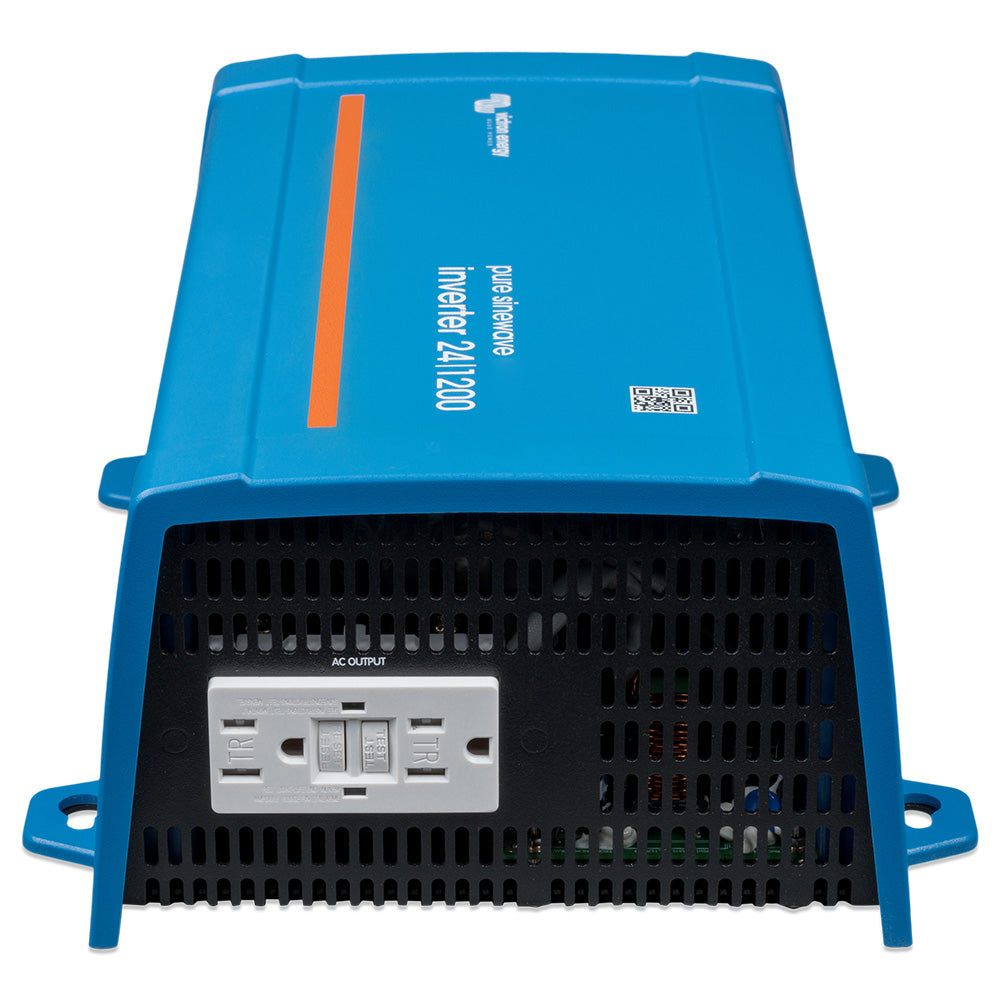

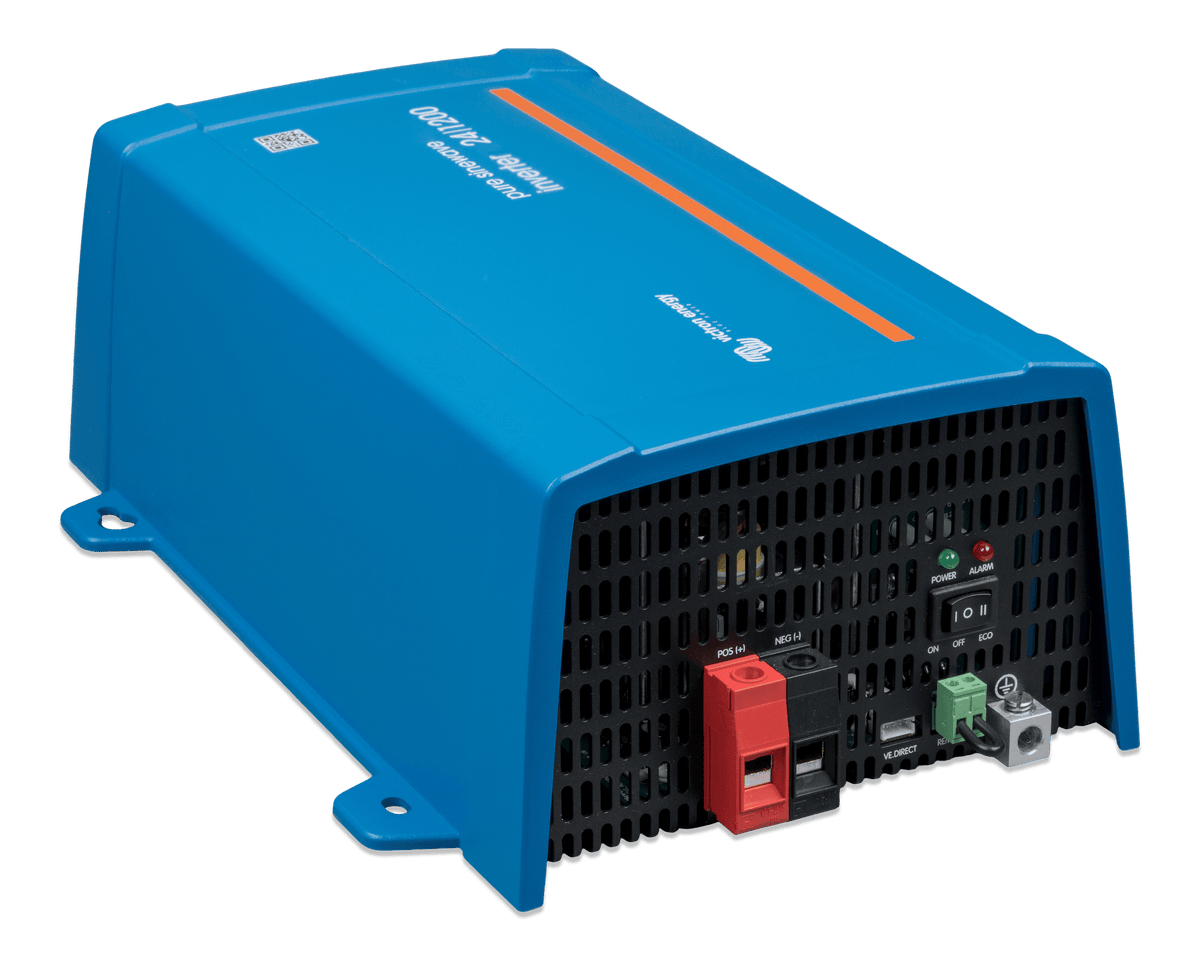

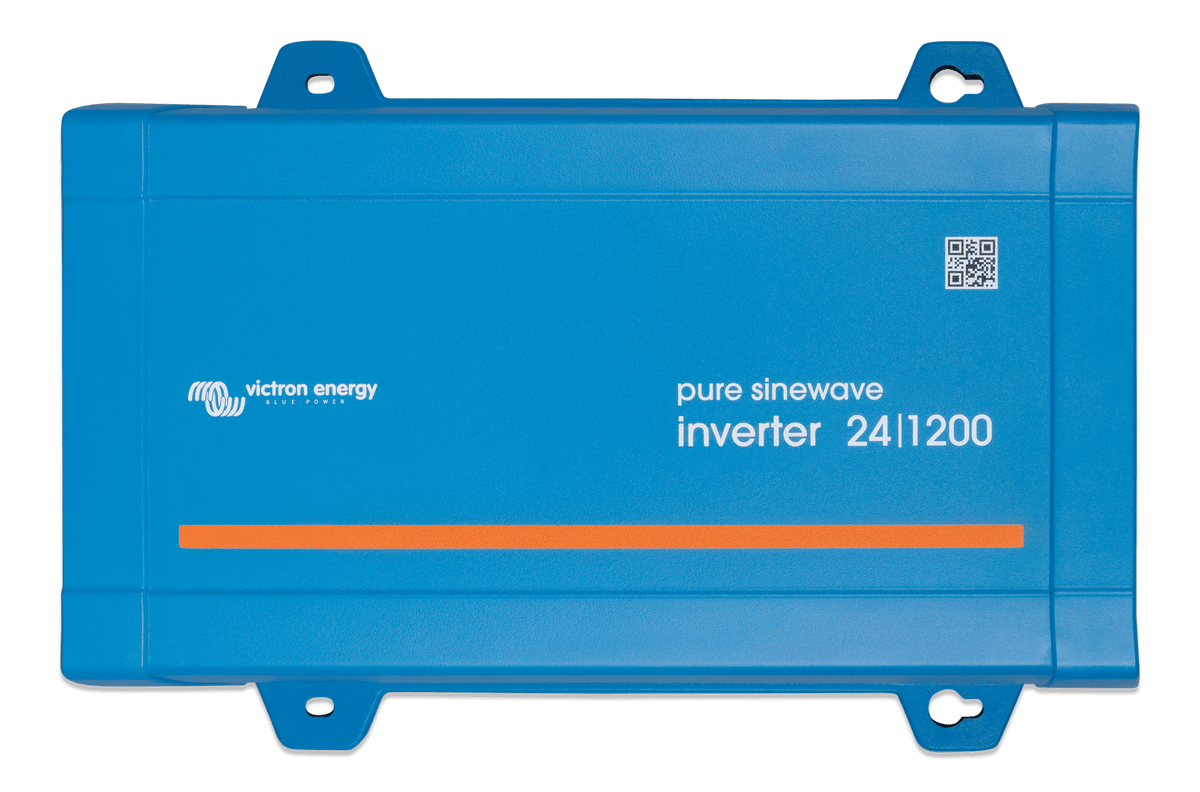

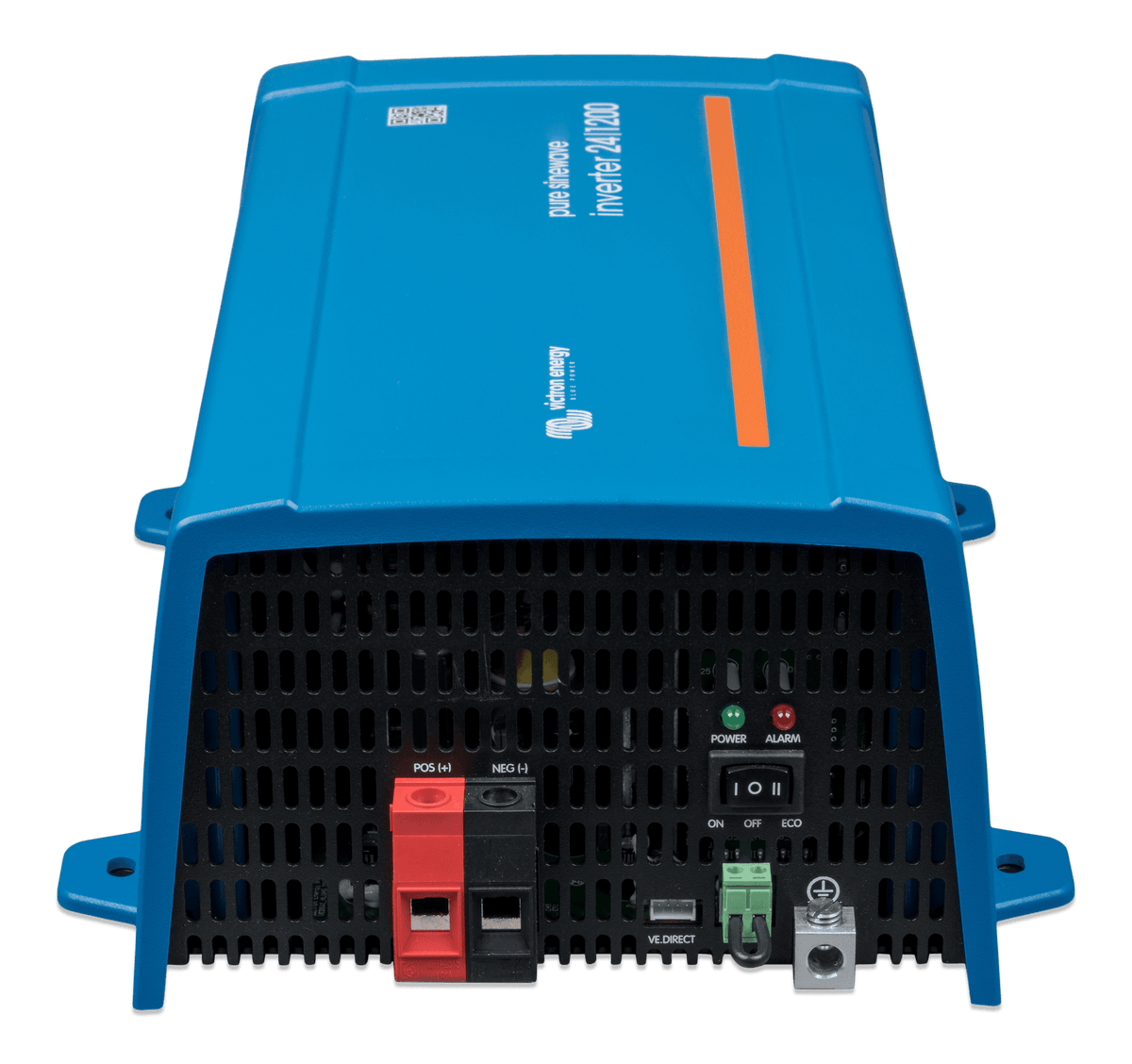

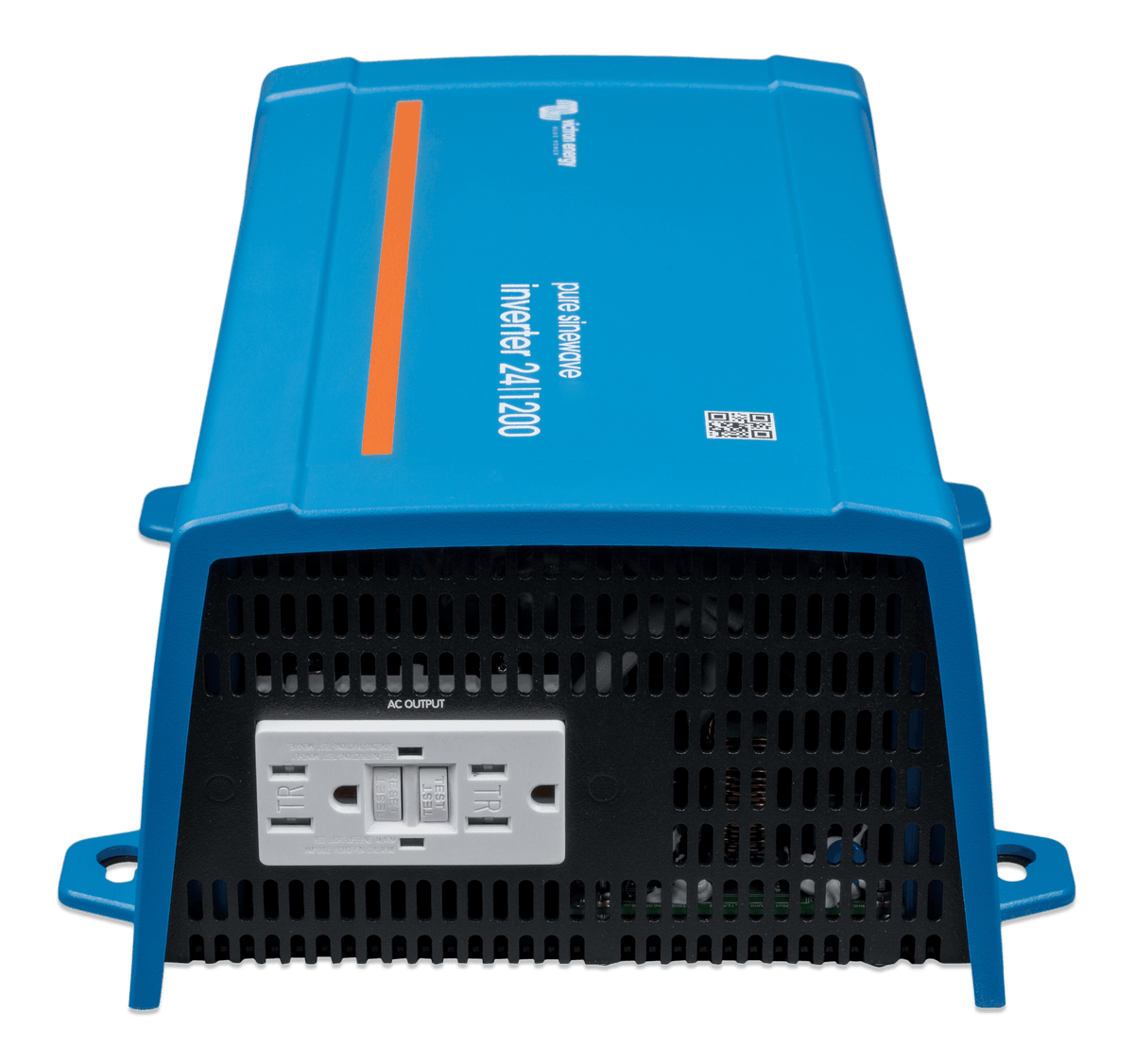

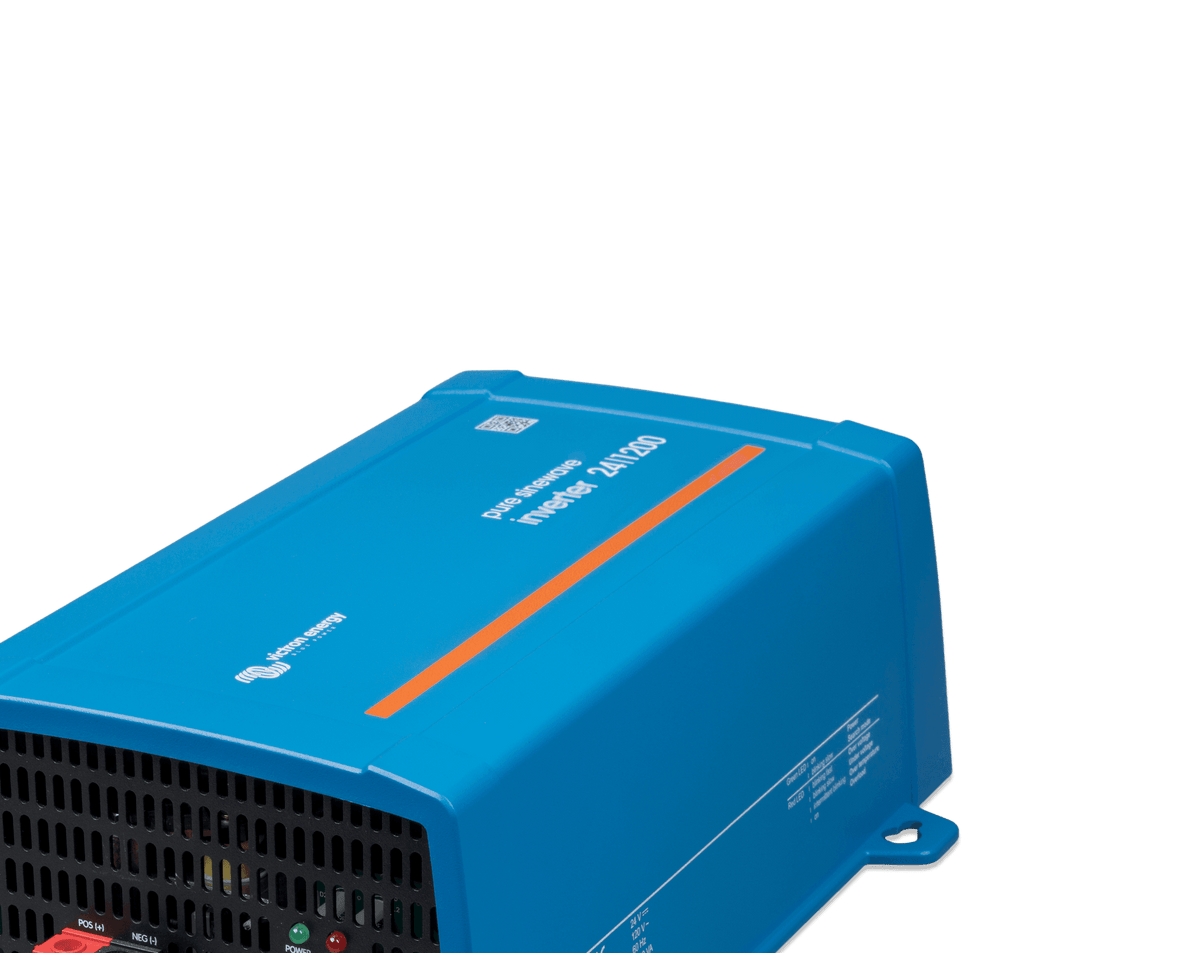

Victron Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458 [PIN242122510]
Pickup available at our Marathon storefront
Available for pickup or shipping
Victron Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458 [PIN242122510] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458 [PIN24...
Victron Inverter 24/1200 120V Ve.Direct GFCI NEMA Plug UL458 [PIN242122510] is backordered and will ship as soon as it is back in stock.
Description
Description
Victron Phoenix Inverter 24/1200 GFCI: 1,200VA = 1,000 watts continuous
A 24V pure sine wave inverter from Victron Energy with 120V AC output.
Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 1,000W continuous at 77°F (25°C) and 2,200W peak for motor and compressor start-up. Size your loads around 1,000W, not 1,200W. Compare all Victron inverters →
What it will run on a boat
At 1,000W it handles a coffee maker or a small microwave, plus electronics. Check the appliance's input watts: a "700W" microwave usually draws 1,000–1,200W from the outlet. Add up everything you'll run at the same time and leave 20–25% headroom.
Battery draw and wiring
At full continuous output it pulls roughly 46 amps from a 24V battery bank (1,000W ÷ 24V ÷ 91% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.
Mounting it in a hot engine room?
Continuous output drops as the temperature rises: 850W at 104°F (40°C). In the Keys an engine room or lazarette can easily run hotter than 104°F, so size for the hottest spot you'll mount it and give it airflow.
Idle draw at anchor
Switched on with nothing plugged in, it uses about 11W, roughly 11Ah per day from a 24V bank. Turn on 1.5 W in ECO mode to cut that down when you're off the dock.
Specifications (from Victron)
| Battery voltage | 24 V |
| DC input range | 18.4–34 V |
| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 1,200 VA / 1,000 W |
| Continuous power @ 104°F (40°C) | 850 W |
| Peak power | 2,200 W |
| Max efficiency | 91 % |
| Idle draw | 11 W |
| Communication port | VE.Direct |
| Protection rating | IP21 |
| Operating temperature | -40°F to 149°F (-40 to 65°C) |
| Weight | 16.3 lb (7.4 kg) |
| Dimensions (H x W x D) | 4.6 x 9.1 x 12.9 in (117 x 232 x 327 mm) |
| Safety standards | EN-IEC 60335-1,EN-IEC 62109-1,UL 458 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN242122510 |
| UPC / EAN | 8719076054221 |
Documents
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
