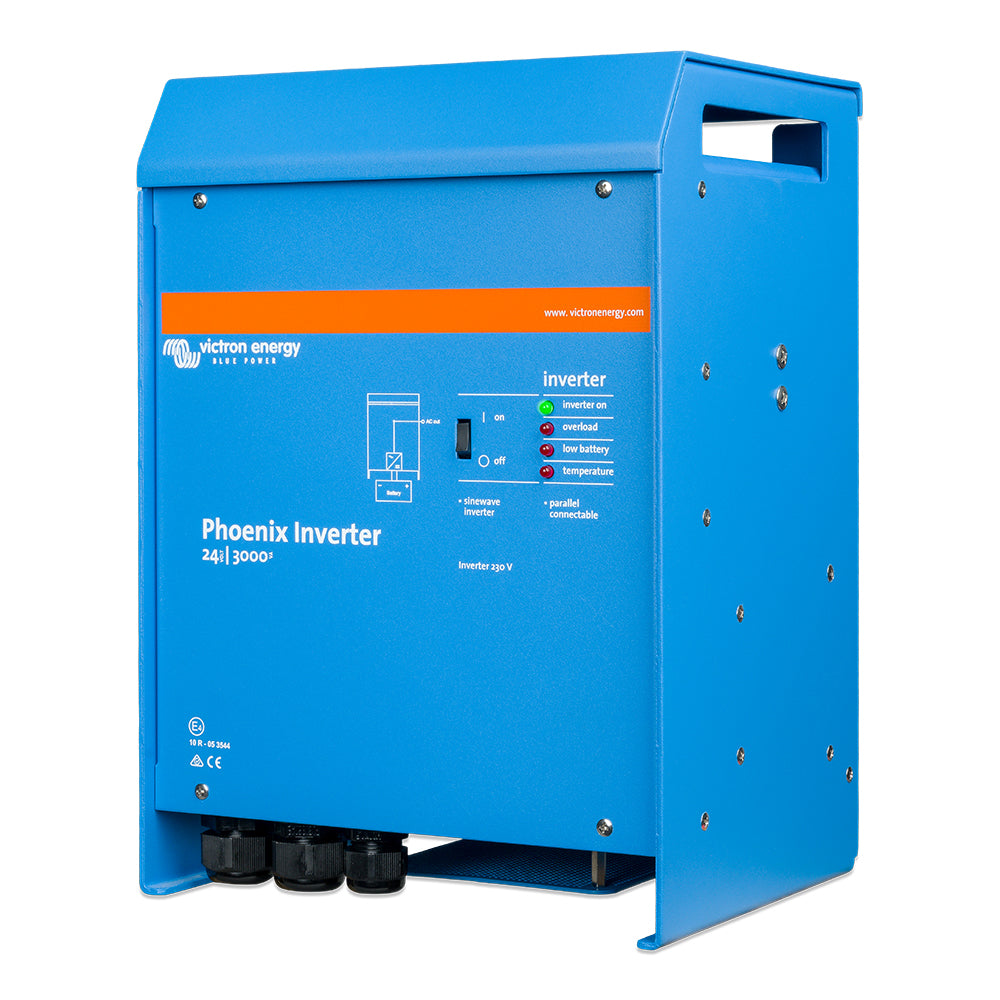

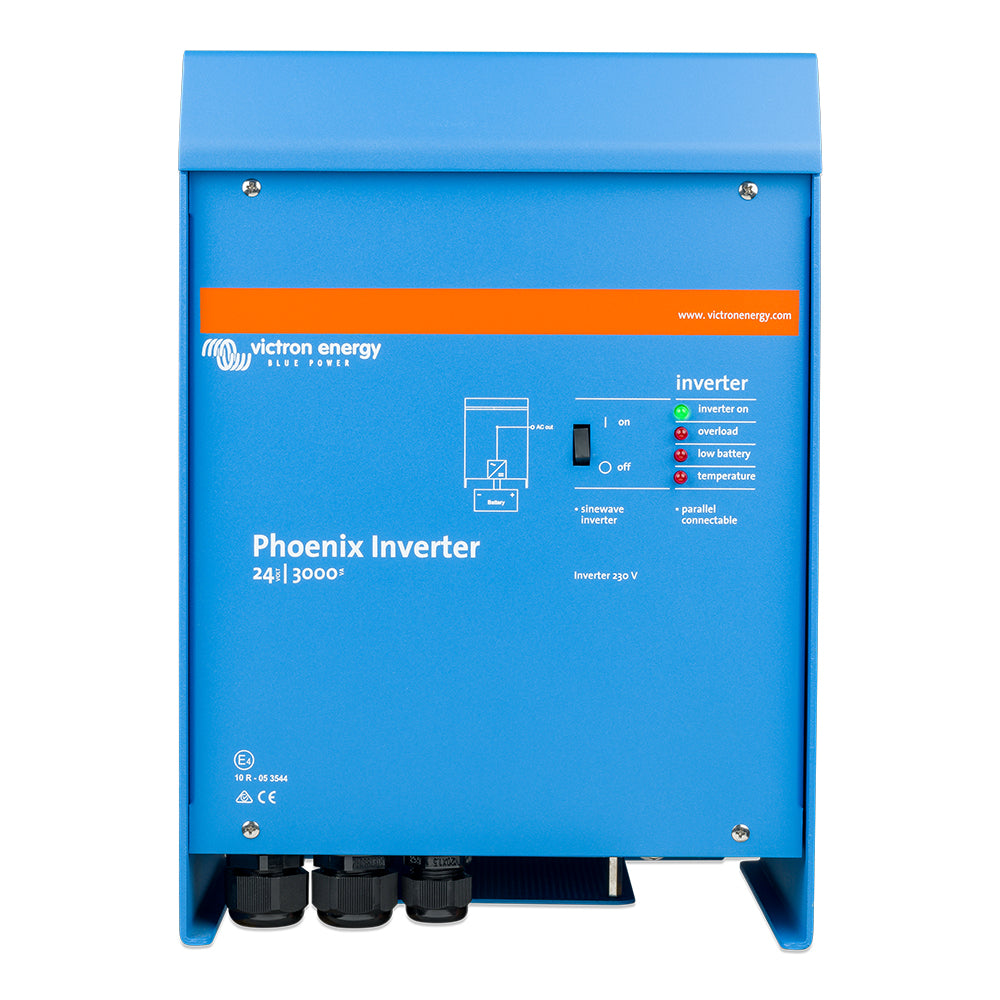

Victron Phoenix Inverter - 12 VDC - 3000VA (2400W) - 120 VAC - 50/60Hz [PIN123020100]

Victron Phoenix 12/3000: 3,000VA = 2,400 watts continuous

Victron rates its inverters in VA (volt-amps), not watts. The Phoenix 12/3000 delivers 2,400W continuous at 77°F (25°C), with a 6,000W peak for starting motors and compressors. When you add up the loads on your boat, plan around 2,400W, not 3,000W. Compare all Victron inverters →

Mounting it in a hot engine room?

Continuous output drops as the temperature rises: 2,200W at 104°F (40°C), 1,700W at 149°F (65°C). Size your loads for the hottest spot you will mount it, and give it ventilation.

Specifications (from Victron)

Documents

• Datasheet
• Manual
• Example system wiring diagram

From Victron

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Communications interface

These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software,  which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

Warranty Info
