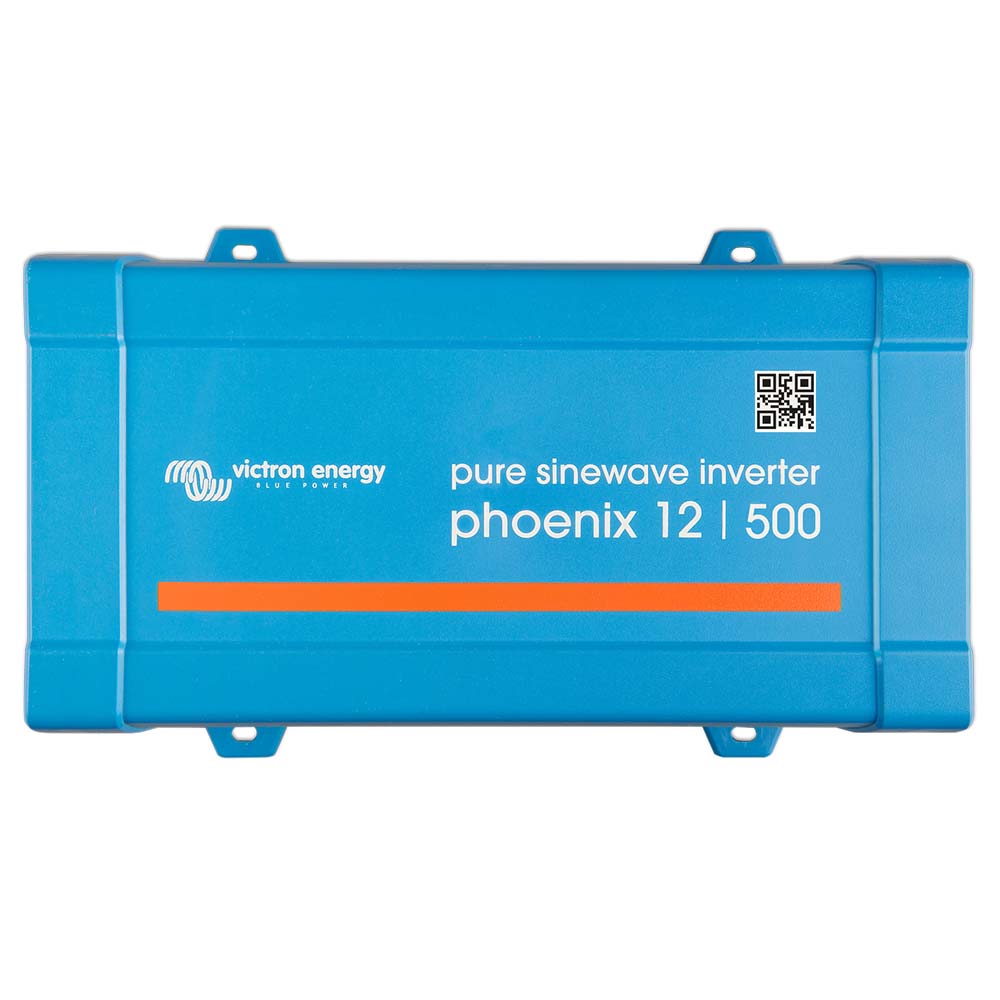

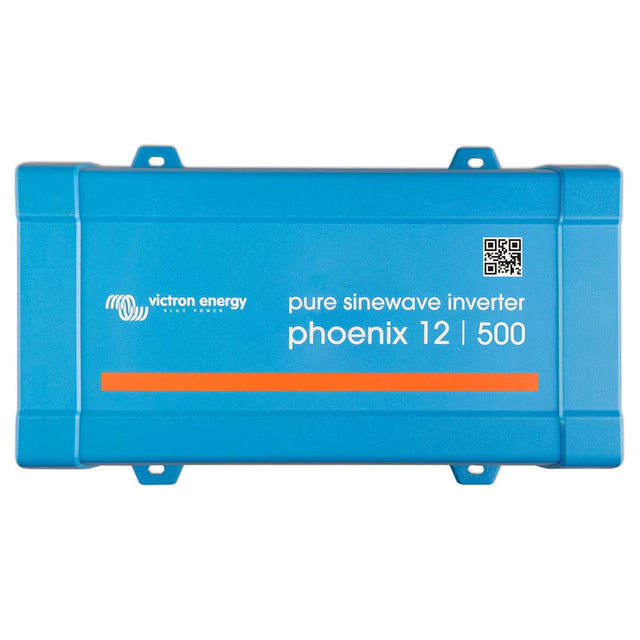

Victron Phoenix Inverter 12/500 - 120V - VE.Direct GFCI Duplex Outlet - 500VA (400W) (UL458) [PIN125010510]
Available for shipping
Victron Phoenix Inverter 12/500 - 120V - VE.Direct GFCI Duplex Outlet - 500VA (400W) (UL458) [PIN125010510] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Phoenix Inverter 12/500 - 120V - VE.Direct GFCI Duplex Outl...
Victron Phoenix Inverter 12/500 - 120V - VE.Direct GFCI Duplex Outlet - 500VA (400W) (UL458) [PIN125010510] is backordered and will ship as soon as it is back in stock.
Description
Description
Victron Phoenix 12/500: 500VA = 400 watts continuous
Victron rates its inverters in VA (volt-amps), not watts. The Phoenix 12/500 delivers 400W continuous at 77°F (25°C), with a 900W peak for starting motors and compressors. When you add up the loads on your boat, plan around 400W, not 500W. Compare all Victron inverters →
Mounting it in a hot engine room?
Continuous output drops as the temperature rises: 350W at 104°F (40°C). Size your loads for the hottest spot you will mount it, and give it ventilation.
Specifications (from Victron)
| Battery voltage | 12 V |
| DC input range | 9.2–17 V |
| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 500 VA / 400 W |
| Continuous power @ 104°F (40°C) | 350 W |
| Peak power | 900 W |
| Max efficiency | 90 % |
| Idle draw (zero load) | 6 W |
| Communication port | VE.Direct |
| Protection rating | IP21 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN125010510 |
| UPC / EAN | 8719076050216 |
| Shipping box | 5.9 x 13.8 x 9.1 in, 10.1 lb (15 x 35 x 23 cm, 4.6 kg) |
Documents
From Victron
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48V DC.
