Description
Description

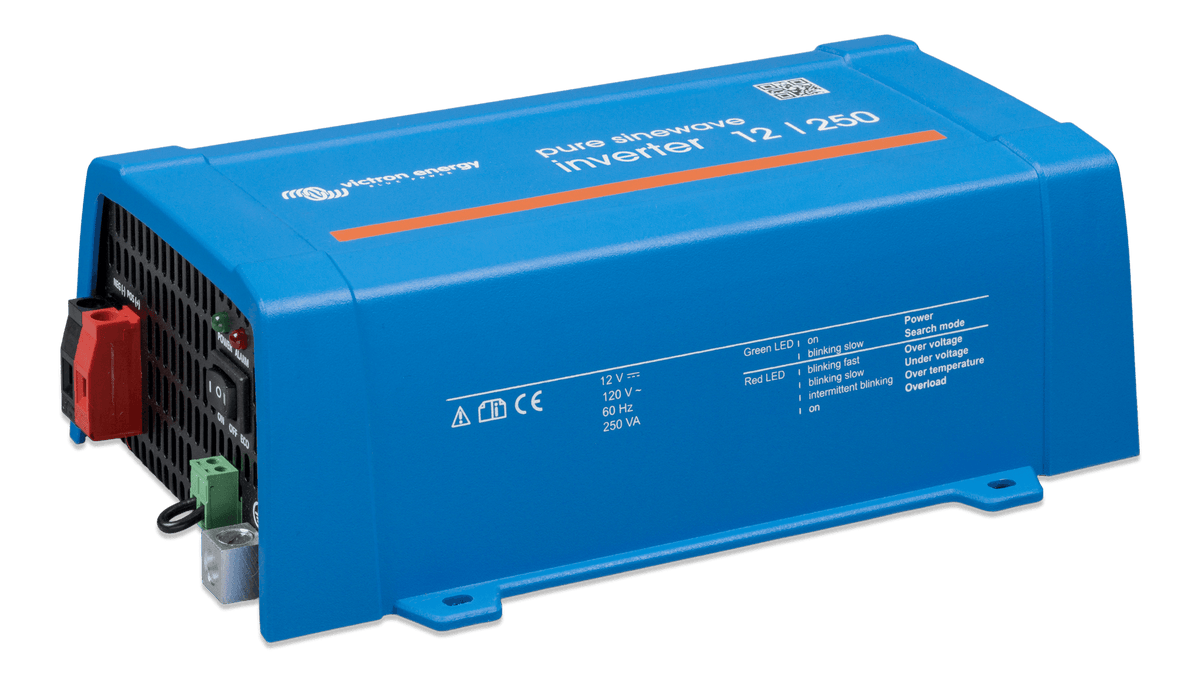

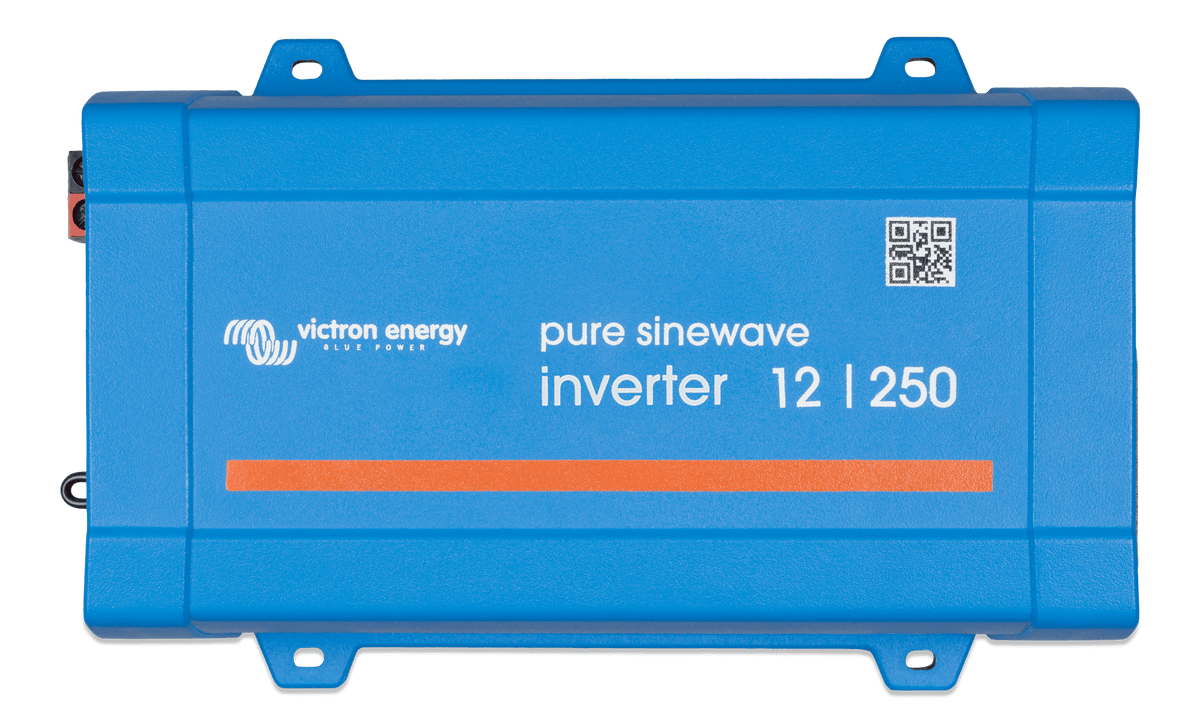

Victron Phoenix Inverter 12/250 120V VE.Direct NEMA 5-15R
Victron Phoenix VE.Direct inverters turn 12 VDC battery power into clean 120 VAC pure sine wave power, with a VE.Direct port for monitoring and settings through VictronConnect.
Specifications (from Victron)
| Continuous power at 40°C | 175 W |
| Continuous power at 25°C (Nonlinear load, crest factor 3 | 250 VA |
| Peak power rating | 400 W |
| DC input voltage range | 9.2–17 V |
| AC output voltage ±3% (adjustable) | 120 V |
| Maximum efficiency | 87 % |
| Communication Port | VE.Direct |
| Power deration above 40°C | 1.25 % |
| Zero Load Power in ECO Mode (adjustable) | 0.8 W |
| Zero-load power | 4.2 W |
| Remote on/off terminal | Yes |
| Protections | Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload |
| Operating temperature range (fan assisted cooling) | -40°F to 149°F (-40 to 65°C) |
| Maximum humidity (non-condensing) | 95 % |
| Fully programable | Yes |
| Frequency ±0.1% (adjustable) | 60 Hz |
| Eco mode stop and start power setting | Adjustable |
| Continuous inverter AC output power at 25°C | 200 W |
| ECO mode retry interval (adjustable) | 2.5 s |
| Dynamic (load dependent) low DC shutdown (configurable) | Yes |
| DC low shut down (adjustable) | 9.3 V |
| DC low restart and alarm (adjustable) | 10.9 V |
| Batery voltage nominal | 12 V |
| Battery charged detection voltage (adjustable) | 14 V |
| Battery connection terminal type | Screw terminals 10 mm² (8 AWG) |
| AC outlet socket | Nema 5-15R |
| Remote Terminal | Screw terminal two pole |
| Protection Category | IP21 |
| Material | Steel chassis and plastic cover |
| Colour | Blue (RAL 5012) |
| Warranty | 5 years (Victron) |
| Victron part number | PIN122510500 |
| UPC / EAN | 8719076035954 |
| Country of origin | India |
Documents
- Inverter VE.Direct 250W - 1600W 120V - HW (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
