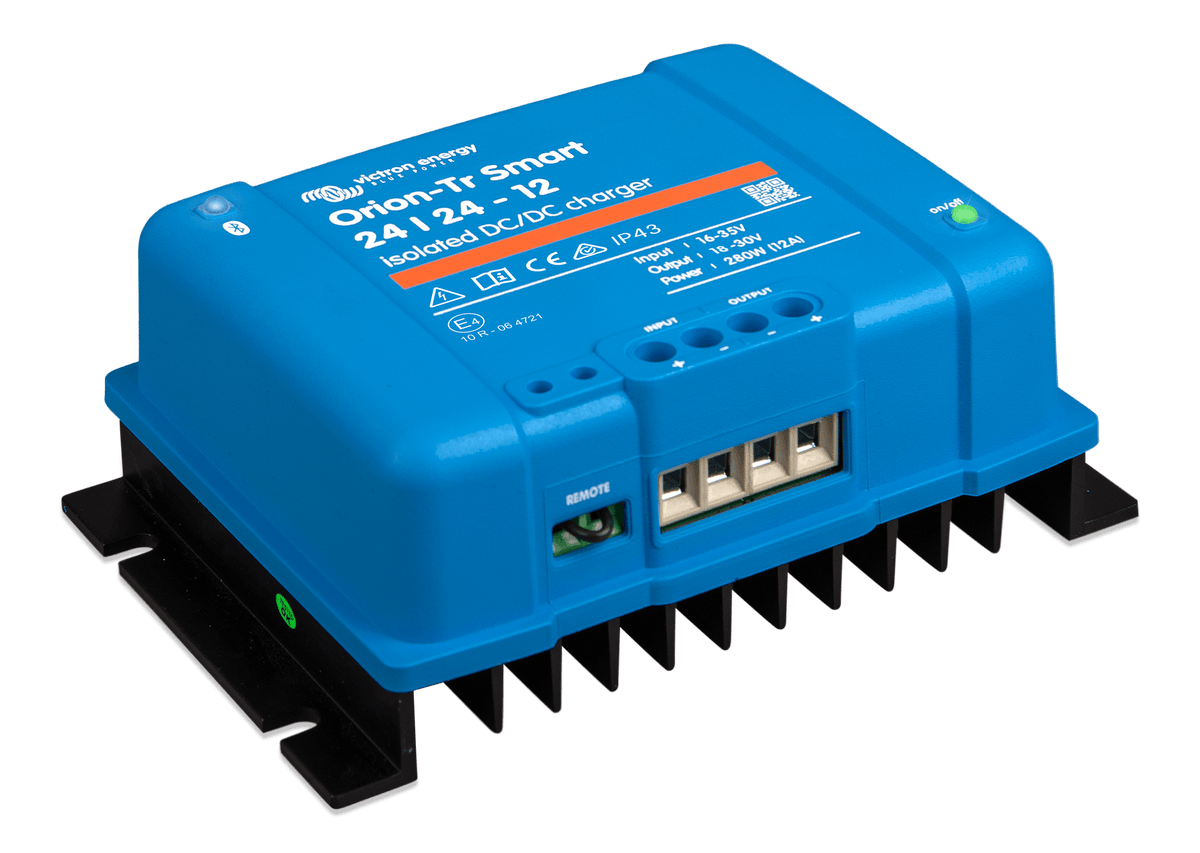

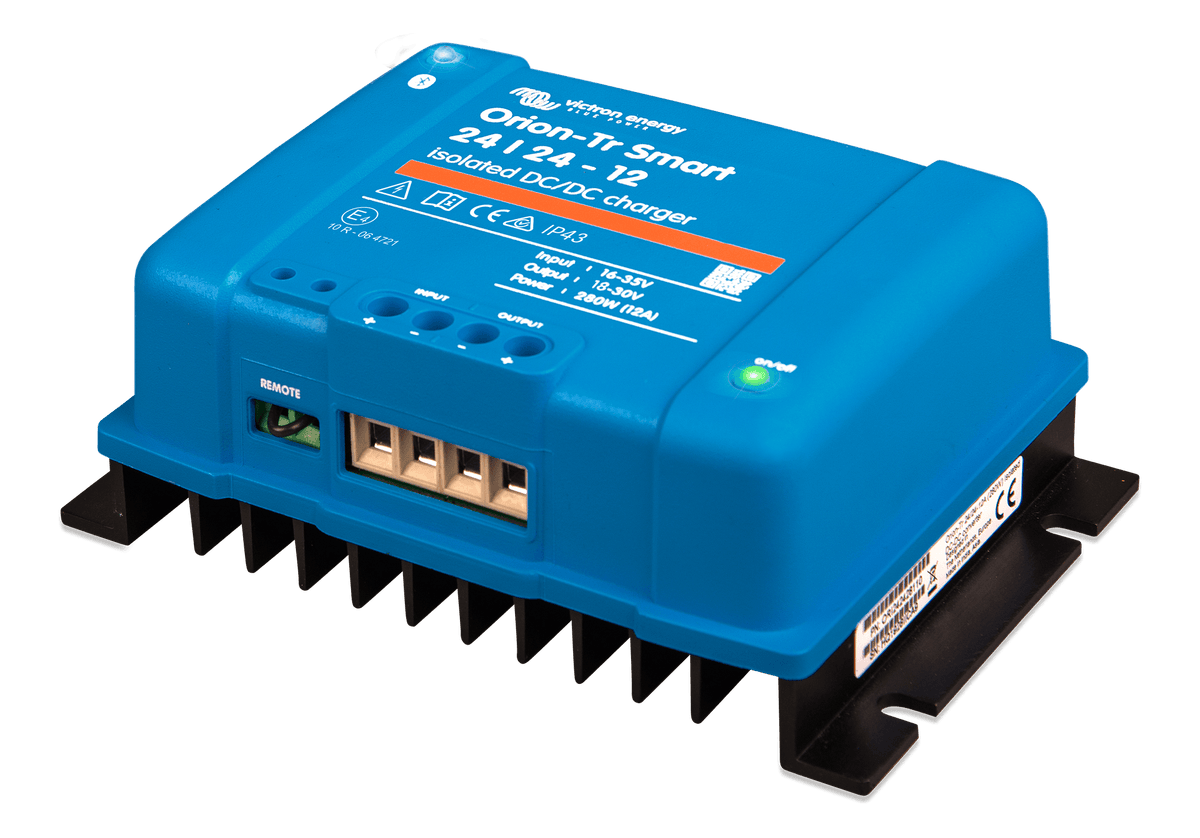

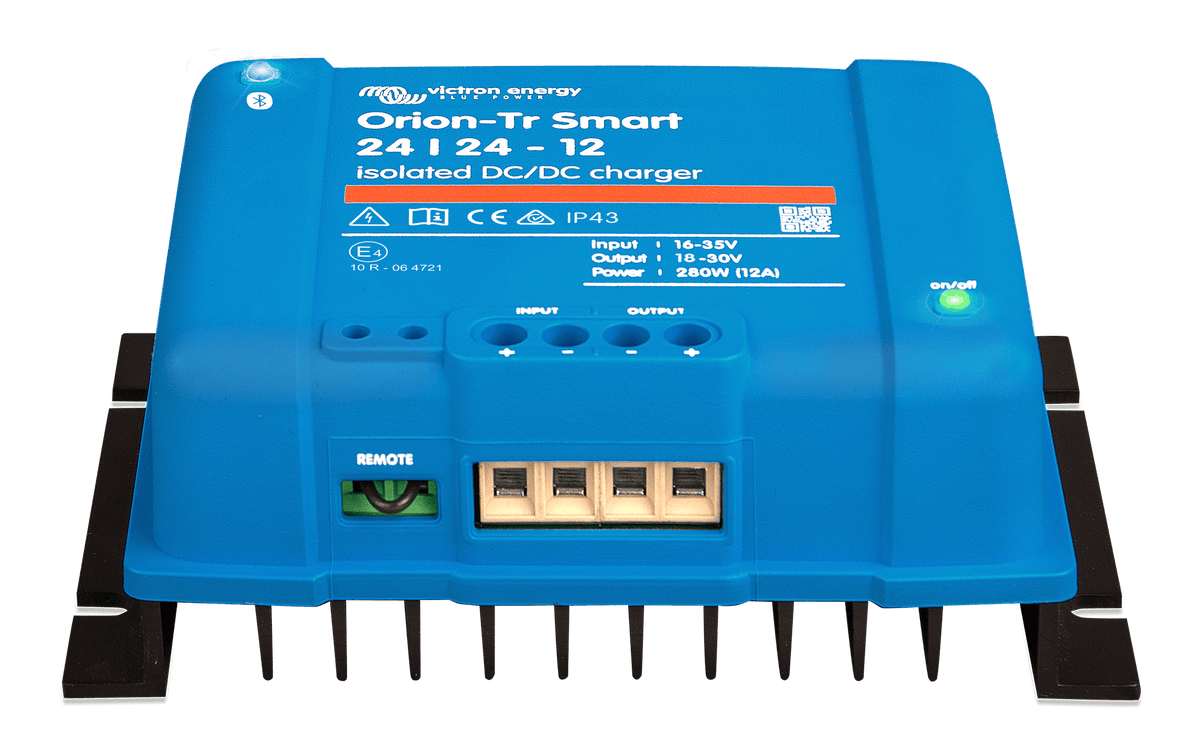

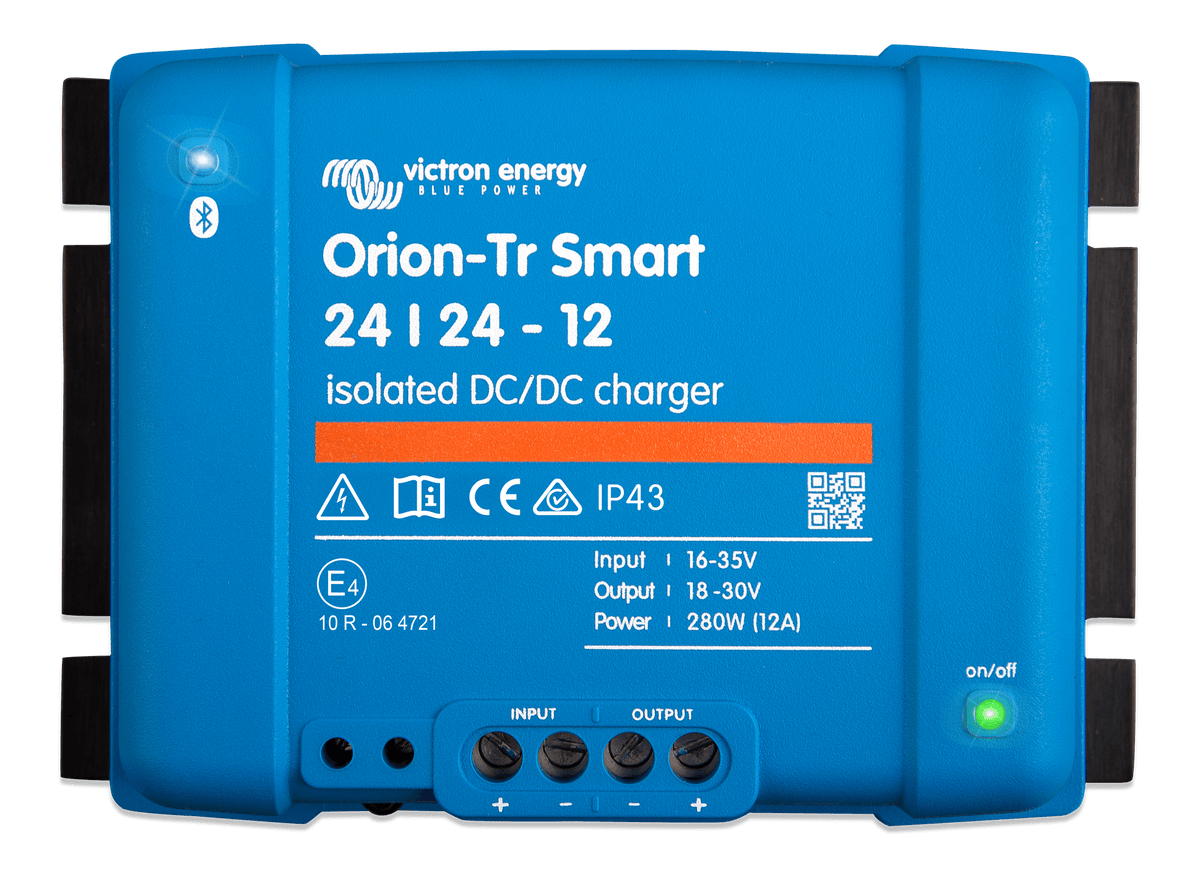

Victron Orion-Tr Smart 24/24-12A (280W) Isolated DC-DC charger
Victron Orion-Tr Smart isolated DC-DC chargers charge a house or starter battery from another battery or the alternator, with adaptive multi-stage charging and Bluetooth set-up through the free VictronConnect app.
Specifications (from Victron)
| Continuous output current | 12 A |
| Maximum output current | 15 A |
| Input voltage range | 16–35 V |
| Output Voltage Tolerance | 200 mVrms |
| Output voltage range | 20–30 V |
| Output Voltage Noise | 2 mVrms |
| Output voltage | 24.2 V |
| Maximum efficiency | 89 % |
| Data Communication Ports | Bluetooth |
| Bluetooth | Yes |
| VictronConnect app | Yes |
| Under voltage shutdown | 14 V |
| Under voltage restart | 15 V |
| Standby current Consumption | 1 mA |
| Remote on/off terminal | Yes |
| Protections | Over temperature,Short-circuit proof |
| Programmable | Yes |
| Can be used as power supply | Yes |
| Battery Charger | Yes |
| Continuous output power at 25°C | 320 W |
| Maximum humidity (non-condensing) | 95 % |
| Parallelable | Yes |
| Output derating above 40°C per °C | 3 % |
| Operating temperature range | -4°F to 131°F (-20 to 55°C) |
| No-load current consumption | 80 mA |
| Maximum continuous short-circuit current | 30 A |
| Isolation | 200 VDC |
| Galvanic isolation | Yes |
| Engine Running Detection | Yes |
| Continuous output current rating up to 40°C | 12 A |
| Warranty | 5 years (Victron) |
| Victron part number | ORI242428120 |
| UPC / EAN | 8719076046097 |
| Country of origin | India |
Documents
- Orion-Tr Smart DC-DC Charger Isolated (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.
The Orion-Tr Smart charger can be used in 12V, 24V or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
