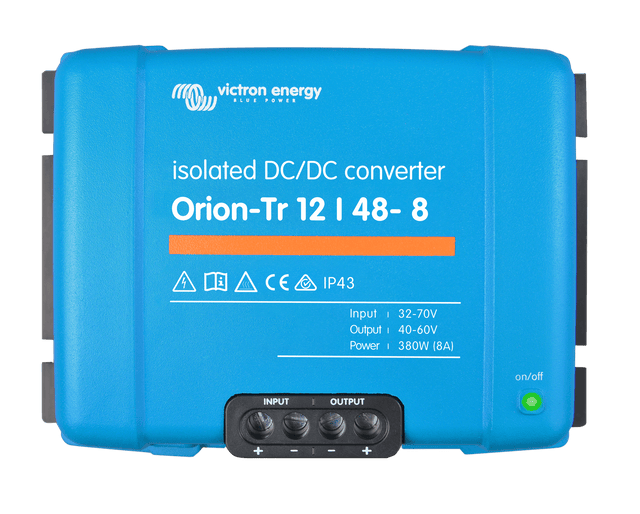

Victron Orion-Tr 48/48-8A (380W) Isolated DC-DC converter [ORI484841110]

Victron Energy  |  SKU: ORI484841110-VIC
$181.05

Pickup available at our Marathon storefront

Available for pickup or shipping

Pickup in Marathon — 10 in stock

Ready in 24 hrs

Shipping available

Rates at checkout

(Ship Note)Speical Order: Ships in 2-5 Days, feel free to call to get a more exact date.

Ready to order
Shipping calculated at checkout.
  • Expert technical support
  • Secure checkout
  • Fast shipping

Need help choosing? Call our marine experts at (305) 998-4300.

Delivery and Shipping

Items in stock gernally ship same day.

Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.

Any items that require freight will be quoted and shipped once approved.

Shipping in the keys can be delieverd same day for a fee.

Add a stand out message for your customers

Description

Victron Orion-Tr 48/48-8A (380W) Isolated DC-DC converter

Victron Orion-Tr isolated DC-DC converters supply a steady output voltage from a different or unstable battery voltage. Galvanic isolation between input and output keeps ground loops and electrical noise out of sensitive electronics.

Specifications (from Victron)

Maximum output current 15 A
Continuous output current 8 A
Input voltage range 32–70 V
Output Voltage Tolerance 200 mVrms
Output voltage 48.2 V
Output Voltage Noise 2 mVrms
Output voltage range 40–60 V
Maximum efficiency 89 %
Isolation 200 VDC
Maximum humidity (non-condensing) 95 %
Maximum continuous short-circuit current 25 A
No-load current consumption 80 mA
Operating temperature range -4°F to 131°F (-20 to 55°C)
Parallelable Yes
Protections Over temperature,Short-circuit proof
Remote on/off terminal Yes
Standby current Consumption 2 mA
Under voltage restart 30 V
Under voltage shutdown 28 V
Continuous output power at 25°C 430 W
Continuous output power at 40°C 380 W
Continuous output current rating up to 40°C 8 A
Galvanic isolation Yes
DC connection terminal type Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection Screw terminal two pole
Protection Category IP43
Colour Blue (RAL 5012)
Immunity EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Emission EN 55014-1,EN-IEC 61000-6-3
Automotive directive ECE R10-5
Warranty 5 years (Victron)
Victron part number ORI484841110
UPC / EAN 8719076038894
Country of origin India

Documents

From Victron

Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse
On 12V and 24V input models only.

Buying from OnBoard

We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
