Victron Orion-Tr 24/12-20 (240W) DC-DC converter [ORI241220200]
Victron Orion-Tr 24/12-20 (240W) DC-DC converter [ORI241220200] is backordered and will ship as soon as it is back in stock.
Description
Description

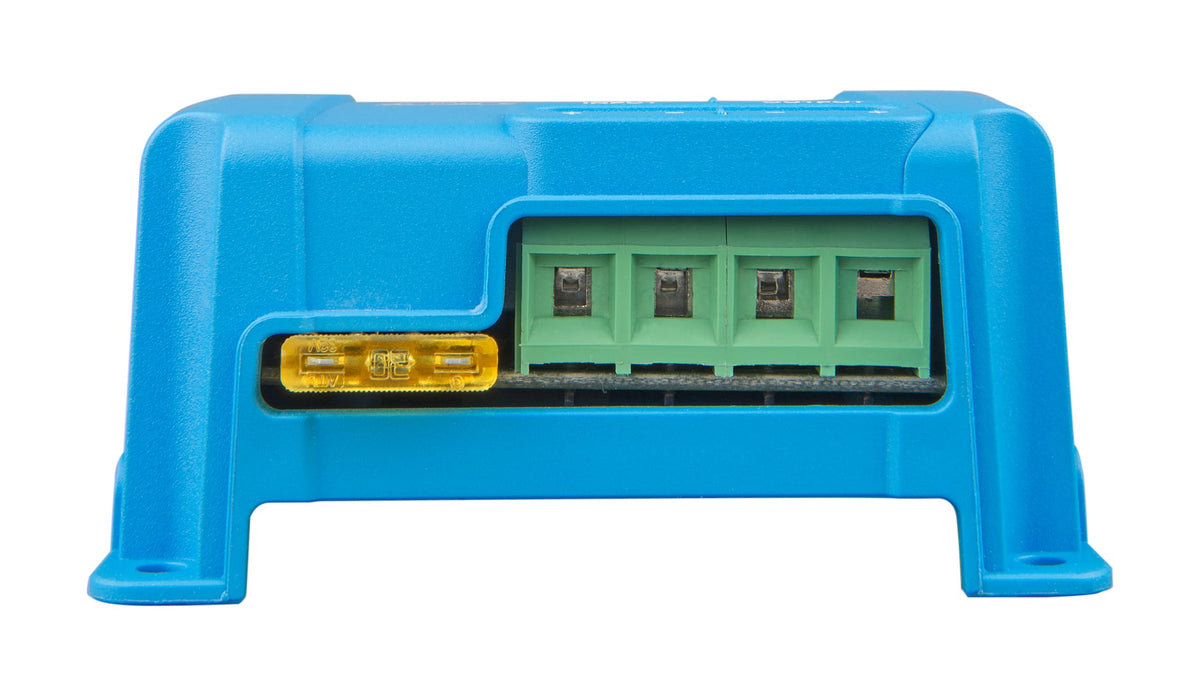

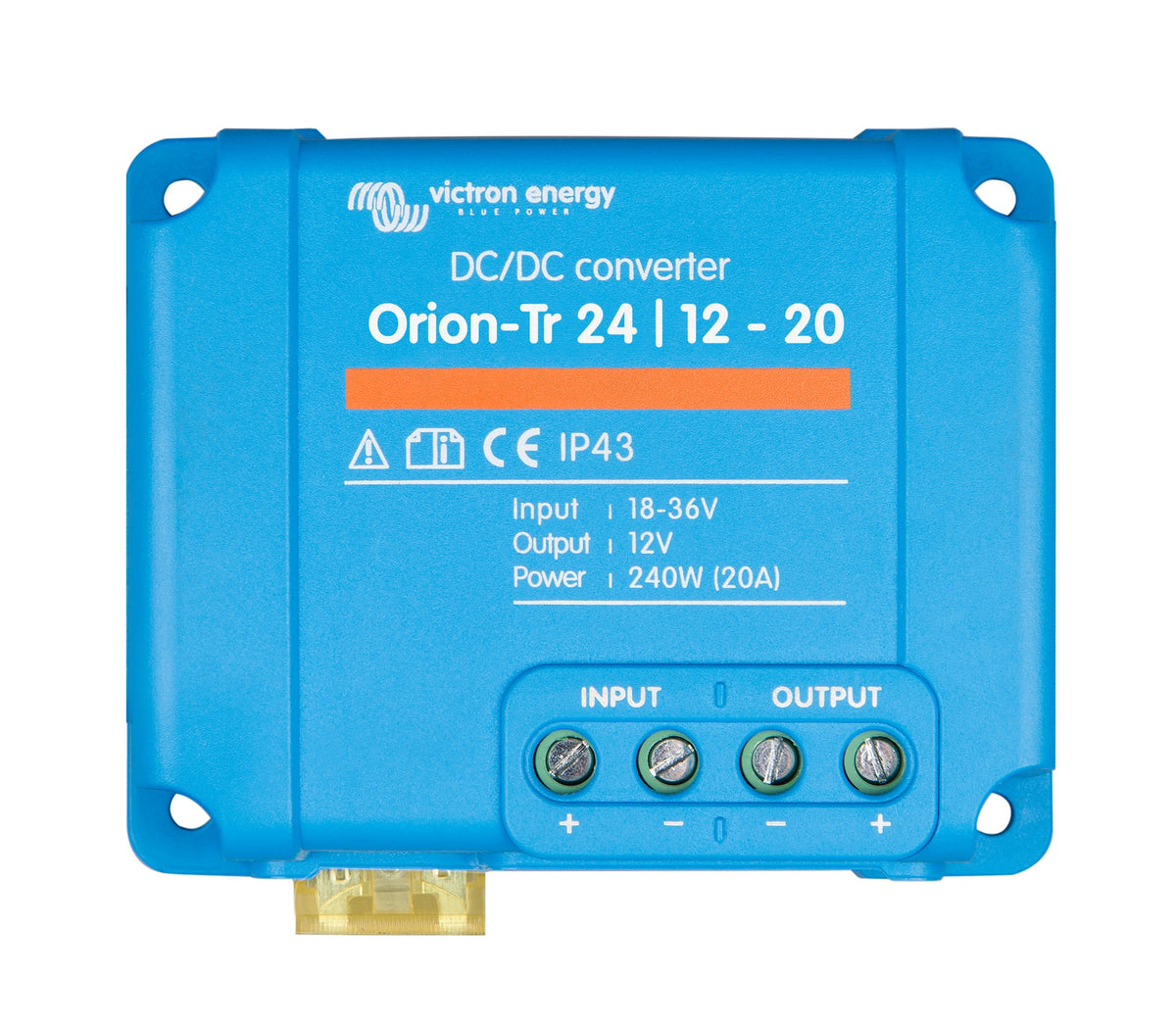

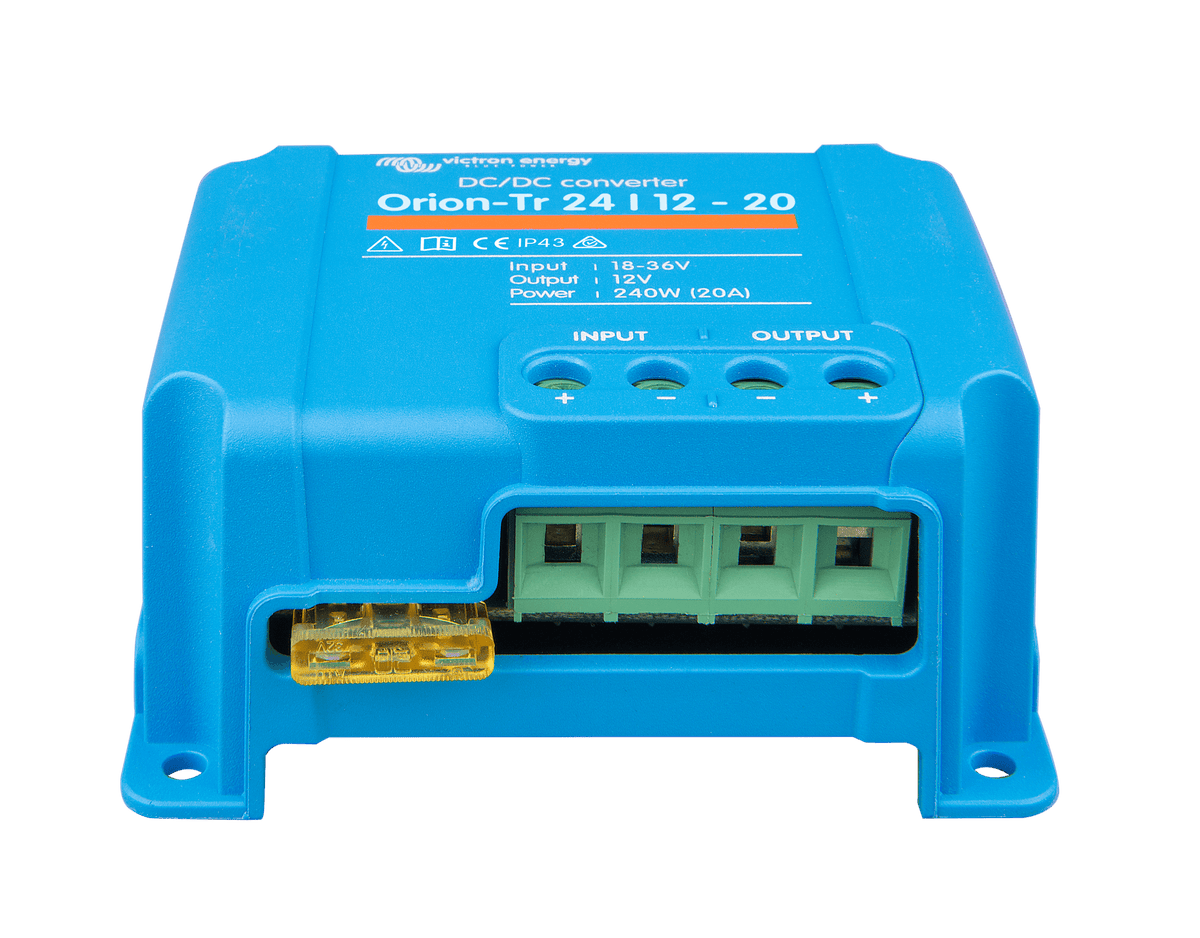

Victron Orion-Tr 24/12-20 (240W) DC-DC converter
Victron Orion-Tr non-isolated DC-DC converters give a stable output voltage from a varying input, for running equipment from a different battery voltage. Units can be paralleled for more current.
Specifications (from Victron)
| Continuous output current | 20 A |
| Maximum output current | 25 A |
| Input voltage range | 18–35 V |
| Output voltage | 12.5 V |
| Maximum efficiency | 97 % |
| Output derating above 40°C per °C | 3 % |
| Operating temperature range | -4°F to 131°F (-20 to 55°C) |
| Off load current | 35 |
| DC connection terminal type | Screw terminals 6 mm² (10 AWG) |
| Protection Category | IP43 |
| Colour | Blue (RAL 5012) |
| Safety | EN 60950 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Dimensions (H x W x D) | 2.9 x 3.7 x 1.8 in (73 x 94 x 45 mm) |
| Weight | 0.6 lb (0.25 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | ORI241220200 |
| UPC / EAN | 8719076022992 |
| Country of origin | India |
Documents
- Orion-Tr DC-DC Converters, non-isolated (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
