Victron Orion 12/24-8 DC-DC converter IP20 [ORI122408020]
Victron Orion 12/24-8 DC-DC converter IP20 [ORI122408020] is backordered and will ship as soon as it is back in stock.
Description
Description

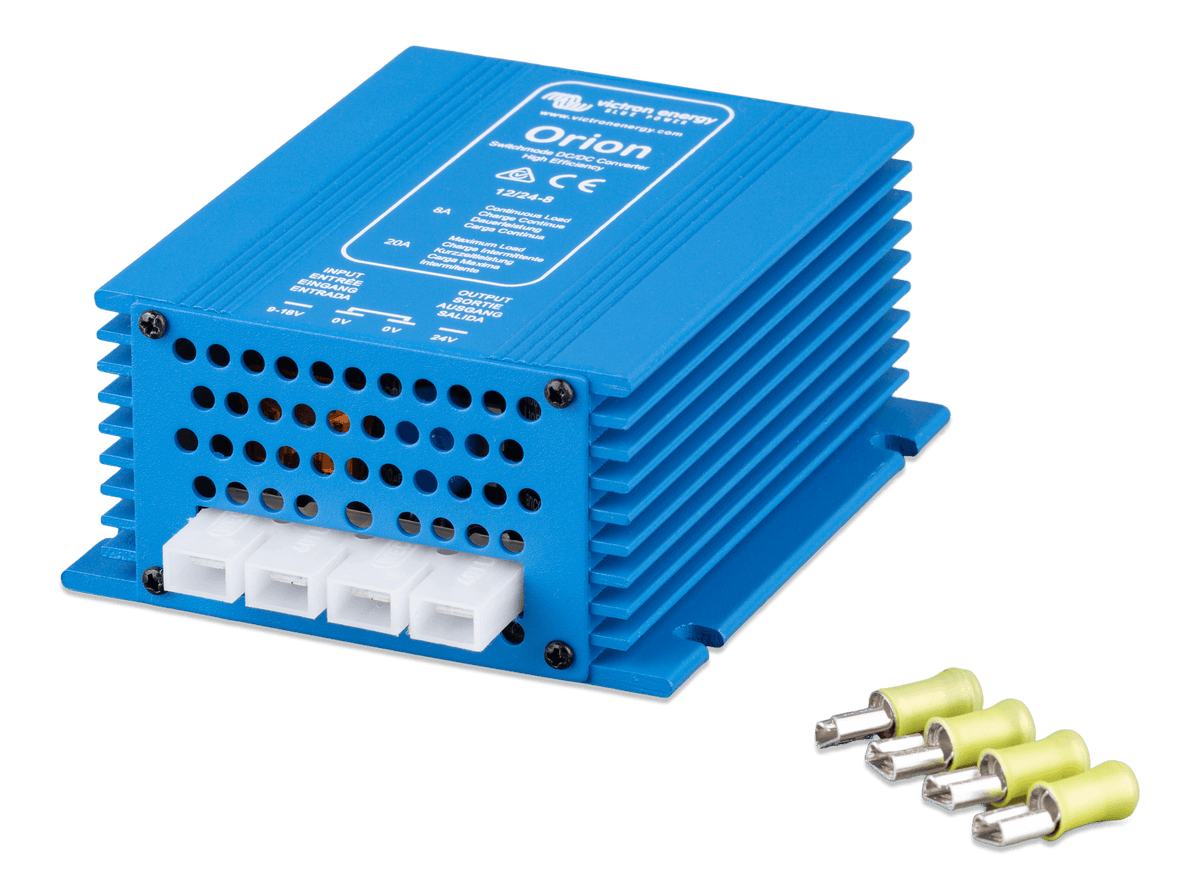

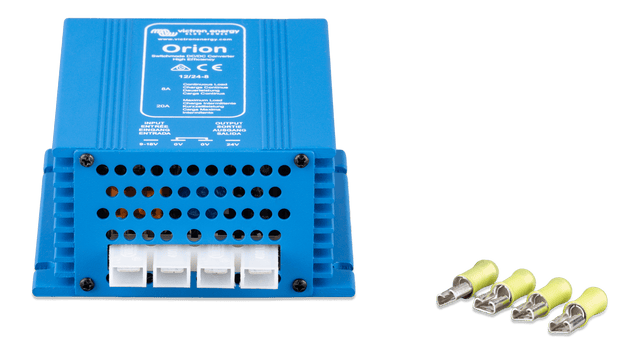

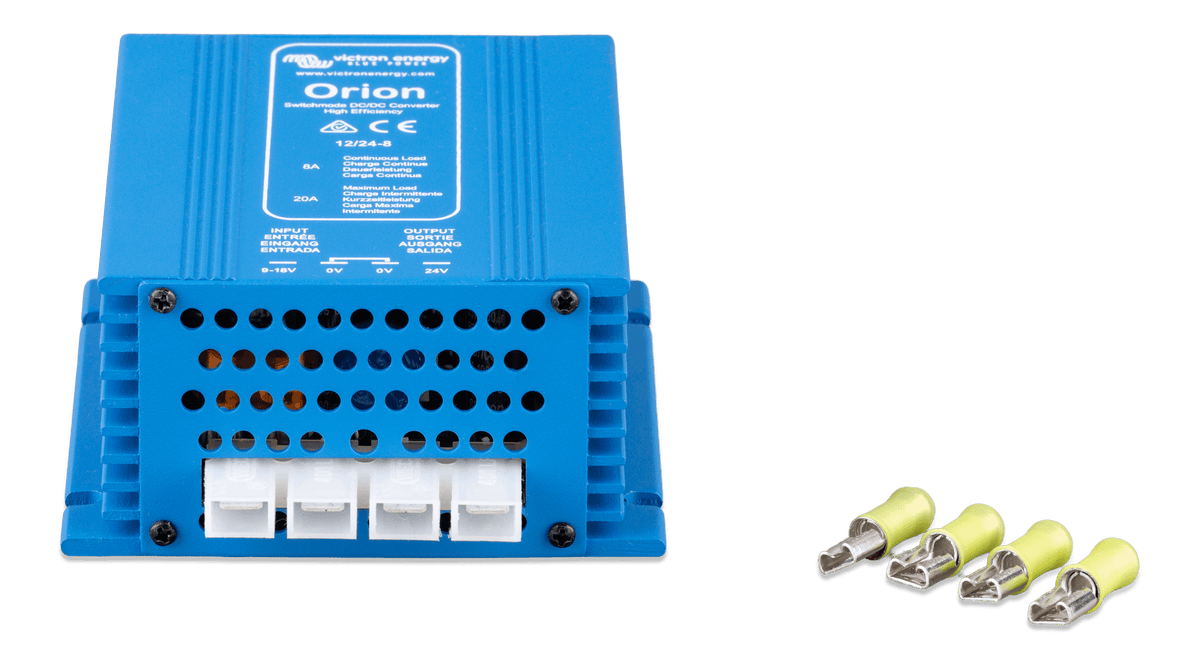

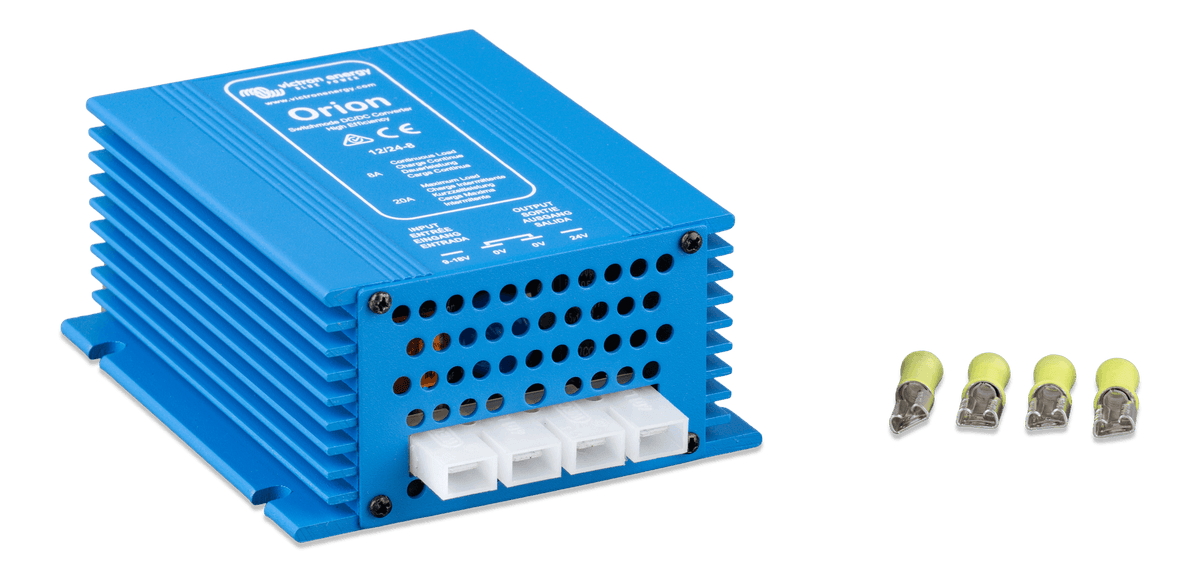

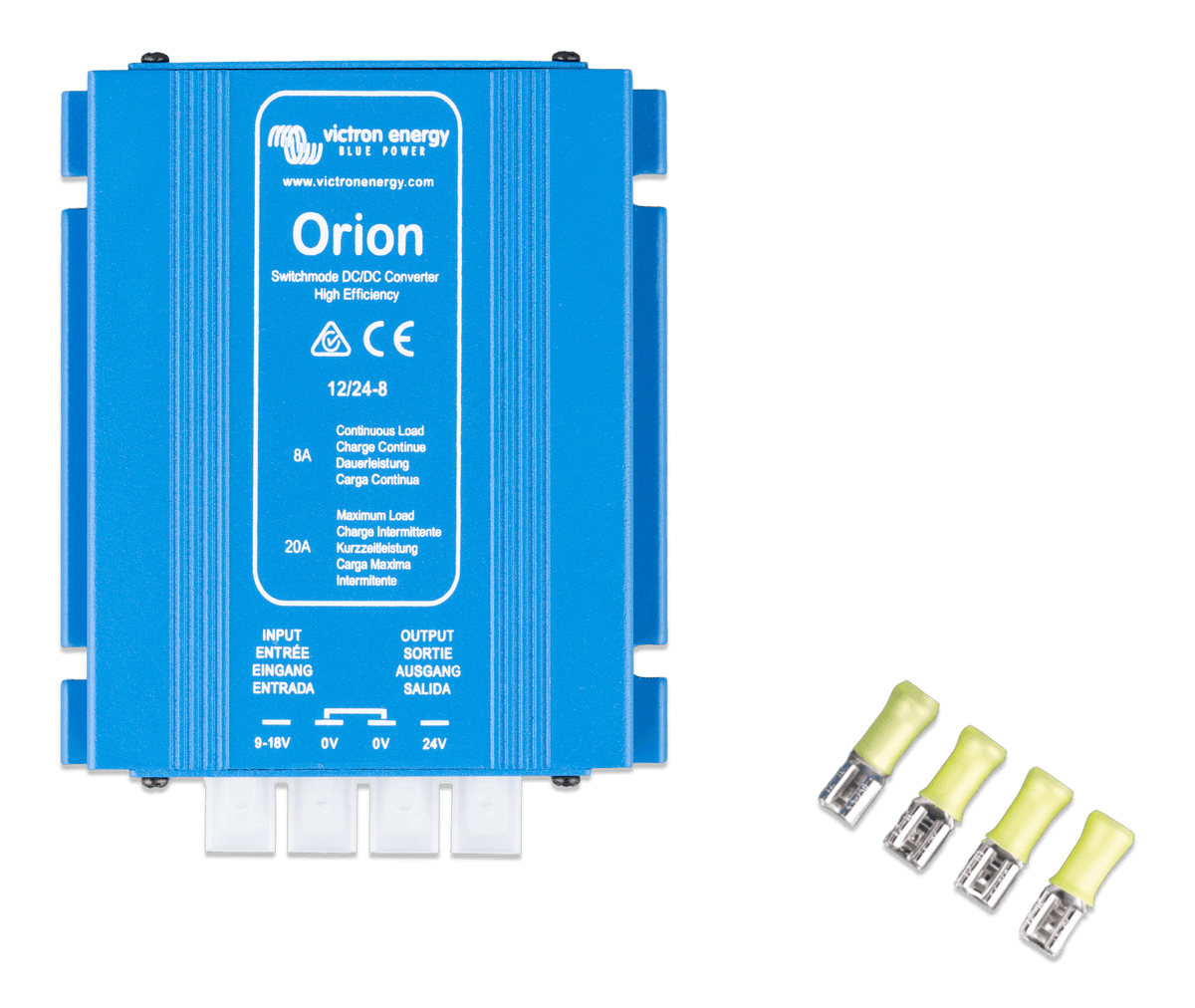

Victron Orion 12/24-8 DC-DC converter IP20
A compact Victron DC-DC converter for powering equipment that needs a different voltage than your battery bank.
Specifications (from Victron)
| Continuous output current | 8 A |
| Maximum output current | 20 A |
| Input voltage range | 9–18 V |
| Output voltage | 24 V |
| Maximum efficiency | 95 % |
| Under voltage shutdown | 8 V |
| Under voltage restart | 10 V |
| Output derating above 40°C per °C | 3 % |
| Operating temperature range | -4°F to 131°F (-20 to 55°C) |
| DC connection terminal type | Faston tab 6.3 x 0.8 mm |
| Colour | Blue (RAL 5012) |
| Protection Category | IP20 |
| Material | Aluminium |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Safety | EN 60950 |
| Automotive directive | ECE R10-4 |
| Dimensions (H x W x D) | 1.8 x 3.5 x 4.5 in (45 x 90 x 115 mm) |
| Weight | 0.9 lb (0.4 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | ORI122408020 |
| UPC / EAN | 8719076022732 |
| Country of origin | India |
Documents
- Orion DC-DC Converters high power, non-isolated (datasheet)
- Orion DC-DC Converters High Power, non-isolated - latest models (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
