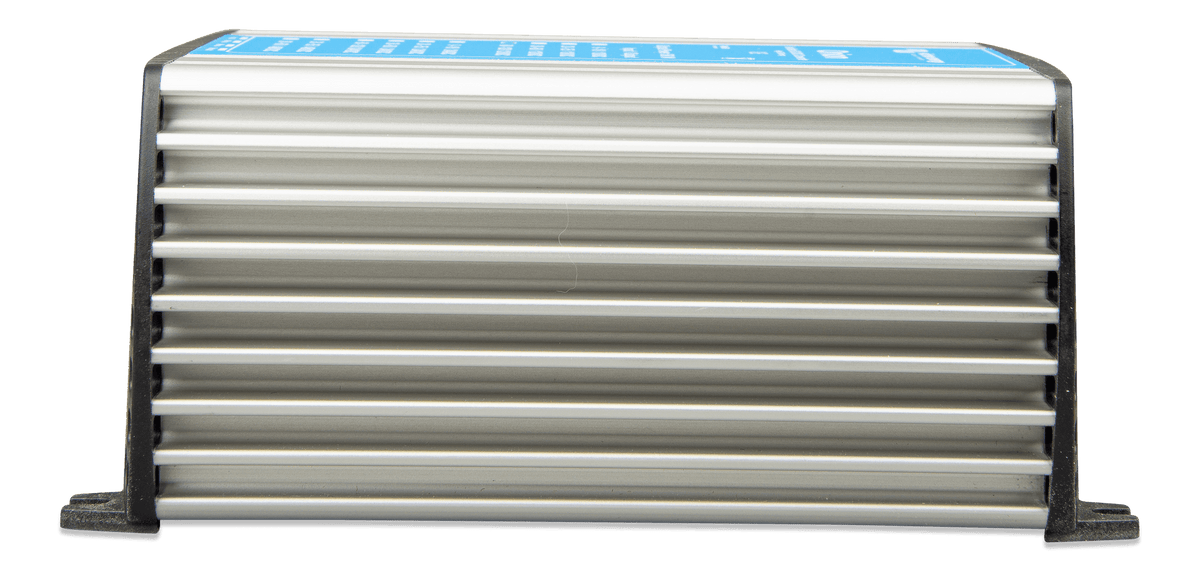

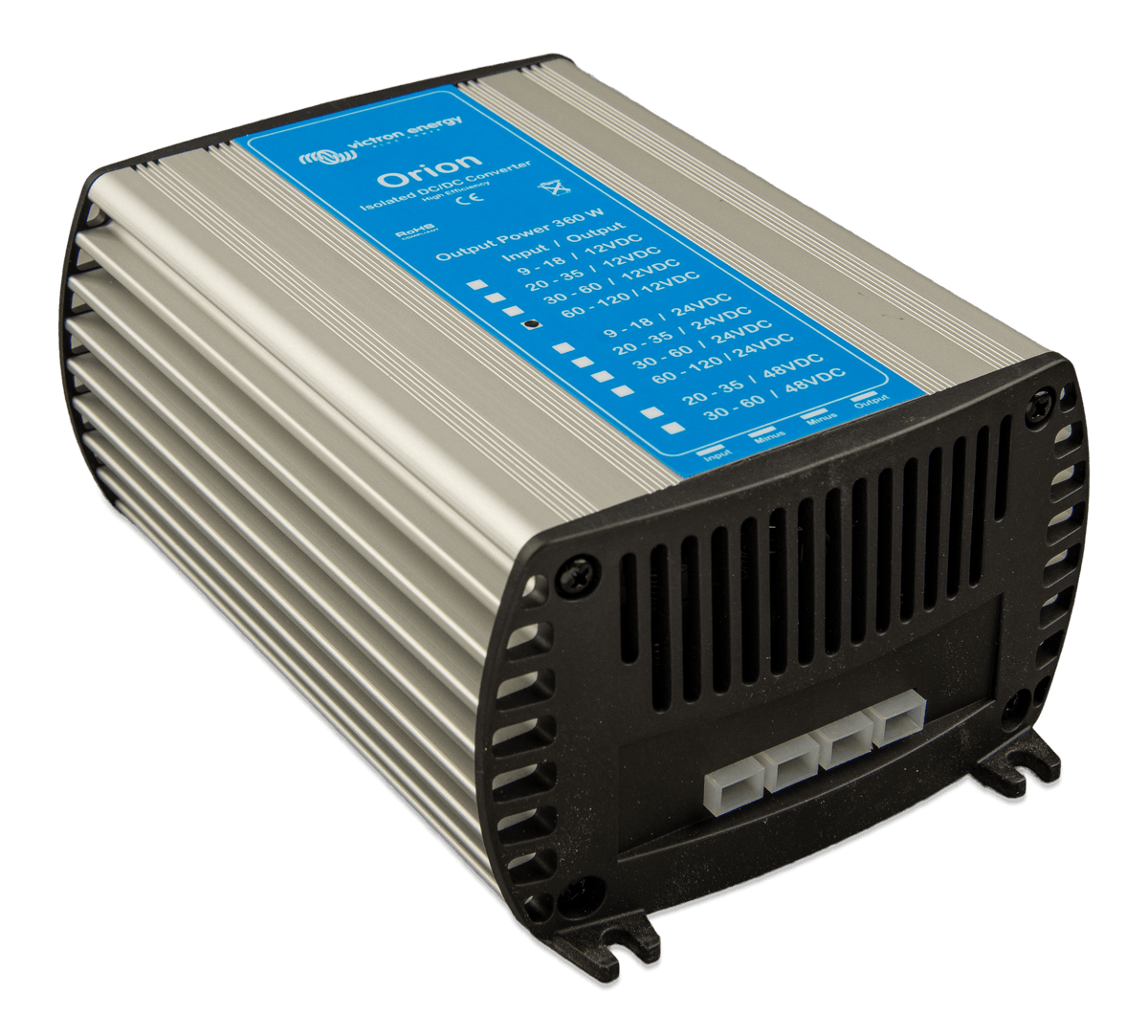

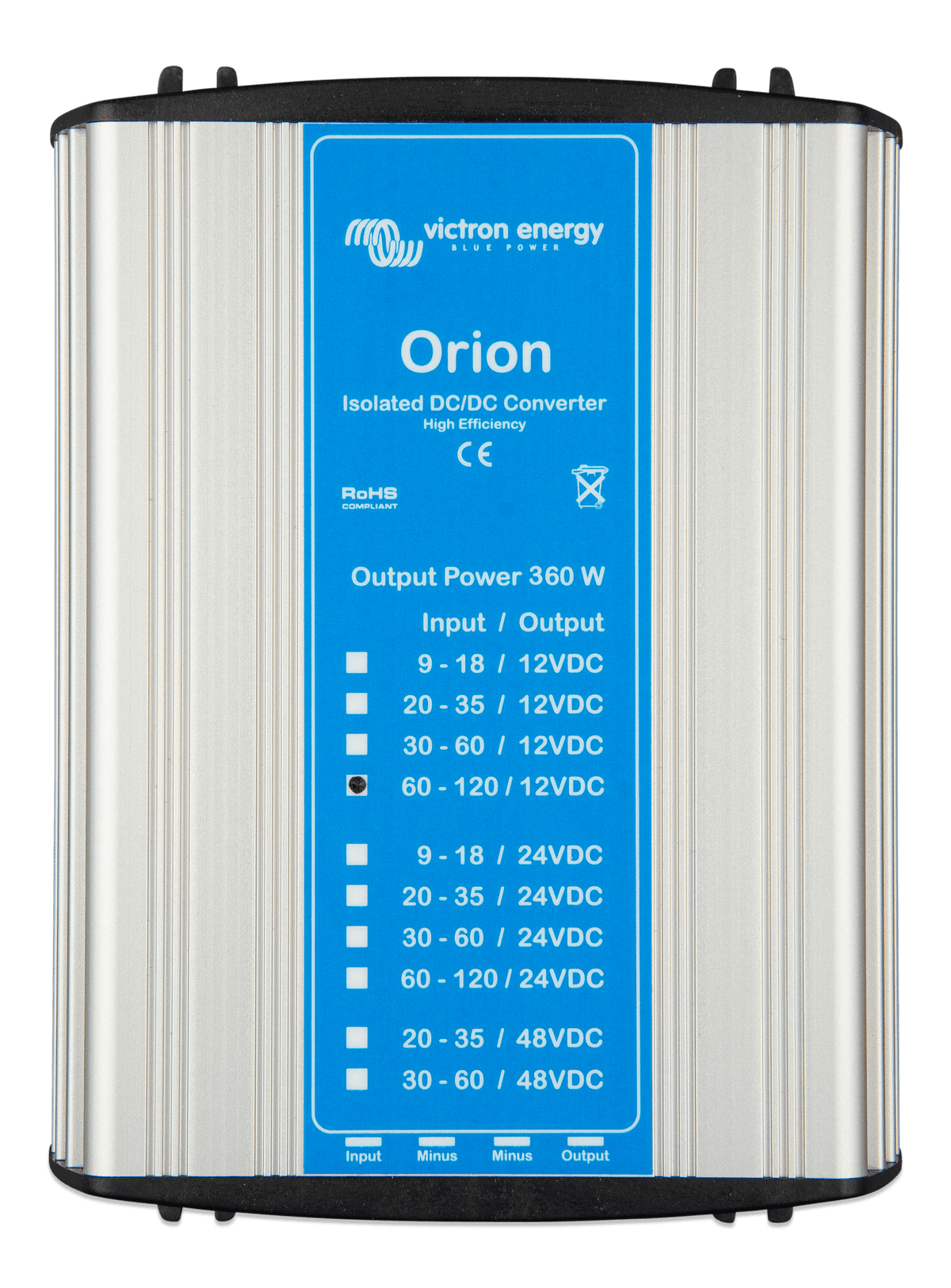

Victron Orion 110/12-30A (360W) Isolated DC-DC converter
A Victron isolated DC-DC converter: a stable output voltage with input and output fully separated to keep ground loops and noise out of sensitive equipment.
Specifications (from Victron)
| Continuous output current | 30 A |
| Input voltage range | 60–140 V |
| Output voltage | 12.5 V |
| Output Voltage Noise | 50 mVrms |
| Output voltage stability | 2 % |
| Output Voltage Tolerance | 3 % |
| Maximum efficiency | 85 % |
| Fan assisted cooling | Yes |
| Operating temperature range | -4°F to 104°F (-20 to 40°C) |
| Power rating | 360 W |
| Protections | Battery reverse polarity (fuse),Overload,Overcurrent,Over temperature |
| Maximum humidity (non-condensing) | 95 % |
| Isolation | 400 Vrms |
| Off load current | 25 mA |
| Galvanic isolation | Yes |
| DC connection terminal type | Faston tab 6.3 mm |
| Colour | Grey |
| Material | Anodized aluminium |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Safety | EN 60950 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Dimensions (H x W x D) | 3.2 x 5.2 x 7.5 in (82 x 132 x 190 mm) |
| Weight | 3.1 lb (1.4 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | ORI110123610 |
| UPC / EAN | 8719076022688 |
| Country of origin | Netherlands |
Documents
- Orion DC-DC Converters 110V, Isolated (datasheet)
- Victron product page (manuals, drawings, certificates)
