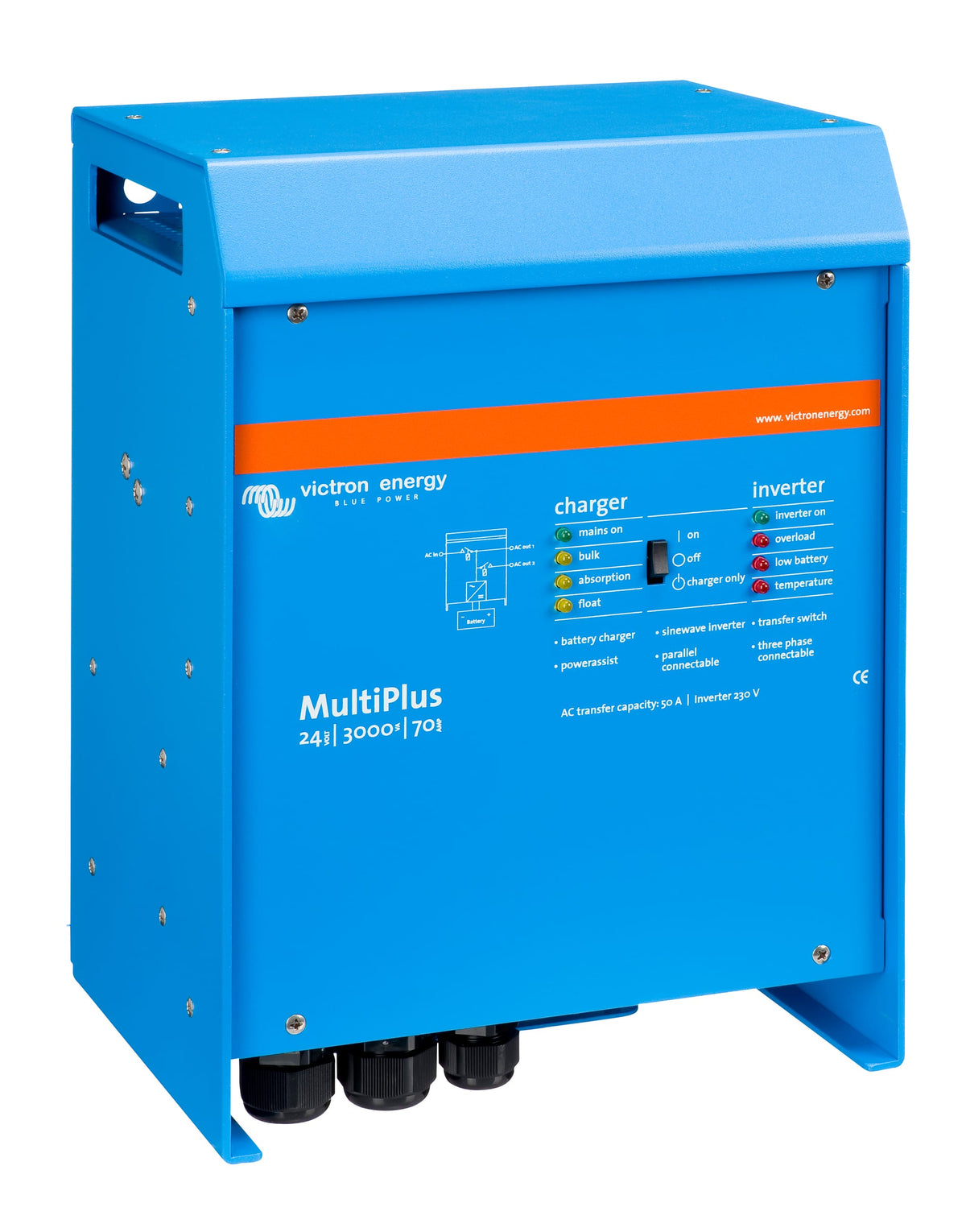

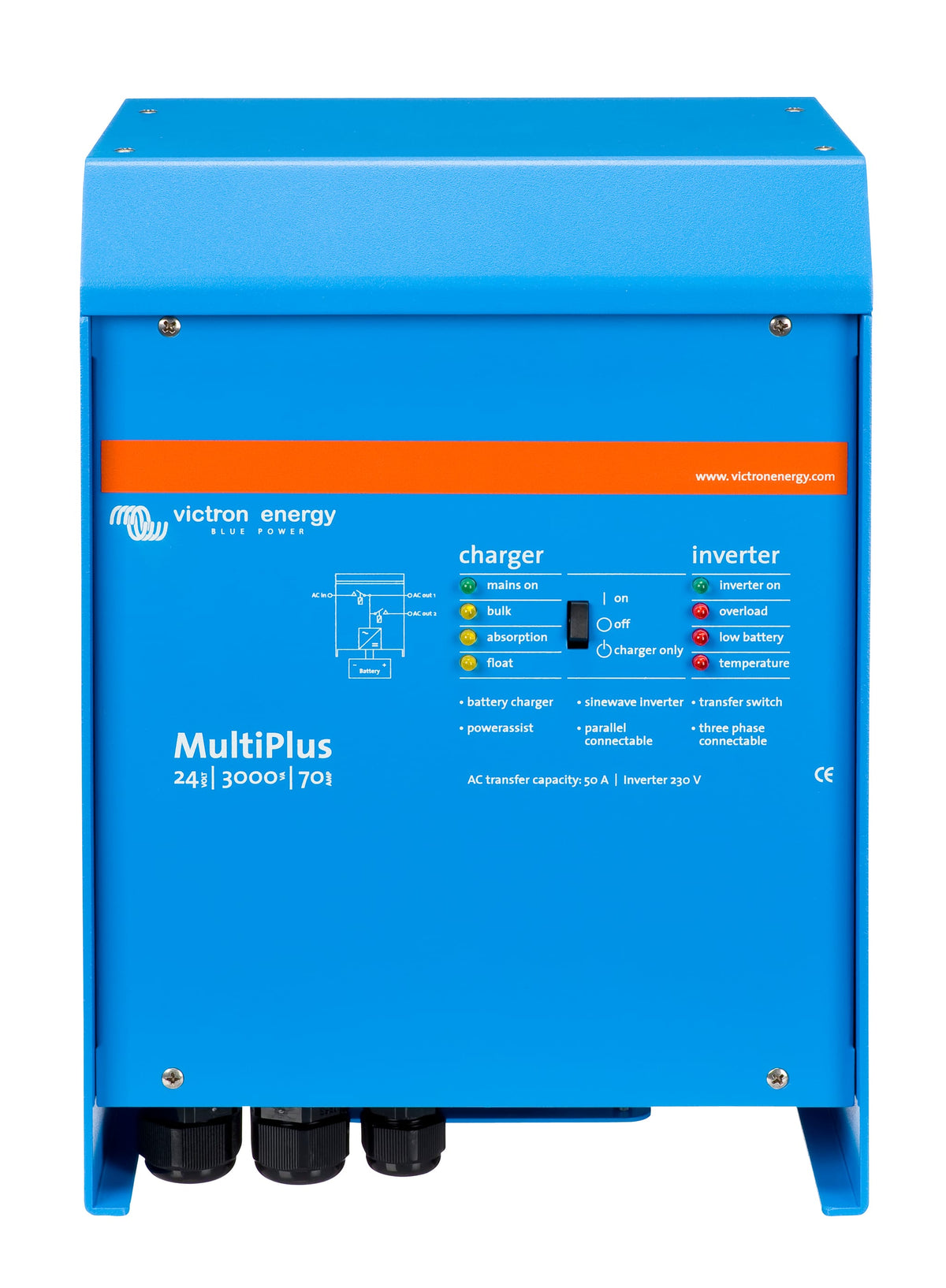

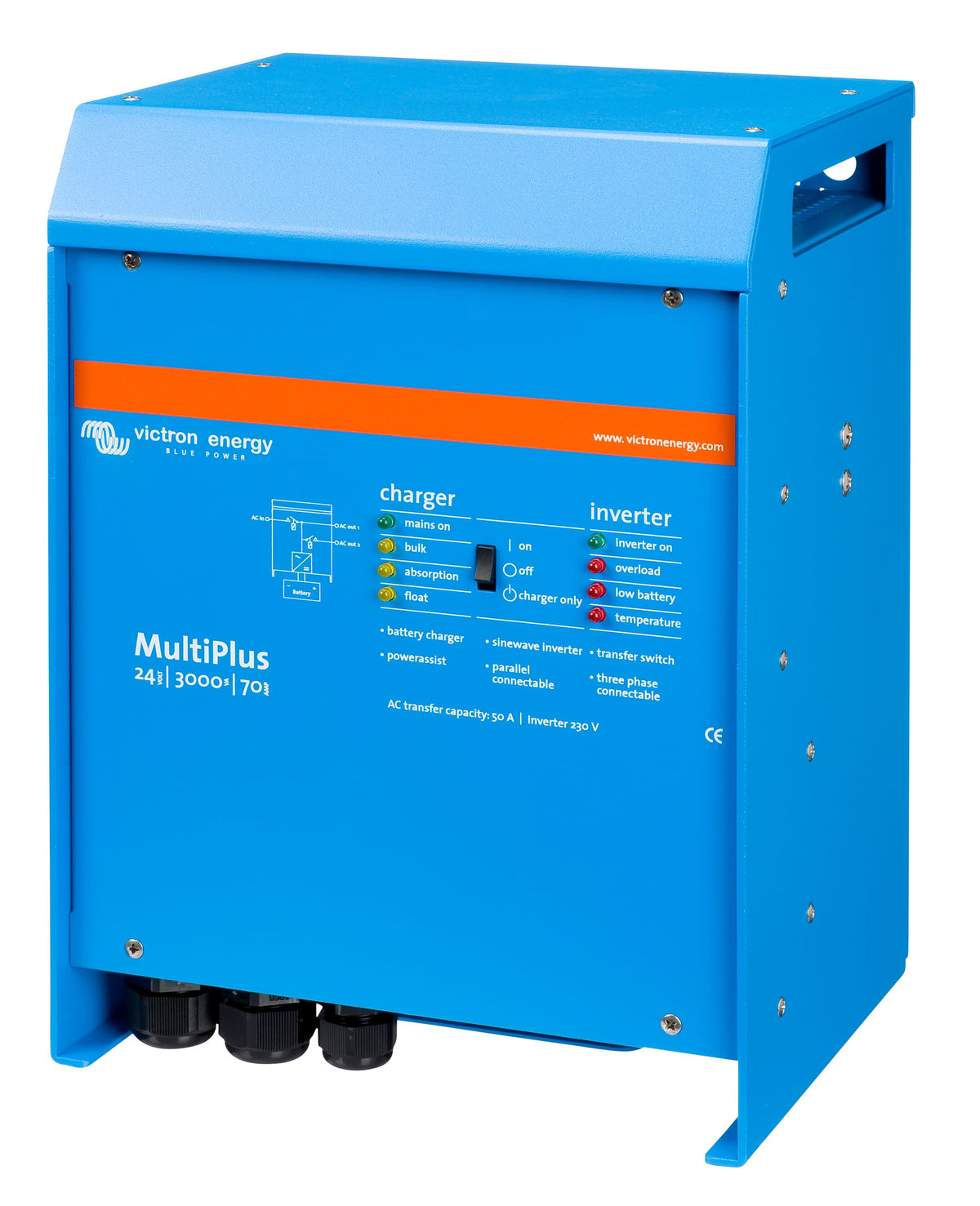

Victron Multiplus Inverter/Charger 24V DC - 3000VA (2400W) - 120V AC w/70AMP Battery Charger - 50AMP Transfer Switch (UL 458 and UL 1741) [PMP242301102]

Victron MultiPlus 24/3000: 3,000VA = 2,400 watts continuous

Victron rates its inverters in VA (volt-amps), not watts. The MultiPlus 24/3000 delivers 2,400W continuous at 77°F (25°C), with a 6,000W peak for starting motors and compressors. When you add up the loads on your boat, plan around 2,400W, not 3,000W. Compare all Victron inverters →

Mounting it in a hot engine room?

Continuous output drops as the temperature rises: 2,200W at 104°F (40°C), 1,700W at 149°F (65°C). Size your loads for the hottest spot you will mount it, and give it ventilation.

Specifications (from Victron)

Documents

• Datasheet
• Manual
• Example system wiring diagram 1
• Example system wiring diagram 2

From Victron

Features:

• Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
• Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
• Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
• Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
• Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info
