Victron MultiPlus-II 12/3000/120-50 120V 50/60Hz [PMP122305121]
Victron MultiPlus-II 12/3000/120-50 120V 50/60Hz [PMP122305121] is backordered and will ship as soon as it is back in stock.
Description
Description

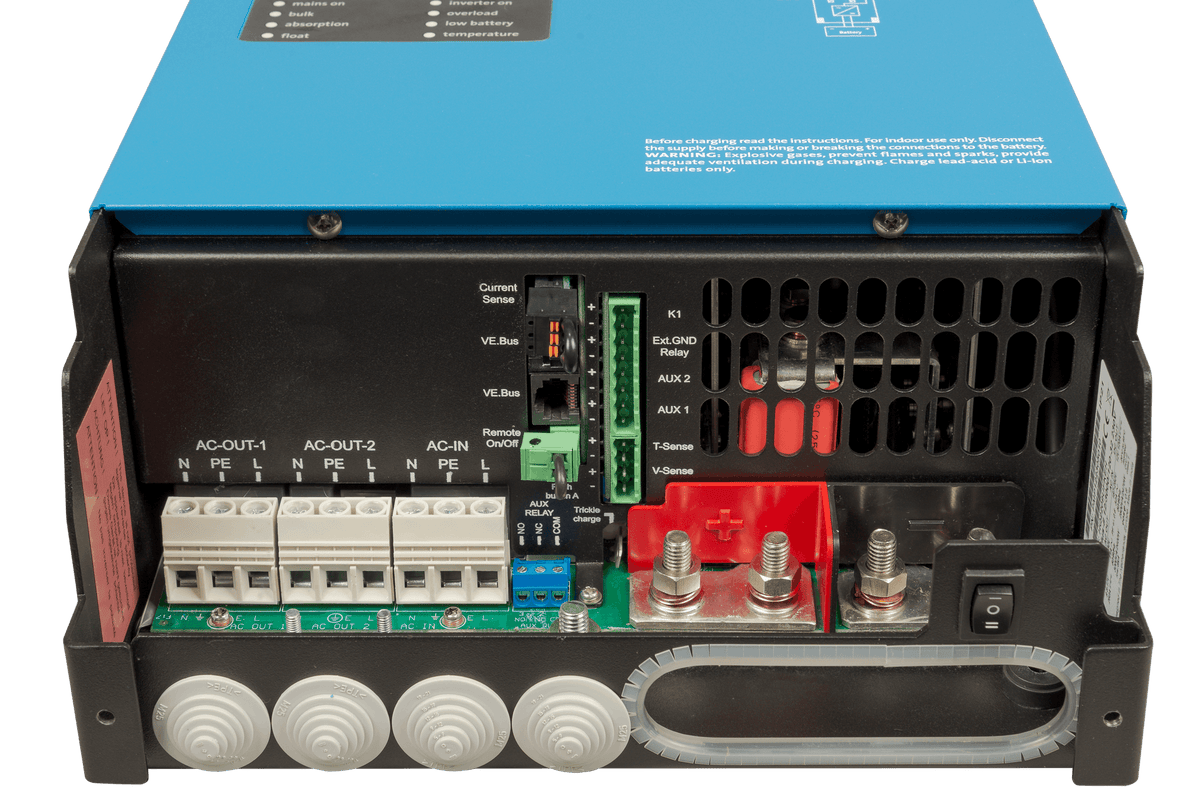

Victron MultiPlus-II 12/3000/120-50 120V 50/60Hz
The Victron MultiPlus combines a pure sine wave inverter, a multi-stage battery charger and an automatic transfer switch in one compact unit.
Specifications (from Victron)
| Continuous power at 25°C (Nonlinear load, crest factor 3 | 3,000 VA |
| Peak power rating | 5,500 W |
| Nominal battery voltage | 12 V |
| DC Input voltage range | 9.5–17 VDC |
| AC Input voltage range | 90–140 VAC |
| AC output voltage ±2% (adjustable) | 120 VAC |
| Maximum efficiency | 93 % |
| General purpose communication port | Yes |
| Communication Port | VE.Bus |
| VE.bus communication port | Two RJ45 terminals |
| Maximum humidity (non-condensing) | 95 % |
| Remote terminal | On / Off |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Programmable relay | AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| PowerControl | Yes |
| PowerAssist | Yes |
| Parallel operation | Yes |
| Operating temperature range (fan assisted cooling) | -40°F to 140°F (-40 to 60°C) |
| Number of AC Outputs | 2 |
| Number of AC Inputs | 1 |
| Maximum charge current (up to 25°C ambient) | 120 A |
| Temperature Sensor | Included |
| Maximum AC input current | 50 A |
| Fan assisted cooling | Yes |
| External AC Current Sensor | 100A (optional) |
| Continuous inverter AC output power at 65°C | 1,700 W |
| Continuous inverter AC output power at 40°C | 2,200 W |
| Continuous inverter AC output power at 25°C | 2,400 W |
| Programming via computer or app | Yes |
| Zero load power in search mode | 3 W |
| Warranty | 5 years (Victron) |
| Victron part number | PMP122305121 |
| UPC / EAN | 8719076079606 |
| Country of origin | India |
Documents
From Victron
The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.
Note: for a short period of time this product was called MultiGrid-II.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
