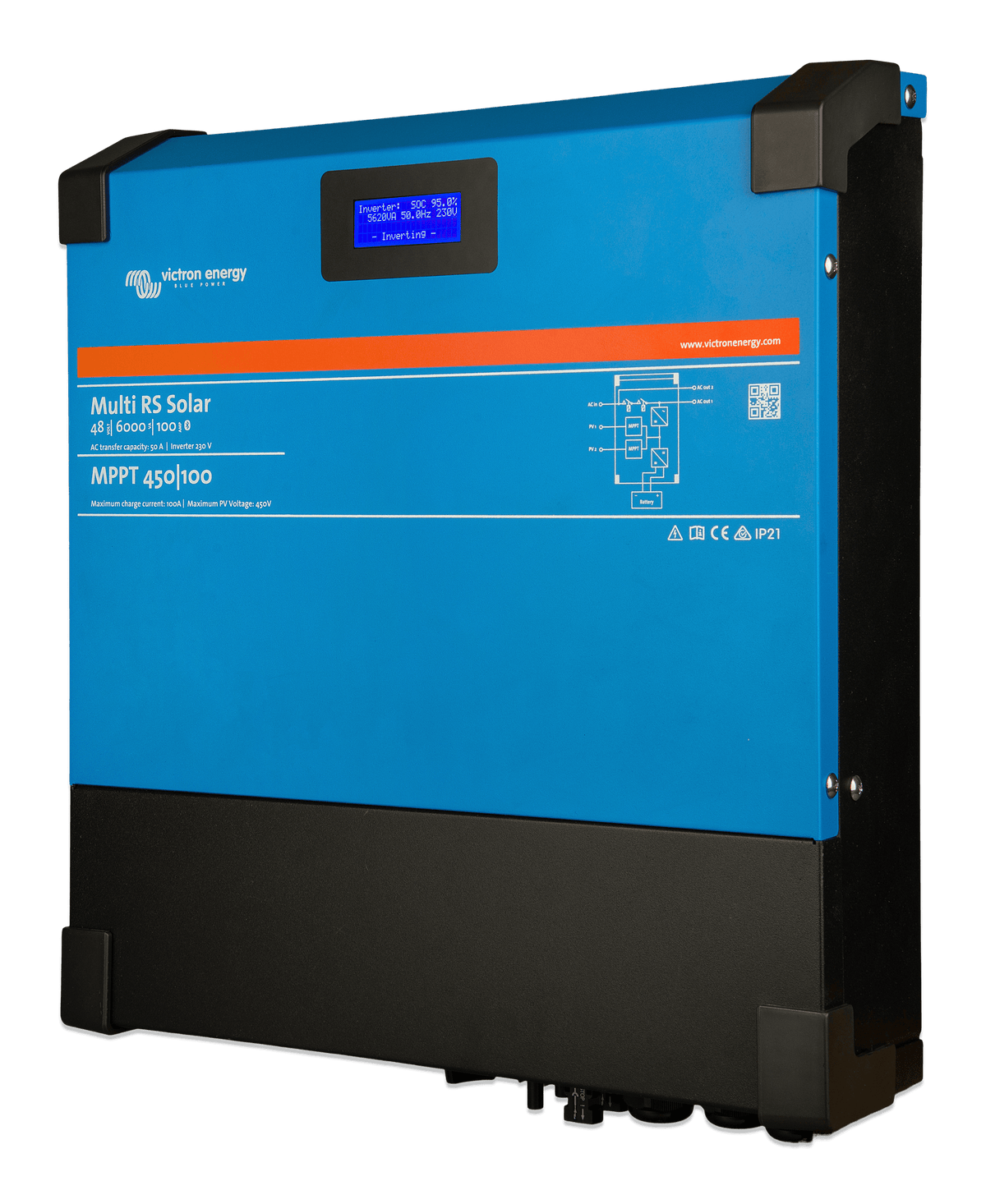

Victron Multi RS Solar 48/6000 Inverter/Charger [PMR482602020]
Pickup available at our Marathon storefront
Available for pickup or shipping
Victron Multi RS Solar 48/6000 Inverter/Charger [PMR482602020] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Multi RS Solar 48/6000 Inverter/Charger [PMR482602020]
Victron Multi RS Solar 48/6000 Inverter/Charger [PMR482602020] is backordered and will ship as soon as it is back in stock.
Description
Description

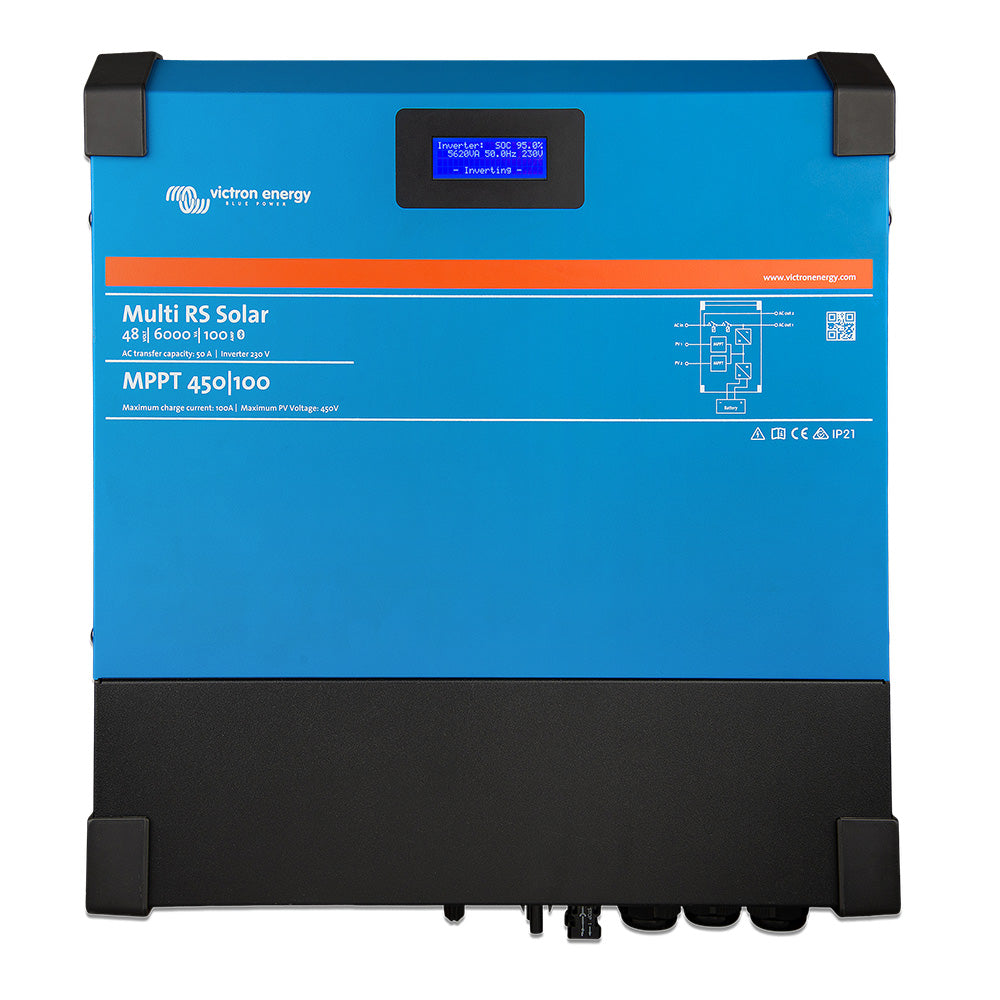

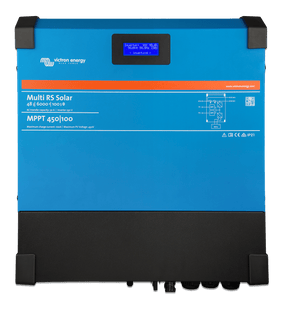

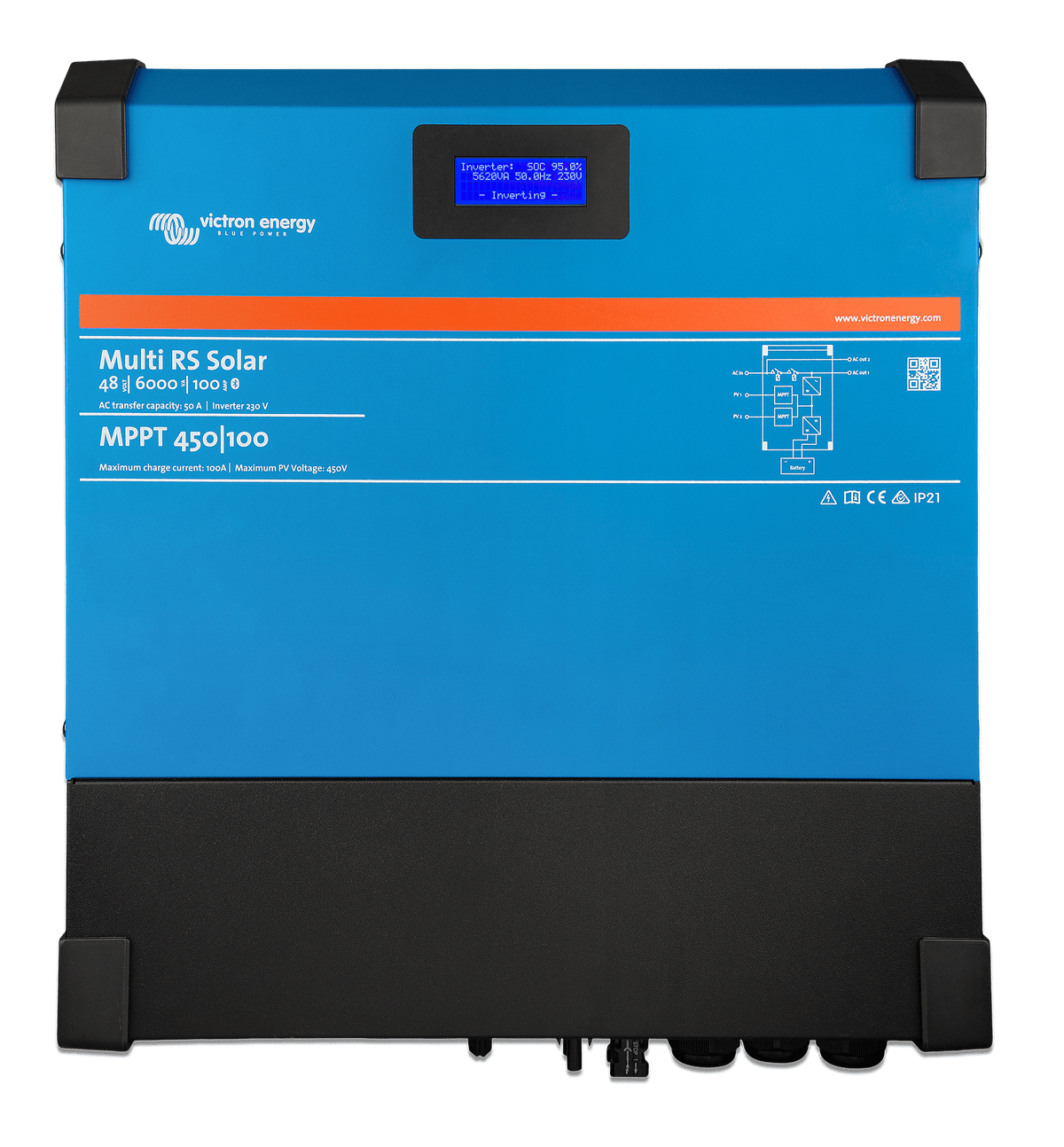

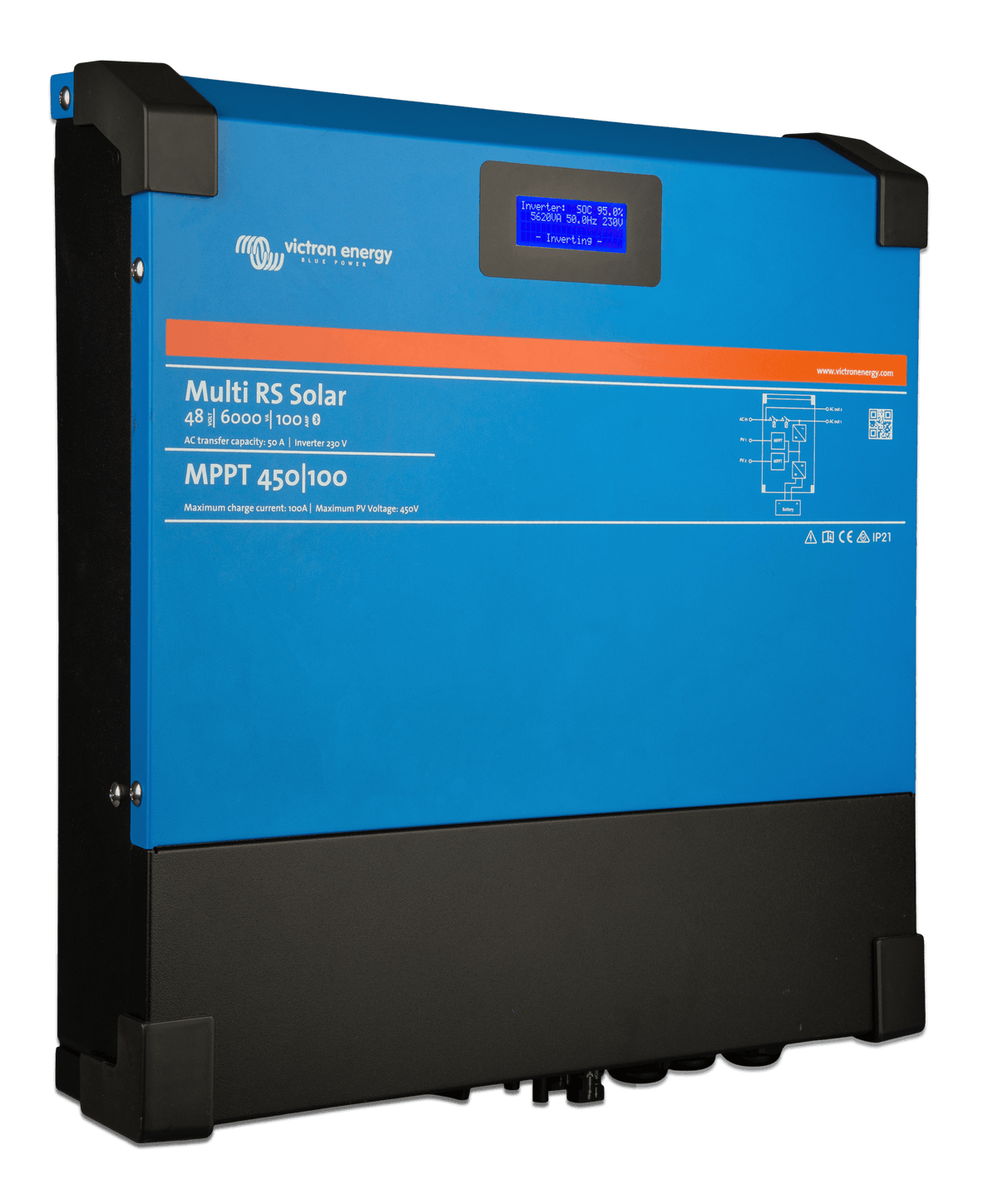

Victron Multi RS Solar 48/6000/100-450/100 inverter/charger
A 48V inverter/charger from Victron Energy with 230V AC output: an inverter, a battery charger (up to 88 A) and an automatic transfer switch (50 A) in one box. On shore power or a generator it charges your batteries and passes AC through to the boat; when shore power drops, it switches to the batteries.
Victron rates its inverters in VA (volt-amps), not watts; continuous watts are lower than the VA number. Call us for the exact continuous rating and we'll size it for your loads. Compare all Victron inverters →
Mounting it in a hot engine room?
Continuous output drops as the temperature rises: 4,500W at 104°F (40°C), 3,000W at 149°F (65°C). In the Keys an engine room or lazarette can easily run hotter than 104°F, so size for the hottest spot you'll mount it and give it airflow.
Idle draw at anchor
Switched on with nothing plugged in, it uses about 20W, roughly 10Ah per day from a 48V bank. Turn it off when you don't need AC.
On shore power
Set the AC input current limit to match your dock pedestal or generator. With PowerAssist, it cuts back battery charging and adds battery power during peaks so you don't trip the shore breaker.
Specifications (from Victron)
| Battery voltage | 48 V |
| DC input range | 38–62 V |
| AC output | 230 V |
| Continuous power @ 104°F (40°C) | 4,500 W |
| Continuous power @ 149°F (65°C) | 3,000 W |
| Battery charger | 88 A |
| Transfer switch | 50 A |
| AC inputs / outputs | 1 / 2 |
| Max efficiency | 96.5 % |
| Idle draw | 20 W |
| Communication port | VE.Can,VE.Direct,Bluetooth |
| Protection rating | IP21 |
| Operating temperature | -40°F to 149°F (-40 to 65°C) |
| Weight | 27.1 lb (12.3 kg) |
| Dimensions (H x W x D) | 18.2 x 16.7 x 5.0 in (462 x 425 x 127 mm) |
| Safety standards | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2,IEC 62040,IEC 62477 |
| Warranty | 5 years (Victron) |
| Victron part number | PMR482602020 |
| UPC / EAN | 8719076056690 |
