Victron Lithium SuperPack 25.6V/100Ah NG [BAT524110740]
Victron Lithium SuperPack 25.6V/100Ah NG [BAT524110740] is backordered and will ship as soon as it is back in stock.
Description
Description

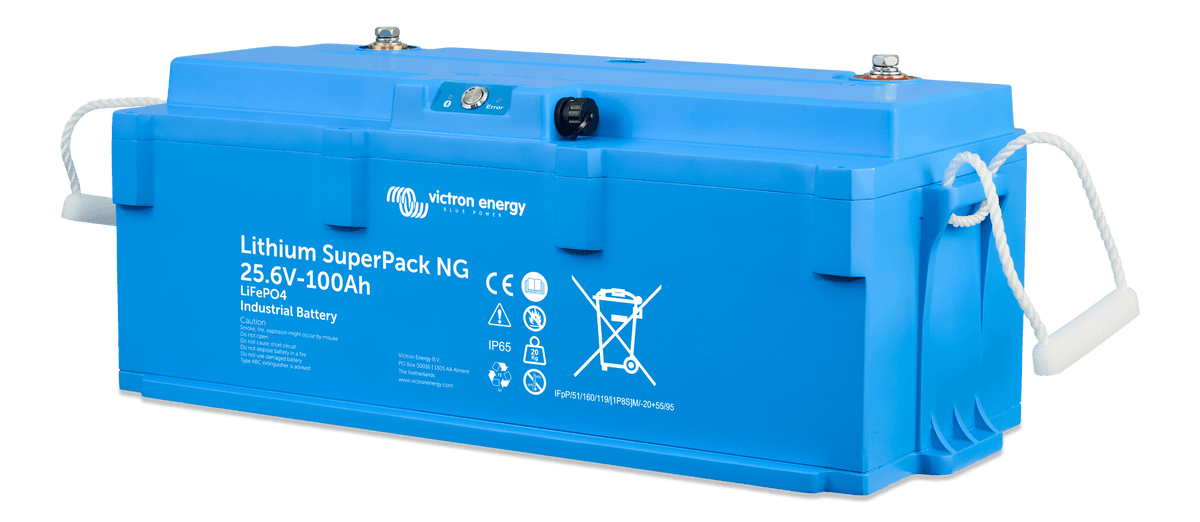

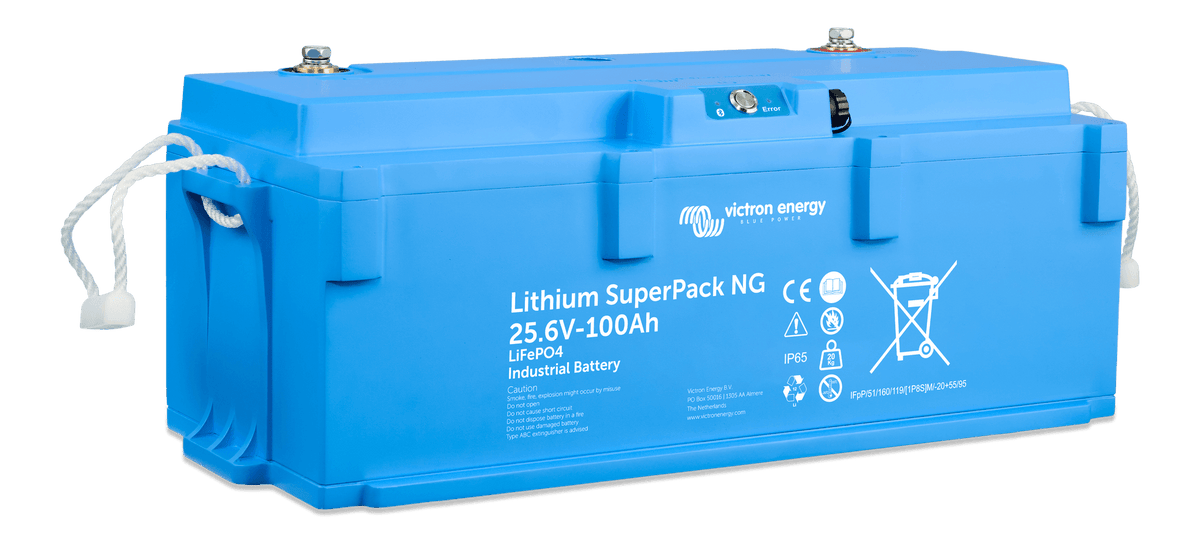

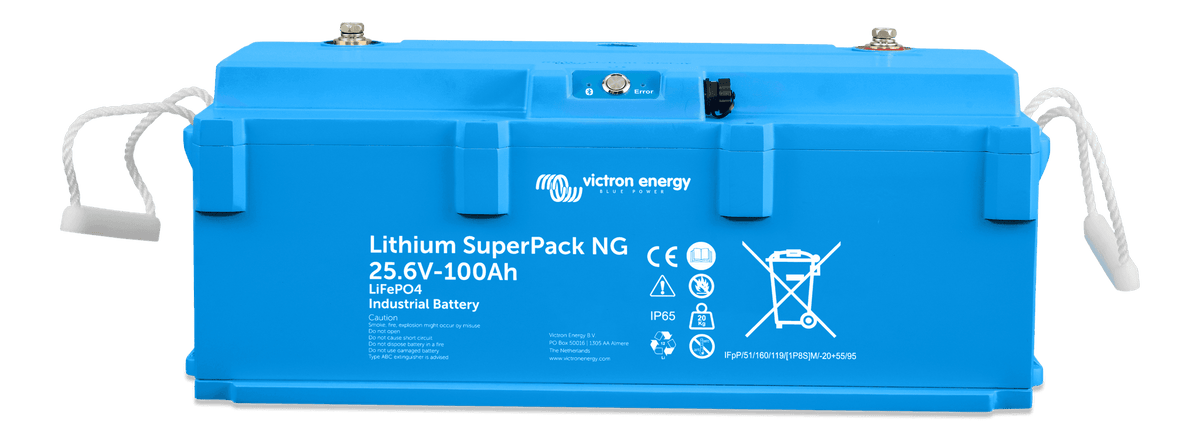

Victron Lithium SuperPack 25.6V/100Ah NG
The Victron Lithium SuperPack NG is a drop-in LiFePO4 battery with a built-in battery management system, so no separate BMS is needed. Much lighter than lead-acid with many more cycles.
Specifications (from Victron)
| Battery Nominal capacity ; capacity at 25°C (77°F) (Discharge current ≤1C) | 100 Ah |
| Battery Voltage Nominal | 25.6 V |
| Nominal Energy at 25°C (77°F) | 2,560 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Maximum continuous charge current | 100 A |
| Maximum continuous discharge current | 200 A |
| Round trip efficiency | 92 % |
| Maximum humidity (non-condensing) | 95 % |
| Maximum storage time when fully charged at 40°C (104°F) | 3 mo |
| End of discharge voltage | 22.4 V |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Float voltage at 20°C (70°F) | 27 V |
| Heatmap included? | Yes |
| Maximum storage time when fully charged at 25°C (77°F) | 1 year |
| Operating temperature range when charging | -22°F to 140°F (-30 to 60°C) |
| Operating temperature range when discharging | -22°F to 140°F (-30 to 60°C) |
| Parallel configuration | Yes, Unlimited |
| Requires External BMS? | No |
| Series configuration | No |
| Storage temperature range | -40°F to 149°F (-40 to 65°C) |
| BMS included within the battery? | Yes |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Battery terminals | M8 female 20mm including nut screws |
| Protection category | IP65 |
| Mounting orientation | Upright or on its side (providing the terminals do not face downward) |
| EMC | EN-IEC 61000-6-3, EN-IEC 61000-6-2 |
| Transportation | UN 38.3 |
| Safety cells | IEC 62619,UL 1973,UL 9540A |
| Automotive | ECE R10-7 |
| Safety battery | IEC 62619 (pending) |
| Warranty | 3 years (Victron) |
| Victron part number | BAT524110740 |
| UPC / EAN | 8719076073765 |
| Country of origin | China |
Documents
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
