Victron Lithium SuperPack 12.8V/60Ah (M6) [BAT512060705]
Victron Lithium SuperPack 12.8V/60Ah (M6) [BAT512060705] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Lithium SuperPack 12.8V/60Ah (M6) [BAT512060705] is backordered and will ship as soon as it is back in stock.
Description
Description

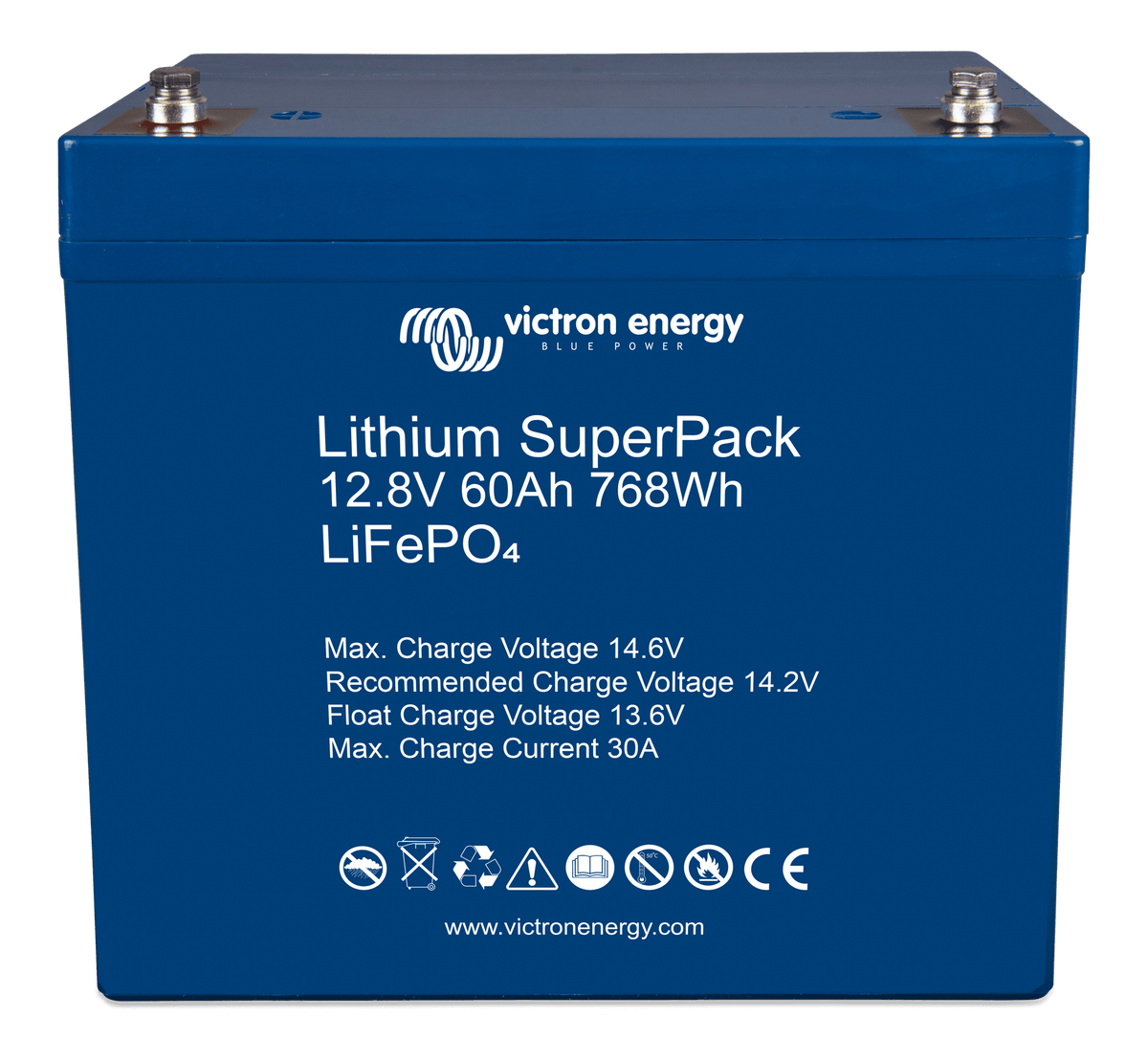

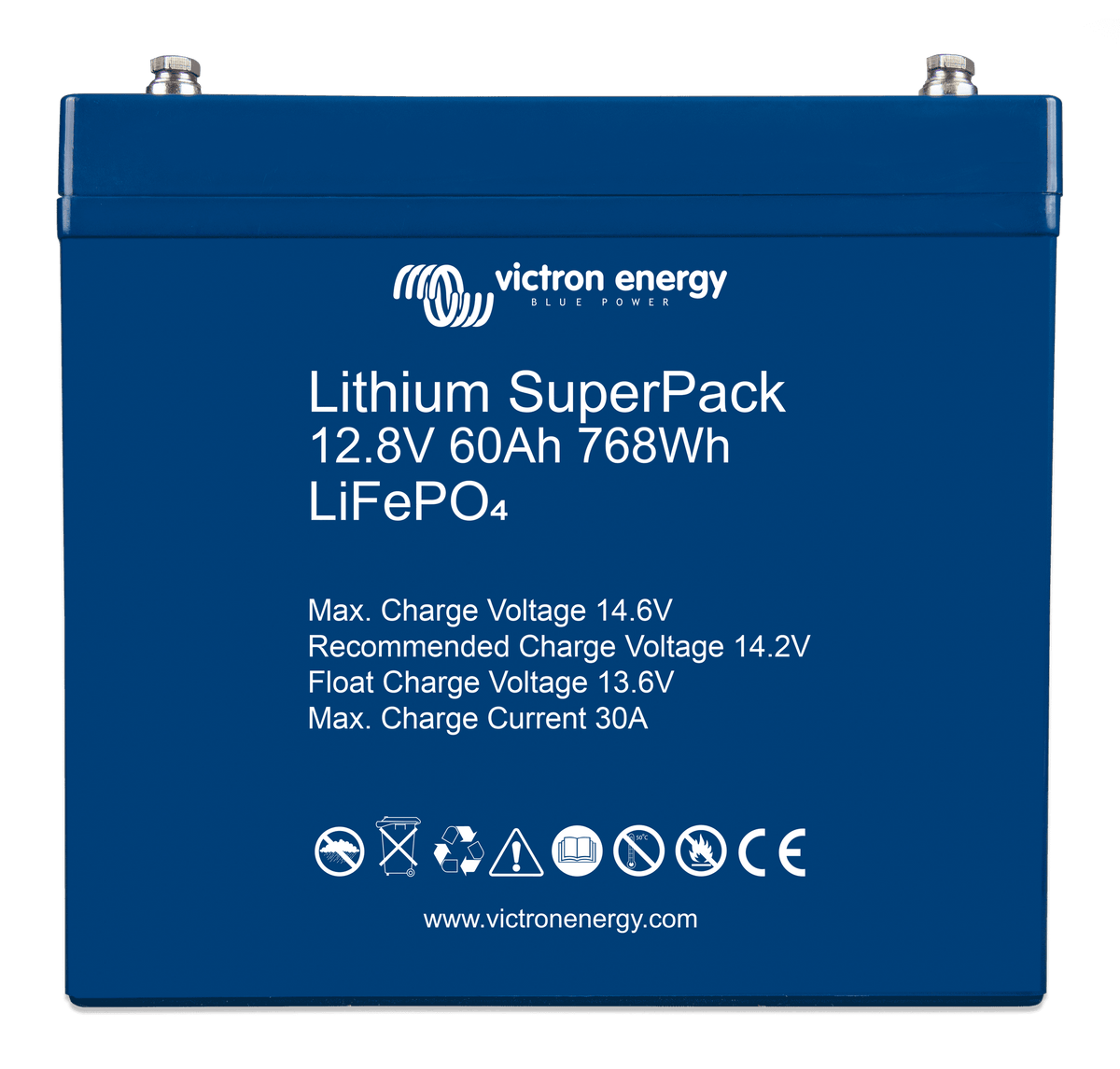

Victron Lithium SuperPack 12.8V/60Ah (M6)
The Victron Lithium SuperPack is a drop-in LiFePO4 battery with a built-in battery management system, so no separate BMS is needed. Much lighter than lead-acid with many more cycles.
Specifications (from Victron)
| Battery Nominal capacity ; capacity at 25°C (77°F) (Discharge current ≤1C) | 60 Ah |
| Battery Voltage Nominal | 12.8 V |
| Nominal Energy at 25°C (77°F) | 768 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Maximum continuous discharge current | 30 A |
| Peak discharge current | 80 A |
| Round trip efficiency | 92 % |
| Absorption charge voltage range | 14.2–14.4 V |
| BMS included within the battery? | Yes |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| End of discharge voltage | 10 V |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Float voltage at 20°C (70°F) | 13.5 V |
| Parallel configuration | Yes, Unlimited |
| Maximum humidity (non-condensing) | 95 % |
| Maximum storage time when fully charged at 25°C (77°F) | 1 year |
| Maximum storage time when fully charged at 40°C (104°F) | 3 mo |
| Nominal capacity at 0°C (32°F) (Discharge current ≤1C) | 48 Ah |
| Operating temperature range when charging | Up to 113°F (45°C) |
| Operating temperature range when discharging | -4°F to 122°F (-20 to 50°C) |
| Series configuration | No |
| Storage temperature range | -40°F to 149°F (-40 to 65°C) |
| Battery terminals | M6 threaded inserts |
| Mounting orientation | Upright or on its side (providing the terminals do not face downward) |
| Protection category | IP43 |
| Dimensions (H x W x D) | 8.4 x 9 x 5.4 in (213 x 229 x 138 mm) |
| Weight | 16.5 lb (7.5 kg) |
| Warranty | 3 years (Victron) |
| Victron part number | BAT512060705 |
| UPC / EAN | 8719076047544 |
| Country of origin | China |
Documents
From Victron
The Lithium SuperPack batteries are extremely easy to install, not needing any additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The Lithium SuperPack batteries can be connected in parallel. Series connection is not allowed.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
