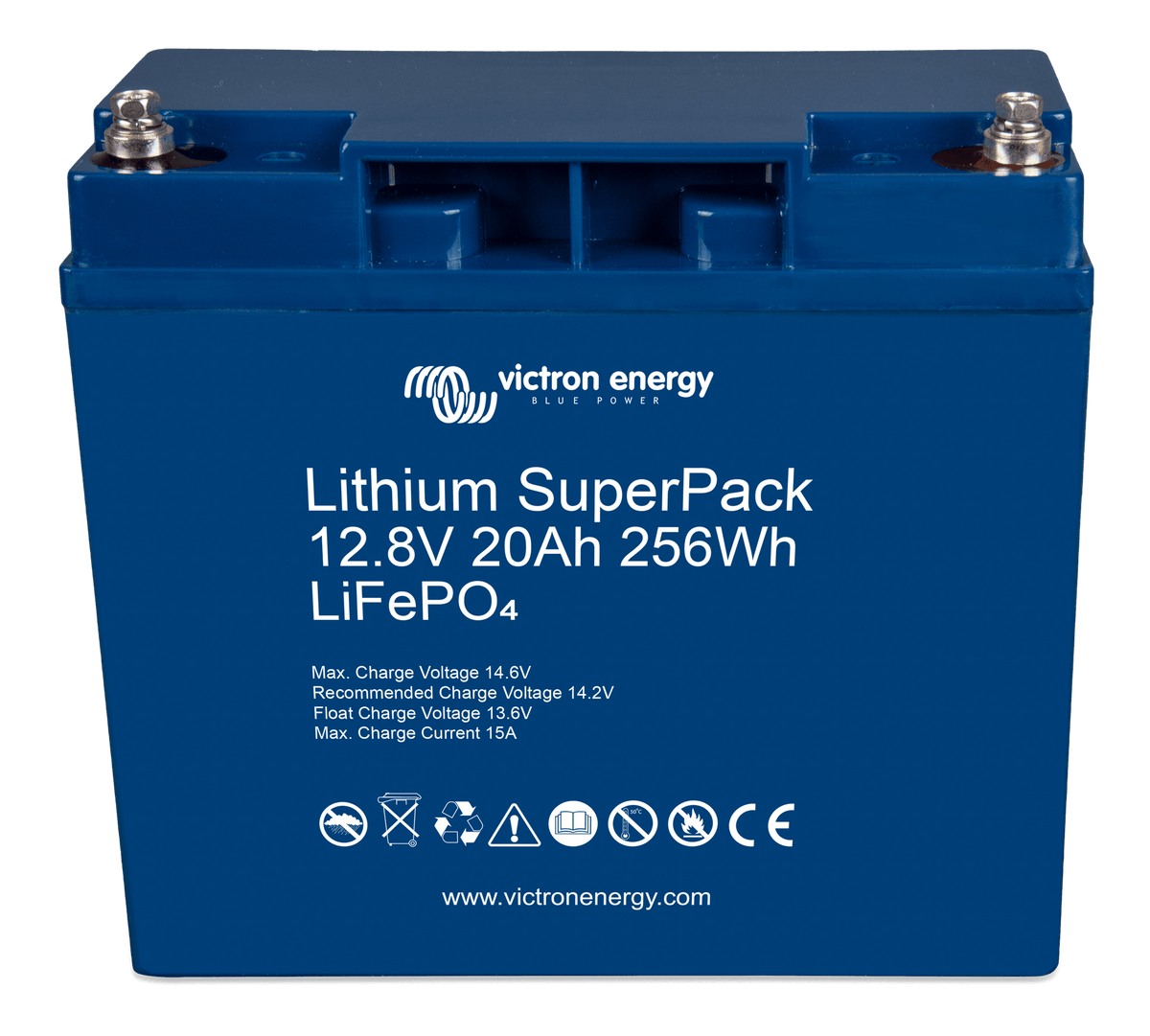

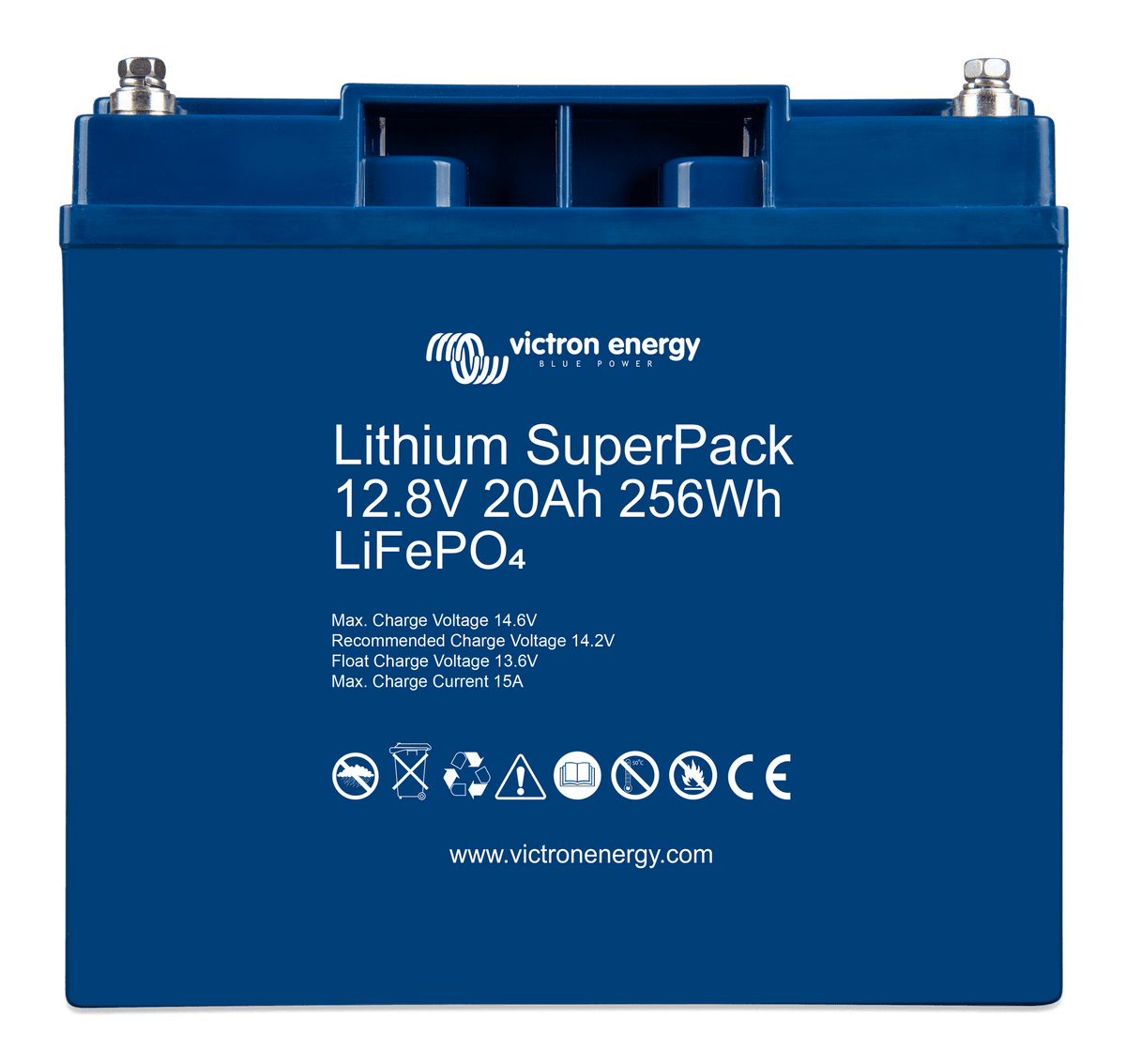

Victron Lithium SuperPack 12.8V/20Ah (M5)
The Victron Lithium SuperPack is a drop-in LiFePO4 battery with a built-in battery management system, so no separate BMS is needed. Much lighter than lead-acid with many more cycles.
Specifications (from Victron)
| Battery Nominal capacity ; capacity at 25°C (77°F) (Discharge current ≤1C) | 20 Ah |
| Battery Voltage Nominal | 12.8 V |
| Nominal Energy at 25°C (77°F) | 256 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Peak discharge current | 80 A |
| Maximum continuous discharge current | 30 A |
| Round trip efficiency | 92 % |
| Operating temperature range when charging | Up to 113°F (45°C) |
| Operating temperature range when discharging | -4°F to 122°F (-20 to 50°C) |
| Parallel configuration | Yes, Unlimited |
| Series configuration | No |
| Storage temperature range | -40°F to 149°F (-40 to 65°C) |
| End of discharge voltage | 10 V |
| BMS included within the battery? | Yes |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Float voltage at 20°C (70°F) | 13.5 V |
| Maximum humidity (non-condensing) | 95 % |
| Maximum storage time when fully charged at 25°C (77°F) | 1 year |
| Maximum storage time when fully charged at 40°C (104°F) | 3 mo |
| Nominal capacity at 0°C (32°F) (Discharge current ≤1C) | 16 Ah |
| Absorption charge voltage range | 14.2–14.4 V |
| Battery terminals | M5 threaded inserts |
| Protection category | IP43 |
| Mounting orientation | Upright or on its side (providing the terminals do not face downward) |
| Dimensions (H x W x D) | 6.6 x 7.1 x 3 in (167 x 181 x 77 mm) |
| Weight | 6.6 lb (3 kg) |
| Warranty | 3 years (Victron) |
| Victron part number | BAT512020705 |
| UPC / EAN | 8719076047537 |
| Country of origin | China |
Documents
From Victron
The Lithium SuperPack batteries are extremely easy to install, not needing any additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The Lithium SuperPack batteries can be connected in parallel. Series connection is not allowed.
