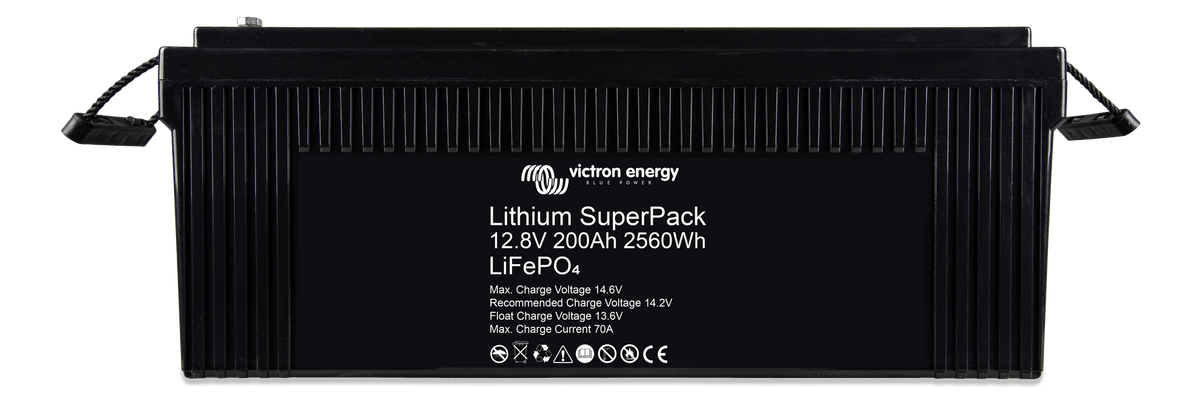

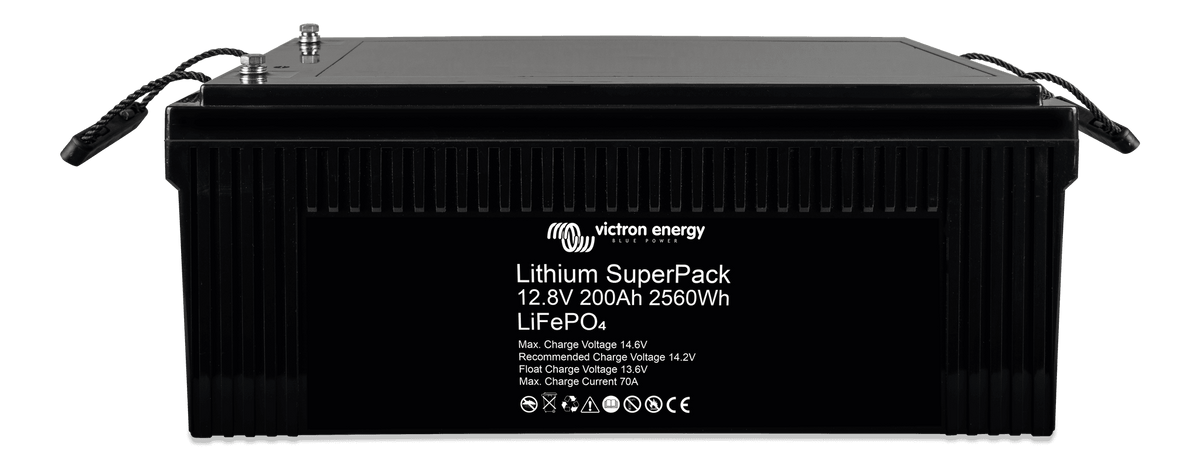

Victron Lithium SuperPack 12.8V/200Ah (M8)
The Victron Lithium SuperPack is a drop-in LiFePO4 battery with a built-in battery management system, so no separate BMS is needed. Much lighter than lead-acid with many more cycles.
Specifications (from Victron)
| Battery Nominal capacity ; capacity at 25°C (77°F) (Discharge current ≤1C) | 200 Ah |
| Battery Voltage Nominal | 12.8 V |
| Nominal Energy at 25°C (77°F) | 2,560 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Maximum continuous discharge current | 70 A |
| Peak discharge current | 100 A |
| Round trip efficiency | 92 % |
| Float voltage at 20°C (70°F) | 13.5 V |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| End of discharge voltage | 10 V |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| BMS included within the battery? | Yes |
| Absorption charge voltage range | 14.2–14.4 V |
| Storage temperature range | -40°F to 149°F (-40 to 65°C) |
| Maximum humidity (non-condensing) | 95 % |
| Series configuration | No |
| Requires External BMS? | No |
| Parallel configuration | Yes, Unlimited |
| Operating temperature range when discharging | -4°F to 122°F (-20 to 50°C) |
| Operating temperature range when charging | Up to 113°F (45°C) |
| Nominal capacity at 0°C (32°F) (Discharge current ≤1C) | 160 Ah |
| Maximum storage time when fully charged at 40°C (104°F) | 3 mo |
| Maximum storage time when fully charged at 25°C (77°F) | 1 year |
| Battery terminals | M8 threaded inserts |
| Protection category | IP43 |
| Mounting orientation | Upright or on its side (providing the terminals do not face downward) |
| Dimensions (H x W x D) | 8.2 x 20.5 x 10.6 in (208 x 520 x 269 mm) |
| Weight | 46.3 lb (21 kg) |
| Warranty | 3 years (Victron) |
| Victron part number | BAT512120705 |
| UPC / EAN | 8719076047568 |
| Country of origin | China |
Documents
From Victron
The Lithium SuperPack batteries are extremely easy to install, not needing any additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
The Lithium SuperPack batteries can be connected in parallel. Series connection is not allowed.
