Victron LiFePO4 Battery 12.8V/200Ah NG [BAT512120620]
Victron LiFePO4 Battery 12.8V/200Ah NG [BAT512120620] is backordered and will ship as soon as it is back in stock.
Description
Description

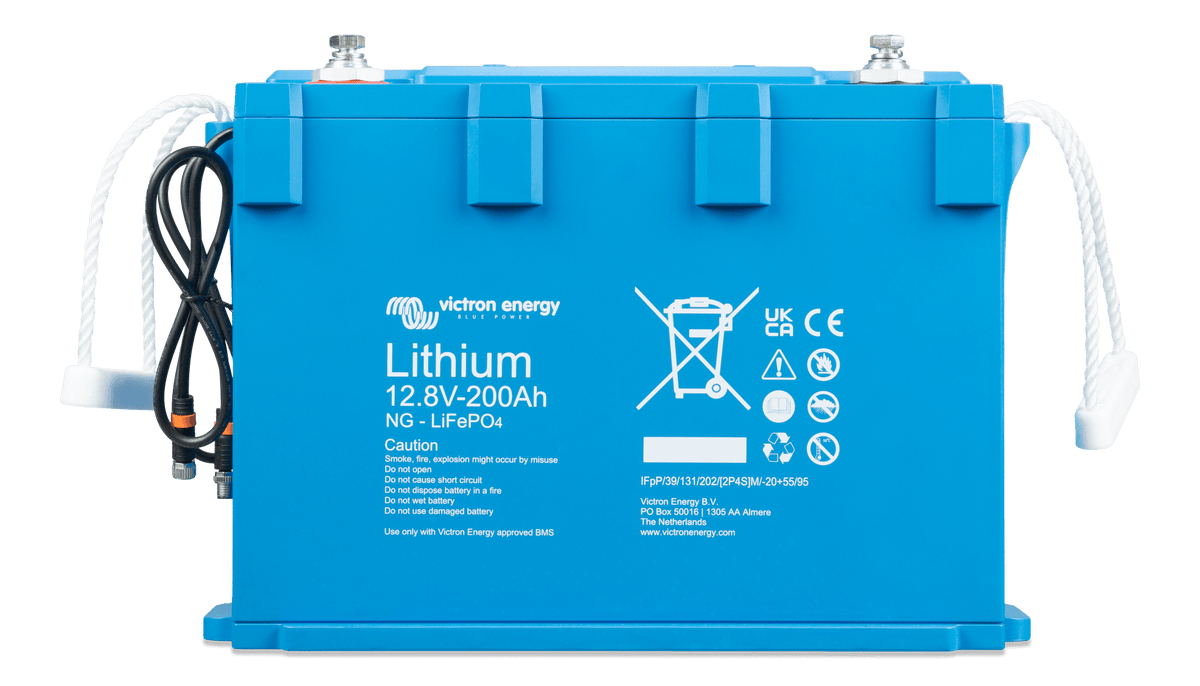

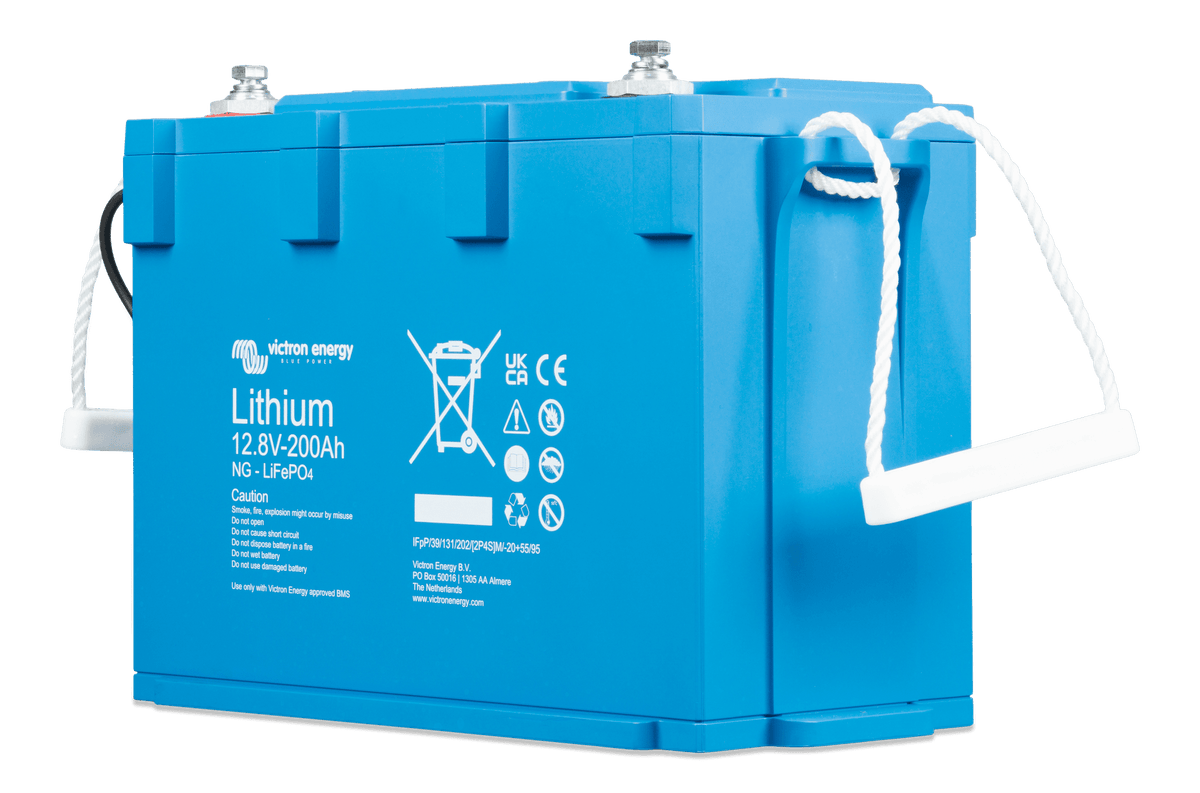

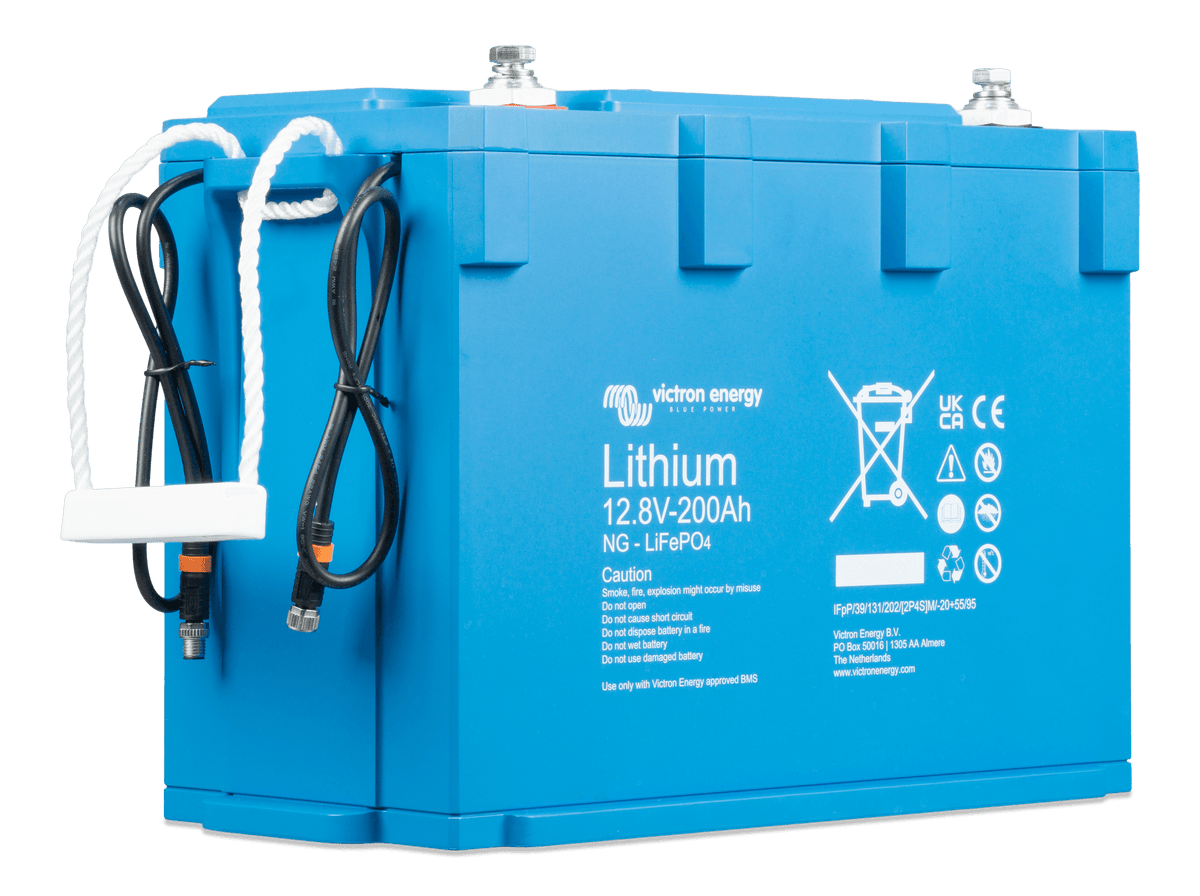

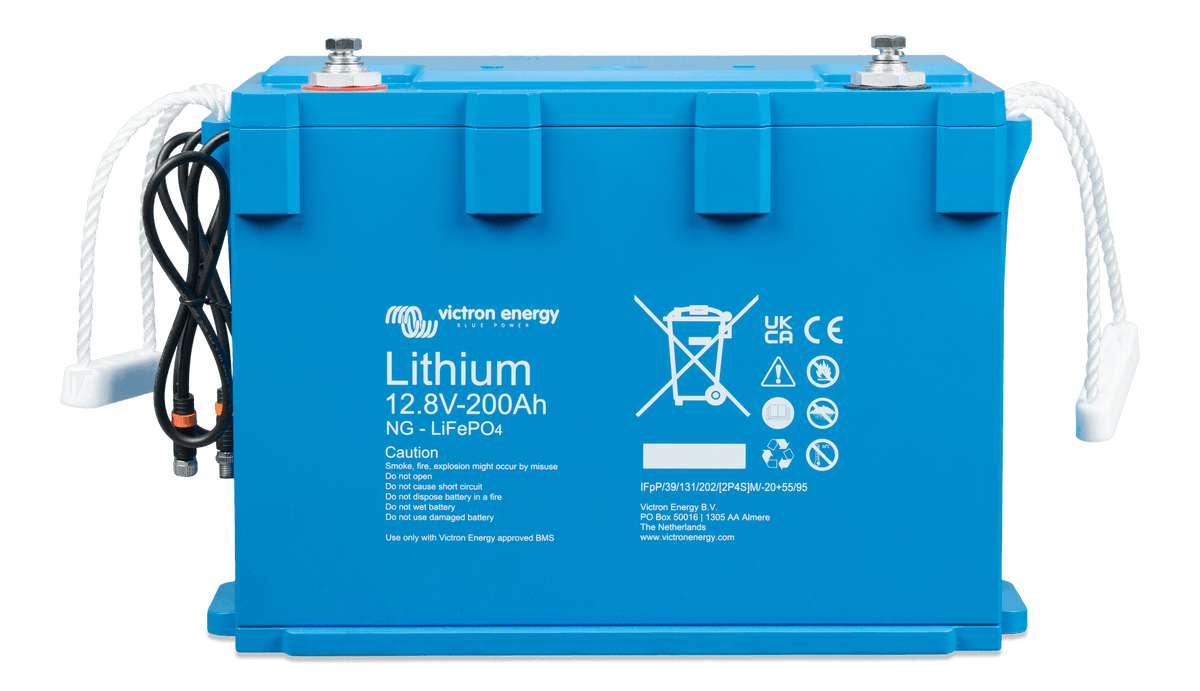

Victron LiFePO4 Battery 12.8V/200Ah NG
Victron LiFePO4 NG Smart batteries: lithium iron phosphate cells with built-in cell balancing and Bluetooth monitoring, designed to work with a Victron BMS. Much lighter than lead-acid and usable to a far deeper depth of discharge.
Specifications (from Victron)
| Battery Voltage Nominal | 12.8 V |
| Nominal Energy at 25°C (77°F) (Discharge current ≤1C) | 2,560 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Max continuous charge current (1C) | 200 A |
| Maximum continuous discharge current (1C) | 200 A |
| Max pulse charge current 10s (2C) | 400 A |
| Max pulse discharge current 10s (2C) | 400 A |
| Round trip efficiency | 92 % |
| Bluetooth | In the BMS |
| Alarm feature | Pre-alarm contact on BMS |
| Battery Capacity Nominal | 200 Ah |
| Cell monitoring | Cell voltages and temperatures, battery current |
| End of discharge voltage | 11.2 V |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Battery firmware updates | Battery firmware automatically updated by BMS |
| Float voltage at 20°C (70°F) | 13.5 V |
| Internal resistance | 1 mΩ |
| Maximum batteries per BMS | 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled) |
| Maximum humidity (non-condensing) | 95 % |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| BMS included within the battery? | No |
| Repairable | Yes (cover can be removed with screws) |
| Requires External BMS? | Yes |
| Battery BMS interface | 50 cm male and female cable with M8 circular connector with high-speed digital communication |
| Bms | Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately |
| Self discharge rate per month at 25°C (77°F) | 3 % |
| Storage temperature range | -49°F to 158°F (-45 to 70°C) |
| Battery terminals | M8 threaded inserts |
| Material | ABS |
| Colour | Blue (RAL 5012) |
| Warranty | 3 years (Victron) |
| Victron part number | BAT512120620 |
| UPC / EAN | 8719076058915 |
| Country of origin | China |
Documents
- 12,8V - 25,6V - 51,2V Lithium NG Batteries (datasheet)
- BMS NG Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Building upon the success of our Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.
Highlights:
- Multiple improvements including added read-out of cell voltages and temperatures;
- Maximum single bank size increased to 385kWh;
- Modules available in 12, 24 and 48V;
- Protection class IP65;
- Bracket mounting and strap mounting.
Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
