Victron LiFePO4 Battery 12.8V/100Ah Smart [BAT512110610]
Victron LiFePO4 Battery 12.8V/100Ah Smart [BAT512110610] is backordered and will ship as soon as it is back in stock.
Description
Description

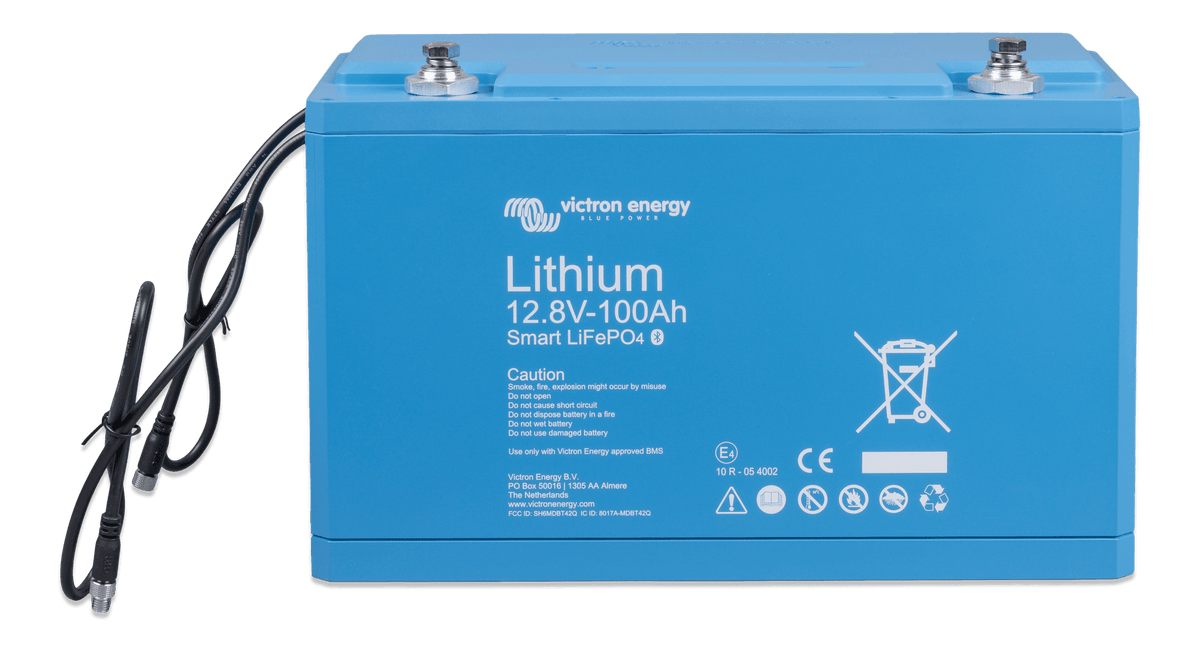

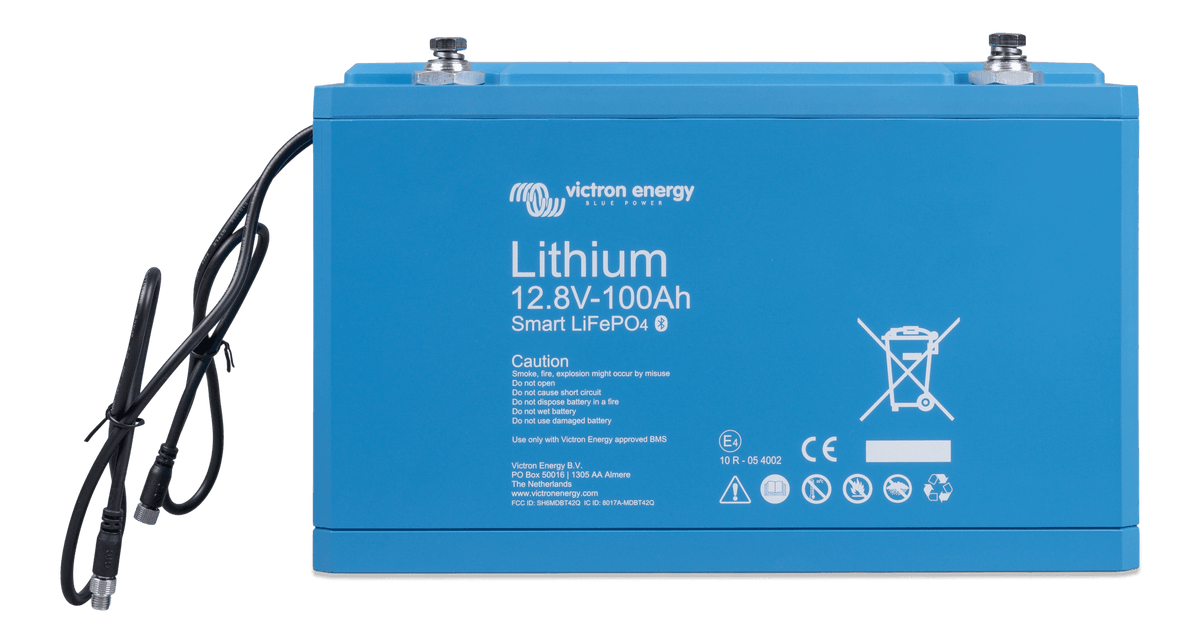

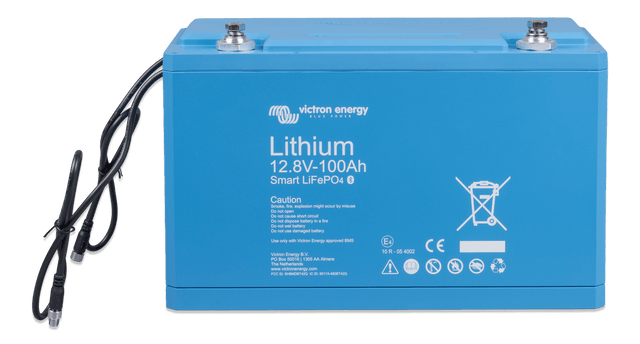

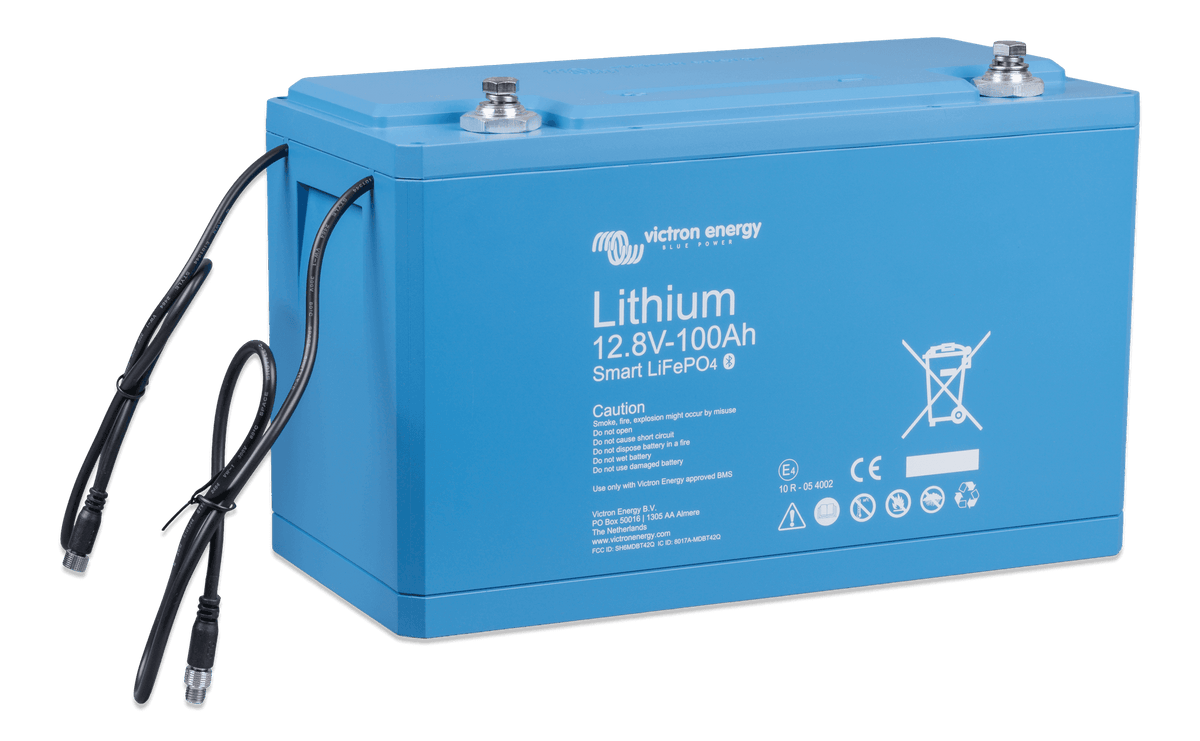

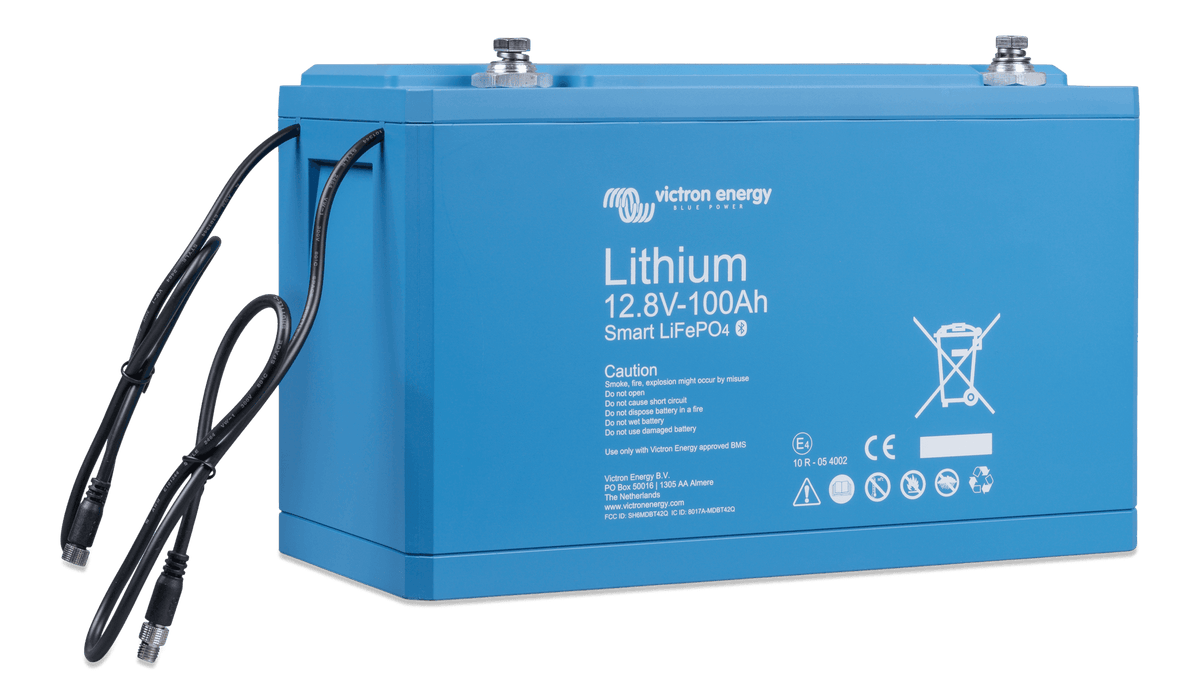

Victron LiFePO4 Battery 12.8V/100Ah Smart
A Victron lithium iron phosphate (LiFePO4) battery for long cycle life and light weight in house bank applications.
Specifications (from Victron)
| Battery Nominal Capacity | 100 Ah |
| Battery Voltage Nominal | 12.8 V |
| Nominal Energy at 25°C (77°F) | 1,280 Wh |
| Chemistry | Lithium Iron Phosphate (LiFePO4 or LFP) |
| Recommended maximum continuous discharge current | 100 A |
| Recommended maximum charge current | 50 A |
| Maximum charge current | 200 A |
| Maximum continuous discharge current | 200 A |
| Round trip efficiency | 92 % |
| Communication Port | Bluetooth |
| Bluetooth | Yes |
| Nominal capacity at -20°C (-4°F) (Discharge current ≤1C) | 50 Ah |
| Operating temperature range when charging | 41°F to 122°F (5 to 50°C) |
| Operating temperature range when discharging | -4°F to 122°F (-20 to 50°C) |
| Requires External BMS? | Yes |
| Storage temperature range | -49°F to 158°F (-45 to 70°C) |
| Nominal capacity at 0°C (32°F) (Discharge current ≤1C) | 80 Ah |
| BMS | Male and female cable with M8 circular connector, length 50cm |
| Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| End of discharge voltage | 11.2 V |
| Energy loss (per 100 cycles, @ 25 °C, 100 % DoD) | 1 % |
| Float voltage at 20°C (70°F) | 13.5 V |
| Internal resistance | 0.8 mΩ |
| Maximum batteries per BMS | 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled) |
| Maximum humidity (non-condensing) | 95 % |
| Maximum storage time at 25°C (77°F) | 1 year |
| Battery terminals | M8 threaded inserts |
| Colour | Blue (RAL 5012) |
| Protection category | IP22 |
| Mounting orientation | The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down |
| Warranty | 3 years (Victron) |
| Victron part number | BAT512110610 |
| UPC / EAN | 8719076043041 |
| Country of origin | China |
Documents
- 12,8 & 25,6 Volt lithium iron phosphate batteries Smart (datasheet)
- BMS Overview (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
- With integrated cell balancing
- Can be parallel and series connected
- Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
- VE. Bus BMS / VE.Bus BMS V2 – recommended for systems with our inverter/chargers.
- smallBMS – recommended for use in small systems.
- Smart BMS 12/200 - recommended for use in Automotive and Marine systems having DC-loads and Alternators.
- Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
- Lynx Smart BMS - recommended for use in large systems.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
