Victron Inverter 24/500 120V VE.Direct NEMA GFCI (UL 458)
Victron Phoenix VE.Direct inverters turn 24 VDC battery power into clean 120 VAC pure sine wave power, with a VE.Direct port for monitoring and settings through VictronConnect.
Specifications (from Victron)
| Continuous power at 40°C | 380 W |
| Peak power rating | 750 W |
| DC input voltage range | 18.4–34 V |
| AC output voltage ±3% (adjustable) | 120 V |
| Maximum efficiency | 88 % |
| Communication Port | VE.Direct |
| Batery voltage nominal | 24 V |
| Battery charged detection voltage (adjustable) | 28 V |
| Maximum humidity (non-condensing) | 95 % |
| Zero Load Power in ECO Mode (adjustable) | 1 W |
| Zero-load power | 8 W |
| Remote on/off terminal | Yes |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,Excessive DC ripple |
| Power deration above 40°C | 1.25 % |
| Operating temperature range (fan assisted cooling) | -40°F to 149°F (-40 to 65°C) |
| Fully programable | Yes |
| Frequency ±0.1% (adjustable) | 60 Hz |
| Eco mode stop and start power setting | Adjustable |
| ECO mode retry interval (adjustable) | 2.5 s |
| Dynamic (load dependent) low DC shutdown (configurable) | Yes |
| DC low shut down (adjustable) | 18.6 V |
| DC low restart and alarm (adjustable) | 21.8 V |
| Continuous inverter AC output power at 25°C | 460 W |

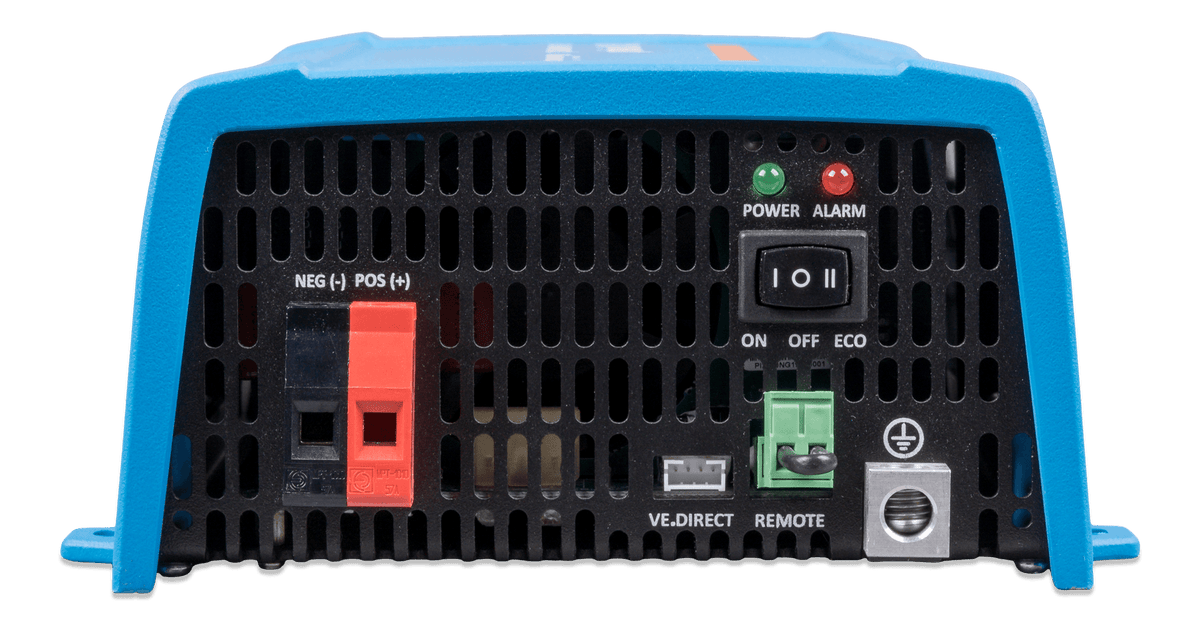

| Remote Terminal | Screw terminal two pole |

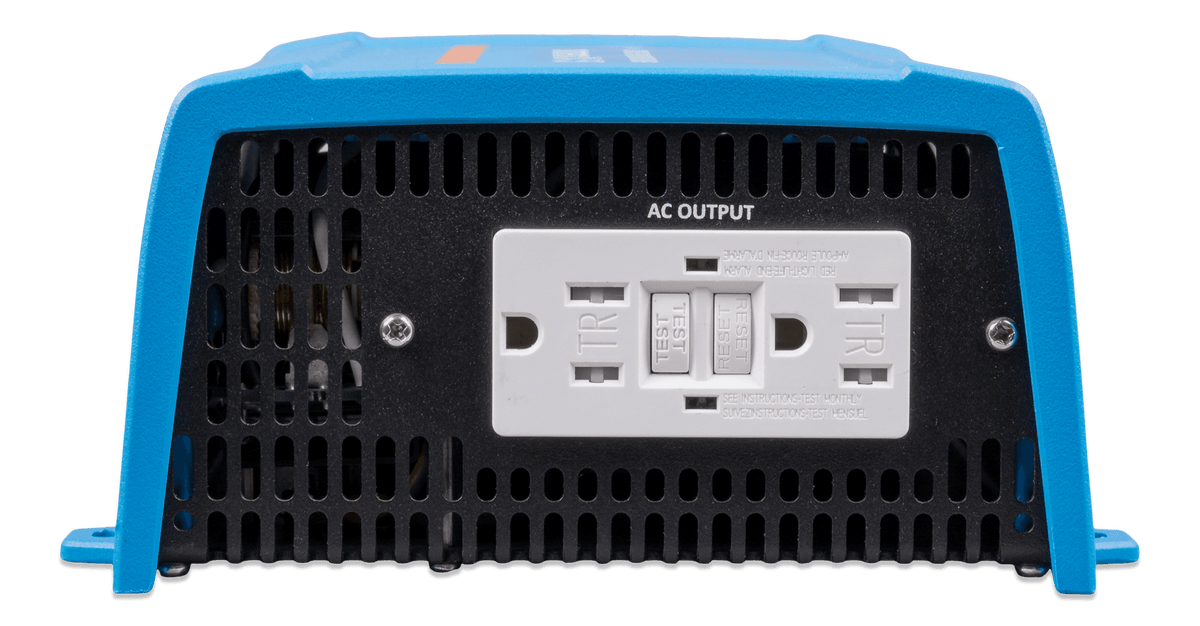

| AC outlet socket | Nema 5-15R GFCI |
| Battery connection terminal type | Screw terminals |
| Material | Steel chassis and plastic cover |
| Colour | Blue (RAL 5012) |
| Protection Category | IP21 |
| Safety | EN-IEC 60335-1,EN-IEC 62109-1 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN241500510 |
| UPC / EAN | 8719076073932 |
| Country of origin | India |
Documents
- Inverter VE.Direct 250W - 1600W 120V - HW (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
