Description
Description
Victron Inverter 12/500 120V VE.Direct NEMA GFCI (UL 458)
Victron Phoenix VE.Direct inverters turn 12 VDC battery power into clean 120 VAC pure sine wave power, with a VE.Direct port for monitoring and settings through VictronConnect.
Specifications (from Victron)
| Continuous power at 40°C | 380 W |
| Peak power rating | 750 W |
| DC input voltage range | 9.2–17 V |
| AC output voltage ±3% (adjustable) | 120 V |
| Maximum efficiency | 86 % |
| Communication Port | VE.Direct |
| Frequency ±0.1% (adjustable) | 60 Hz |
| Eco mode stop and start power setting | Adjustable |
| ECO mode retry interval (adjustable) | 2.5 s |
| Dynamic (load dependent) low DC shutdown (configurable) | Yes |
| DC low shut down (adjustable) | 9.3 V |
| DC low restart and alarm (adjustable) | 10.9 V |
| Continuous inverter AC output power at 25°C | 460 W |
| Batery voltage nominal | 12 V |
| Battery charged detection voltage (adjustable) | 14 V |
| Fully programable | Yes |
| Zero Load Power in ECO Mode (adjustable) | 1 W |
| Zero-load power | 7 W |
| Remote on/off terminal | Yes |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,Excessive DC ripple |
| Power deration above 40°C | 1.25 % |
| Operating temperature range (fan assisted cooling) | -40°F to 149°F (-40 to 65°C) |
| Maximum humidity (non-condensing) | 95 % |

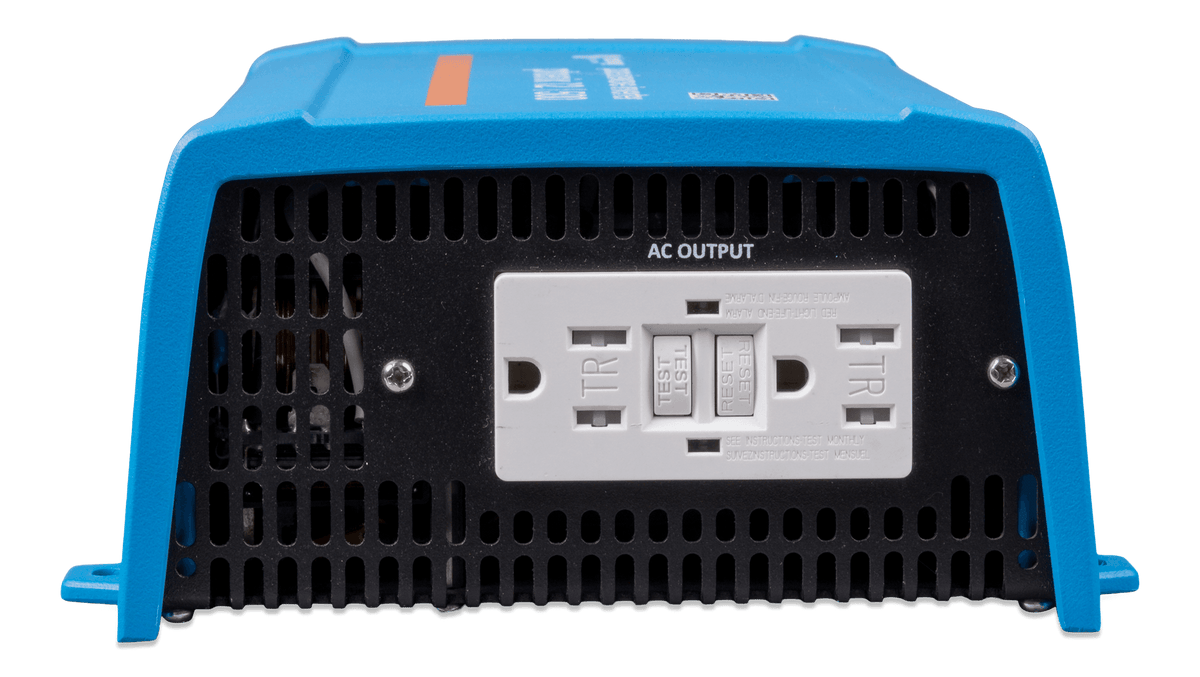

| AC outlet socket | Nema 5-15R GFCI |

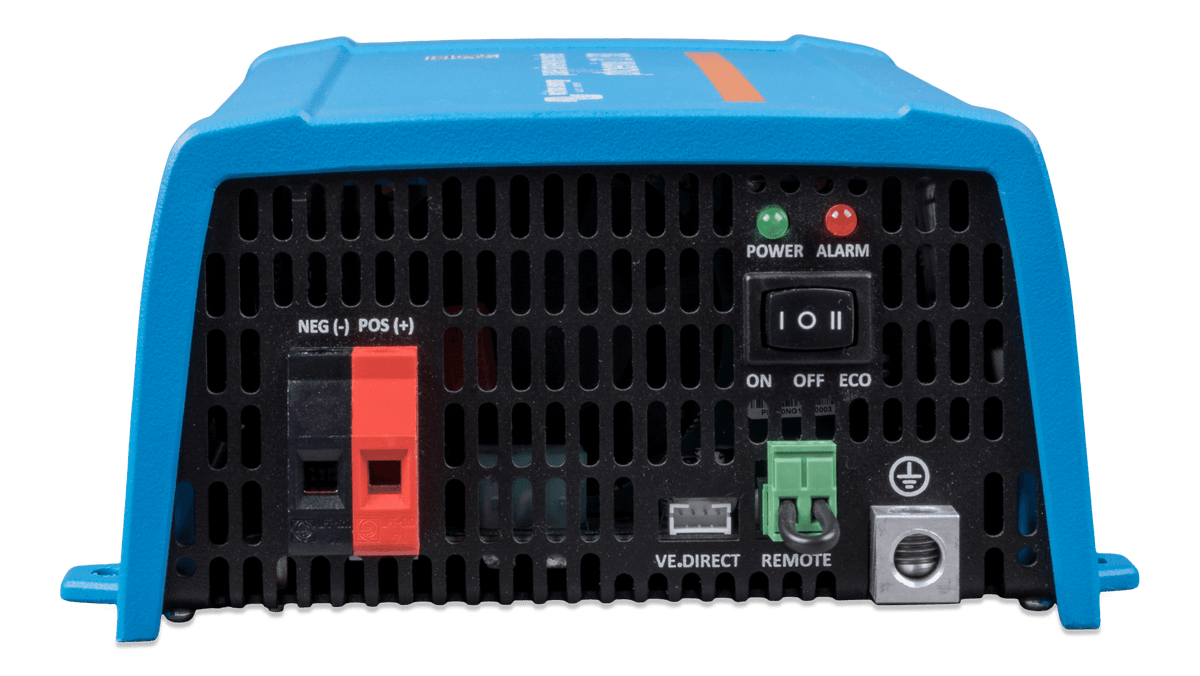

| Battery connection terminal type | Screw terminals |
| Remote Terminal | Screw terminal two pole |
| Colour | Blue (RAL 5012) |
| Material | Steel chassis and plastic cover |
| Protection Category | IP21 |
| EMC | EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN121500510 |
| UPC / EAN | 8719076073888 |
| Country of origin | India |
Documents
- Inverter VE.Direct 250W - 1600W 120V - HW (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
