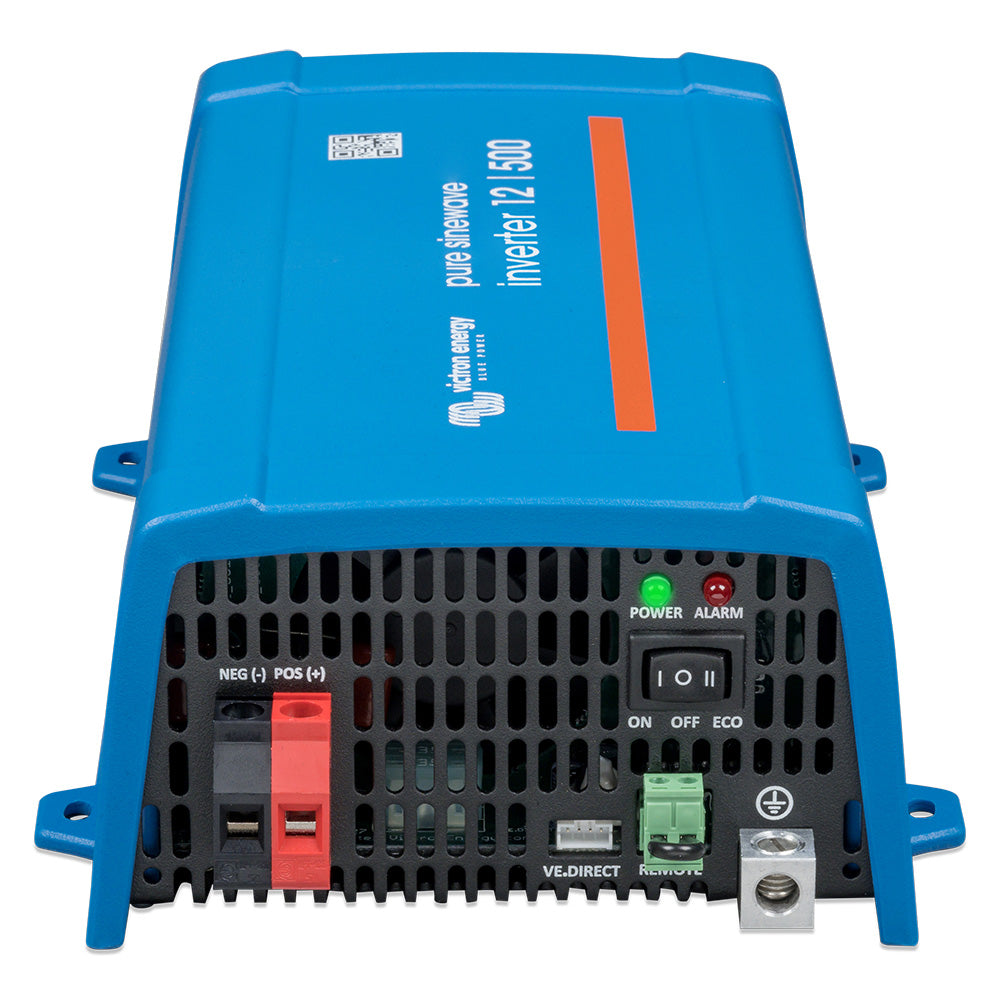

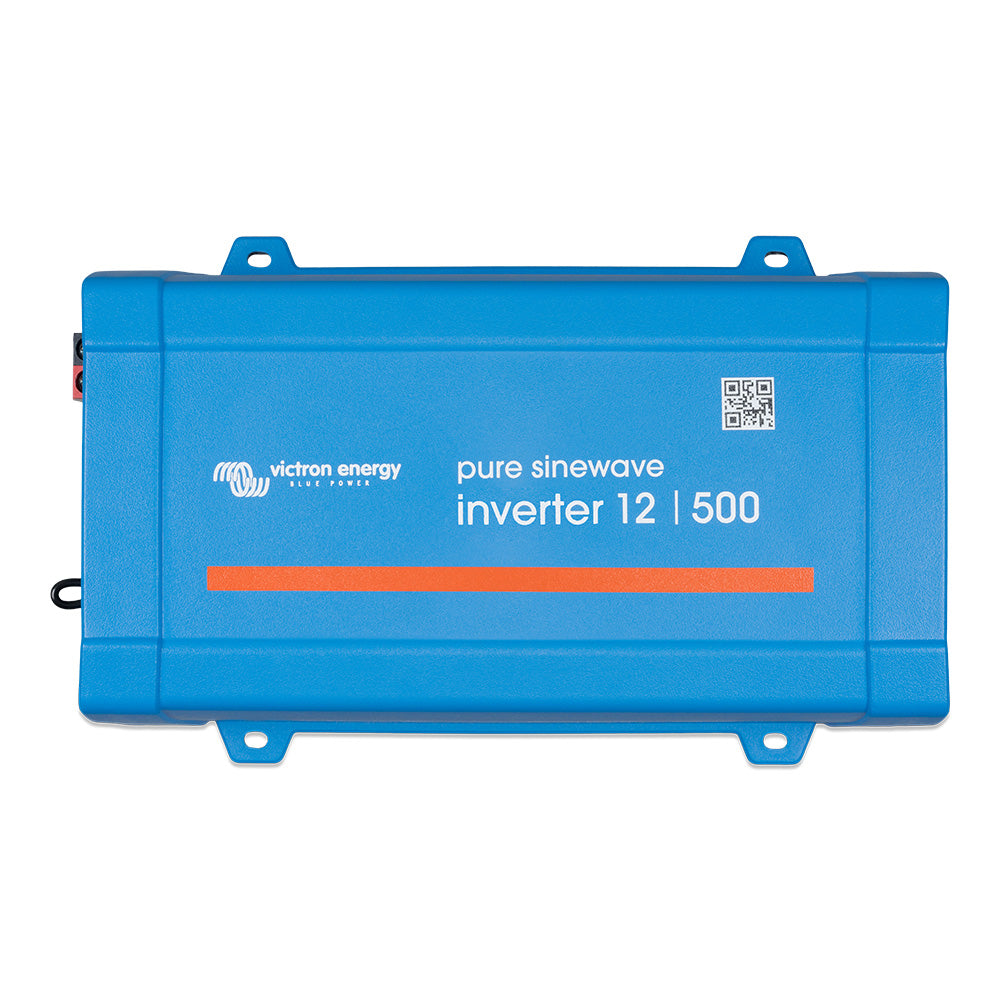

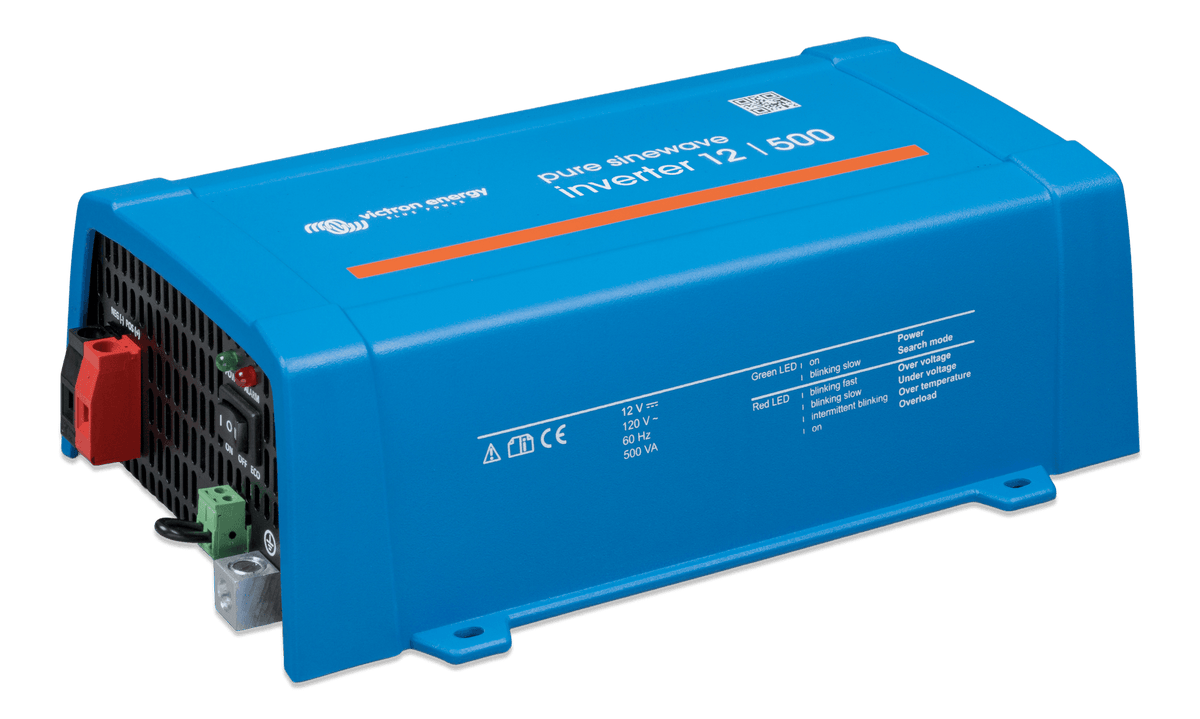

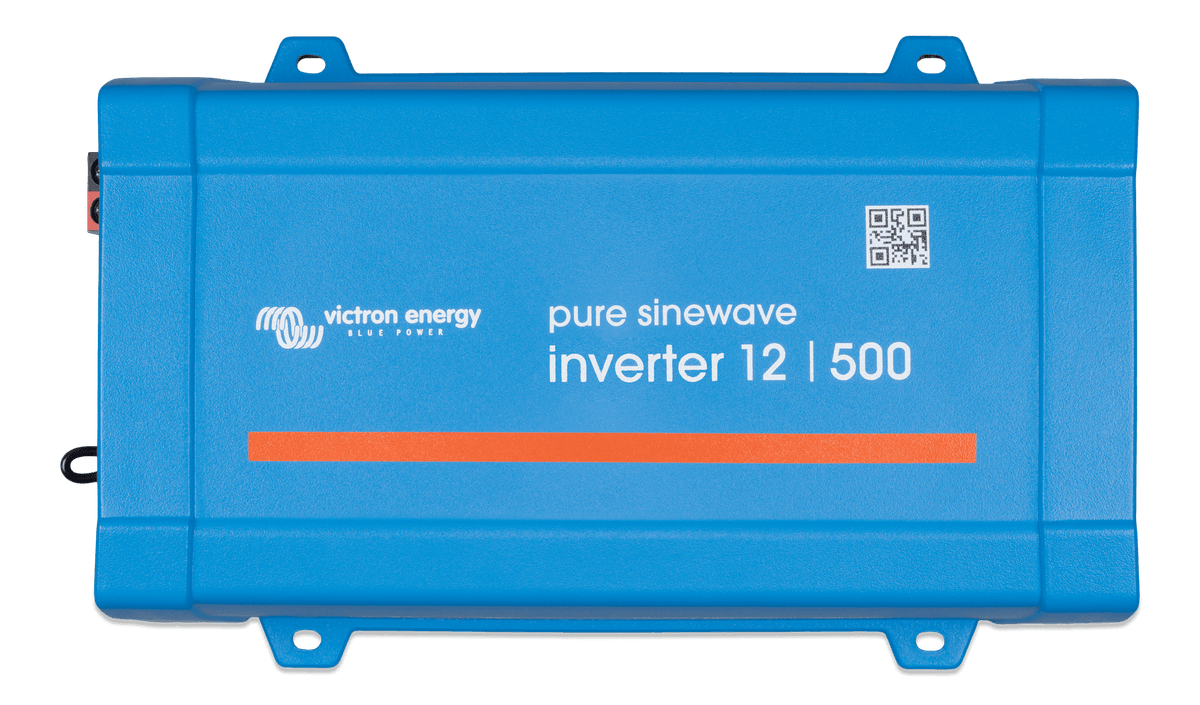

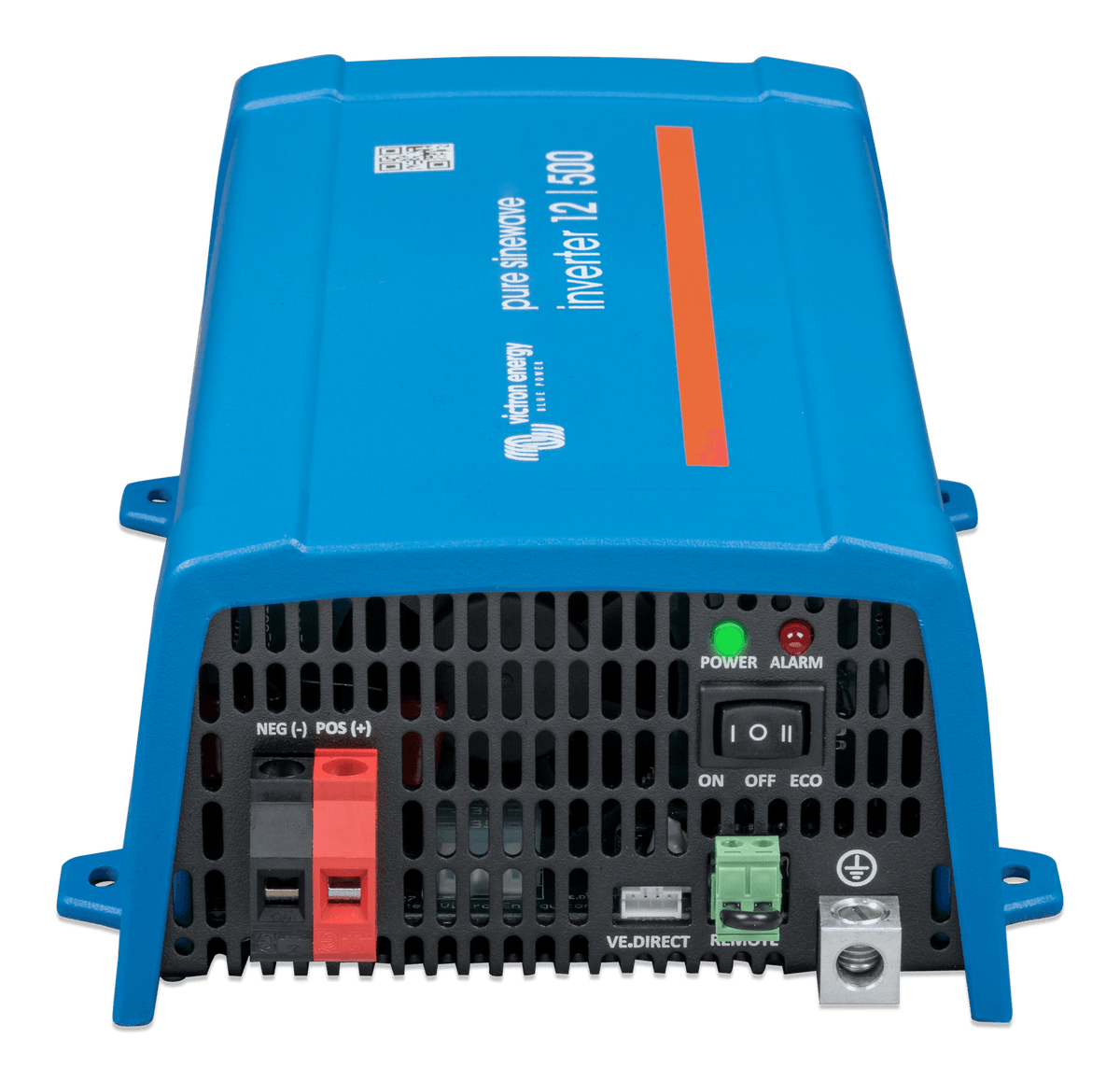

Victron Inverter 12/500 120V VE.Direct Nema 5-15R [PIN121500500]
Pickup available at our Marathon storefront
Available for pickup or shipping
Victron Inverter 12/500 120V VE.Direct Nema 5-15R [PIN121500500] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
Pickup currently unavailable at Marathon Storefront
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Inverter 12/500 120V VE.Direct Nema 5-15R [PIN121500500]
Victron Inverter 12/500 120V VE.Direct Nema 5-15R [PIN121500500] is backordered and will ship as soon as it is back in stock.
Description
Description

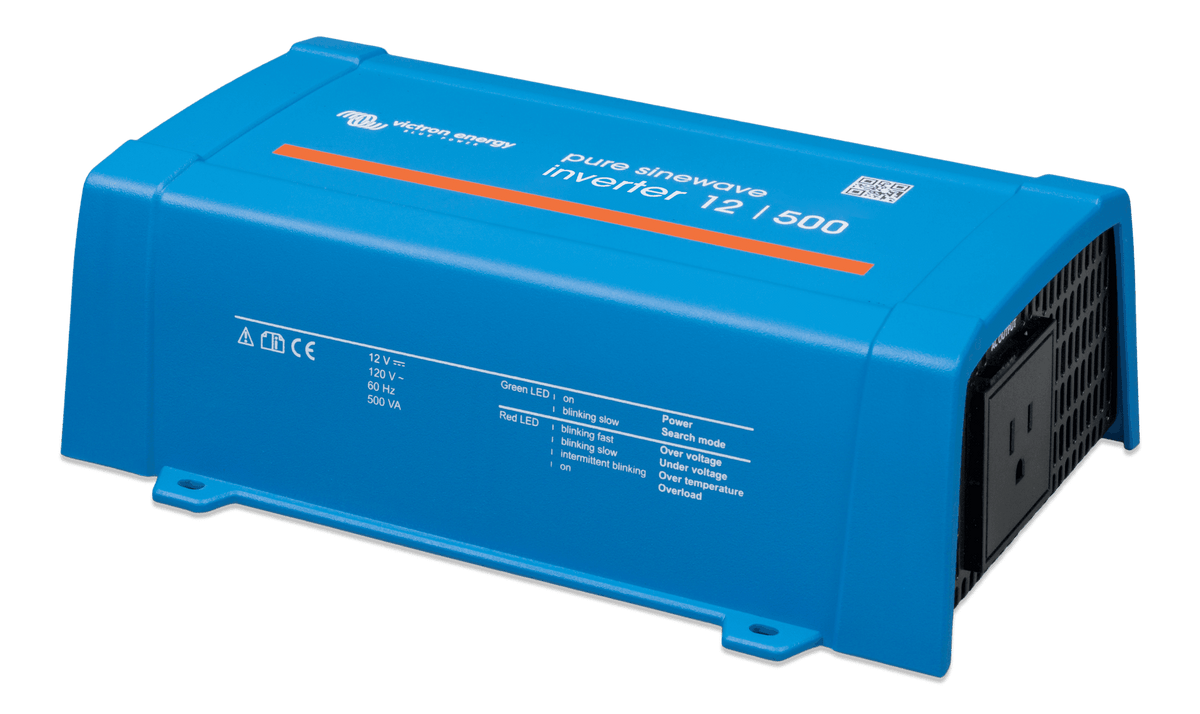

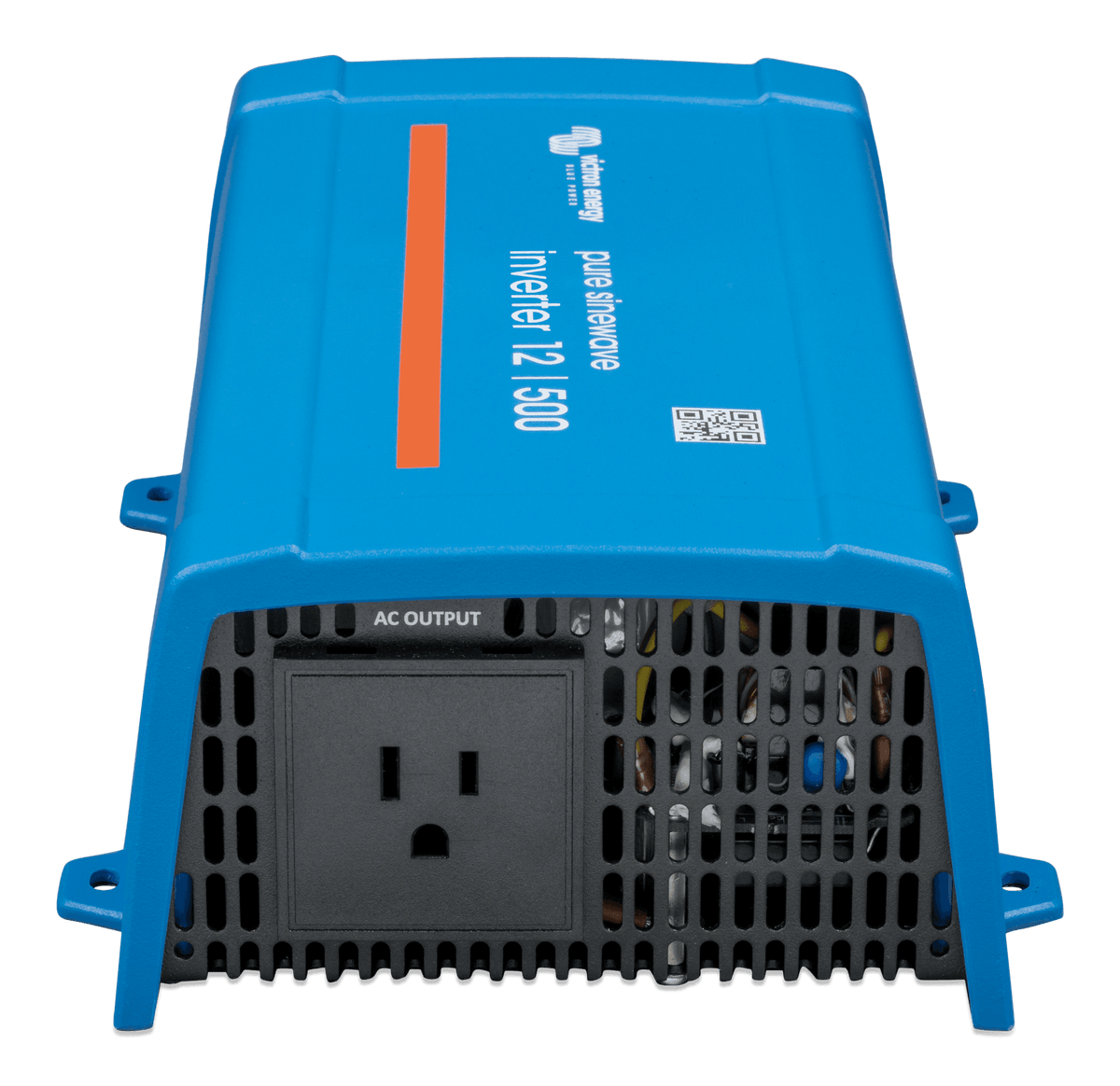

Victron Phoenix Inverter 12/500 NEMA 5-15R: 500VA = 400 watts continuous
A 12V pure sine wave inverter from Victron Energy with 120V AC output.
Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 400W continuous at 77°F (25°C). Size your loads around 400W, not 500W. Compare all Victron inverters →
What it will run on a boat
At 400W it handles electronics and entertainment gear, satellite internet, LED lighting and small appliances that stay under its rating. Add up everything you'll run at the same time and leave 20–25% headroom.
Battery draw and wiring
At full continuous output it pulls roughly 37 amps from a 12V battery bank (400W ÷ 12V ÷ 90% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.
Specifications (from Victron)
| Battery voltage | 12 V |
| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 500 VA / 400 W |
| Warranty | 5 years (Victron) |
| Victron part number | PIN121500500 |
| UPC / EAN | 8719076073871 |
Continuous rating taken from the same-size Victron VE.Direct model; check the datasheet for full figures.
Documents
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
