Victron Inverter 12/250 120V VE.Direct NEMA GFCI (UL 458) [PIN121250510]
Victron Inverter 12/250 120V VE.Direct NEMA GFCI (UL 458) [PIN121250510] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron Inverter 12/250 120V VE.Direct NEMA GFCI (UL 458) [PIN121250510] is backordered and will ship as soon as it is back in stock.
Description
Description

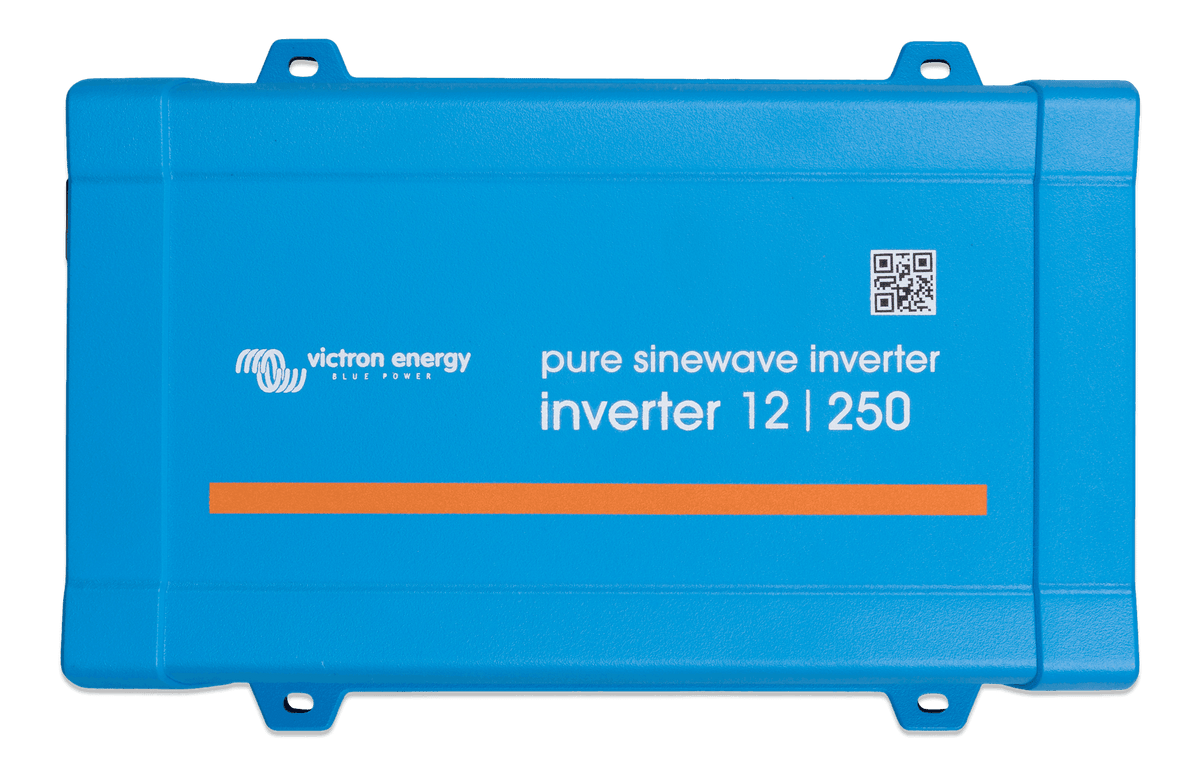

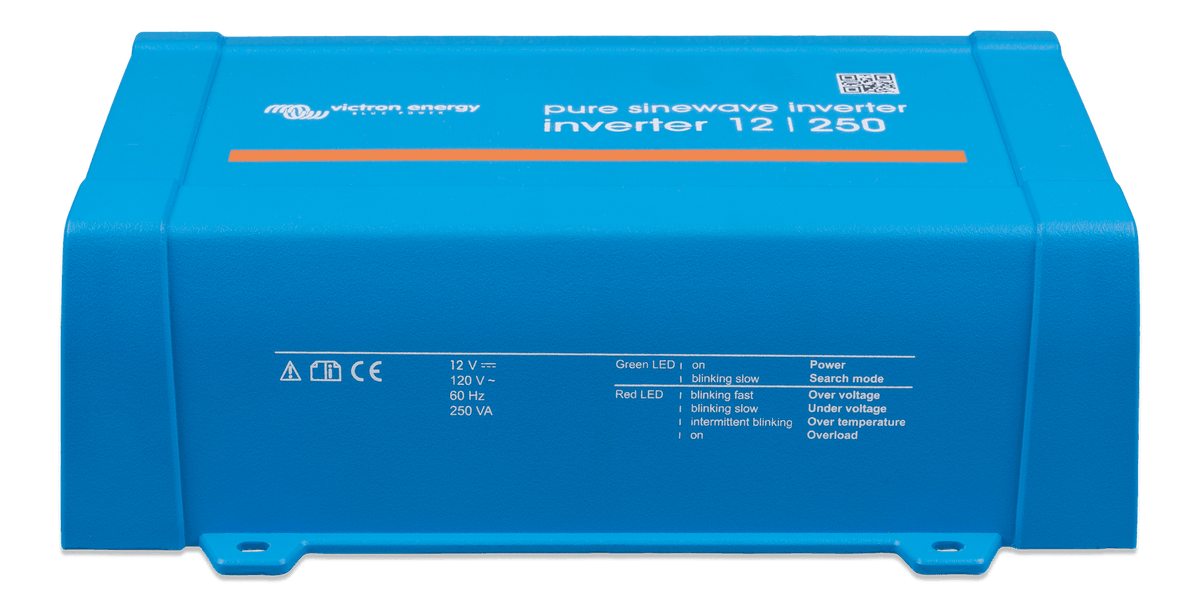

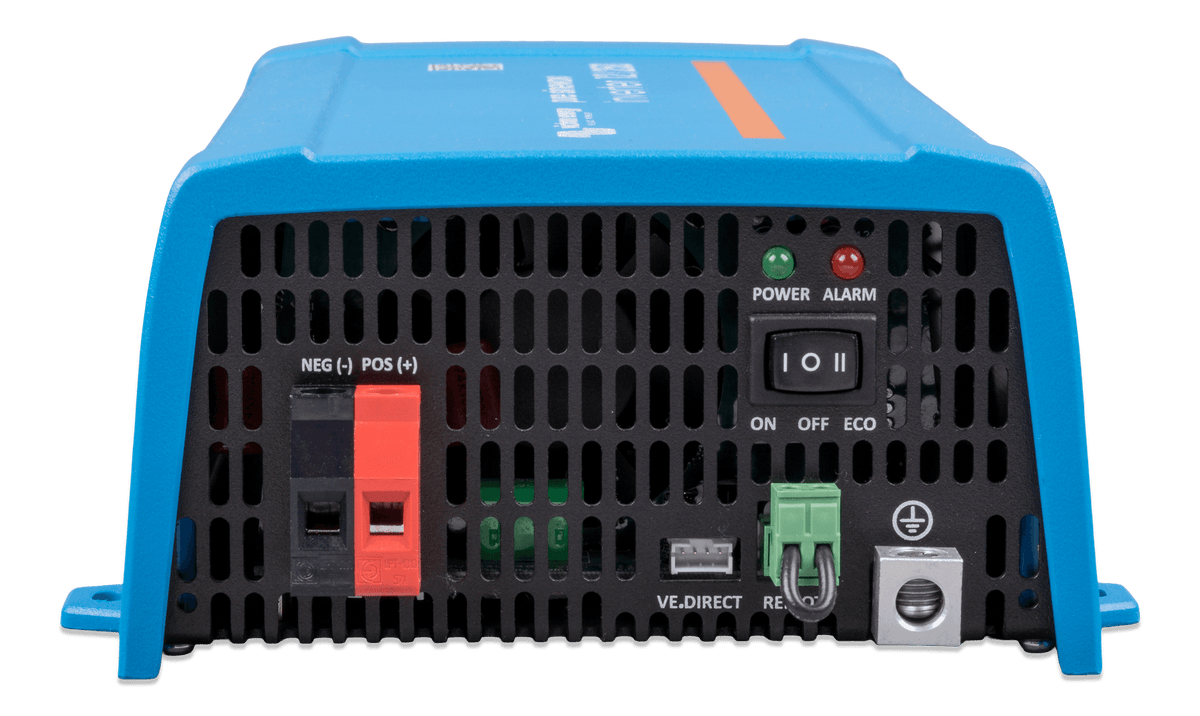

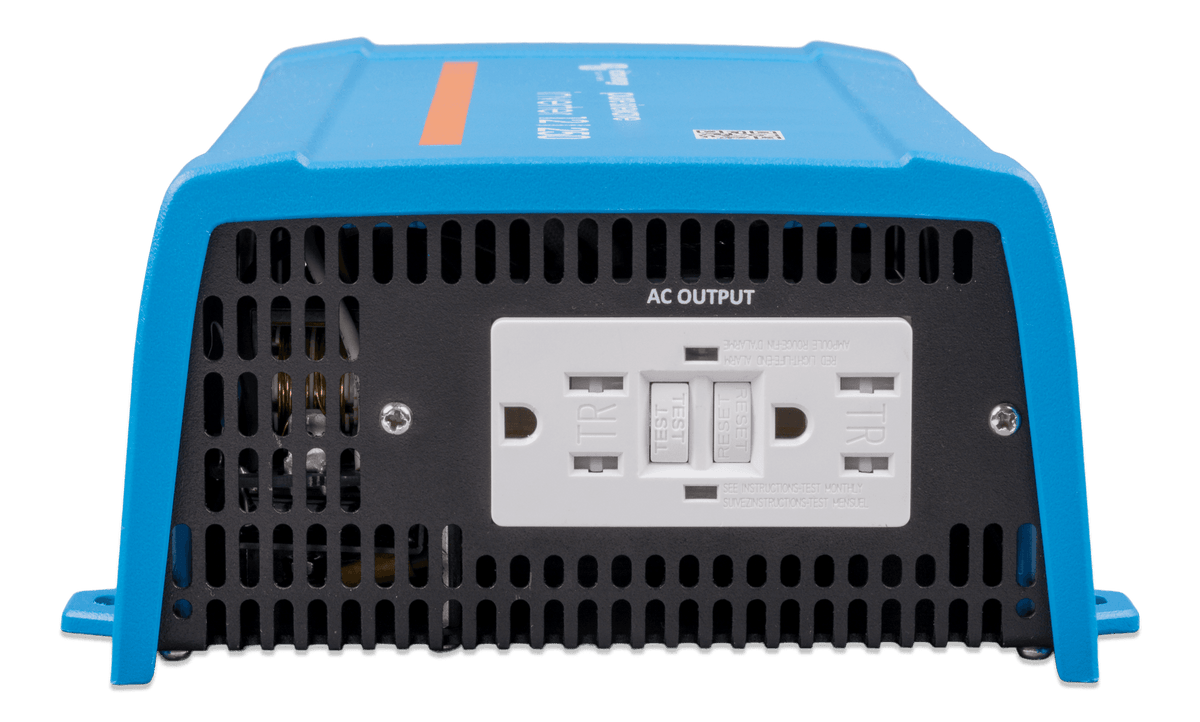

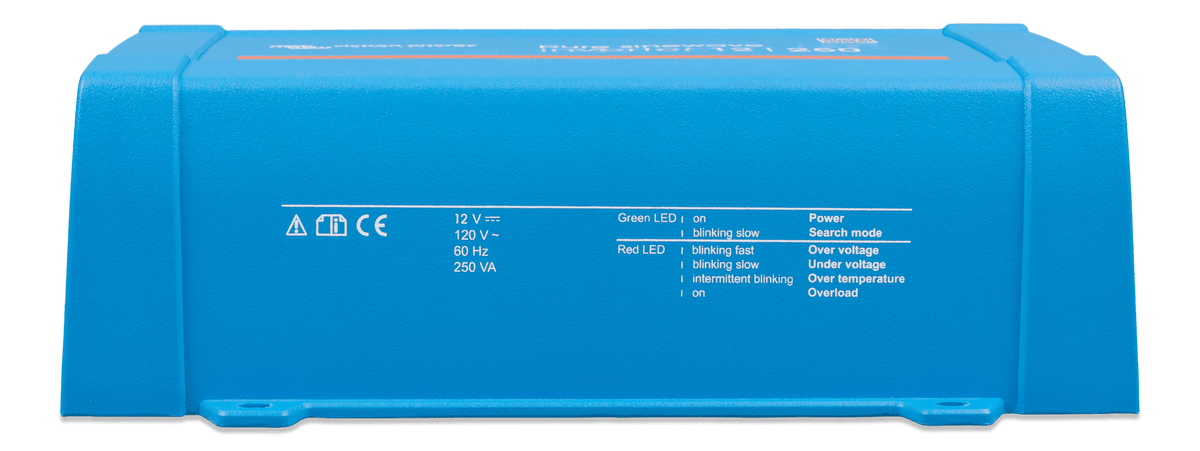

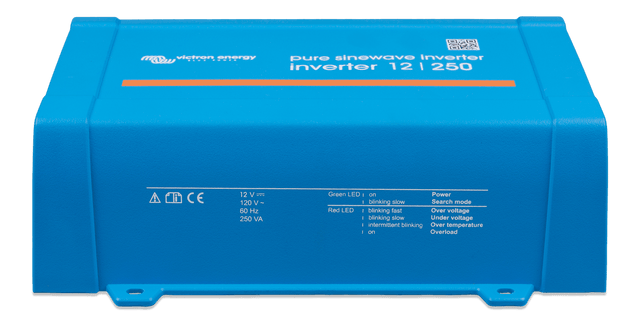

Victron Inverter 12/250 120V VE.Direct NEMA GFCI (UL 458)
Victron Phoenix VE.Direct inverters turn 12 VDC battery power into clean 120 VAC pure sine wave power, with a VE.Direct port for monitoring and settings through VictronConnect.
Specifications (from Victron)
| Continuous power at 40°C | 200 W |
| Peak power rating | 400 W |
| DC input voltage range | 9.2–17 V |
| AC output voltage ±3% (adjustable) | 120 V |
| Maximum efficiency | 84 % |
| Communication Port | VE.Direct |
| Frequency ±0.1% (adjustable) | 60 Hz |
| Zero Load Power in ECO Mode (adjustable) | 1 W |
| Zero-load power | 5 W |
| Remote on/off terminal | Yes |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,Excessive DC ripple |
| Power deration above 40°C | 1.25 % |
| Operating temperature range (fan assisted cooling) | -40°F to 149°F (-40 to 65°C) |
| Maximum humidity (non-condensing) | 95 % |
| Fully programable | Yes |
| Eco mode stop and start power setting | Adjustable |
| ECO mode retry interval (adjustable) | 2.5 s |
| Dynamic (load dependent) low DC shutdown (configurable) | Yes |
| DC low shut down (adjustable) | 9.3 V |
| DC low restart and alarm (adjustable) | 10.9 V |
| Continuous inverter AC output power at 25°C | 250 W |
| Batery voltage nominal | 12 V |
| Battery charged detection voltage (adjustable) | 14 V |
| AC outlet socket | Nema 5-15R GFCI |
| Battery connection terminal type | Screw terminals |
| Remote Terminal | Screw terminal two pole |
| Colour | Blue (RAL 5012) |
| Material | Steel chassis and plastic cover |
| Protection Category | IP21 |
| EMC | EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Warranty | 5 years (Victron) |
| Victron part number | PIN121250510 |
| UPC / EAN | 8719076073840 |
| Country of origin | India |
Documents
- Inverter VE.Direct 250W - 1600W 120V - HW (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
