Description
Description

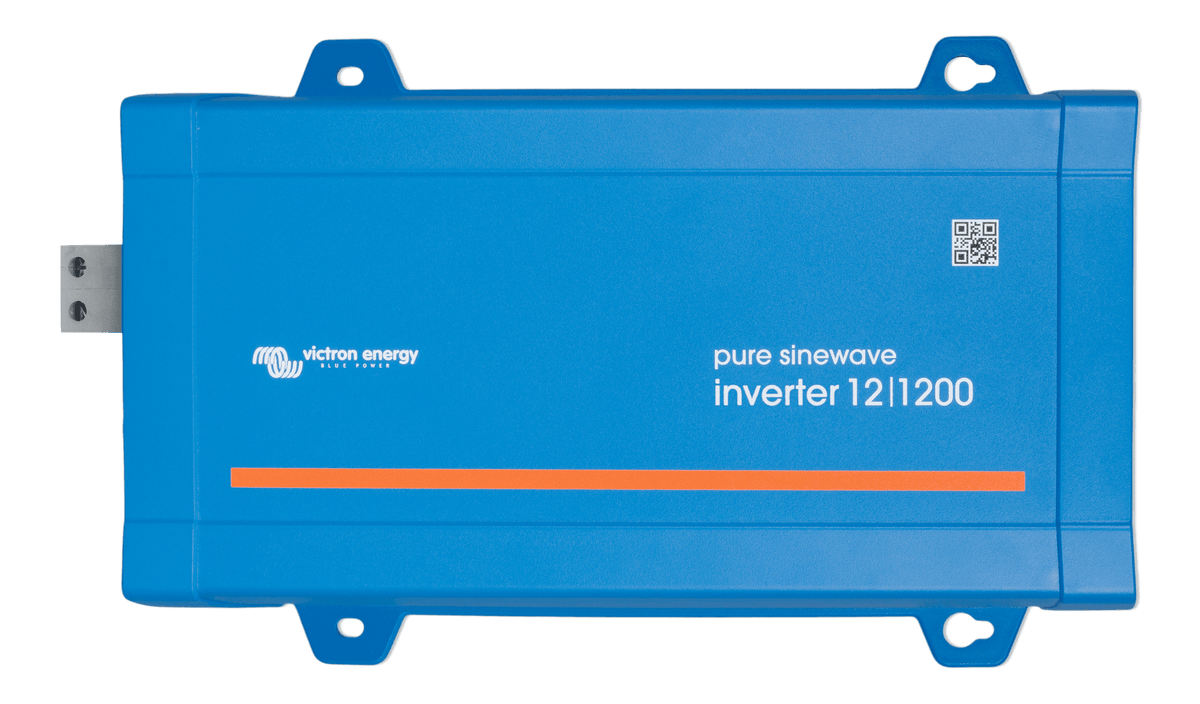

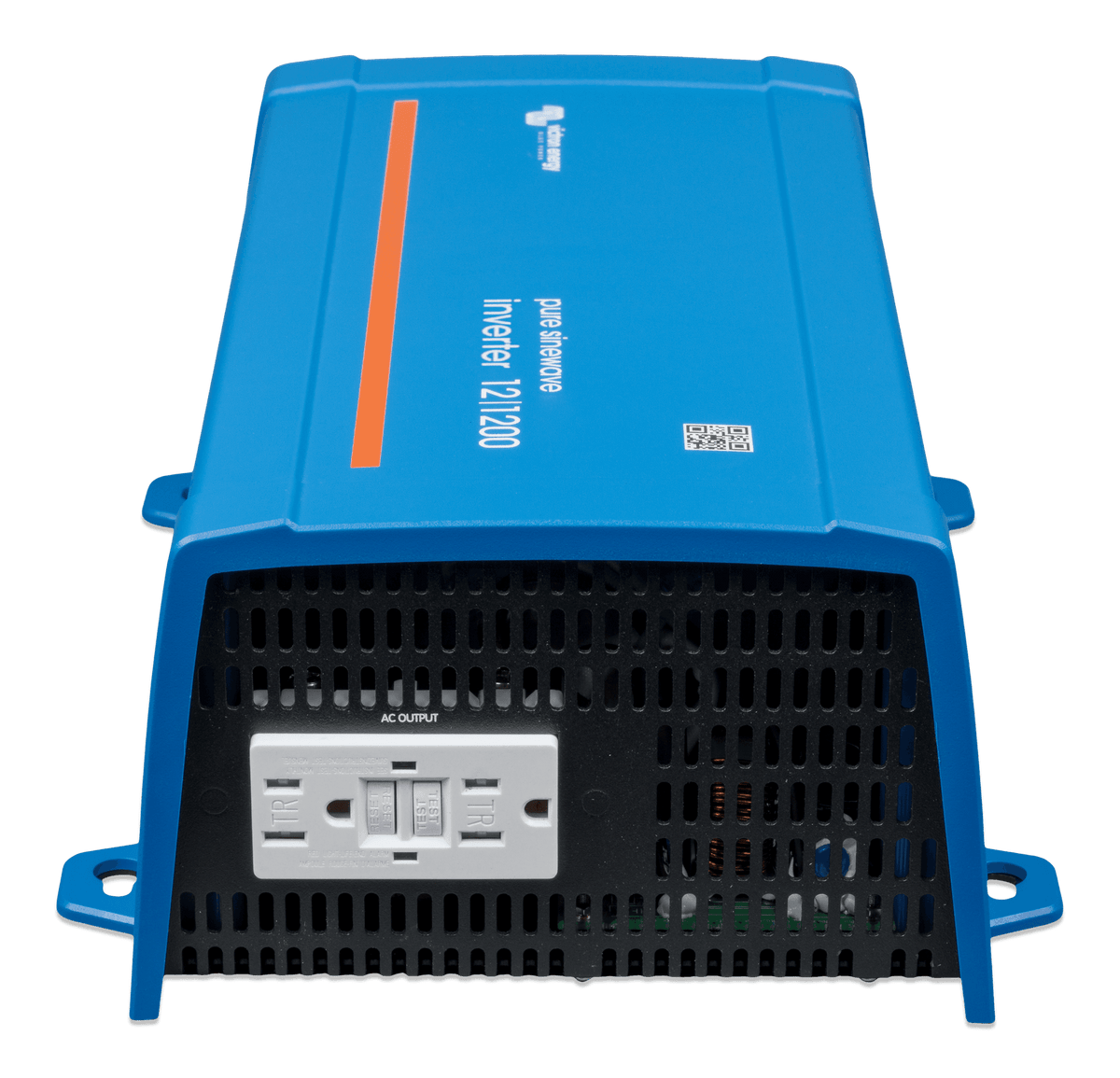

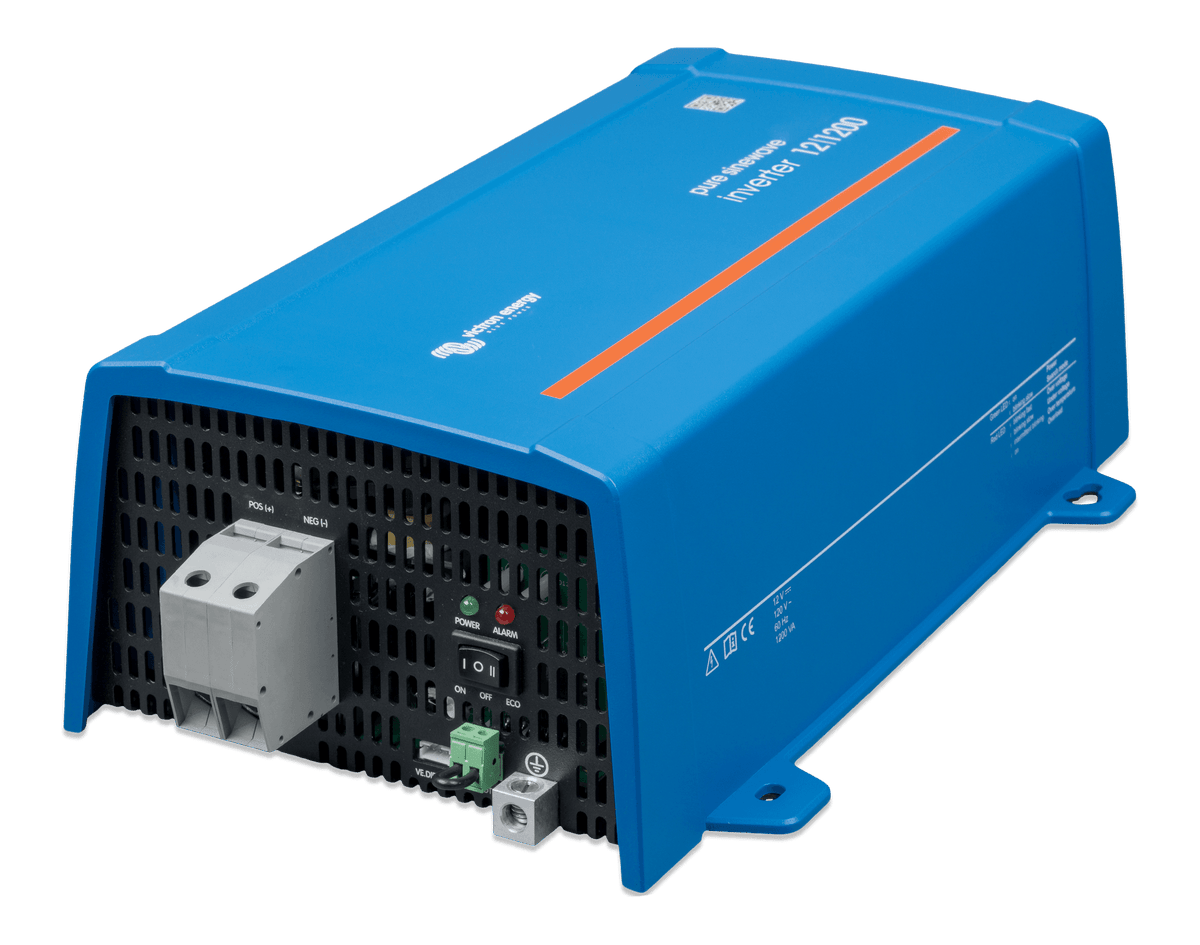

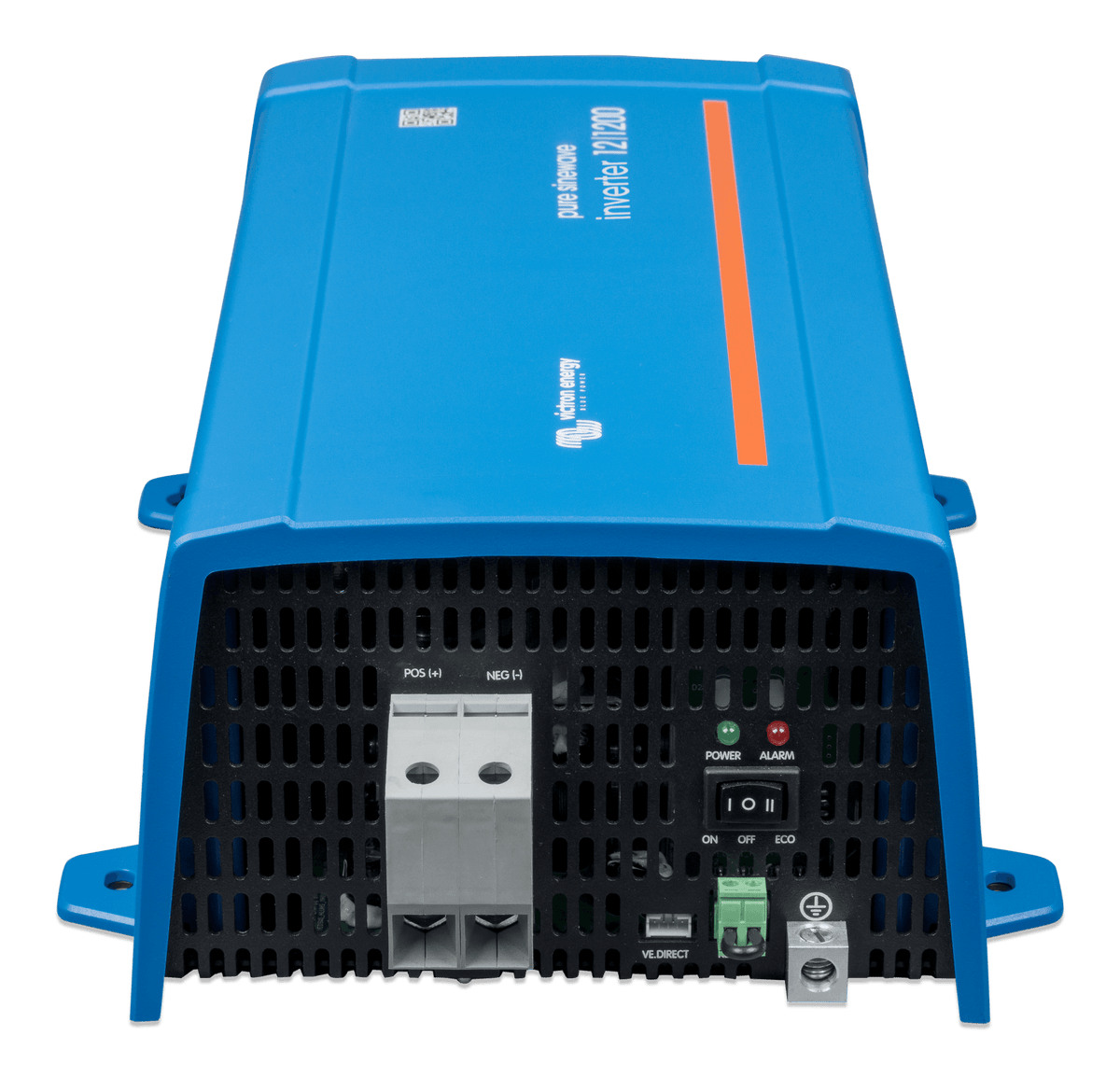

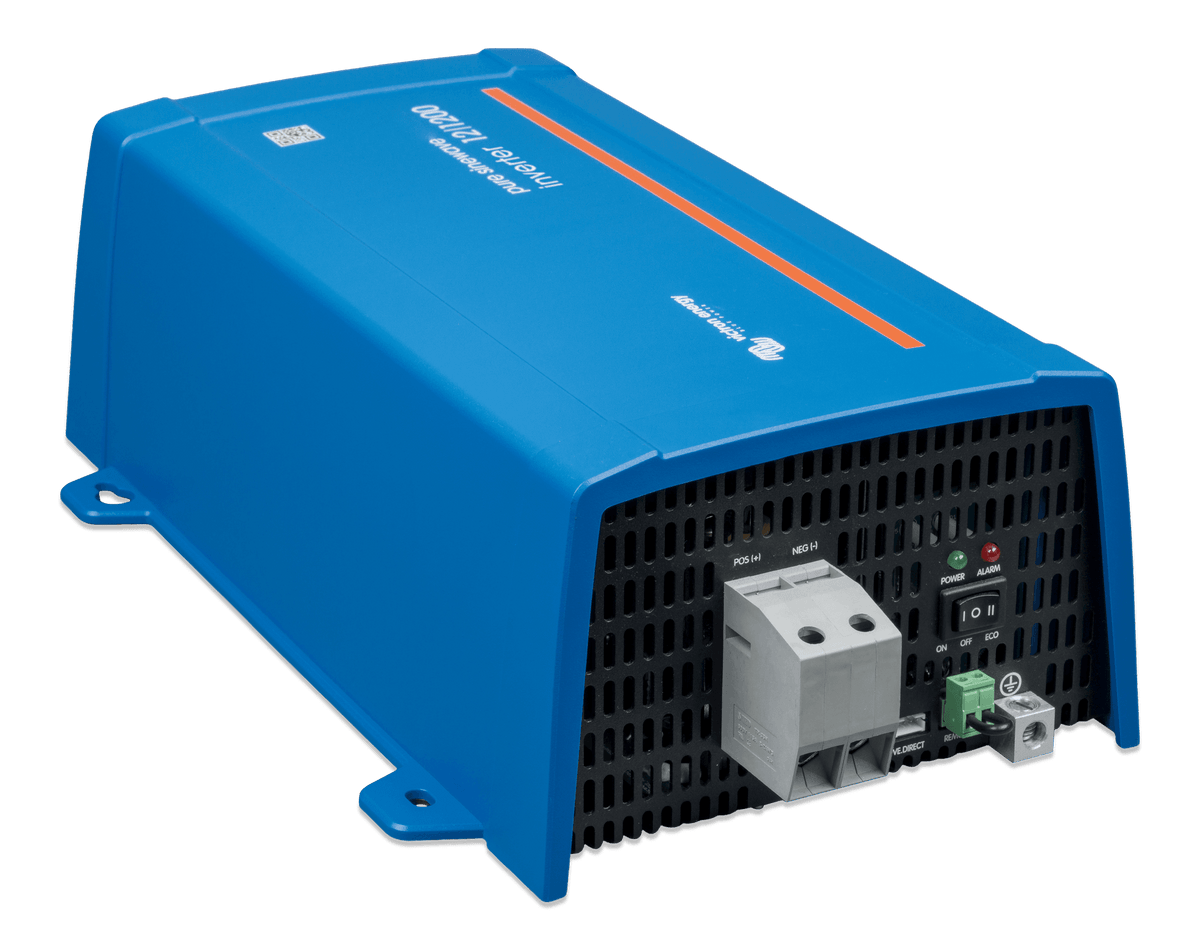

Victron Phoenix Inverter 12/1200 NEMA 5-15R: 1,200VA = 1,000 watts continuous
A 12V pure sine wave inverter from Victron Energy with 120V AC output.
Why the VA number isn't the watts: Victron rates its inverters in VA (volt-amps). This one delivers 1,000W continuous at 77°F (25°C). Size your loads around 1,000W, not 1,200W. Compare all Victron inverters →
What it will run on a boat
At 1,000W it handles a coffee maker or a small microwave, plus electronics. Check the appliance's input watts: a "700W" microwave usually draws 1,000–1,200W from the outlet. Add up everything you'll run at the same time and leave 20–25% headroom.
Battery draw and wiring
At full continuous output it pulls roughly 93 amps from a 12V battery bank (1,000W ÷ 12V ÷ 90% efficiency). Size the battery cables, DC fuse and battery bank for that current. The manual lists Victron's recommended cable and fuse sizes for this model.
Specifications (from Victron)
| Battery voltage | 12 V |
| AC output | 120 V |
| Continuous power @ 77°F (25°C) | 1,200 VA / 1,000 W |
| Warranty | 5 years (Victron) |
| Victron part number | PIN122122520 |
| UPC / EAN | 8719076073703 |
Continuous rating taken from the same-size Victron VE.Direct model; check the datasheet for full figures.
Documents
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure which size you need? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you size it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
