Victron GX LTE 4G-G [GSM100400400]
Victron GX LTE 4G-G [GSM100400400] is backordered and will ship as soon as it is back in stock.
(Ship Note)
Ready to order
- Expert technical support
- Secure checkout
- Fast shipping
Need help choosing? Call our marine experts at (305) 998-4300.
Delivery and Shipping
Delivery and Shipping
Items in stock gernally ship same day.
Items that require splicing will be made in order from the date it is ordered. If you want something fast, just give us a call.
Any items that require freight will be quoted and shipped once approved.
Shipping in the keys can be delieverd same day for a fee.
Victron GX LTE 4G-G [GSM100400400] is backordered and will ship as soon as it is back in stock.
Description
Description

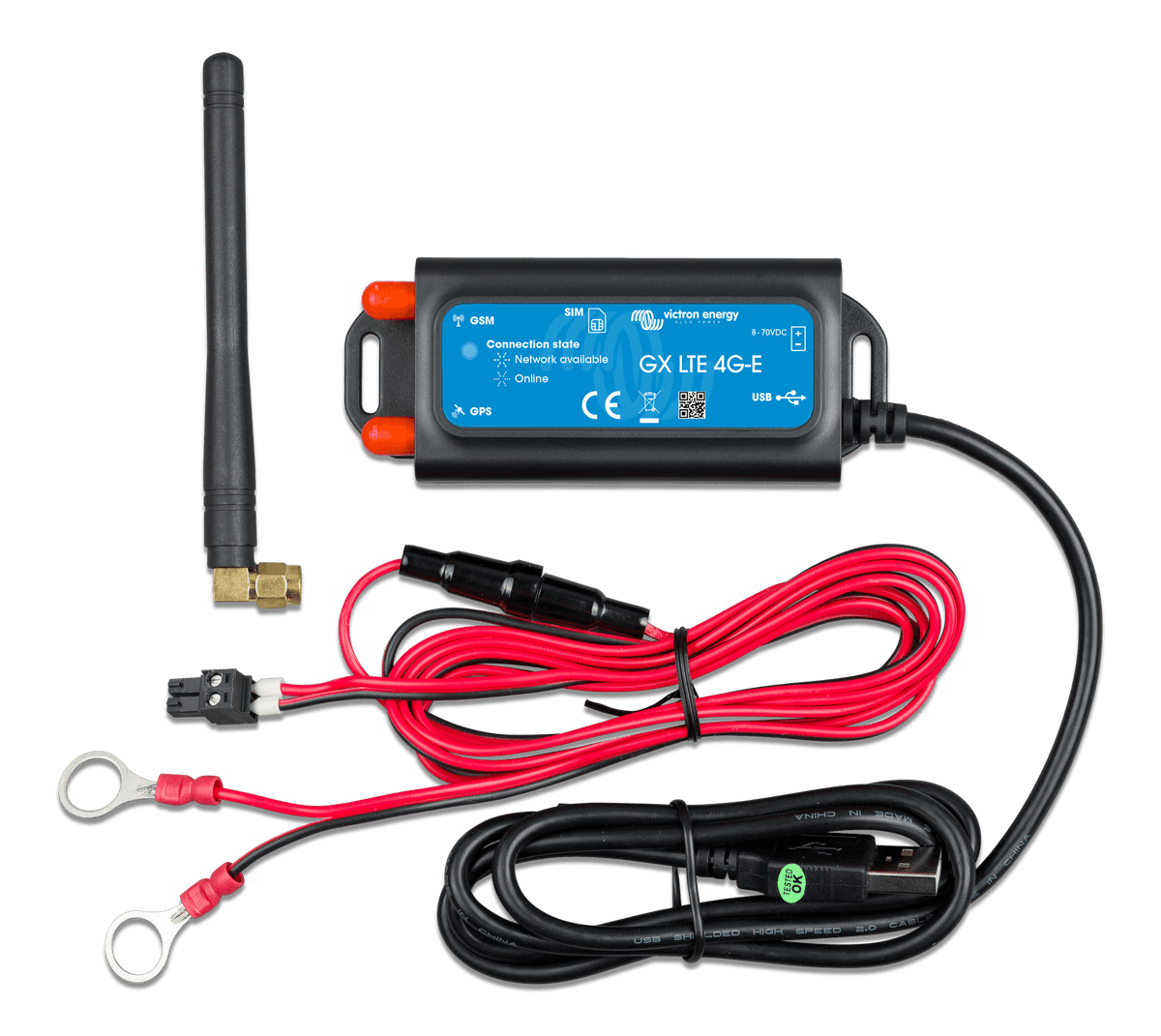

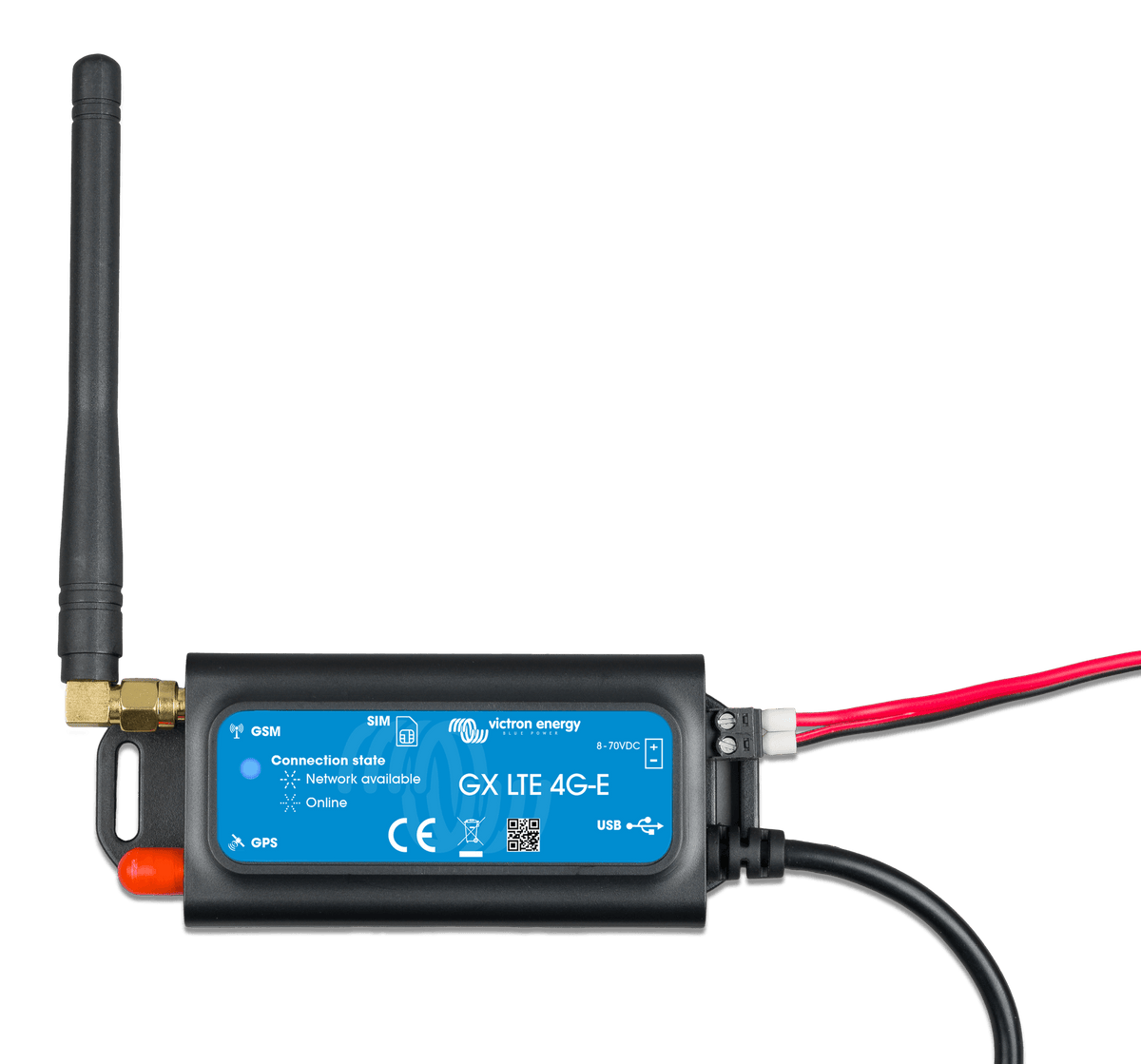

Victron GX LTE 4G-G
A Victron GX LTE 4G modem that gives your GX device an internet connection over the cellular network, for remote monitoring on VRM.
Specifications (from Victron)
| Wire gauge (power cable) | 0.5 to 1.5 mm2 / AWG 28 to 16 or use supplied power cable |
| Antenna | Optional 4G outdoor antenna GSM900100400 |
| USB | Fixed 1.0m cable with USB-A connector (connects to the GX device) |
| Supply DC voltage range | 8–70 VDC |
| Status Indicator | Blue LED |
| Recommended fuse size | 500 mA @ 12 V / 250 mA @ 24 V / 100 mA @ 48 V or use supplied inline fuse |
| Power Consumption | 2.5W during 2G/3G/4G data transfer - <1.0W in idle mode - +0.4W if GPS is enabled |
| Operating temperature range | -40°F to 122°F (-40 to 50°C) |
| LTE Antenna Connector | Type SMA Female (optional 4G outdoor antenna GSM900100400) |
| GPS Antenna Connector | Type SMA Female (optional GPS antenna GSM900200100) |
| GNSS | GPS/Beidou/GLONASS/GALILEO/QZSS |
| Factory included SIM | No |
| Data Transmission (max. Download/Upload) | LTE Cat-1: 10 Mbps / 5 Mbps - 3G (HSPA+): 42 Mbps / 5.76 Mbps - 2G (EDGE): 236.8 Kbps / 236.8 Kbps - 2G (GPRS): 85.6 Kbps / 85.6 Kbps |
| Custom SIM support | Yes |
| Colour | Blue (RAL 5012) |
| Protection category | IP20 |
| Automotive directive | ECE R10-5 |
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,IEC 62368-1 |
| Dimensions (H x W x L) | 0.9 x 1.7 x 4.2 in (22 x 42.5 x 106 mm) |
| Warranty | 5 years (Victron) |
| Victron part number | GSM100400400 |
| UPC / EAN | 8719076081173 |
| Country of origin | India |
Documents
From Victron
The GX LTE 4G is a cellular modem for our GX range of monitoring products. It provides a mobile internet connection for the system and connection to the VRM Portal. It works on 2G, 3G and 4G networks.
There are multiple models, refer to the manual to see which model best matches the available cellular network bands in your area.
The GX LTE includes a built-in GPS receiver. When the optional GPS antenna is installed, the system can be tracked as well as Geo-fenced on the VRM Portal.
Buying from OnBoard
We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
