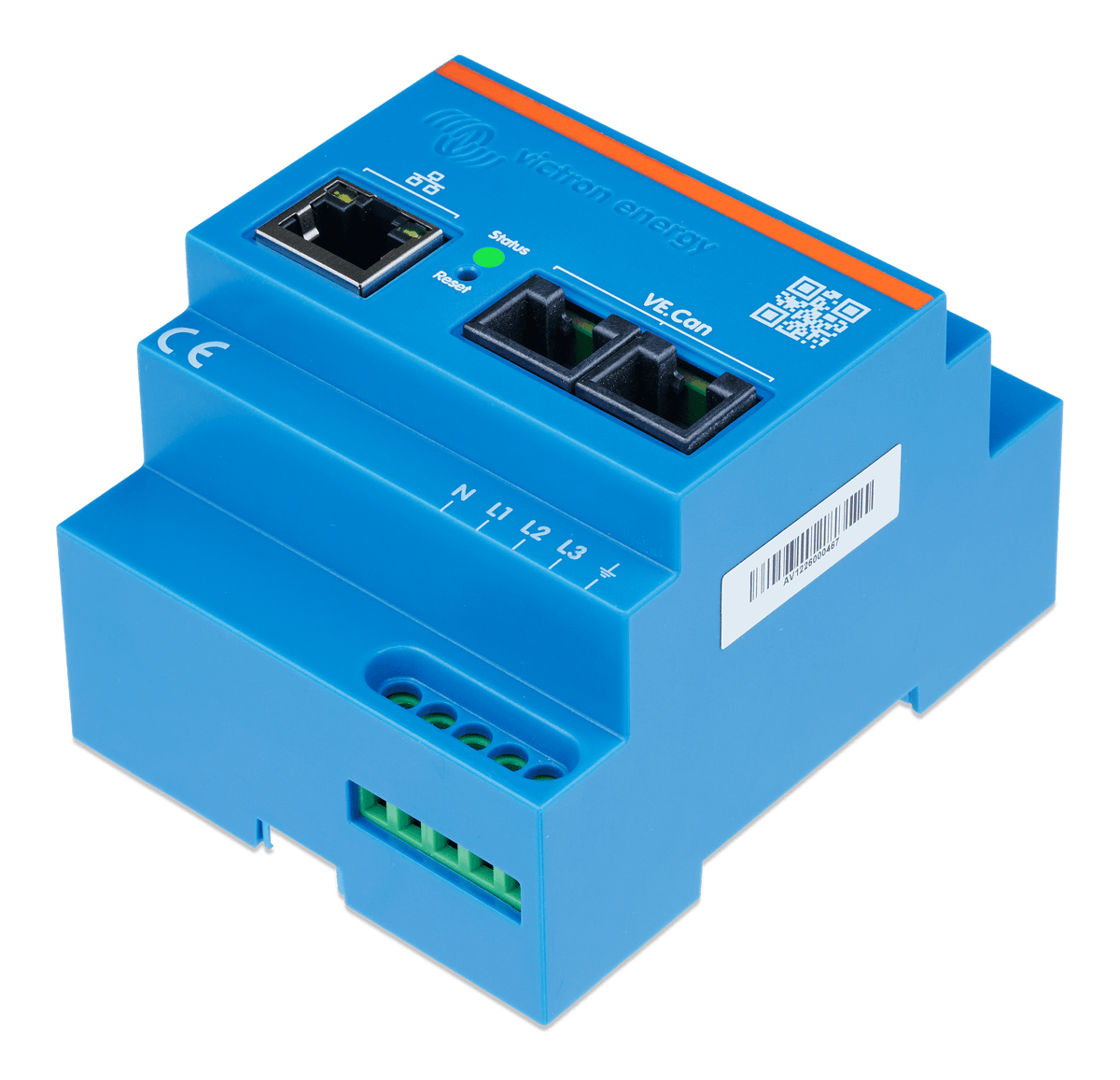

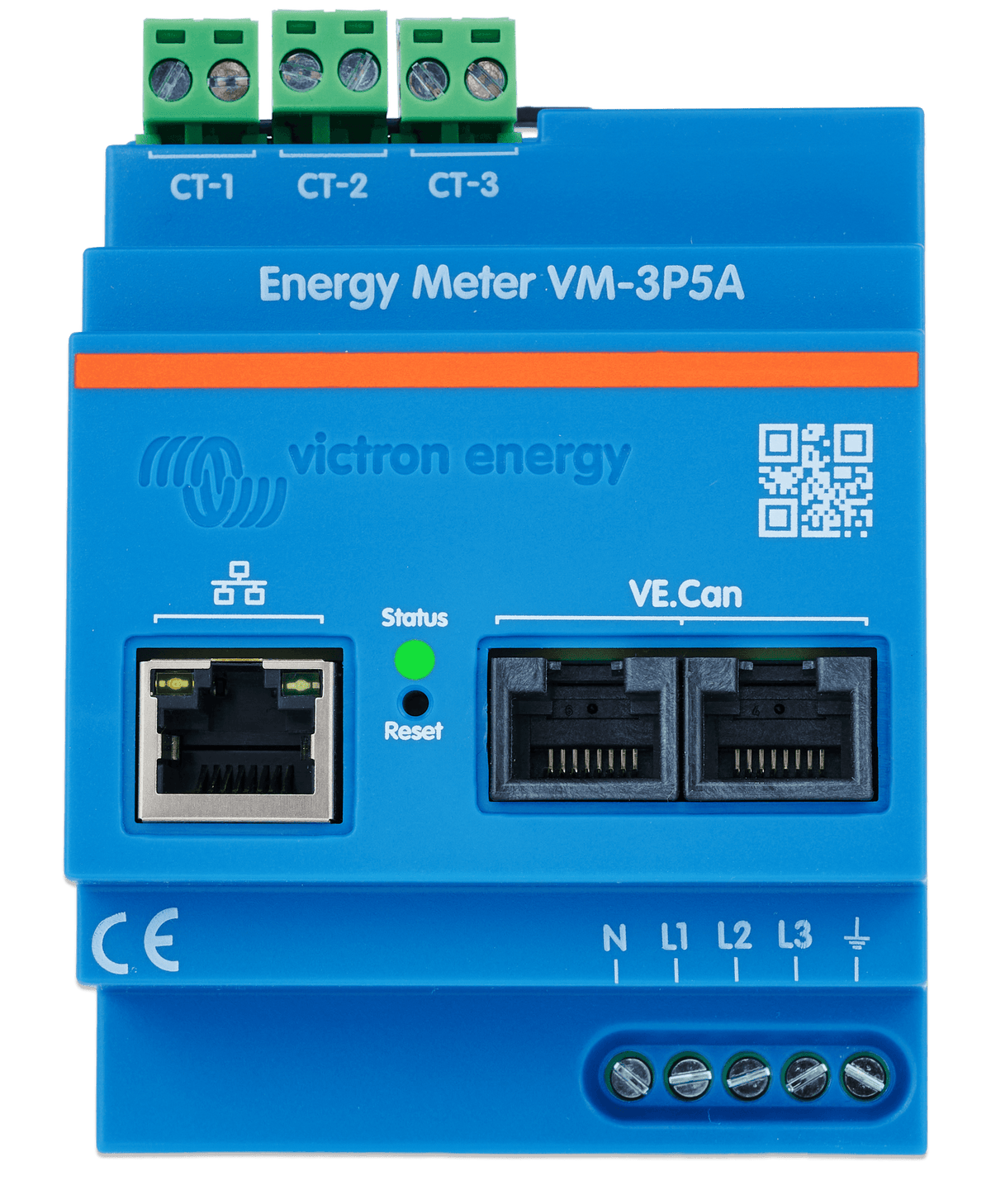

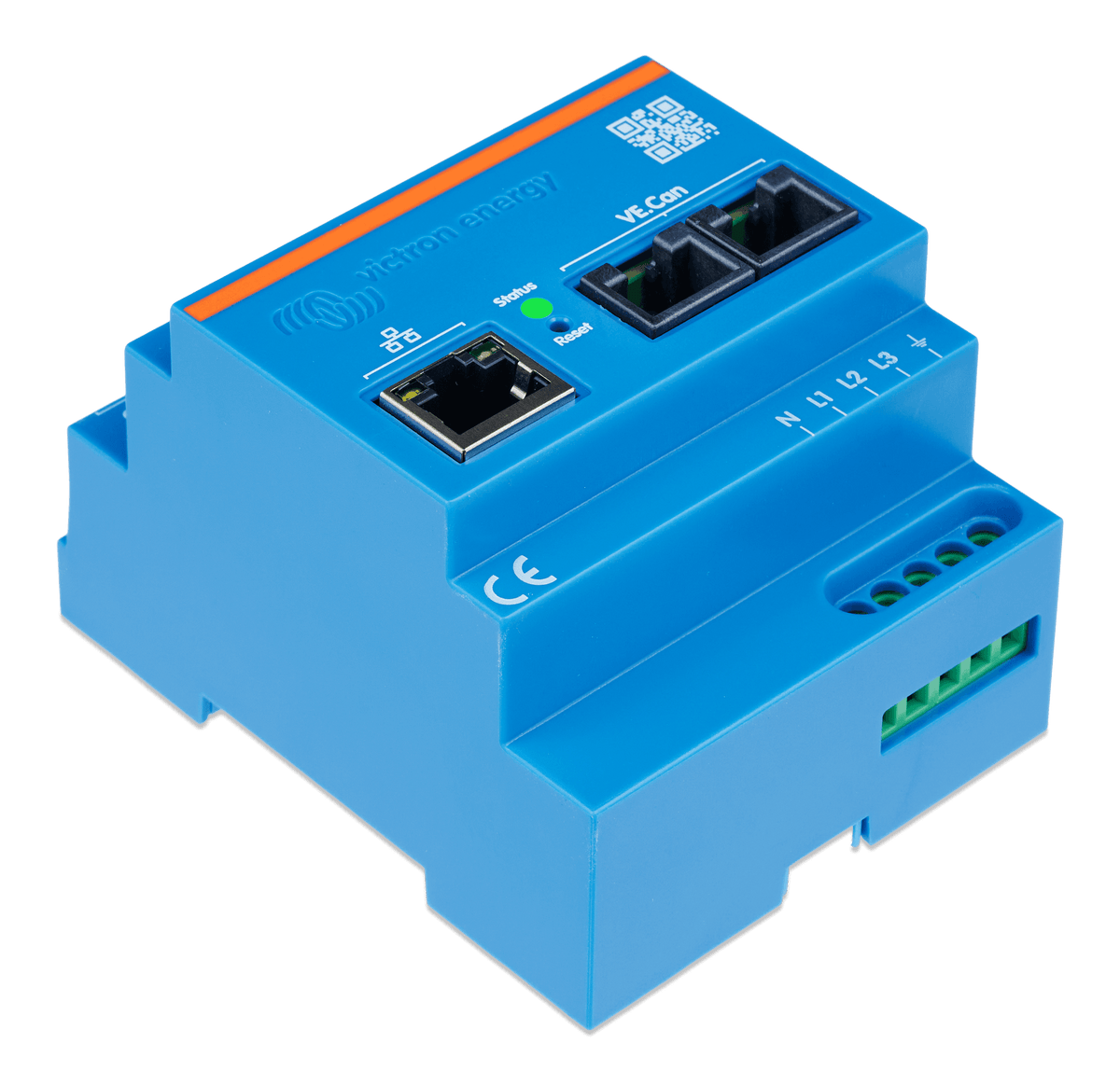

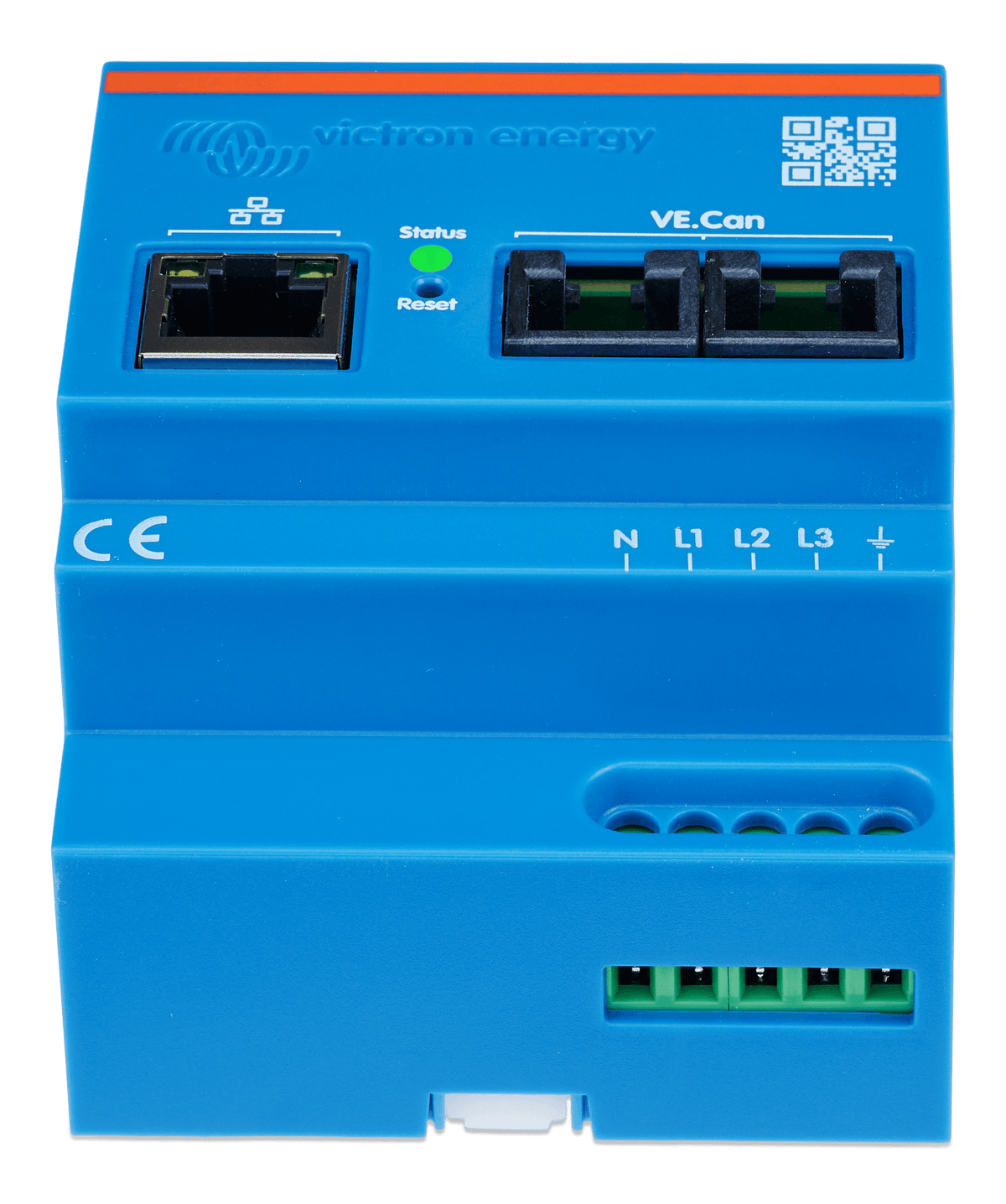

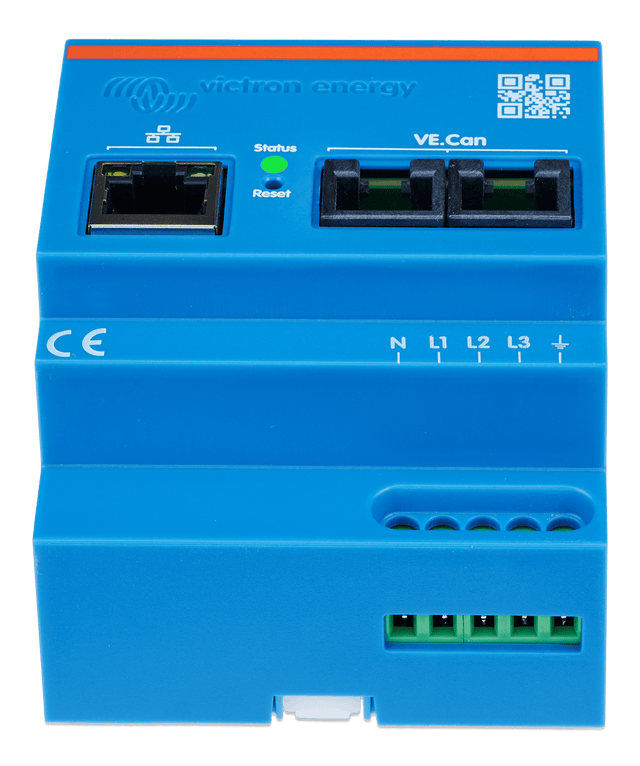

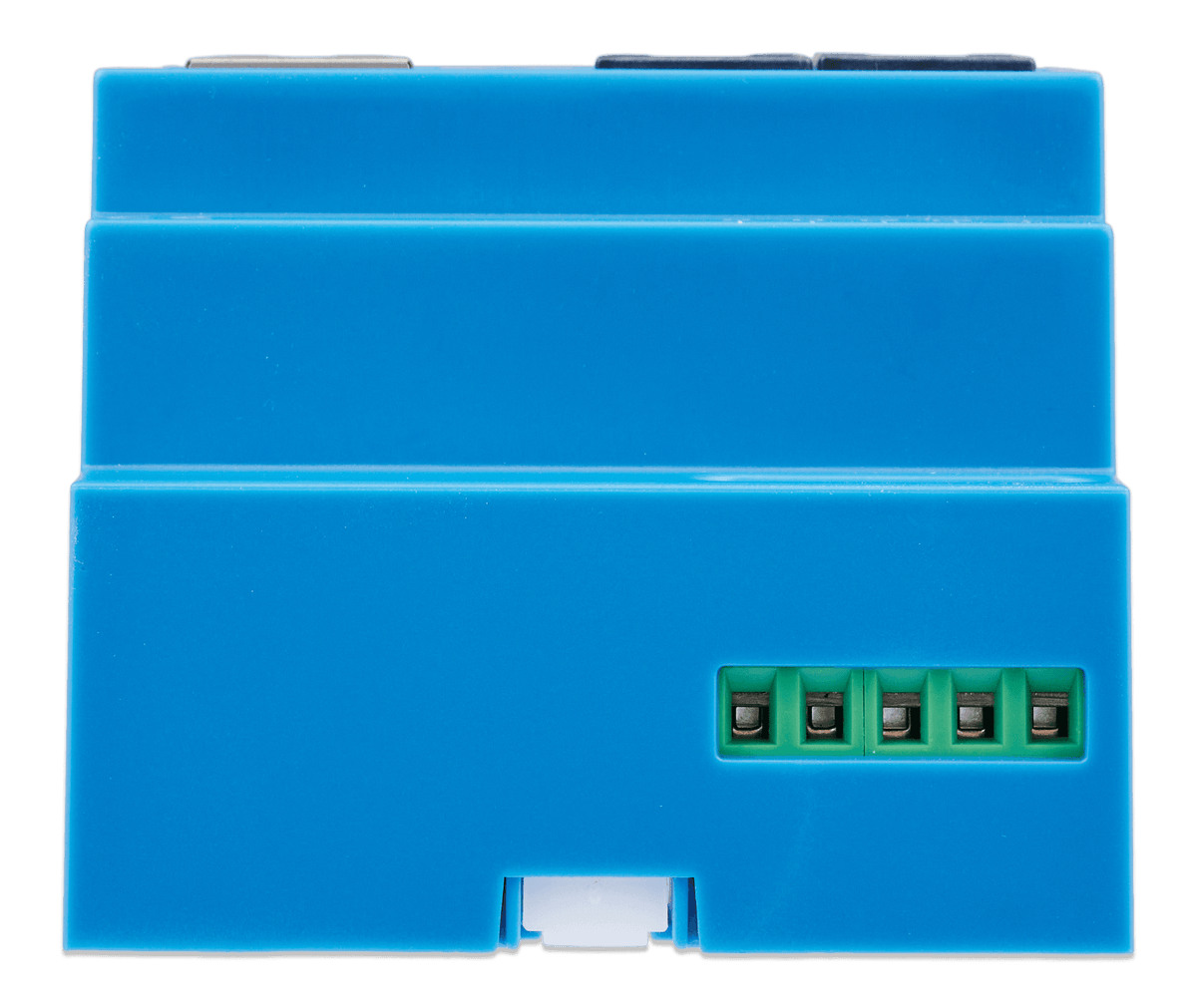

Victron Energy Meter VM-3P5A
An energy meter that measures AC power and energy and reports it to a Victron GX device, for ESS, PV inverter and grid monitoring.
Specifications (from Victron)

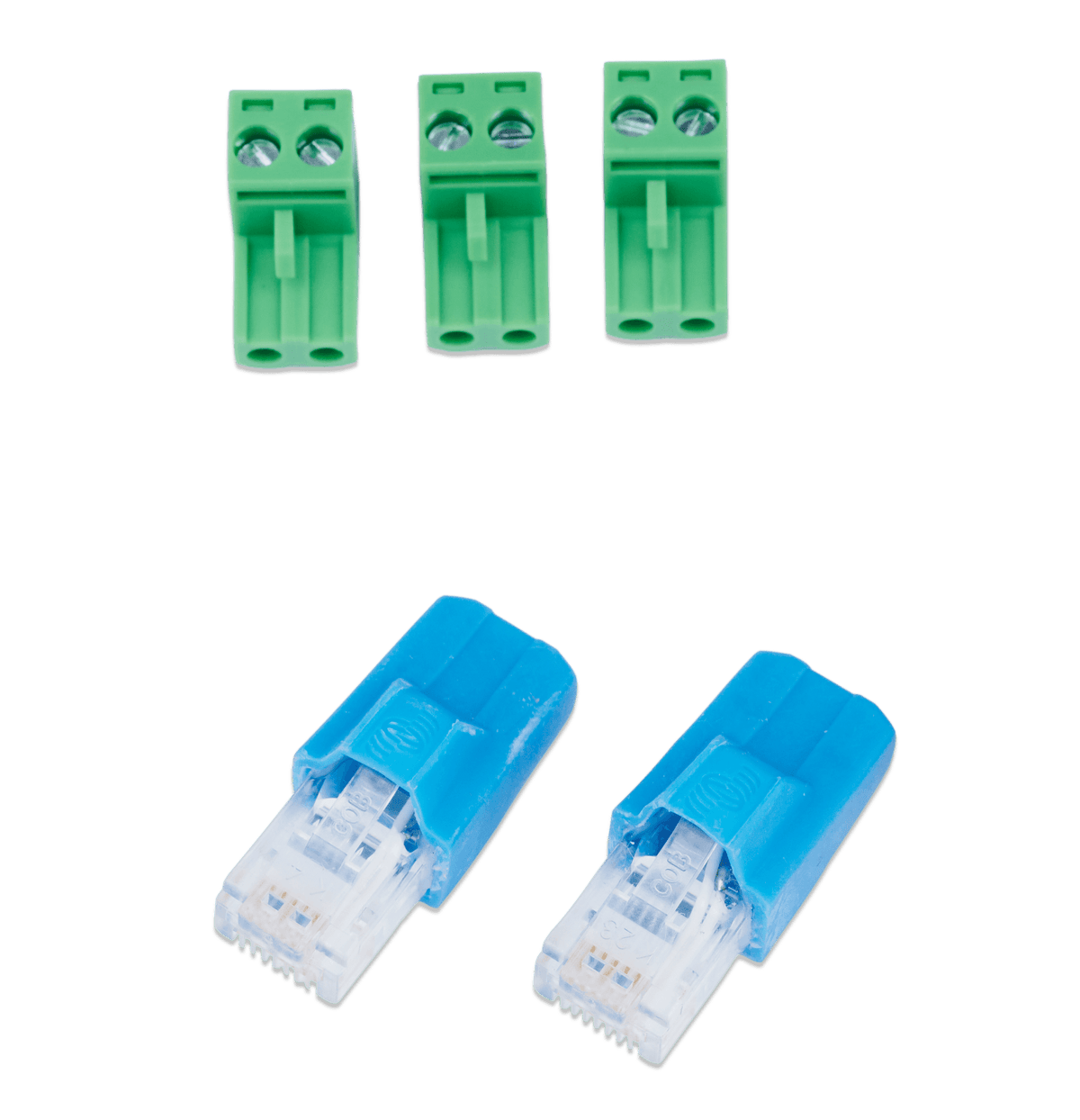

| VE.Can communication port | Two RJ45 connectors (VE.Can terminators included) |
| Ethernet communication port | One RJ45 connector, Modbus UDP |
| Voltage Connection | Direct |
| Refresh rate | 100 ms |
| Rated current | 5 A |
| Type | Self-powered supply via N-L1-L2-L3 |
| Consumption in VA | 3.5 VA |
| Consumption in W | 1.85 W |
| Input AC voltage range L - N | 85–265 VAC |
| Input AC voltage range L - L | 150–460 VAC |
| Current connection | Via current transformers (not included) |
| Frequency | 50Hz or 60Hz |
| Current Transformer connection | Pluggable screw terminals (included) |
| Protection category | IP20 |
| Material | polycarbonate |
| Colour | Blue (RAL 5012) |
| Storage temperature range | -4°F to 158°F (-20 to 70°C) |
| Pollution degree | 2 |
| Overvoltage category | Cat. III |
| Operating temperature range | 14°F to 131°F (-10 to 55°C) |
| Maximum relative humidity (non-condensing) | 90 % |
| Mains Voltage Fluctuations | ±0,1 Vin |
| Indoor or outdoor usage | Indoor only |
| Altitude | 2,000 m |
| Safety | EN-IEC 61010-1 |
| Dimensions (H x W x D) | 3.5 x 2.8 x 2.3 in (90 x 71 x 59 mm) |
| Weight | 0.6 lb (0.26 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | REL200320100 |
| UPC / EAN | 8719076072539 |
| Country of origin | India |
Documents
- Selection Guide - Energy Meters (datasheet)
- Victron Energy Meters VM-3P5A & VM-3P75CT (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
Energy Meters are typically used in an Energy Storage System, to measure the power and energy of the entire application at the distribution box and minimises energy import or export to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the Cerbo GX or Ekrano GX and the VRM Portal.
There are several models available from Victron:
- Victron VM-3P75CT energy meter (Ethernet and VE.Can - for three-phase and split-phase, uses supplied CTs, max. 80A per phase)
- Victron VM-3P5A energy meter (Ethernet and VE.Can - for three-phase and split-phase)
- ET112 (RS485 - for single-phase max 100A)
- ET340 (RS485 - for three-phase max. 65A)
- EM24 Ethernet (Ethernet - for three-phase max. 65A)
- EM540 (RS485 - for three-phase max. 65A)
For more information, please see the Selection Guide - Energy Meters PDF below.
