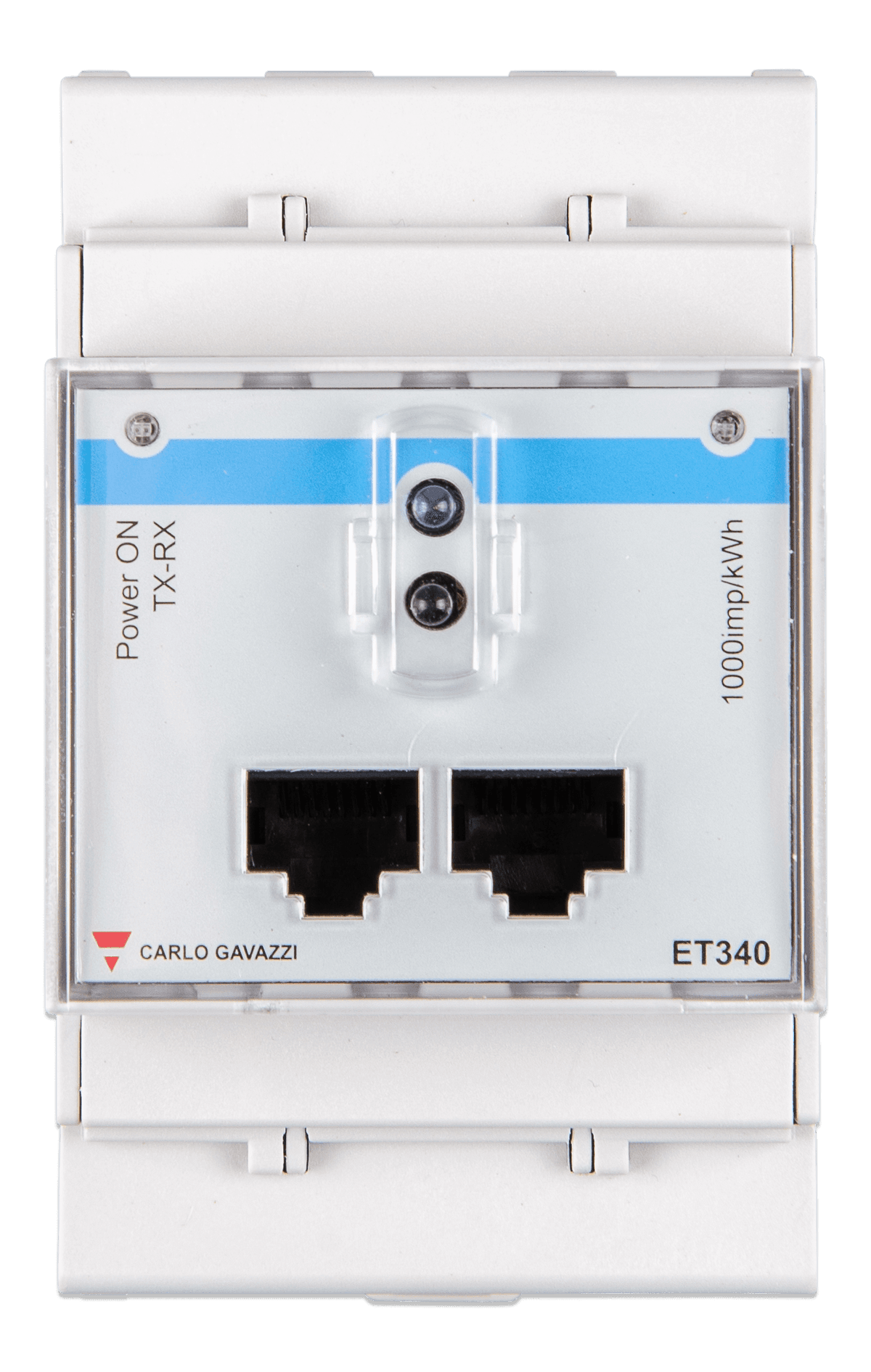

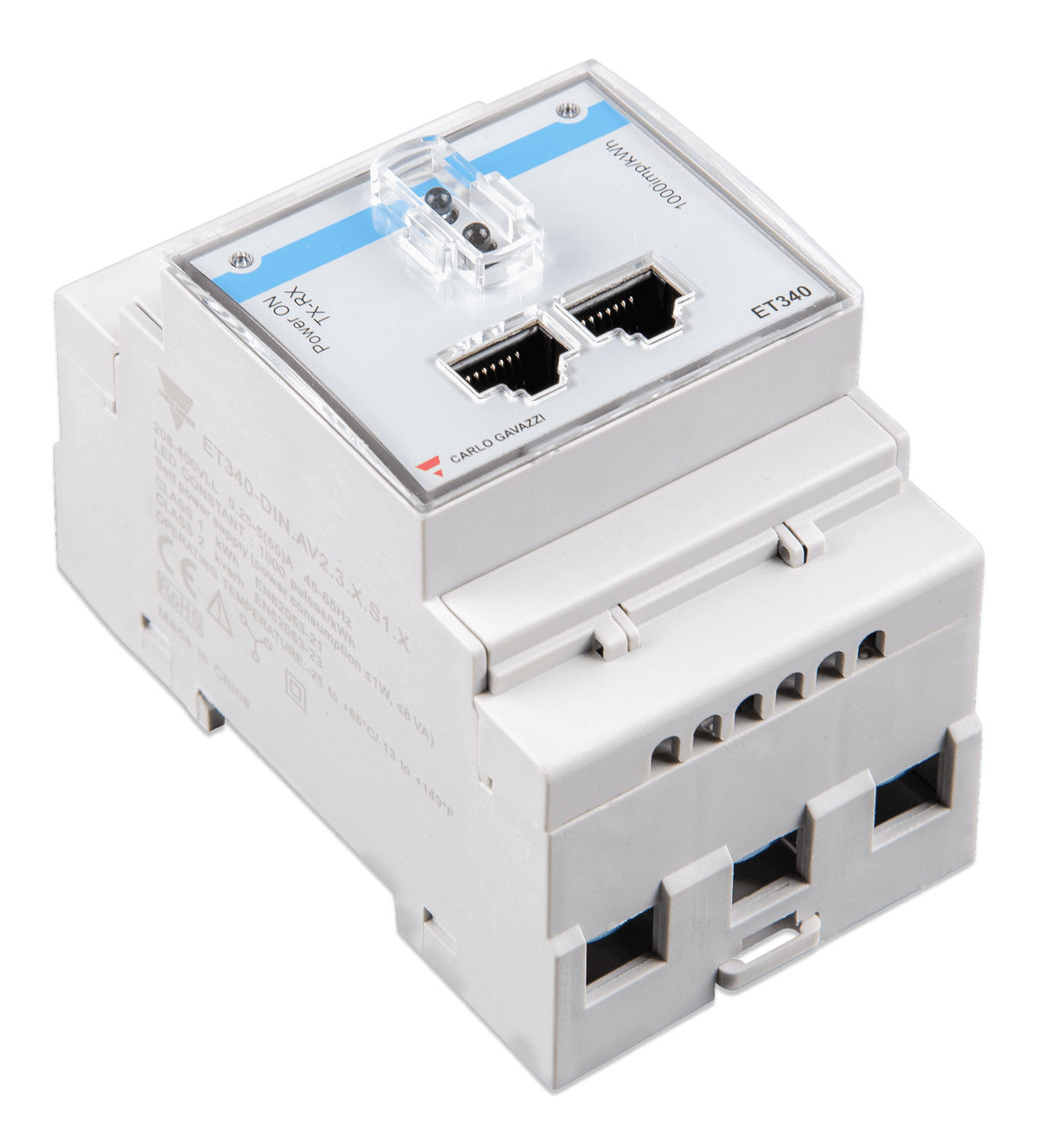

Victron Energy Meter ET340 - 3 phase - max 65A/phase [REL300300000]

Victron Energy Meter ET340 - 3 phase - max 65A/phase

An energy meter that measures AC power and energy and reports it to a Victron GX device, for ESS, PV inverter and grid monitoring.

Specifications (from Victron)

Documents

• Selection Guide - Energy Meters (datasheet)
• Victron Energy Meters VM-3P5A & VM-3P75CT (datasheet)
• Victron product page (manuals, drawings, certificates)

From Victron

Energy Meters are typically used in an Energy Storage System, to measure the power and energy of the entire application at the distribution box and minimises energy import or export to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the Cerbo GX or Ekrano GX and the VRM Portal.

There are several models available from Victron:

• Victron VM-3P75CT energy meter (Ethernet and VE.Can - for three-phase and split-phase, uses supplied CTs, max. 80A per phase)
• Victron VM-3P5A energy meter (Ethernet and VE.Can - for three-phase and split-phase)
• ET112 (RS485 - for single-phase max 100A)
• ET340 (RS485 - for three-phase max. 65A)
• EM24 Ethernet (Ethernet - for three-phase max. 65A)
• EM540 (RS485 - for three-phase max. 65A)

For more information, please see the Selection Guide - Energy Meters PDF below.

Buying from OnBoard

We install Victron systems on boats in Marathon and the Florida Keys. Not sure it's the right part for your system? Call 305-998-4300 or email contact@onboardmarinegoods.com and we'll help you pick it and plan the wiring before you buy. Local pickup is available at our shop on US-1 in Marathon.
