Description
Description

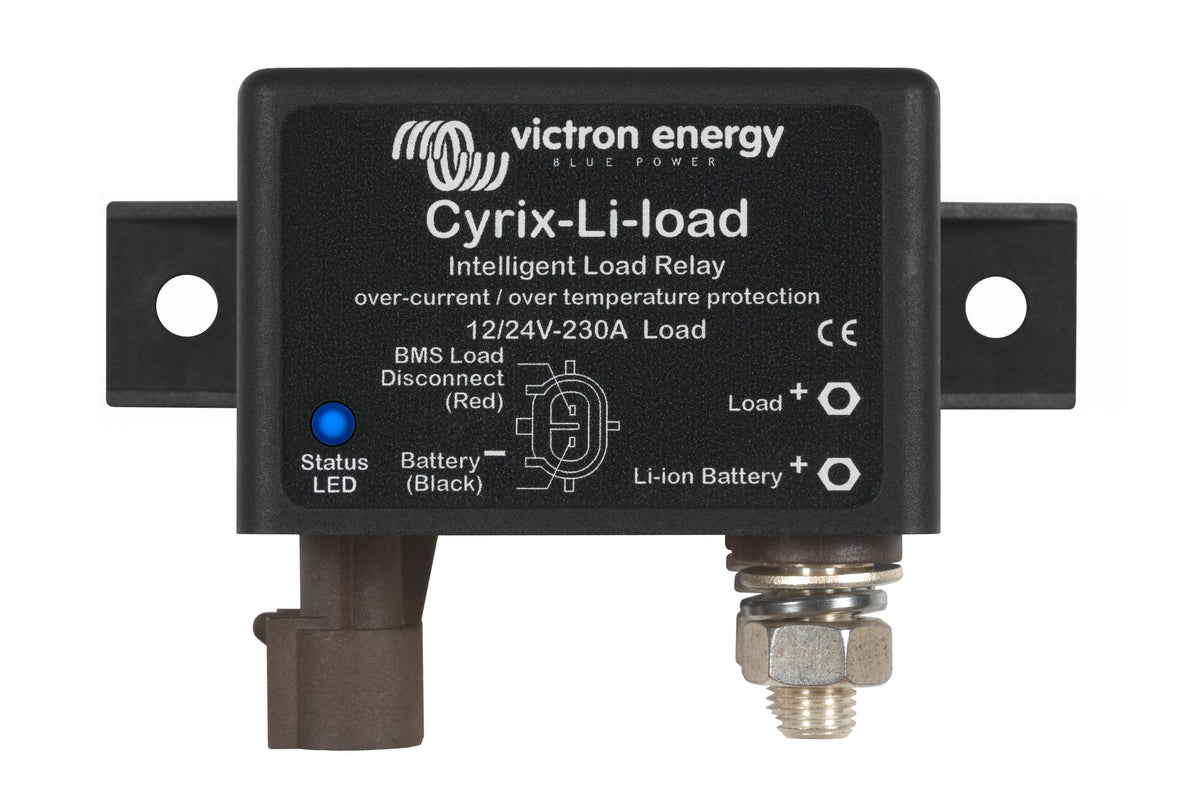

Victron Cyrix-Li-load 12/24V-230A intelligent load relay
A Victron Cyrix-Li intelligent relay that connects and disconnects lithium batteries under BMS control, protecting a LiFePO4 bank from over-charge and over-discharge.
Specifications (from Victron)
| Nominal Battery Voltage | 12V or 24V (automatic detection) |
| LED Status Indication | Yes |
| Current Consumption when Open | 4 mA |
| Control input | The Cyrix engages when the control input is high (appr. Battery voltage) The Cyrix disengages when the control input is left free floating or pulled low |
| Control Cable Included (1m) | Yes |
| Continuous current and breaking capacity at 12 or 24V | 230 A |
| Protection Category | IP54 |
| Dimensions (H x W x D) | 2.6 x 3.9 x 2 in (65 x 100 x 50 mm) |
| Weight | 0.6 lb (0.27 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | CYR010230450 |
| UPC / EAN | 8719076022244 |
| Country of origin | Malaysia |
Documents
- Cyrix Li-ion series 230 A (datasheet)
- Cyrix-ct 120A-230A (datasheet)
- Cyrix-i 400A 12/24V and 24/48V (datasheet)
- Victron product page (manuals, drawings, certificates)
From Victron
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
