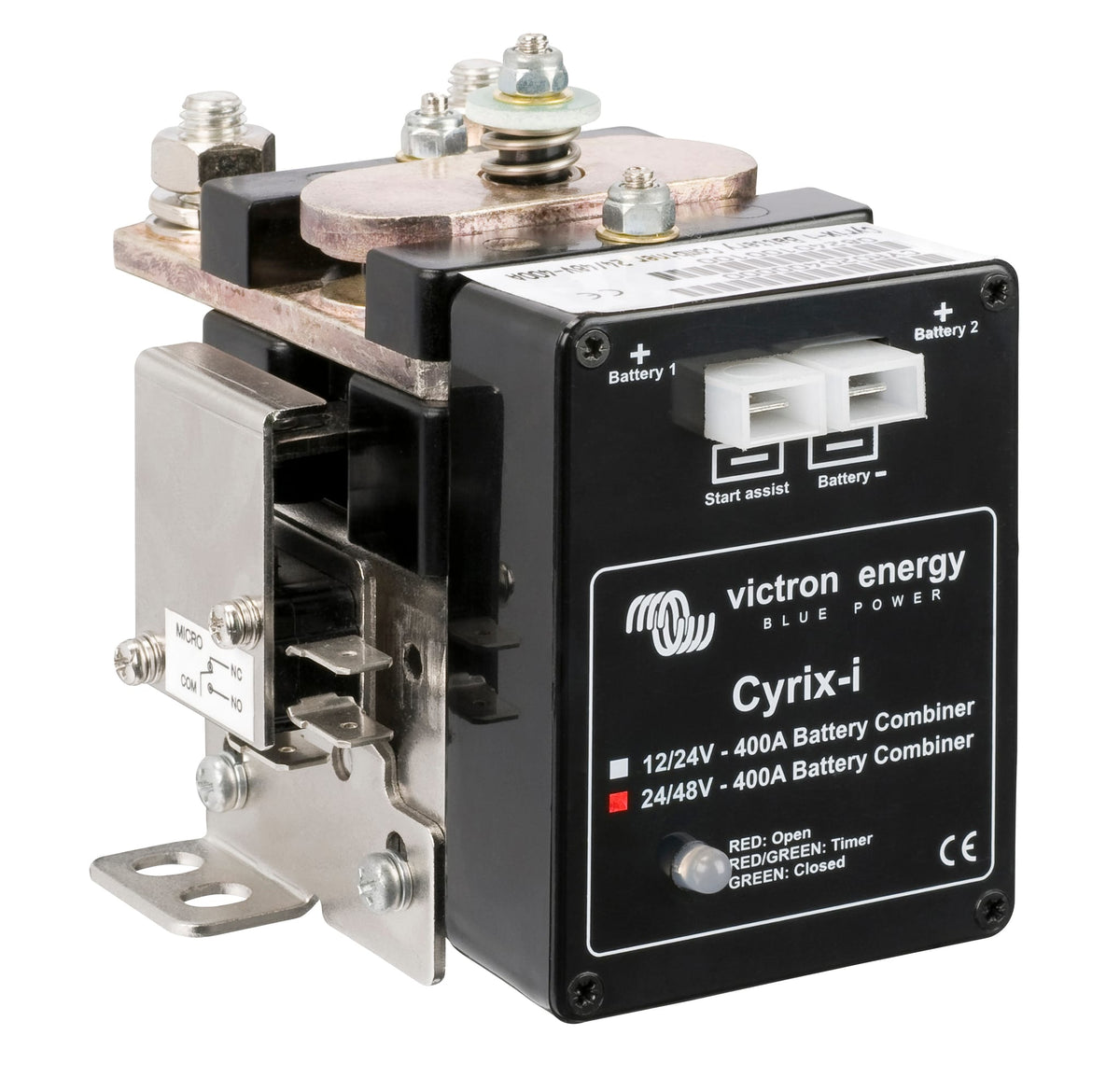

Victron Cyrix-i 24/48V-400A intelligent battery combiner
A Victron Cyrix intelligent battery combiner: it parallels two battery banks while charging and separates them when not, so the starter battery always stays charged.
Specifications (from Victron)
| Nominal Battery Voltage | 24V or 48V (automatic detection) |
| Input voltage range | 16–72 V |
| Overvoltage disconnect | 32V @24V / 64V @48V |
| Paek current rating (1 second) | 2,000 A |
| Microswitch for remote monitoring | Yes |
| Start Assist | Yes, 30 seconds |
| Connect/disconnect profiles | See table on website |
| Continuous Current | 400 A |
| Current Consumption when Open | 4 mA |
| LED Status Indication | Yes |
| Dimensions (H x W x D) | 3.1 x 4 x 4.3 in (78 x 102 x 110 mm) |
| Weight | 2 lb (0.9 kg) |
| Warranty | 5 years (Victron) |
| Victron part number | CYR020400000 |
| UPC / EAN | 8719076022305 |
| Country of origin | Malaysia |
Documents
From Victron
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
